1. Introduction
Thank you for choosing the YAOHUIMI HS-C remote control. This manual provides essential information for the proper setup, operation, and maintenance of your new remote control. This remote is specifically designed to be compatible with various Heat Surge Electric Fireplace Stove Heater models, including Mini Glo’s WB3, Accent W1B, Roll N Glows W17 (New 2018 Models), and S8. Please read these instructions carefully before use to ensure optimal performance and longevity of your device.
Important Note: This is not a universal remote control. It is designed for specific Heat Surge models as listed. If you are unsure about compatibility, please verify your fireplace model before attempting to use this remote.
2. Product Overview
The YAOHUIMI HS-C remote control provides convenient operation of your compatible Heat Surge electric fireplace. It features a simple, ergonomic design with clearly labeled buttons for various functions.
Image 2.1: Front view of the HS-C remote control, showing the Power, Timer Hours, Temperature Settings (Up/Down), and Heat High/Low/Fan buttons.
The remote control is designed for ease of use and features a durable construction. It also includes a wall mounting bracket for convenient storage and to help prevent misplacement.
Image 2.2: The HS-C remote control securely placed within its wall mounting bracket.

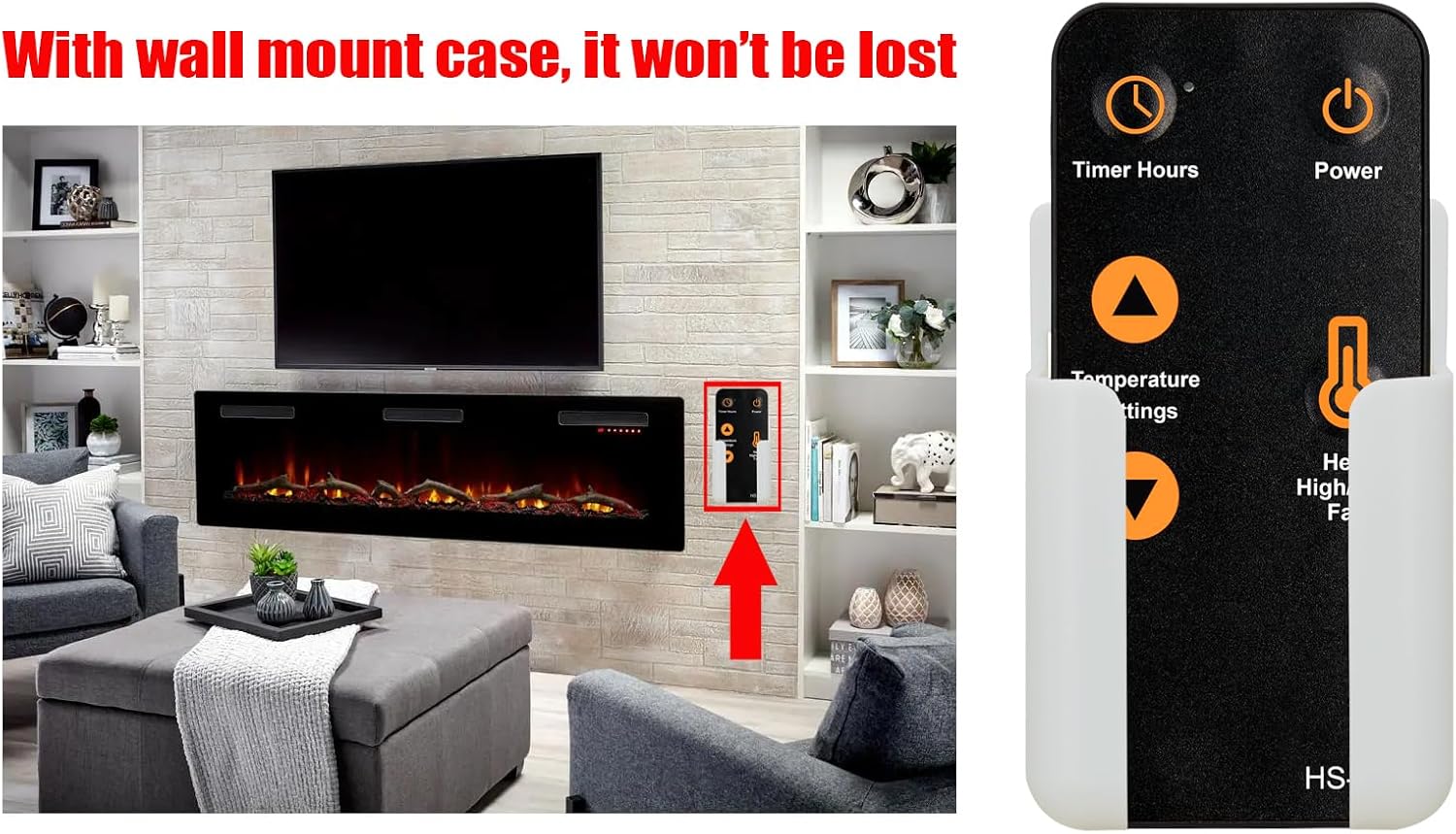

Image 2.3: Example of the remote control and its wall mount installed near an electric fireplace for easy access.
3. Setup
3.1 Battery Installation
The remote control requires two (2) AAA 1.5V batteries (not included). Follow these steps to install the batteries:
- Locate the battery compartment cover on the back of the remote control.
- Slide the battery compartment cover downwards to open it.
- Insert two AAA 1.5V batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.
Image 3.1: The battery compartment, indicating the use of AAA 1.5V batteries.
Image 3.2: This remote uses 1.5V AAA batteries, offering a longer lifespan compared to older designs that used coin batteries.
3.2 Initial Use
Once batteries are installed, the remote control is ready for use. No programming is typically required for compatible Heat Surge models. Simply point the remote towards your electric fireplace and press the desired function button.
4. Operating Instructions
Familiarize yourself with the buttons on your remote control and their corresponding functions:
- Power Button: Press to turn the electric fireplace ON or OFF.
- Timer Hours Button: Activates or adjusts the timer function for automatic shutdown. Each press typically cycles through available timer settings (e.g., 1 hour, 2 hours, etc.). Refer to your fireplace's manual for specific timer increments.
- Temperature Settings (Up/Down) Buttons: Use the up (▲) and down (▼) arrow buttons to increase or decrease the desired temperature setting of the fireplace heater.
- Heat High/Low/Fan Button: Cycles through different heat settings (e.g., High Heat, Low Heat) and fan-only mode (if applicable to your fireplace model). Press repeatedly to select the desired mode.
Ensure there are no obstructions between the remote control and the fireplace's infrared receiver for proper operation. The effective range of the remote control may vary depending on environmental conditions and battery strength.
5. Maintenance
5.1 Battery Replacement
Replace the batteries when the remote control's performance diminishes or if it stops responding. Always replace both AAA 1.5V batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries.
5.2 Cleaning
To clean the remote control, wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the surface or internal components.
5.3 Storage
When not in use for extended periods, remove the batteries to prevent leakage and potential damage to the remote control. Store the remote in a cool, dry place, away from direct sunlight and extreme temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not responding | Dead or incorrectly installed batteries. Obstruction between remote and fireplace. Remote is out of range. Incompatible fireplace model. |
|
| Intermittent response | Weak batteries. Infrared interference. |
|
| Specific functions not working | Fireplace model does not support the function. | Refer to your fireplace's original instruction manual to confirm supported features. |
7. Specifications
- Model: HS-C (20211004HEATSURGE-(HS-C)-01)
- Compatibility: Heat Surge Electric Fireplace Stove Heater Infrared Remote Control Touch Screen Models with FAN Option Mini Glo’s WB3, Accent W1B, Roll N Glows W17 (New 2018 Models), S8
- Power Source: 2 x AAA 1.5V Batteries (not included)
- Item Weight: Approximately 1.13 ounces (without batteries)
- Package Dimensions: 6.22 x 3.23 x 1.85 inches
- Special Feature: Ergonomic design
8. Warranty and Support
For any questions regarding the compatibility, setup, or operation of your YAOHUIMI remote control, please contact the seller or manufacturer directly through your purchase platform. Please have your product model number (HS-C) and your fireplace model information ready when contacting support.
