1. Introduction
The GÜDE Rollzeef GRS 375 is an electric drum sieve designed for efficiently sifting and separating various materials such as compost, soil, and sand. Its robust construction and user-friendly features make it ideal for garden and landscaping tasks. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.

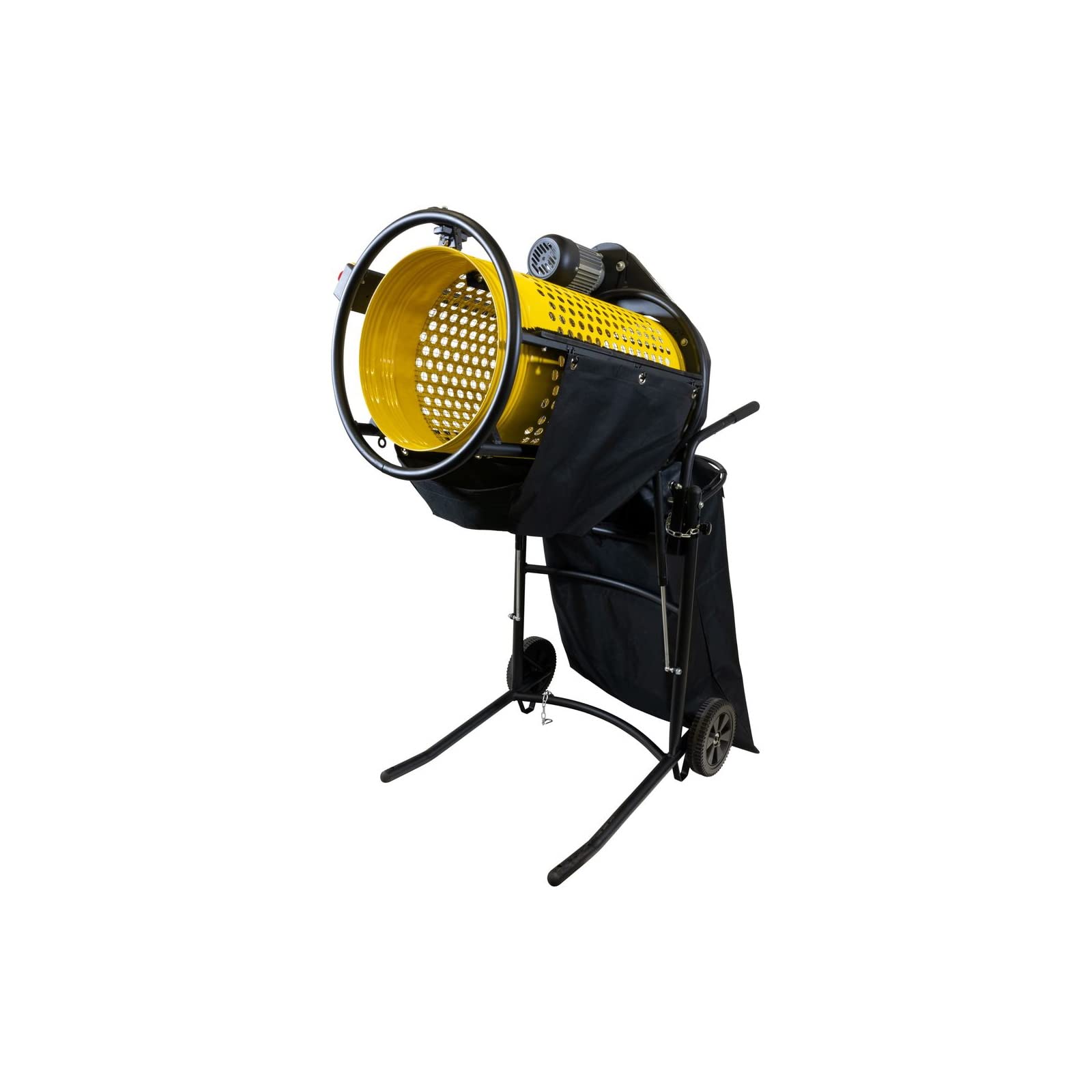

Image 1.1: Front view of the GÜDE Rollzeef GRS 375 electric drum sieve, showing the cylindrical drum and collection bag.
2. Safety Instructions
Always read and understand all safety warnings and instructions before operating this machine. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Personal Protective Equipment: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and sturdy gloves when operating the sieve.
- Work Area: Ensure the work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the operating machine.
- Electrical Safety: Connect the machine only to a properly grounded outlet. Do not operate in wet conditions or expose to rain. Inspect the power cord for damage before each use.
- Stable Surface: Place the sieve on a firm, level surface to prevent tipping during operation.
- Material Handling: Do not overload the drum. Only sift materials specified for this machine (compost, soil, sand). Avoid sifting large stones, metal objects, or other debris that could damage the drum or motor.
- Maintenance: Disconnect the power plug from the outlet before performing any adjustments, cleaning, or maintenance.
3. Package Contents
Carefully unpack all components and check for any damage. Ensure all items listed below are present:
- GÜDE Rollzeef GRS 375 Drum Sieve Unit
- 10 mm Sieve Insert (pre-installed or separate)
- Collection Bag
- Instruction Manual
4. Setup
Follow these steps to set up your GRS 375 drum sieve:
- Unpacking and Positioning: Remove all packaging materials. Place the sieve on a stable, level surface in your work area. Ensure there is enough space around the machine for safe operation and material handling.
- Assembly (if required): The GRS 375 is designed for easy assembly and can be collapsed for transport. If not already assembled, attach the stand and wheels according to the diagrams. Secure all fasteners tightly.
- Installing the Sieve Insert: The machine comes with a 20 mm mesh drum and a 10 mm wire sieve insert. To use the 10 mm mesh, carefully place the wire insert inside the main drum. Ensure it is seated correctly and securely.
- Adjusting the Tilt Angle: The sieve's tilt angle can be adjusted to one of three positions: 0°, 6°, or 8°. This adjustment influences the sifting speed and efficiency. Use the adjustment mechanism (often involving gas struts or pins) on the side of the frame to select the desired angle. Ensure the mechanism is securely locked in place after adjustment.
Image 4.1: Side view illustrating the tilt adjustment mechanism of the sieve.
Image 4.2: Detail of the chain used for securing or adjusting the sieve's position.
Image 4.3: Side view showing the transport wheels and handles for easy maneuverability.
5. Operating Instructions
Before starting, ensure all safety precautions are observed and the machine is correctly set up.
- Power Connection: Connect the machine to a standard 230 V, 50 Hz power outlet. Ensure the protection class IP44 is suitable for your environment.
- Starting the Machine: Locate the control panel. Press the green 'ON' button to start the drum rotation.
Image 5.1: Control panel with green start button and red stop button.
- Loading Material: Gradually feed the material (compost, soil, sand) into the rotating drum. Avoid dumping large quantities at once, as this can overload the motor and reduce sifting efficiency.
- Sifting Process: The rotating drum will separate finer particles, which will fall through the mesh into the collection bag positioned underneath. Larger debris will be discharged from the end of the drum.
- Emptying the Collection Bag: Periodically check and empty the collection bag to prevent overflow and maintain efficient operation.
- Stopping the Machine: To stop the machine, press the red 'OFF' button on the control panel. Disconnect the power plug from the outlet after use.
Image 5.2: Interior view of the drum, showing the mesh for sifting materials.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your GRS 375 drum sieve.
- Cleaning: After each use, disconnect the power and clean the drum, frame, and collection bag. Remove any accumulated material, especially from the mesh, to prevent clogging and corrosion. Use a brush or compressed air for the drum.
- Inspection: Periodically inspect all fasteners, cables, and connections for wear or damage. Replace any damaged parts immediately.
- Storage: Store the machine in a dry, protected area when not in use. The GRS 375 can be partially collapsed for more compact storage.
7. Troubleshooting
If you encounter issues with your GRS 375, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply Emergency stop engaged Damaged power cord | Check power connection and outlet Release emergency stop button Inspect and replace power cord if damaged (contact service) |
| Poor sifting performance | Drum overloaded Mesh clogged Incorrect tilt angle | Reduce material input Clean the drum mesh Adjust tilt angle for optimal flow |
| Unusual noise or vibration | Loose components Foreign object in drum Motor issue | Check and tighten all fasteners Disconnect power and remove foreign objects Contact customer support |
8. Specifications
| Specification | Value |
|---|---|
| Net Voltage | 230 V |
| Frequency | 50 Hz |
| Protection Class | IP44 |
| Motor Power (P1) | 360 W |
| Standard Mesh Size | 20 mm |
| Sieve Insert Mesh Size | 10 mm |
| Drum Diameter | 375 mm |
| Drum Length | 785 mm |
| Drum Speed | 45 rpm |
| Tilt Angle Adjustment | 0° / 6° / 8° (3 positions) |
| Sound Power Level LwA | 101 dB |
| Dimensions (L x W x H) | 1080 x 652 x 1350 mm |
| Net Weight | 31 kg |
| Gross Weight | 40.5 kg |
9. Warranty and Support
For warranty information, technical support, or spare parts, please contact your retailer or the manufacturer directly. You can find more information on the official GÜDE website:
Please have your model number (GRS 375) and manufacturer reference (94414) ready when contacting support.
