1. Product Overview
The DELINIA NATU Wall-Mounted Kitchen Faucet is a high-quality single-lever mixer designed for kitchen use. Constructed from brass, a durable alloy of zinc and copper, it offers excellent corrosion resistance and longevity. Its chrome-plated finish provides a sleek, modern aesthetic.
This faucet features a flexible design suitable for installation above single or double sinks, allowing the spout to be rotated to any desired position. It is equipped with a laminar water jet, ensuring quiet operation and minimizing splashes.
Figure 1.1: Overview of the DELINIA NATU Wall-Mounted Kitchen Faucet.
2. Setup and Installation
The DELINIA NATU kitchen mixer is designed for quick and easy wall-mounted installation. The necessary mounting hardware is included in the kit, though supply hoses are not. Connection is made to the wall via two holes.
For optimal performance and to prevent splashing, a mounting height of 15 to 20 cm above the sink is recommended. This height provides comfortable space for washing hands and dishes.
Figure 2.1: Included components for the DELINIA NATU faucet installation. This image shows the main faucet body, the spout, two wall escutcheons, two brass adapters, and rubber washers, which are part of the mounting kit.
Figure 2.2: The DELINIA NATU faucet installed above a kitchen sink. This illustrates the typical appearance and positioning of the faucet once mounted on the wall.
Installation Steps:
- Prepare the Installation Area: Ensure the wall connections are ready and clean.
- Attach Adapters: Secure the brass adapters to the wall water outlets.
- Mount the Faucet Body: Connect the main faucet body to the adapters. Ensure all connections are tight and leak-free.
- Install the Spout: Attach the spout to the faucet body.
- Test for Leaks: Slowly turn on the water supply and check for any leaks at the connections.
3. Operating Instructions
The DELINIA NATU faucet features a single lever for controlling both water flow and temperature. Move the lever up to increase flow and down to decrease it. Move the lever left for hot water and right for cold water.
The spout can be rotated 360 degrees, providing flexibility for various sink configurations and tasks. The integrated laminar water jet ensures a smooth, quiet flow without splashing, enhancing user comfort.
Figure 3.1: Illustration of the laminar jet feature and water flow rate indicators. The laminar jet ensures a smooth, splash-free water stream, and the green indicator suggests an efficient flow rate of 4-9 liters per minute.
4. Maintenance and Care
To maintain the appearance and functionality of your DELINIA NATU faucet, regular cleaning is recommended. The faucet can be easily cleaned with water and soap. Wipe it with a soft cloth to prevent water spots and maintain its chrome finish.
Important: Never use abrasive cleaners, acids, or chlorine-containing products, as these can damage the surface finish and internal components of the faucet.
5. Troubleshooting
This section provides solutions to common issues you might encounter with your faucet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or partially closed shut-off valve. | Clean the aerator or ensure shut-off valves are fully open. |
| Leaking from Spout | Worn-out cartridge or seals. | Contact customer support for replacement parts or professional assistance. |
| Water Temperature Issues | Incorrect hot/cold water supply connections or water heater issues. | Verify supply line connections; check water heater settings. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | DELINIA |
| Model Number | 3276000592228 |
| Material | Copper alloy, Zinc, Brass |
| Item Weight | 1.18 Kilograms |
| Mounting Type | Wall-mounted |
| Spout Rotation | 360 degrees |
| Water Jet Type | Laminar |

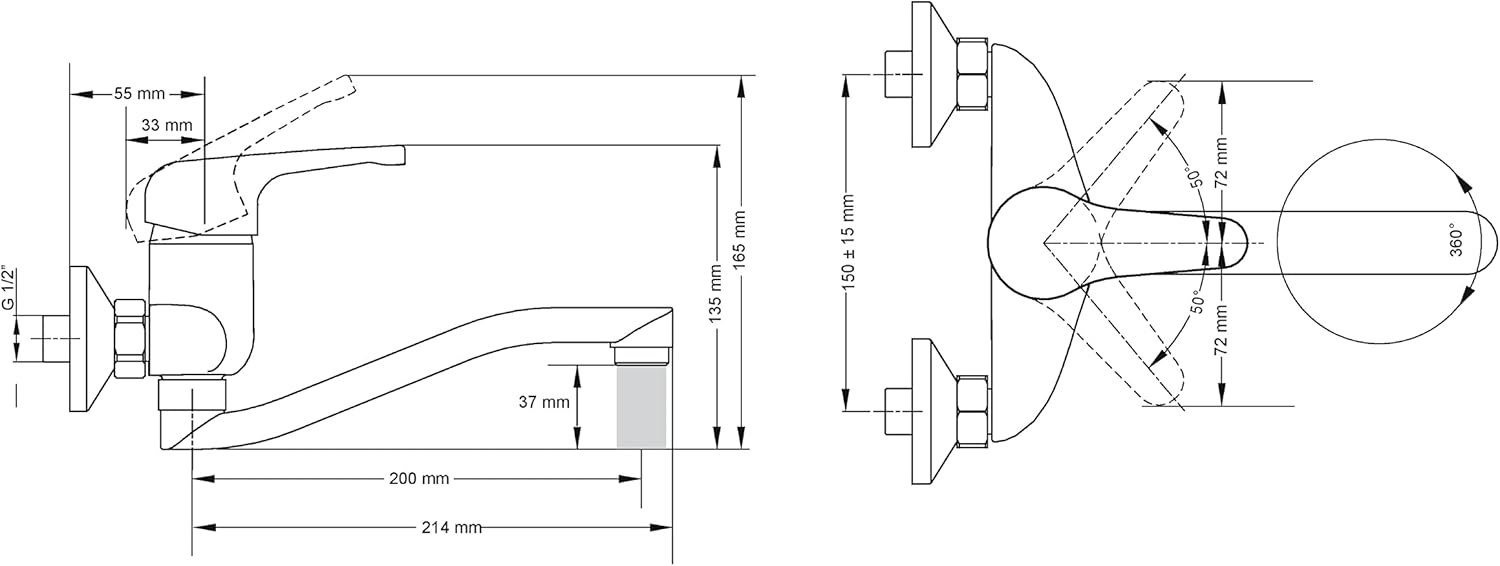

Figure 6.1: Technical drawing showing the dimensions of the DELINIA NATU faucet. This includes measurements for height, width, spout reach, and connection points, crucial for installation planning.
7. Warranty and Support
Warranty Information:
Specific warranty details for the DELINIA NATU Wall-Mounted Kitchen Faucet are not provided in this manual. Please refer to your purchase documentation or the manufacturer's official website for comprehensive warranty terms and conditions.
Customer Support:
For technical assistance, spare parts, or any inquiries regarding your DELINIA product, please contact DELINIA customer service. You may find contact information on the official DELINIA website or through your retailer.
