1. Introduction and Product Overview
This manual provides essential information for the assembly, operation, and maintenance of your Dancover San Pablo Bioclimatic Pergola. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
The San Pablo Bioclimatic Pergola is a high-quality outdoor structure designed to provide shade and shelter. It features an innovative louvered roof system that can be easily adjusted using crank handles, allowing you to control sunlight exposure and protection from light rain. Constructed from durable, maintenance-free aluminum, this pergola is waterproof and UV-resistant, making it a versatile addition to any garden, patio, or poolside area.

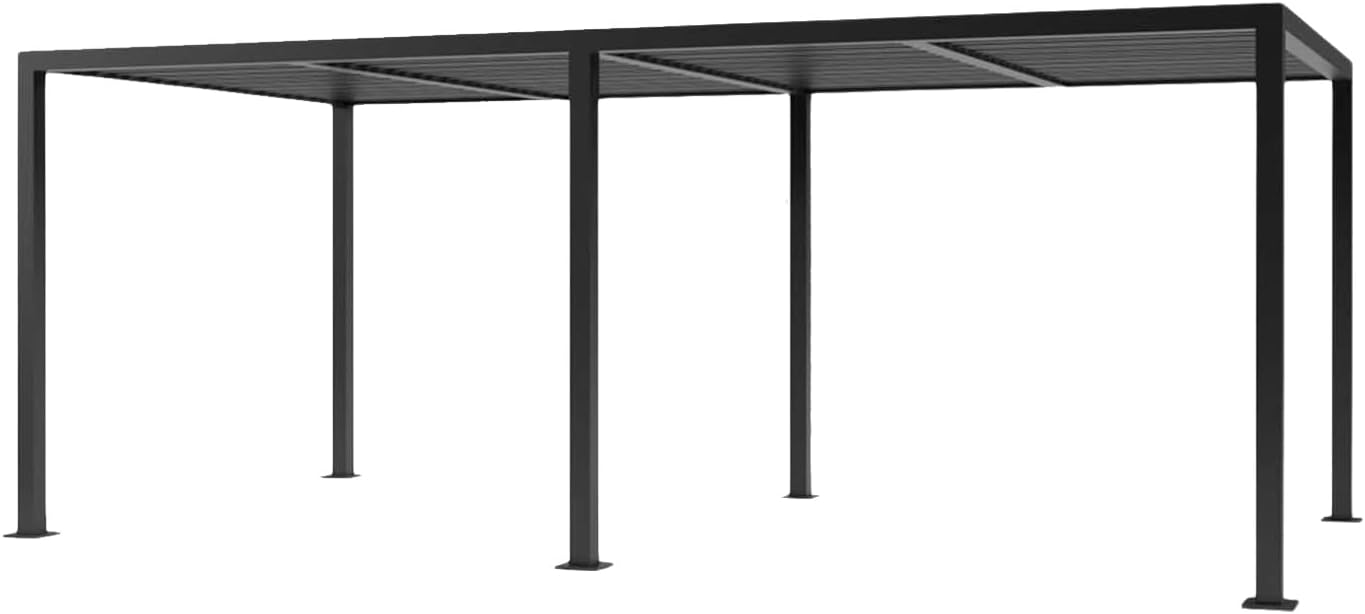

Figure 1.1: The San Pablo Bioclimatic Pergola, showcasing its robust black aluminum frame and louvered roof structure.
2. Safety Instructions
Always follow these safety guidelines to prevent injury or damage to the product:
- Ensure all components are securely fastened during assembly. Regularly check all bolts and connections for tightness.
- Do not attempt to assemble the pergola in strong winds or adverse weather conditions.
- The pergola is designed for shade and light rain protection. It is not intended to withstand heavy downpours, torrential rain, or strong winds. Close the louvers during heavy precipitation or high winds to minimize stress on the structure.
- Do not hang heavy objects from the pergola frame or louvers.
- Keep children and pets away from the assembly area.
- If side walls are added (sold separately), ensure they are properly installed and secured according to their specific instructions.
- Consult local building codes and regulations before installation, especially regarding anchoring and proximity to other structures.
3. Setup and Assembly
Assembly of the San Pablo Bioclimatic Pergola is required. It is recommended that at least two adults participate in the assembly process due to the size and weight of the components. Ensure you have adequate space and all necessary tools before beginning.
3.1. Package Contents
Before starting assembly, verify that all parts listed in the packaging contents are present and undamaged. Refer to the detailed parts list provided with your product packaging.
3.2. Assembly Steps
- Unpack and Organize: Carefully unpack all components and lay them out on a clean, flat surface. Group similar parts together.
- Frame Assembly: Begin by assembling the main aluminum frame according to the provided diagrams. Ensure all connections are secure but do not fully tighten bolts until the entire frame is upright and aligned.
- Post Installation: Securely attach the support posts to the main frame. Ensure the posts are plumb and level before final tightening.
- Louver Installation: Install the individual louver blades into the roof mechanism. Pay close attention to the orientation of each blade as indicated in the assembly instructions.
- Crank Mechanism Attachment: Attach the crank handles and associated mechanisms that control the louver movement. Test the mechanism to ensure smooth operation.
- Anchoring: Once fully assembled and positioned, securely anchor the pergola to the ground or patio surface using appropriate hardware (not always included, check packaging). This is crucial for stability and safety.

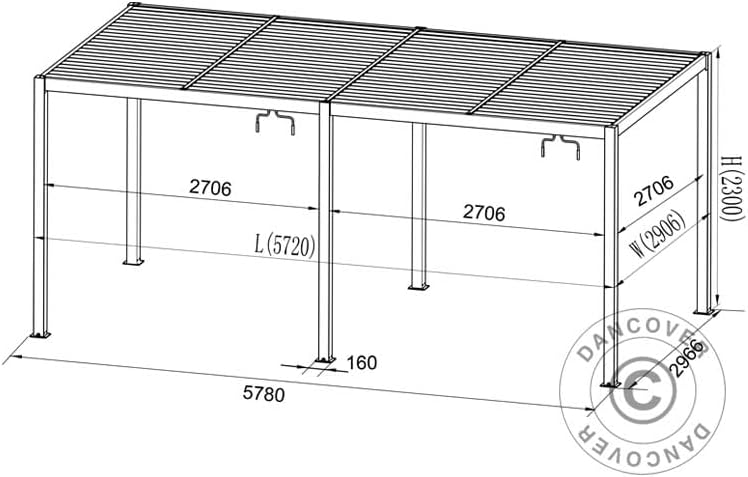

Figure 3.1: Technical drawing illustrating the dimensions and structural layout of the pergola, useful for planning installation.
4. Operating Instructions
The San Pablo Bioclimatic Pergola features an adjustable louvered roof system for versatile use.
4.1. Adjusting the Louvers
The roof louvers are controlled by integrated crank handles. To adjust the louvers:
- To Open: Rotate the crank handle in the direction indicated (usually clockwise) to open the louvers. This allows sunlight to pass through and provides ventilation.
- To Close: Rotate the crank handle in the opposite direction (usually counter-clockwise) to close the louvers. This provides full shade and protection from light rain.
Figure 4.1: Detail of the manual crank mechanism used to adjust the roof louvers.
Figure 4.2: View of the roof louvers in the open position, allowing sunlight and air circulation.

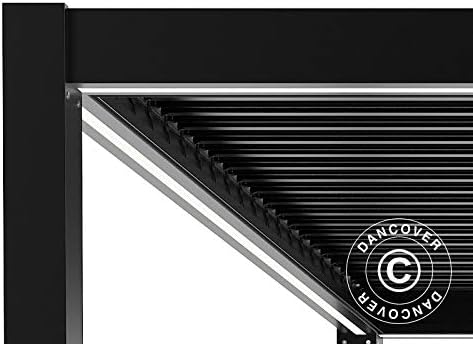

Figure 4.3: View of the roof louvers in the closed position, providing full shade and rain protection.
4.2. Water Drainage System
The pergola is equipped with an integrated gutter system to manage rainwater when the louvers are closed. Water is channeled through the frame and down the posts. Ensure the drainage outlets at the base of the posts are clear of debris to allow proper water flow.
Figure 4.4: Diagram illustrating how rainwater is collected by the closed louvers and channeled through the integrated gutter system down the pergola posts.
5. Maintenance
The Dancover San Pablo Bioclimatic Pergola is designed to be low-maintenance due to its aluminum construction.
- Cleaning: Clean the aluminum frame and louvers periodically with a soft cloth, mild soap, and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Drainage: Regularly check and clear any leaves or debris from the louver channels and the internal drainage system within the posts to ensure proper water runoff.
- Fasteners: Periodically inspect all bolts and fasteners to ensure they remain tight. Re-tighten if necessary.
- Winter Care: In areas with heavy snowfall, it is recommended to keep the louvers open to prevent snow accumulation, which could put excessive weight on the structure.
6. Troubleshooting
This section addresses common issues you might encounter with your pergola.
| Problem | Possible Cause | Solution |
|---|---|---|
| Louvers are difficult to open/close. | Debris in channels, mechanism obstruction, or loose connections. | Inspect louver channels for debris and clear them. Check the crank mechanism for any obstructions. Ensure all connecting bolts are secure. |
| Water pooling on closed louvers or leaking. | Drainage system clogged, or louvers not fully closed. | Ensure louvers are fully closed. Clear any debris from the louver channels and the internal drainage system within the posts. Note: The pergola is waterproof for light rain, but not torrential downpours. |
| Pergola feels unstable. | Improper anchoring or loose frame connections. | Verify that the pergola is securely anchored to the ground. Check and tighten all frame bolts and connections. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | PA153020-fr |
| Dimensions (L x W x H) | 5.78 m x 2.97 m x 2.30 m (Length x Width x Height) |
| Product Dimensions (L x W x H) | 2.3 x 2.97 x 2.3 cm (packaging/shipping dimensions, refer to main dimensions for assembled size) |
| Weight | 281.3 kg |
| Roof Material | Aluminum Louvers |
| Frame Material | Powder-coated Aluminum (Black) |
| Post Dimensions | 100x100x1.6mm + 100x120x2mm + 105x120x2mm |
| Water Resistance | Waterproof (Note: Not for torrential rain) |
| UV Resistance | Yes |
| Assembly Required | Yes |
| Standard Compliance | EN 13659:2015 |
8. Warranty and Support
For information regarding warranty coverage, spare parts, or technical support, please contact Dancover customer service or the retailer from whom you purchased the product. Please have your model number (PA153020-fr) and purchase details ready when contacting support.
Note: Information regarding spare parts availability is not provided in the product specifications.
