Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Dancover Paviljong Osiris 4x4m Gazebo. Please read all instructions carefully before assembly and use to ensure safe and correct operation.

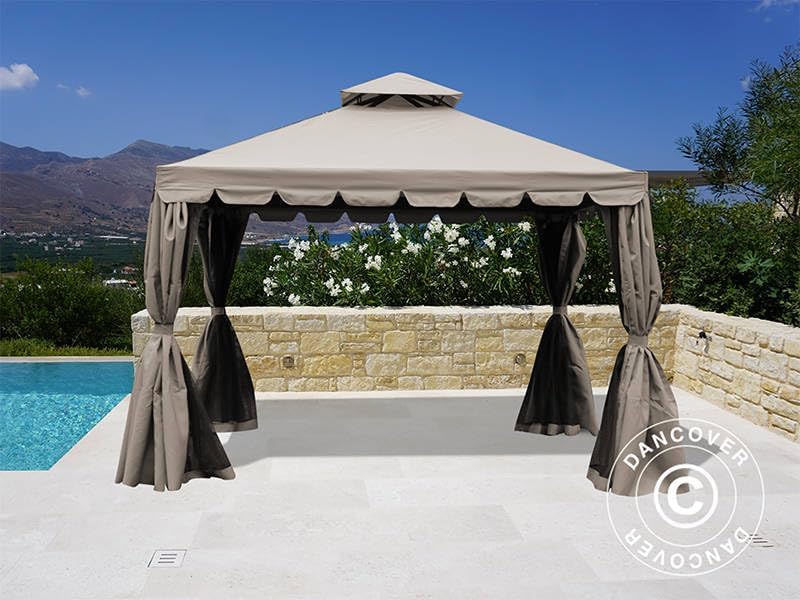

Image: The Dancover Paviljong Osiris 4x4m Gazebo, showcasing its design and open configuration.
Safety Instructions
- Always ensure the gazebo is assembled on a flat, stable surface.
- Secure the gazebo properly to the ground using appropriate anchors to prevent wind damage.
- Important: In case of heavy rain or strong winds, the roof cover and side covers must be removed to prevent damage. Damage caused by heavy wind and rain is not covered by the warranty.
- Keep all flame and heat sources away from the gazebo fabric.
- Do not hang heavy objects from the frame.
- Regularly inspect all components for wear and tear. Replace damaged parts immediately.
Package Contents
Verify that all components are present before beginning assembly. Refer to the parts list (not provided in JSON, so I'll generalize).
- Steel frame components (tubes, fittings)
- Roof fabric (240g/m² Polyester with PU coating)
- Sidewall curtains (160g/m² Polyester)
- Mosquito nets (30g/m² mesh)
- Double aluminum curtain rods
- Hooks for curtain fastening
- Assembly hardware
Setup and Assembly
Assembly requires at least two adults. Follow these general steps. Detailed diagrams are typically included with the product.
- Unpack Components: Carefully unpack all parts and lay them out on a clean, flat surface. Check against the package contents list.
- Assemble Frame: Connect the powder-coated steel tubes and fittings to form the base and roof structure. Ensure all connections are secure.
- Attach Roof Fabric: Carefully place the roof fabric over the assembled roof frame. Ensure it is centered and taut.
- Install Double Curtain Rods: Attach the double aluminum curtain rods to the frame. These rods feature a sliding function for easy curtain movement.
- Mount Mosquito Nets: Attach the mosquito nets to the inside of the gazebo legs using the provided hooks.
- Install Sidewall Curtains: Attach the regular sidewall curtains to the outer curtain rods using the hooks. The exclusive double curtain rod system allows for flexible combinations of mosquito nets and sidewall curtains.
- Secure Gazebo: Anchor the gazebo firmly to the ground using stakes or weights (not explicitly mentioned but implied for outdoor structures).

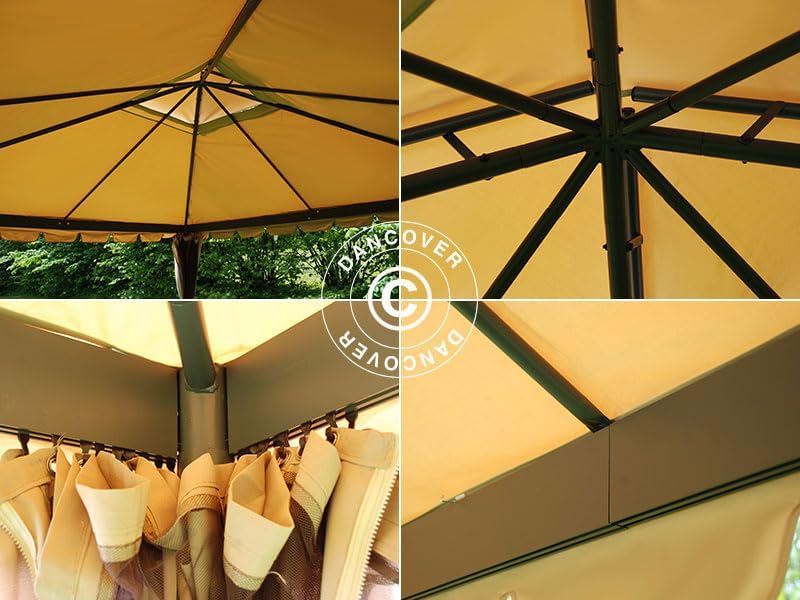

Image: Detailed view of the durable steel frame construction and the easy fastening system for curtains with hooks.
Image: Dimensional diagram of the Osiris gazebo, indicating width, length, side height, and ridge height.
Operating Instructions
Curtain and Mosquito Net Usage
The Dancover Osiris gazebo features a versatile double curtain rod system, allowing you to customize your enclosure.
- Opening/Closing: The curtains and mosquito nets are designed to slide easily along the aluminum rods. Simply pull them to open or close.
- Combinations: You can choose to have mosquito nets on all sides for insect protection, or combine them with the regular sidewall curtains for privacy and additional shade. For example, use mosquito nets on two sides and regular curtains on the other two.
- Zipper Openings: The curtains are equipped with zipper openings for convenient entry and exit.
Image: Interior view demonstrating the mosquito nets and sidewall curtains, including a detail of the zipper opening.
Image: The gazebo with both mosquito net and a regular curtain partially drawn, illustrating the double rod system.
Ventilation
The gazebo features a high top ventilation system to ensure air circulation and reduce heat buildup inside.
Image: Inside view of the gazebo roof, highlighting the high top ventilation system and frame.
Image: The gazebo fully enclosed with all sidewall curtains drawn, offering privacy and protection.
Maintenance
- Cleaning Fabric: Clean the roof and sidewall fabrics with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before storage.
- Frame Care: Wipe the steel frame with a damp cloth to remove dirt. The powder-coated finish provides good anti-corrosion treatment, but regular cleaning helps maintain its appearance.
- Seasonal Storage: For prolonged periods of non-use or during harsh weather conditions (winter), it is recommended to disassemble and store the gazebo in a dry, protected area.
- Weather Precautions: As stated in safety instructions, always remove the roof cover and side covers during heavy rain or strong winds to prevent structural damage.

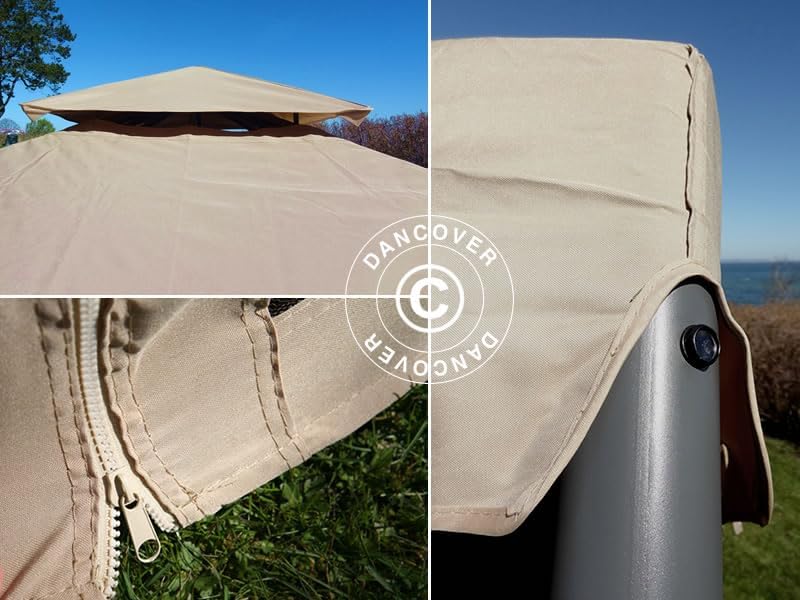

Image: Detailed view of the fabric texture, zipper quality, and how the fabric covers the frame poles.
Troubleshooting
- Gazebo Instability: Ensure all frame connections are fully secured and the gazebo is properly anchored to the ground. Check for uneven ground.
- Water Pooling on Roof: Ensure the roof fabric is taut and correctly positioned. Slight pooling can occur during light rain, but significant pooling indicates improper setup or insufficient tension.
- Curtains Sticking: Check the curtain rods for obstructions or damage. Ensure hooks are properly attached and not bent.
Specifications
| Feature | Detail |
|---|---|
| Width | 4.00 m |
| Length | 4.00 m |
| Side Height | 2.02 m |
| Ridge Height | 2.90 m |
| Roof Fabric | 240g/m² Polyester with PU coating (UV 50+ resistant, 1500-1800mm water column waterproof) |
| Sidewalls | 160g/m² Polyester & 30g/m² mesh (mosquito nets) |
| Frame Material | Powder-coated steel tubes (32mm/60mm/22mm) |
| Curtain Rods | Double aluminum with sliding function |
| Color | Dark Beige |
| Item Weight | 66.8 kg |
| Assembly Required | Yes |
Warranty and Support
Damage caused by heavy wind and rain is not covered by the warranty. For all other warranty claims or technical support, please contact Dancover customer service. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official Dancover website or contact your retailer.
