Hyper Tough 8-Inch Adjustable Wrench User Manual

Product Overview

The Hyper Tough 8-Inch Adjustable Wrench is a versatile hand tool designed for a wide variety of tasks. It features a 1-inch jaw capacity, making it suitable for tightening and loosening nuts and bolts of various sizes. Constructed from drop forged steel, this wrench offers enhanced strength and durability. Its chrome-plated and fully polished finish provides resistance against rust and allows for easy cleaning. The wrench is equipped with heavy-duty double-molded grips to minimize slippage and increase user comfort during operation.

• Size: 8-Inch (200 mm)
• Jaw Capacity: 1-Inch
• Material: Drop forged steel
• Finish: Chrome plated, fully polished
• Handle: Ergonomic comfort grip
• Resistance: Rust resistant

Components

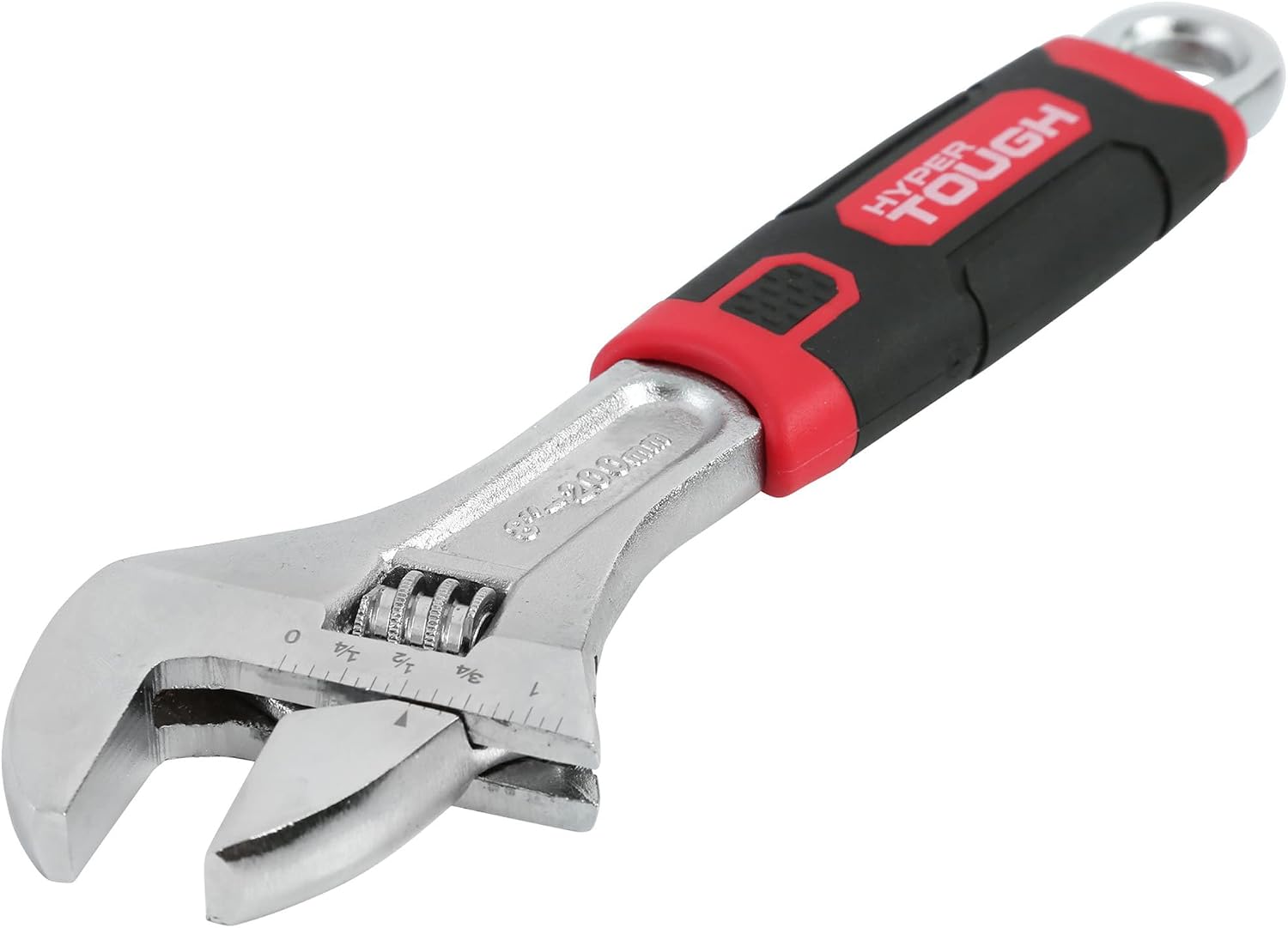

Figure 1: The Hyper Tough 8-Inch Adjustable Wrench, showcasing its main components including the adjustable jaw, knurled adjustment screw, and ergonomic handle.

Figure 2: Close-up view highlighting the drop forged steel construction for strength and durability, and the ergonomic soft-grip handles designed for comfort and reduced slippage.

Figure 3: Detailed view illustrating the 1-inch jaw capacity and the chrome-plated finish, which provides resistance to rust.

Setup

The Hyper Tough Adjustable Wrench requires minimal setup. Upon receiving the product, perform the following steps:

1. Unpacking: Carefully remove the wrench from its packaging. Dispose of packaging materials responsibly.
2. Initial Inspection: Inspect the wrench for any signs of damage or manufacturing defects. Ensure the adjustable jaw moves smoothly and the handle grips are secure.
3. Cleaning: Wipe down the wrench with a clean, dry cloth to remove any dust or residue from manufacturing or packaging.

Figure 4: The wrench as it appears in its retail packaging, ready for unpacking.

Figure 5: Rear view of the product packaging, showing product details and the UPC: 076812150844.

Operating Instructions

Follow these steps for safe and effective use of your adjustable wrench:

1. Select the Correct Size: Identify the nut or bolt you need to work with.
2. Adjust the Jaw: Rotate the knurled adjustment screw to open or close the wrench jaws. Adjust until the jaws fit snugly around the fastener. Ensure there is no play between the wrench jaws and the fastener to prevent slipping and damage.
3. Apply Force: Apply force to the wrench handle in the direction that tightens or loosens the fastener. Always pull the wrench towards you rather than pushing away to maintain better control and reduce the risk of injury.
4. Reposition if Necessary: If the fastener is very tight, you may need to reposition the wrench multiple times to achieve the desired result.

Figure 6: A close-up view of the wrench's adjustable jaw, showing the knurled screw used for precise adjustments.

Figure 7: Demonstrates how the wrench fits comfortably in the hand, highlighting the ergonomic design of the handle.

Figure 8: The adjustable wrench in use, demonstrating its application for tightening or loosening fasteners, such as on a battery terminal.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your adjustable wrench:

• Cleaning: After each use, wipe the wrench clean with a dry cloth to remove dirt, grease, or debris. For stubborn grime, a mild detergent and water can be used, followed by thorough drying.
• Rust Prevention: The chrome-plated finish provides rust resistance, but for prolonged life, especially in humid environments, apply a thin coat of light machine oil to the metal parts, particularly the adjustable jaw mechanism, after cleaning.
• Lubrication: Periodically apply a small amount of light machine oil to the knurled adjustment screw and the sliding jaw mechanism to ensure smooth operation.
• Storage: Store the wrench in a dry place, away from moisture and corrosive materials. A tool box or drawer is ideal.

Troubleshooting

If you encounter issues with your adjustable wrench, consider the following:

• Jaw Sticking/Difficult Adjustment:
  • Cause: Accumulation of dirt, rust, or lack of lubrication.
  • Solution: Clean the jaw mechanism thoroughly and apply a light machine oil to the adjustment screw and sliding parts.
• Wrench Slipping on Fastener:
  • Cause: Jaw not adjusted tightly enough, worn jaws, or incorrect wrench size for the fastener.
  • Solution: Ensure the jaws are snugly fitted to the fastener with no play. If jaws appear worn, the wrench may need replacement.
• Rust Formation:
  • Cause: Exposure to moisture or corrosive substances.
  • Solution: Clean off rust with a wire brush or rust remover, then apply a rust-inhibiting oil. Store in a dry environment.

Specifications

Warranty and Support

For information regarding product warranty or technical support, please refer to the product packaging or contact Hyper Tough customer service directly. Specific warranty details may vary by region and purchase date.

Note: This manual provides general guidelines. Always follow local safety regulations and best practices when using hand tools.
