1. Important Safety Instructions
Please read these instructions carefully before using the appliance. Keep this manual for future reference.
- Always ensure the power supply matches the voltage specified on the rating label.
- Do not use the vacuum cleaner to pick up flammable or combustible liquids, hot ashes, or sharp objects.
- Never immerse the motor unit in water or any other liquid.
- Unplug the appliance from the power outlet before cleaning or performing maintenance.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Product Components
Familiarize yourself with the parts of your Rovus Victor Wet & Dry Vacuum Cleaner.
An overview of the Rovus Victor Wet & Dry Vacuum Cleaner, showcasing the main unit, flexible hose, extension tubes, and various cleaning nozzles for different applications.
A detailed view of all accessories provided with the Rovus Victor Wet & Dry Vacuum Cleaner, including the flexible hose, extension tubes, floor nozzle, wet nozzle, crevice tool, and blowing nozzle.
- Main Unit: Contains the motor, water tank, and filter system.
- Flexible Hose: Connects to the main unit for suction or blowing.
- Extension Tubes: For extended reach during cleaning.
- Floor Nozzle: For general dry and wet floor cleaning.
- Wet Nozzle: Specifically designed for liquid spills.
- Crevice Tool: For narrow spaces and corners.
- Blowing Nozzle: For the blowing function.
- HEPA Filter: For dry vacuuming, traps fine dust and allergens.
- Water Tank: Collects dirt and liquids.
3. Setup
- Unpacking: Carefully remove all components from the packaging. Check for any damage.
- Assembly of Main Unit: Ensure the motor unit is securely placed on top of the water tank.
- Hose Connection: Insert the flexible hose into the suction inlet on the main unit for vacuuming, or into the air outlet for blowing. Ensure it clicks into place.
- Attaching Extension Tubes and Nozzles: Connect the desired extension tubes to the hose, then attach the appropriate cleaning nozzle (e.g., floor nozzle, crevice tool, wet nozzle) for your task.
- Filter Installation (Dry Use): For dry vacuuming, ensure the HEPA filter is correctly installed in the motor unit. For wet vacuuming, the HEPA filter should be removed to prevent damage.
4. Operating Instructions
4.1 General Operation
- Plug the power cord into a suitable electrical outlet.
- Turn the vacuum cleaner ON/OFF using the power switch located on the main unit.
4.2 Dry Suction
Use this function for vacuuming dust, dirt, and debris from various surfaces.
A user demonstrating the dry suction function of the Rovus Victor vacuum cleaner on a carpeted floor, utilizing the floor nozzle and extension tubes.
- Ensure the HEPA filter is installed.
- Connect the hose to the suction inlet.
- Attach the desired dry cleaning nozzle (e.g., floor nozzle for carpets/hard floors, crevice tool for tight spots).
- Switch on the appliance and begin vacuuming. The dirt will be trapped in the water tank and HEPA filter.
4.3 Liquid Suction (Wet Cleaning)
Ideal for cleaning up spilled liquids from hard surfaces.
A user employing the Rovus Victor vacuum cleaner to clean up spilled coffee grounds from a kitchen countertop, highlighting its wet suction capability with a crevice tool.
- Remove the HEPA filter before wet vacuuming to prevent damage.
- Connect the hose to the suction inlet.
- Attach the wet nozzle or floor nozzle (ensure it's suitable for wet use).
- Switch on the appliance and carefully vacuum the spilled liquid. The liquid will collect in the water tank.
- Do not exceed the 'MAX' fill line indicated on the water tank.
4.4 Blowing Function
The vacuum cleaner can also be used as an air blower for tasks like inflating items or clearing debris.
A user demonstrating the blowing function of the Rovus Victor vacuum cleaner to inflate an air mattress outdoors, showcasing its versatility beyond cleaning.
- Connect the flexible hose to the air outlet port on the main unit.
- Attach the blowing nozzle to the other end of the hose.
- Switch on the appliance to activate the blowing function.
4.5 Accessory Use
The Rovus Victor comes with various nozzles for different cleaning needs.

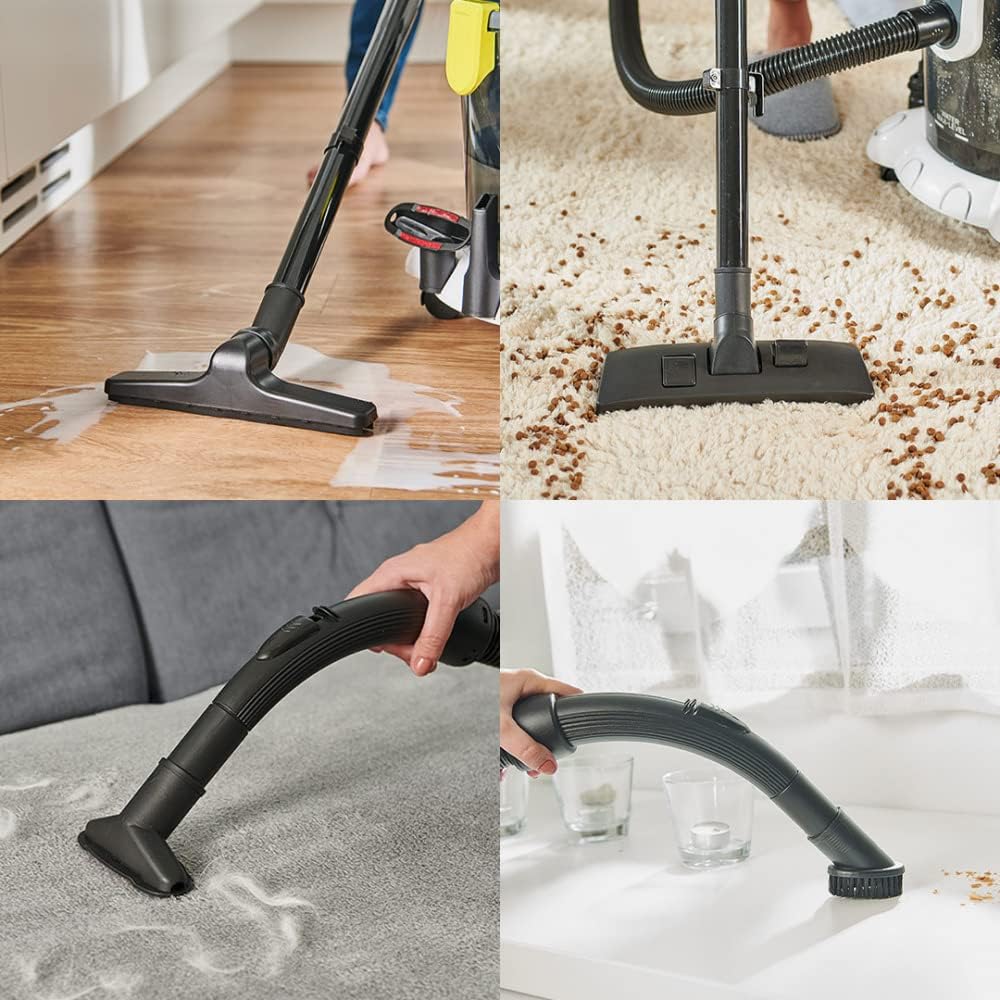

A composite image illustrating the application of different cleaning nozzles: a wet nozzle on a hard floor, a dry nozzle on a carpet, an upholstery tool on a sofa, and a crevice tool in a sink, demonstrating the adaptability of the Rovus Victor.
- Floor Nozzle: Use for general cleaning of hard floors and carpets.
- Wet Nozzle: Specifically designed for efficient liquid pickup from smooth surfaces.
- Crevice Tool: Ideal for reaching into tight spaces, corners, and along edges.
- Blowing Nozzle: For directing airflow during the blowing function.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
- Emptying the Water Tank: After each use, especially after wet vacuuming, empty the water tank. Unclip the motor unit, carefully lift it off, and pour out the contents. Rinse the tank with clean water.
- Cleaning the HEPA Filter: For dry vacuuming, the HEPA filter should be cleaned regularly. Tap it gently to dislodge dust or rinse it under running water if heavily soiled. Ensure it is completely dry before re-installing. Do not use the HEPA filter for wet vacuuming.
- Cleaning Accessories: Wash nozzles and extension tubes with water and mild detergent as needed. Ensure they are dry before storage.
- Exterior Cleaning: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the vacuum cleaner and its accessories in a dry, cool place, away from direct sunlight.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not turn on. | No power supply; Power switch is off. | Check power cord connection and wall outlet; Ensure power switch is in the 'ON' position. |
| Low suction power. | Hose or nozzle blocked; Water tank full; HEPA filter clogged. | Check and clear any blockages; Empty and clean the water tank; Clean or replace the HEPA filter. |
| Water leaking from unit. | Water tank overfilled; Tank not properly sealed. | Do not exceed 'MAX' fill line; Ensure motor unit is securely clipped onto the water tank. |
| Unusual noise during operation. | Foreign object in hose/nozzle; Motor issue. | Check and remove any foreign objects; If noise persists, contact customer support. |
If the problem persists after attempting these solutions, please contact customer support.
7. Specifications
| Brand | Rovus |
| Model | Victor |
| Power / Wattage | 1200 watts |
| Voltage | 220 Volts |
| Capacity | 15 Liters |
| Item Weight | 7.24 Kilograms |
| Product Dimensions | 46 x 32 x 30 cm |
| Special Features | Dry, Wet, Blowing Function |
| Filter Type | Cartridge (HEPA) |
| Power Source | Corded Electric |
8. Warranty and Support
The Rovus Victor Wet & Dry Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical assistance, spare parts, or warranty claims, please contact Rovus customer support through their official website or the contact information provided with your purchase. When contacting support, please have your product model (Victor) and purchase details ready.
