1. Product Overview
The GOWIN JD Pantoja Bluetooth Headphones are designed to provide a high-quality wireless audio experience with an ergonomic design and extended battery life. These headphones feature Bluetooth connectivity for seamless pairing with your devices and integrated control buttons for easy management of music and calls. The package includes essential accessories for charging and portability.
Image: Front view of the GOWIN JD Pantoja Bluetooth Headphones, showcasing the sleek black design and the distinctive red JD Pantoja logo on the earcups.
Image: Promotional graphic for JD Pantoja Wireless Headphones by GOWIN, highlighting the brand collaboration.
2. Important Safety Information
Please read all safety instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Do not expose the headphones to extreme temperatures, humidity, or liquids.
- Do not disassemble, repair, or modify the headphones. This may void the warranty and pose a safety risk.
- Use only the provided charging cable or a certified Type-C cable for charging.
- Avoid listening at high volume levels for extended periods to prevent hearing damage.
- Keep the headphones away from children and pets.
- Dispose of the product responsibly according to local regulations.
3. Package Contents
Verify that all items listed below are present in your product package:
- GOWIN JD Pantoja Bluetooth Headphones
- Type-C Charging Cable
- 3.5 mm Auxiliary Cable
- Travel Bag
- User Manual (this document)
Image: A visual representation of the package contents, including the headphones, USB Type-C charging cable, 3.5mm auxiliary cable, and a branded travel bag.
4. Setup Guide
4.1 Charging the Headphones
Before first use, fully charge the headphones. A full charge takes approximately 2 hours.
- Connect the Type-C charging cable to the charging port on the headphones.
- Connect the other end of the cable to a USB power adapter (not included) or a computer's USB port.
- The LED indicator will show the charging status (e.g., red for charging, blue for fully charged).
4.2 Powering On/Off
- To Power On: Press and hold the Power button for approximately 3 seconds until the LED indicator lights up.
- To Power Off: Press and hold the Power button for approximately 3 seconds until the LED indicator turns off.
4.3 Bluetooth Pairing
Pair your headphones with a Bluetooth-enabled device (e.g., smartphone, tablet, laptop).
- Ensure the headphones are powered off.
- Press and hold the Power button for about 5-7 seconds until the LED indicator flashes red and blue alternately, indicating pairing mode.
- On your device, enable Bluetooth and search for available devices.
- Select "JD Pantoja Headphones" or similar from the list of found devices.
- Once paired, the LED indicator on the headphones will turn solid blue or flash blue slowly.
The headphones have a wireless range of up to 10 meters (33 feet).
4.4 Wired Connection (Auxiliary Cable)
You can use the headphones with non-Bluetooth devices or when the battery is depleted using the 3.5 mm auxiliary cable.
- Connect one end of the 3.5 mm auxiliary cable to the audio input port on the headphones.
- Connect the other end to the 3.5 mm audio output jack of your device.
- The headphones will automatically switch to wired mode.

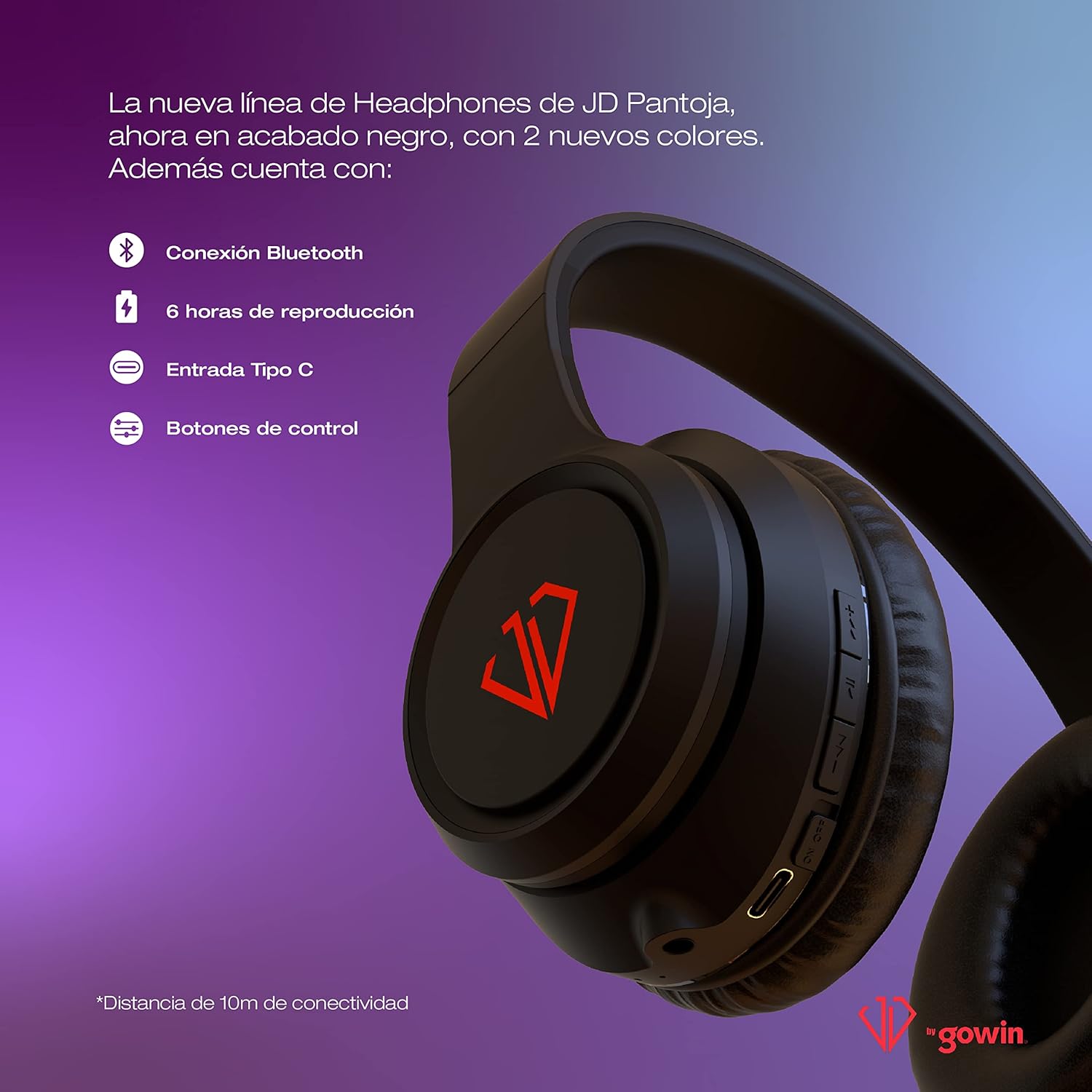

Image: Close-up of the headphone earcup showing the control buttons and Type-C charging port, illustrating Bluetooth connectivity, 6 hours of playback, and control functions.
5. Operating Instructions
The headphones feature intuitive control buttons located on the earcup.
5.1 Music Playback Controls
- Play/Pause: Press the Multi-function button (often marked with a play/pause icon) once.
- Next Track: Press and hold the "Next" button (often marked with >>|) once.
- Previous Track: Press and hold the "Previous" button (often marked with |<<) once.
- Volume Up: Short press the "+" button.
- Volume Down: Short press the "-" button.
5.2 Call Management
- Answer/End Call: Press the Multi-function button once during an incoming call or during an active call.
- Reject Call: Press and hold the Multi-function button for approximately 2 seconds during an incoming call.
- Redial Last Number: Double-press the Multi-function button.
Image: Front view of the headphones, clearly showing the control buttons on the right earcup for playback and call management.
Image: Side view of the GOWIN JD Pantoja Headphones, highlighting the "gowin" branding on the adjustable headband and the overall ergonomic design.
6. Maintenance and Care
- Cleaning: Use a soft, dry cloth to clean the headphones. Do not use abrasive cleaners or solvents.
- Storage: When not in use, store the headphones in the provided travel bag to protect them from dust and scratches. Store in a cool, dry place.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the headphones regularly, even if not in use for extended periods.
- Folding Design: The headphones feature a foldable design for easy portability. Fold them carefully to avoid damage.
Image: A lifestyle image demonstrating the comfortable fit and foldable design of the GOWIN JD Pantoja Headphones, emphasizing features like adjustable band and comfortable earcups.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Headphones do not power on. | Low battery. | Charge the headphones fully. |
| Cannot pair with device. | Headphones not in pairing mode; device Bluetooth off; too far from device. | Ensure headphones are in pairing mode (flashing red/blue). Turn on Bluetooth on your device. Move headphones closer to the device (within 10m). |
| No sound or low volume. | Volume too low on headphones or device; incorrect audio output selected; headphones not properly connected (wired). | Increase volume on both headphones and device. Check device's audio output settings. For wired connection, ensure cable is fully inserted. |
| Sound distortion or intermittent connection. | Interference; too far from device; low battery. | Move away from other wireless devices. Reduce distance between headphones and device. Charge the headphones. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Name | JD-2103 |
| Item Model Number | RED-2103 |
| Connectivity Technology | Wireless (Bluetooth) |
| Wireless Range | Up to 10 meters (33 feet) |
| Battery Type | Lithium Ion (included) |
| Battery Capacity | 400 mAh |
| Battery Life | Up to 6 hours |
| Charging Time | Approximately 2 hours |
| Driver Size | 40 mm |
| Frequency Response | 20Hz - 20KHz |
| Impedance | 32 Ohms |
| Sensitivity | 105+/-3dB |
| Headphone Jack | 3.5 mm Jack |
| Product Dimensions | 18 x 8 x 18 cm |
| Product Weight | 400 g |
| Material | Plastic |
| Color | Black with Red (also available in White, Black with Purple, Black with Green) |
Image: Display of the various color options for the GOWIN JD Pantoja Headphones, including white, black with purple, black with red, and black with green.
9. Warranty Information
The GOWIN JD Pantoja Bluetooth Headphones come with a 1-Year Warranty from the date of purchase.
This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or external causes such as drops or liquid exposure.
For warranty claims, please retain your proof of purchase. Contact GOWIN customer support for assistance.
10. Customer Support
For further assistance, technical support, or warranty inquiries, please contact GOWIN customer service. Refer to the official GOWIN website or product packaging for the most current contact information.
You can also visit the GOWIN Brand Store on Amazon for more product information.
