Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your STUFE A PELLET ITALIA California 8 KW air-ventilated pellet stove. Please read all instructions carefully before using the appliance.
Safety Information
Always prioritize safety when operating any heating appliance. Failure to follow safety guidelines can result in property damage, injury, or death.
- Ensure proper ventilation during operation.
- Keep flammable materials away from the stove.
- Do not touch hot surfaces. Use protective gloves if necessary.
- Only use approved wood pellets as fuel.
- Regularly inspect and clean the chimney and exhaust system.
- In case of malfunction, switch off the stove immediately and consult a qualified technician.
Product Overview
The STUFE A PELLET ITALIA California 8 KW pellet stove is designed for efficient heating of spaces up to 70m². It features a compact design, programmable settings, and quiet operation.
Setup
Proper installation is crucial for the safe and efficient operation of your pellet stove. It is recommended that installation be performed by a qualified professional.
1. Placement
Position the stove on a non-combustible surface, ensuring adequate clearance from walls and other flammable materials as per local regulations. The compact design allows for integration into various home environments.

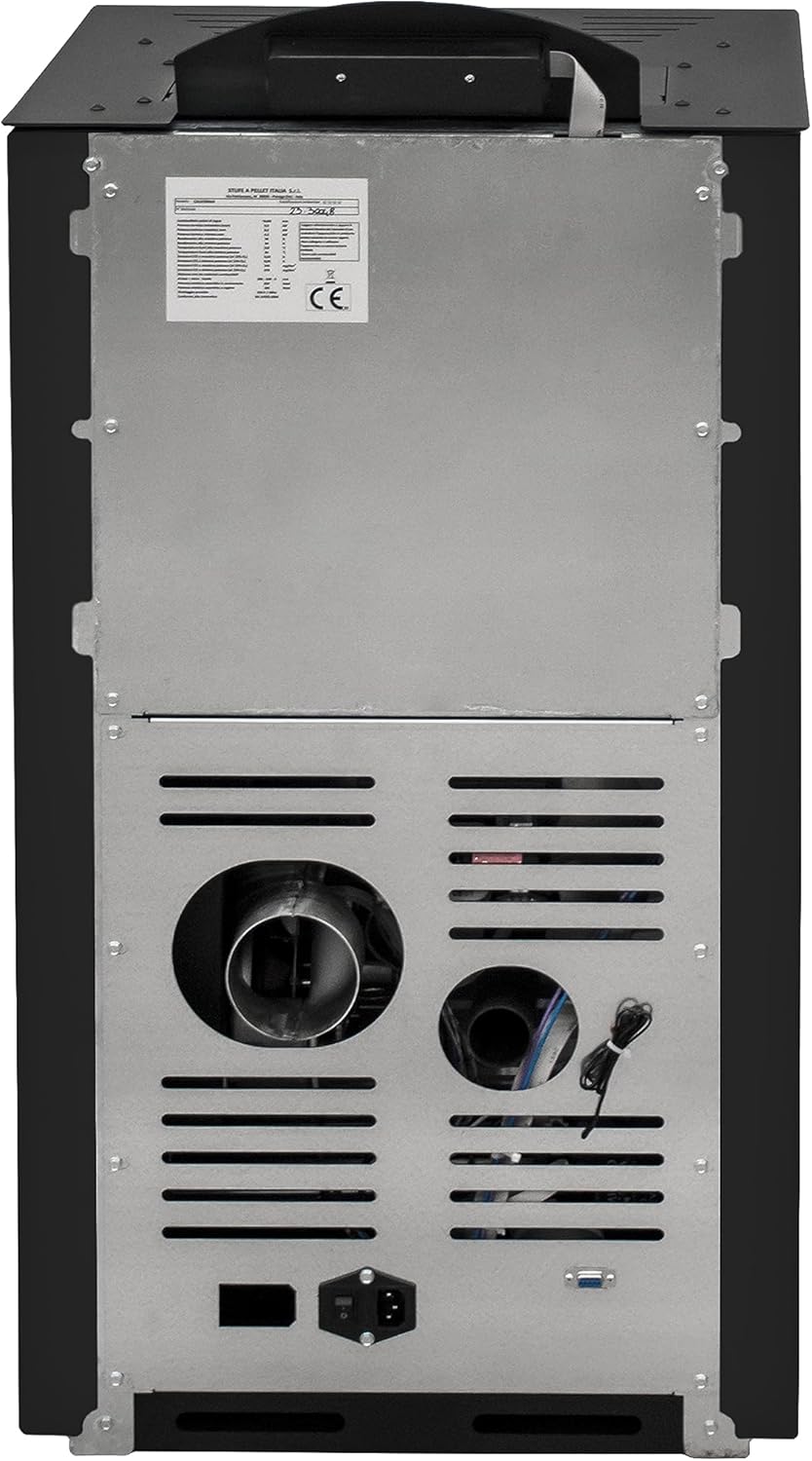

2. Exhaust System Connection
Connect the stove to a suitable chimney or exhaust system. The smoke outlet dimension is 80 mm. Ensure all connections are sealed and meet safety standards to prevent smoke leakage.
3. Electrical Connection
Plug the stove into a grounded electrical outlet. The stove operates on standard electrical power (150-360 W absorption). Do not use extension cords.
4. Pellet Loading
Open the pellet hopper lid located on top of the stove. Fill the hopper with high-quality wood pellets. The hopper has a capacity of 15 kg.
Operating Instructions
The California 8 KW pellet stove offers user-friendly controls for efficient heating.

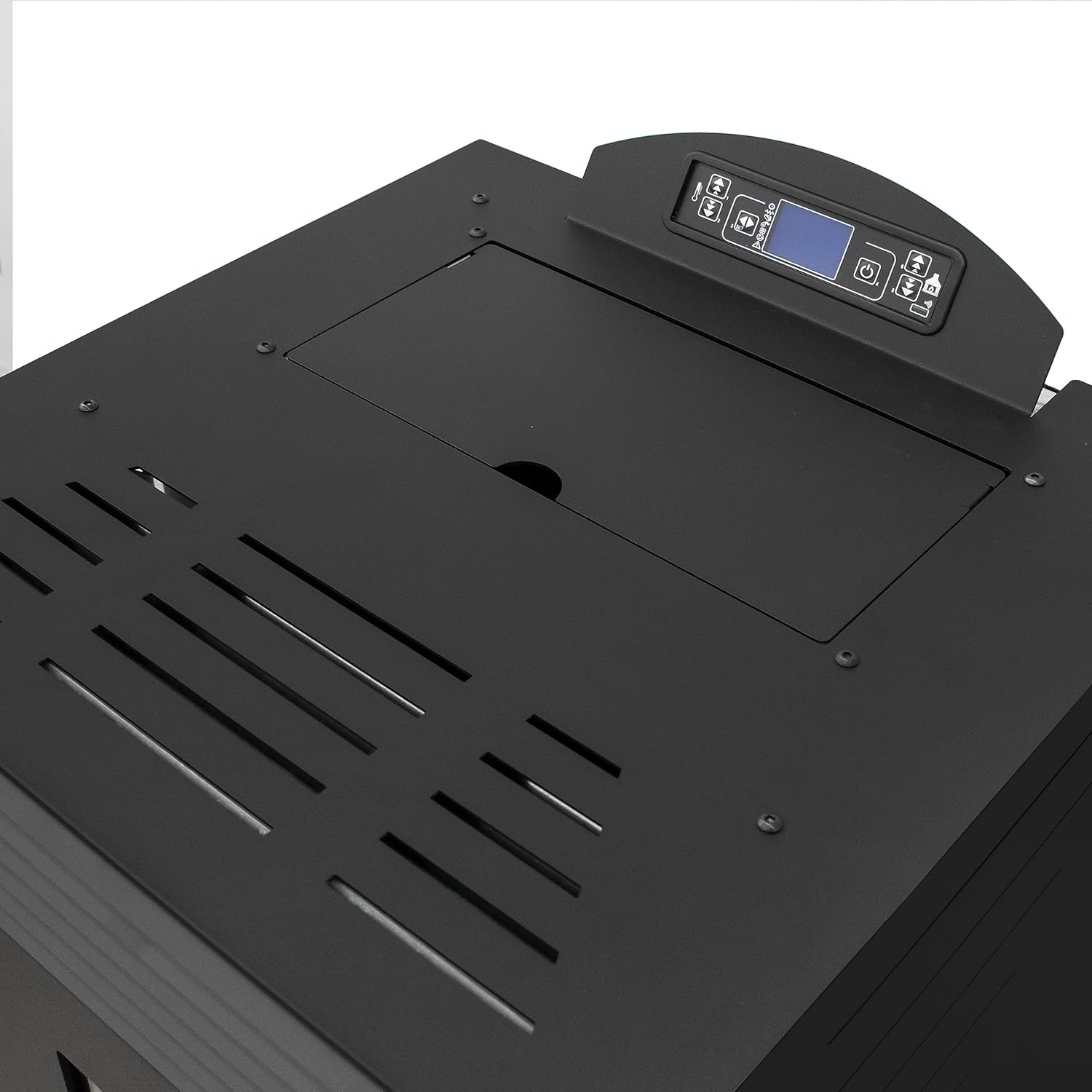

1. Powering On/Off
- To power on: Press and hold the power button on the LCD control panel until the stove initiates its startup sequence.
- To power off: Press and hold the power button. The stove will enter a cooling cycle before completely shutting down. Do not disconnect power during the cooling cycle.
2. Adjusting Heat Output and Fan Speed
Use the control panel to select from 5 adjustable power levels and fan speeds. Higher settings provide more heat and faster air circulation. The stove operates quietly, with a noise level of 34 dB.
3. Programming
The stove features daily and weekly programming options. Consult the detailed programming section in the full manual for setting specific operating times and temperatures to optimize comfort and energy consumption. The maximum autonomy is 20 hours with a full pellet hopper.
Maintenance
Regular maintenance ensures optimal performance and longevity of your pellet stove.
- Daily Cleaning: Empty the ash pan and clean the burn pot.
- Weekly Cleaning: Clean the heat exchanger tubes and inspect the door gasket for wear.
- Annual Servicing: Have a qualified technician perform a thorough inspection and cleaning of the entire stove, including the chimney and exhaust system.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Stove does not turn on / Control panel dark | No power, main switch off, internal fuse. | Check power connection. Ensure the main switch at the back of the stove is on. If still unresponsive, consult a technician. |
| No heat output | Empty pellet hopper, clogged burn pot, incorrect settings. | Refill pellets. Clean burn pot. Verify power and temperature settings. |
| Excessive smoke | Clogged chimney/exhaust, poor quality pellets. | Inspect and clean chimney. Use high-quality pellets. |
| Unusual noises | Loose components, fan obstruction. | Turn off the stove and inspect for any loose parts or obstructions. If noise persists, contact support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | STUFE A PELLET ITALIA |
| Model | California 8 KW |
| Dimensions (H x W x D) | 93 x 51 x 48 cm |
| Weight | 80 kg |
| Max Useful Power | 8.2 kW |
| Min Useful Power | 3.4 kW |
| Efficiency | 91% (4-star certified) |
| Pellet Consumption | Min. 0.94 kg/h |
| Hopper Capacity | 15 kg |
| Maximum Autonomy | 20 hours |
| Smoke Outlet Diameter | 80 mm |
| Electrical Absorption | 150 – 360 W |
| Noise Level | 34 dB |
| Heating Coverage | Up to 70 m² |
| Programmable | Daily and Weekly |
| Material | Ceramic glass |
Warranty and Support
Your STUFE A PELLET ITALIA California 8 KW pellet stove comes with a 24-month warranty from the date of purchase. This warranty covers manufacturing defects and ensures the quality of materials and workmanship.
For technical assistance, spare parts, or warranty claims, please contact STUFE A PELLET ITALIA customer support. Detailed contact information can be found on the official brand website or through your retailer.
