1. Safety Guidelines
Operating an electric kick scooter carries inherent risks. Adhere to all local laws and regulations.
- Always wear a helmet and appropriate safety gear.
- Do not ride in wet conditions or on slippery surfaces.
- Maintain a safe speed and distance from others.
- Avoid riding under the influence of alcohol or drugs.
- Ensure all components are securely fastened before each ride.
- Maximum weight capacity: Refer to specifications.
- Age recommendation: Adult use only.
2. Product Overview
The YADEA KS3 Lite is a foldable electric kick scooter designed for personal transportation. It features a powerful rear-wheel drive motor, a lithium battery, and a dual braking system.
Image: YADEA KS3 Lite Electric Kick Scooter in pink. This image displays the full profile of the scooter, highlighting its sleek design and foldable handlebar.
2.1 Key Features

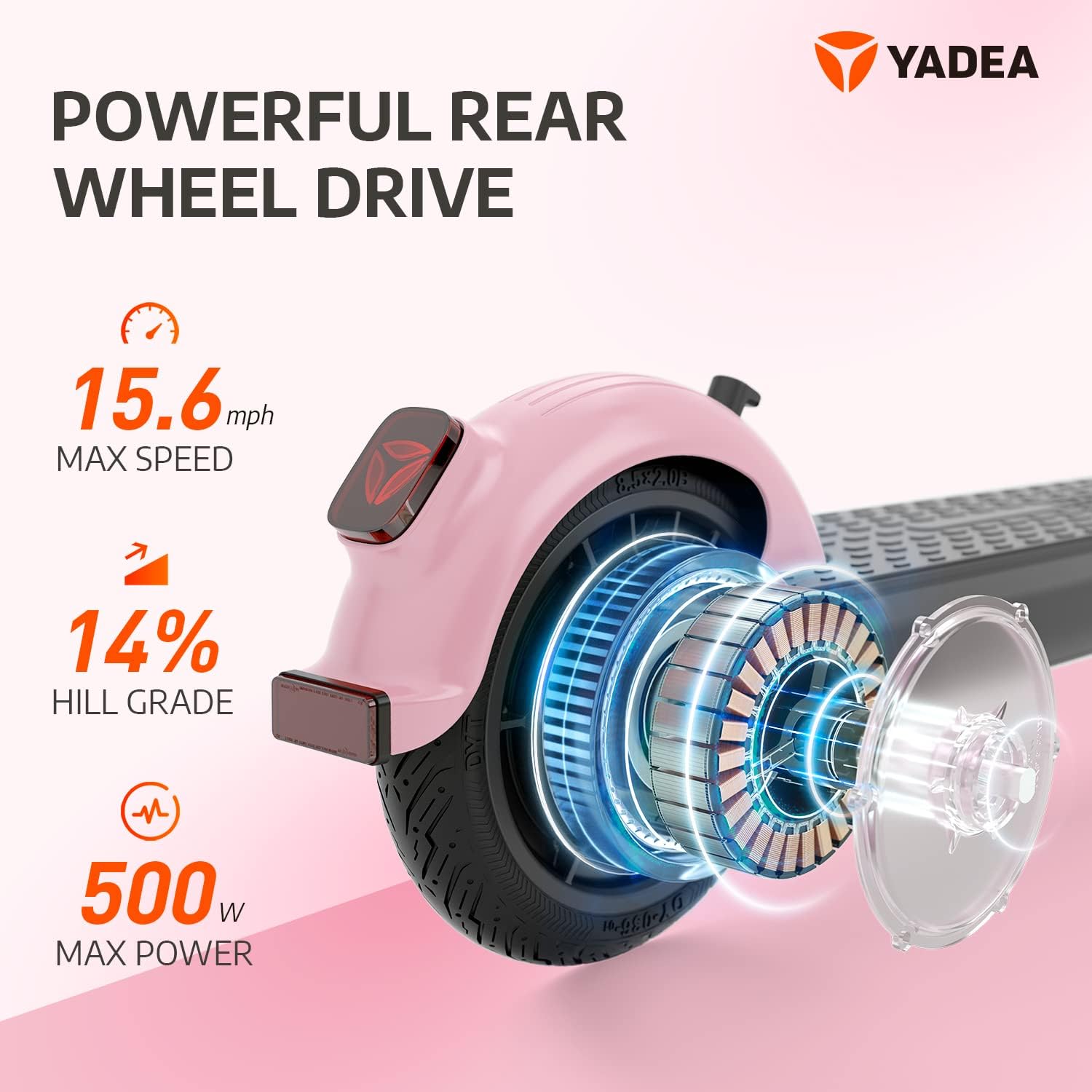

- Powerful Rear Wheel Drive: Max speed 15.6 MPH, 14% hill grade, 500W max power.
- Smart-BMS Lithium Battery: 12 miles range, 3 hours charge time, high-efficiency multi-protective regenerative braking system.
- Safe and Reliable Braking System: Front drum brake and electric brake controlled by dual mechanical handbrake.
- Smart App Connectivity: Monitor battery level, riding record, scooter settings, and personal information.
- Lightweight and Foldable Design: Easy to carry and store.
3. Setup and Assembly
Your YADEA KS3 Lite scooter requires minimal assembly.
- Unboxing: Carefully remove all components from the packaging.
- Handlebar Installation:
Image: Close-up of the scooter's handlebar and stem, showing the attachment points. This image illustrates where the handlebar connects to the main stem.
- Lift the handlebar stem to an upright position until it clicks into place.
- Secure the handlebar to the stem using the provided screws and tools. Ensure all screws are tightened firmly.
- Initial Charge: Before first use, fully charge the scooter's battery.
Image: Close-up of the scooter's charging port. This image shows the location of the charging port, typically on the side of the deck.
- Connect the charger to the charging port and then to a power outlet.
- The indicator light on the charger will change (e.g., red to green) when fully charged.
- App Connection (Optional): Download the YADEA app from your device's app store. Follow the in-app instructions to pair your scooter via Bluetooth for additional features and monitoring.
4. Operating Instructions
4.1 Powering On/Off
- To power on, press and hold the power button on the display panel until the screen illuminates.
- To power off, press and hold the power button until the screen turns off.
4.2 Riding the Scooter
- Kick Start: Place one foot on the deck and use the other foot to push off the ground.
- Accelerate: Once moving, gently press the throttle lever to engage the motor.
- Braking: Use the handbrake levers to slow down or stop. The scooter features a front drum brake and an electric brake.
- Turning: Lean slightly in the direction you wish to turn and gently steer the handlebars.
Image: Close-up of the scooter's front and rear wheels, highlighting the braking mechanisms. This image shows the front drum brake and the rear electric brake system.
4.3 Folding and Unfolding
The scooter is designed for easy portability.
- Folding: Locate the folding mechanism on the stem. Follow the instructions to release the latch and fold the stem down until it locks into place.
- Unfolding: Reverse the folding process, ensuring the stem is securely locked in the upright position before riding.
Image: A person carrying the folded YADEA KS3 Lite scooter. This image demonstrates the compact size of the scooter when folded, making it easy to transport.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your scooter.
- Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water or immerse the scooter in water.
- Tire Care: Regularly check tire pressure and for any signs of wear or damage. The scooter uses solid wheels, reducing puncture risk.
- Battery Care:
- Charge the battery fully after each use.
- If storing for an extended period, charge the battery to 50-70% every 30-60 days.
- Avoid extreme temperatures during charging and storage.
- Brake Inspection: Periodically check the brake levers and cables for proper function and adjustment.
- Fastener Check: Ensure all screws and bolts are tight before each ride.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; loose connection | Charge the battery; check all cable connections. |
| Reduced range or speed | Low battery; heavy load; uphill riding; tire wear | Fully charge battery; reduce load; check tire condition. |
| Brakes feel loose or ineffective | Brake cable adjustment needed | Adjust brake cable tension. Consult a professional if unsure. |
| App connection issues | Bluetooth off; app outdated; scooter not in pairing mode | Ensure Bluetooth is on; update app; restart scooter and app. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | YADEA |
| Model Name | KS3 Lite |
| Max Speed | 15.6 MPH |
| Max Range | 12 Miles |
| Max Power | 500W |
| Charge Time | 3 Hours |
| Item Weight | 30.7 Pounds |
| Frame Material | Aluminum |
| Wheel Type | Solid |
| Brake Style | Front Drum Brake, Electric Brake |
| Special Feature | Foldable |
8. Warranty and Support
The YADEA KS3 Lite Electric Kick Scooter comes with a limited warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official YADEA website.
For technical support, spare parts, or further assistance, please contact YADEA customer service.
Official Product Video:
Video: YADEA Electric Kick Scooter KS3 Lite overview. This video demonstrates the scooter's features, folding mechanism, and usage in urban environments.
