Product Overview
The Fine Fixtures Vogue Wall-Hung Toilet Bowl is designed for modern bathrooms, offering a space-saving and sleek appearance. This model features hidden plumbing for a compact installation and incorporates advanced flushing technology for efficient operation.
The StormOn collection emphasizes efficiency and style, with a powerful Vortex double-swish toilet bowl technology for thorough sanitation and water conservation. It includes soft-close seats and self-clean glazing for enhanced hygiene and user comfort.
What's Included
The Fine Fixtures Vogue Wall-Hung Toilet Bowl system includes the following components:
- Universal Insulated Tank (Item # CT04)
- Actuator (Item # CTA11WH)
- Vogue 20" Wall-Hung Toilet Bowl (Item # WT12RM)
- Toilet Tank Push Plate
- All necessary mounting hardware for installation
Image: All included components for the Fine Fixtures wall-hung toilet system.

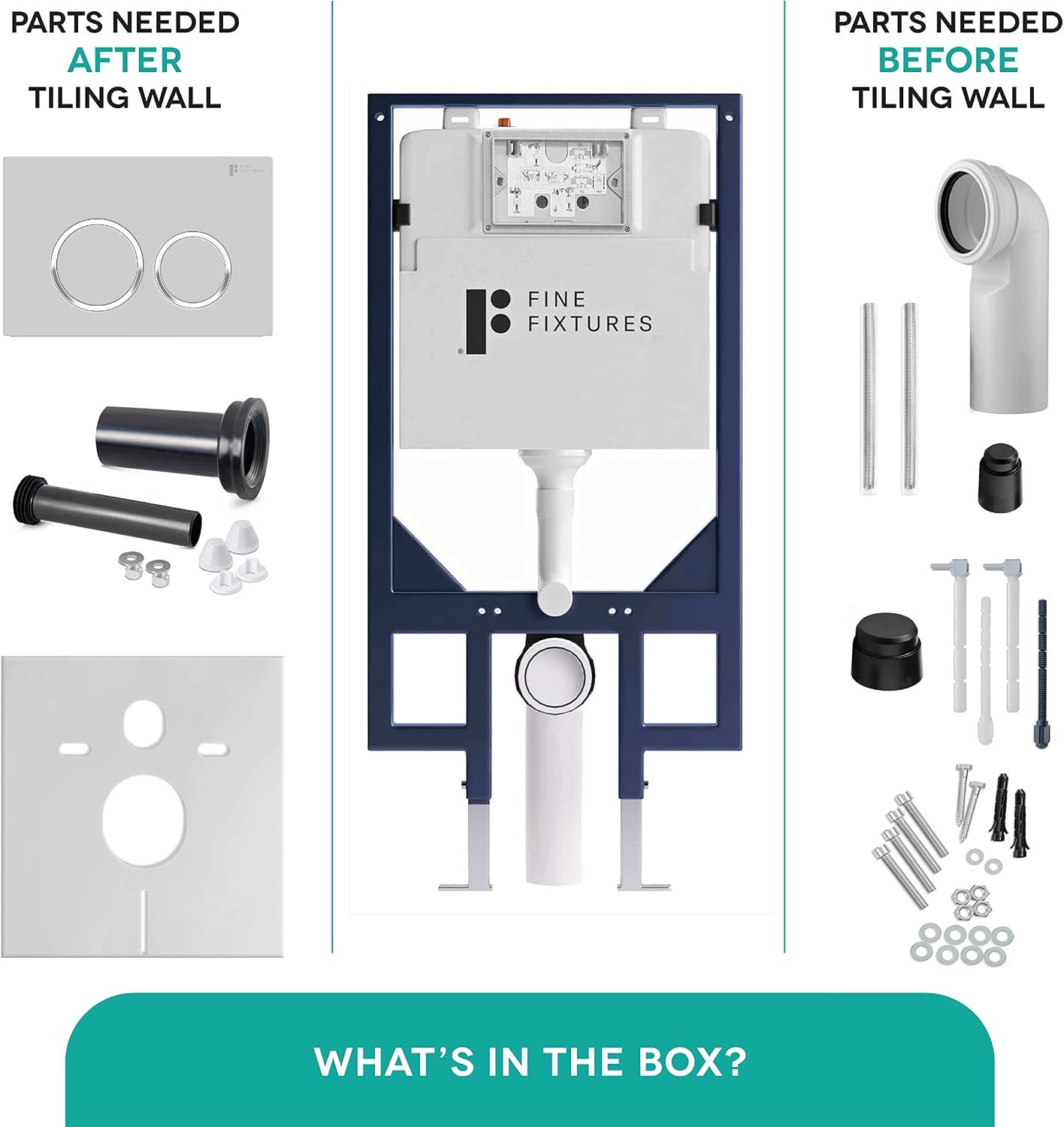

Image: Detailed view of parts needed for installation, categorized for before and after wall tiling.
Key Features
- Space-Saving Design: Wall-hung installation saves floor space, ideal for smaller bathrooms.
- Easy Cleaning: No more kneeling; the area underneath the toilet bowl is easily accessible for cleaning. The toilet bowl is fully glazed.
- Wide Trap-Way: Designed to prevent clogging.
- Dual Flush System: Offers water conservation with 1.6 gallons for a full flush and 1.1 gallons for a partial flush.
- Adjustable Height: Provides flexibility for installation, allowing up to an additional 3.5 inches.
- StormOn Flush: Features powerful Vortex washdown jets to ensure the bowl remains clean.
- Soft-Close Seat and Ultra-Thin Covers: Ensures safer use and prevents slamming, contributing to a modern design.
- Hidden Plumbing: Creates a sleek, compact, and contemporary aesthetic.
Image: Visual representation of the 3-piece kit features.
Image: Detailed features of the StormOn toilet technology.
Setup and Installation
Detailed, step-by-step installation instructions are included with your product. It is recommended that installation be performed by a qualified professional to ensure proper function and adherence to local plumbing codes.
The wall-hung system requires a concealed tank and frame to be installed within the wall structure. Ensure adequate support and proper rough-in dimensions before proceeding with tiling.
Image: Overview of the wall-hung toilet system installation process.
Installation Video
Video: Official product video demonstrating the features and installation benefits of the Fine Fixtures wall-hung toilet, including its space-saving design, hidden plumbing, dual-flush system, and powerful Vortex double-swish flush.
Operating Instructions
The Fine Fixtures Vogue Wall-Hung Toilet Bowl features a dual-flush system and StormOn flush technology for efficient and powerful waste removal.
Dual Flush Operation
The actuator plate on your wall provides two buttons for flushing:
- Small Button: Activates a partial flush using 1.1 gallons of water, suitable for liquid waste.
- Large Button: Activates a full flush using 1.6 gallons of water, suitable for solid waste.
Press the appropriate button firmly to initiate the flush cycle.
StormOn Flush Technology
The StormOn flush system utilizes powerful Vortex washdown jets to create a swirling, cleansing action within the bowl. This design ensures thorough cleaning and helps prevent residue buildup with each flush.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Fine Fixtures toilet.
- Exterior Cleaning: Spray the toilet exterior with a general-purpose cleaner or a mixture of vinegar and water. Wipe clean with a soft cloth.
- Toilet Seat Cleaning: Use a mild cleaner such as dish soap with water to clean the surface of the toilet seat.
- Bowl Sanitization: Sanitize the bowl by scrubbing with an antibacterial toilet cleaner or a mixture of 1 cup bleach to 4 gallons of water.
- Spills and Drips: Wipe off any splashes or drips on the surrounding area with a soft, dry cloth immediately.
Image: Step-by-step cleaning instructions.
Troubleshooting
This section addresses common issues you might encounter with your wall-hung toilet.
- Incomplete Bowl Rinse / Residue: Due to the design of some wall-hung toilets, the water line may be lower than the bowl rim, potentially leaving residue in certain areas. Regular cleaning after each use, especially for solid waste, is recommended to maintain hygiene.
- Toilet Seat Wet After Flushing: If the toilet seat becomes wet after flushing with the lid closed, try flushing with the lid open. The powerful washdown jets can sometimes cause water to splash onto the underside of the lid or seat if closed during the flush cycle.
- Clogging: Ensure only appropriate waste and toilet paper are flushed. The wide trap-way is designed to minimize clogs, but excessive material can still cause blockages. If a clog occurs, use a toilet plunger. For persistent clogs, contact a plumber.
- Weak Flush: Check the water supply valve to ensure it is fully open. If the flush remains weak, consult the detailed installation instructions or contact customer support.
Specifications
| Attribute | Detail |
|---|---|
| Color | White |
| Material | Ceramic (Bowl), Plastic (Seat) |
| Brand | Fine Fixtures |
| Installation Type | Wall Mounted |
| Item Model Number | CT04-WT12RM-CTA11 |
| Item Weight | 65 pounds |
| Product Dimensions | 20 x 15 x 15 inches |
| Bowl Dimensions | Height- 14.50", Length- 19.87", Width-14.11" |
| Tank Dimensions | Height- 44.87", Length- 3.12", Width-23.25" |
| Push Plate Dimensions | Height- 6.5", Width-9.5" |
| Flush System | Dual Flush (1.6 GPF Full, 1.1 GPF Partial) |
| Included Components | Toilet Tank, Push Plate |
Image: Fine Fixtures Vogue Wall-Hung Toilet Bowl.
Warranty and Support
This Fine Fixtures product is covered by a 1-Year Manufacturer's Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or any questions regarding your Fine Fixtures Vogue Wall-Hung Toilet Bowl, please contact Fine Fixtures customer support. Keep your proof of purchase for warranty validation.
