SZELAM LED Digital Alarm Clock User Manual

Introduction

This user manual provides detailed instructions for the operation and maintenance of your SZELAM LED Digital Alarm Clock. Designed to combine modern aesthetics with practical functionality, this clock features a large display, dual USB charging ports, and adjustable brightness. Please read this manual thoroughly to ensure proper use and to maximize your product experience.

The SZELAM LED Digital Alarm Clock features a large, clear display and a reflective mirror surface, making it a functional and stylish addition to any room.

What's Included

Please check the package contents to ensure all items are present:

• 1 x SZELAM Digital Alarm Clock
• 1 x USB Power Cable
• 1 x CR2016 Battery (pre-installed or included)
• 1 x User Manual

The package includes the digital alarm clock, a USB power cable for operation, a CR2016 battery for memory backup, and the user manual.

Setup

1. Unpacking: Carefully remove all components from the packaging.
2. Protective Film Removal: Before first use, gently peel off the protective film from the mirror surface and the plastic paper from the battery compartment.
3. Power Connection: Connect the provided USB power cable to the input port on the side of the clock. Plug the other end into a standard USB power adapter (not included) or a USB port on a computer/TV. The clock requires continuous power to operate. The CR2016 battery serves as a memory backup in case of power loss.
4. Stand Installation: Attach the detachable stand to the bottom of the clock for stable tabletop placement. The clock can also be wall-mounted using the integrated wall hook.

Remember to remove the protective films from the mirror surface and the plastic paper from the battery before use. The clock features dual USB charging ports for convenience.

Operating Instructions

1. Time Setting

1. Enter Setting Mode: Long press the "M" (Mode) button for three seconds to enter the time setting interface. The display will show "0:00".
2. 12/24 Hour Format: Press the "+" or "-" button to select between "12 Hr" or "24 Hr" format. Press "M" to confirm and proceed to hour setting.
3. Set Hour: Press the "+" or "-" button to select the desired hour. Press "M" to confirm.
4. Set Minute: Press the "+" or "-" button to select the desired minute. Press "M" to confirm and exit time setting.

2. Alarm Setting

1. Enter Alarm Setting: Tap the "M" (Mode) button to enter the alarm time interface. The display will show the current alarm time (default 6:00).
2. Set Alarm Hour: Long press "M" to set the alarm. Press "+" or "-" to select the desired alarm hour. Press "M" to confirm.
3. Set Alarm Minute: Press "+" or "-" to select the desired alarm minute. Press "M" to confirm and exit alarm setting.
4. Turn Alarm On/Off: In the alarm time interface, press the "-" button to toggle the alarm on or off. When the alarm is turned on, "AL" will be displayed on the screen.

3. Snooze Function

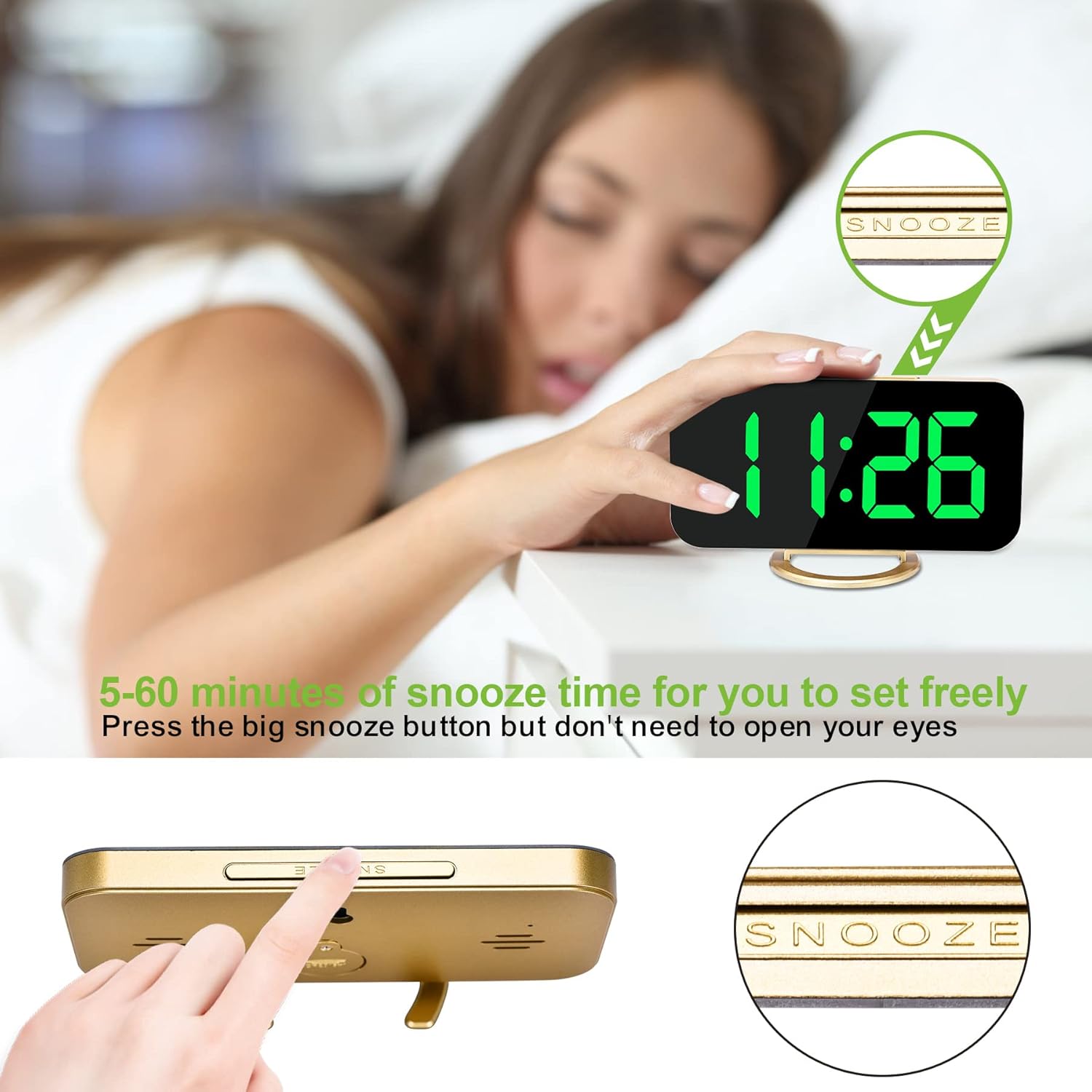

When the alarm sounds, press the large "SNOOZE" button on the top of the clock to activate the snooze function. The alarm will pause and sound again after the set snooze interval. The default snooze time is 5 minutes, but it can be adjusted.

1. Set Snooze Time: In the alarm time interface, after setting the alarm hour and minute, press "M" again to enter snooze time setting.
2. Adjust Snooze Interval: Press "+" or "-" to select the desired snooze time (e.g., 5, 6, 8 minutes). Press "M" to confirm.

The large snooze button on top allows for easy activation of the snooze function, providing a customizable delay before the alarm sounds again.

4. Brightness Adjustment

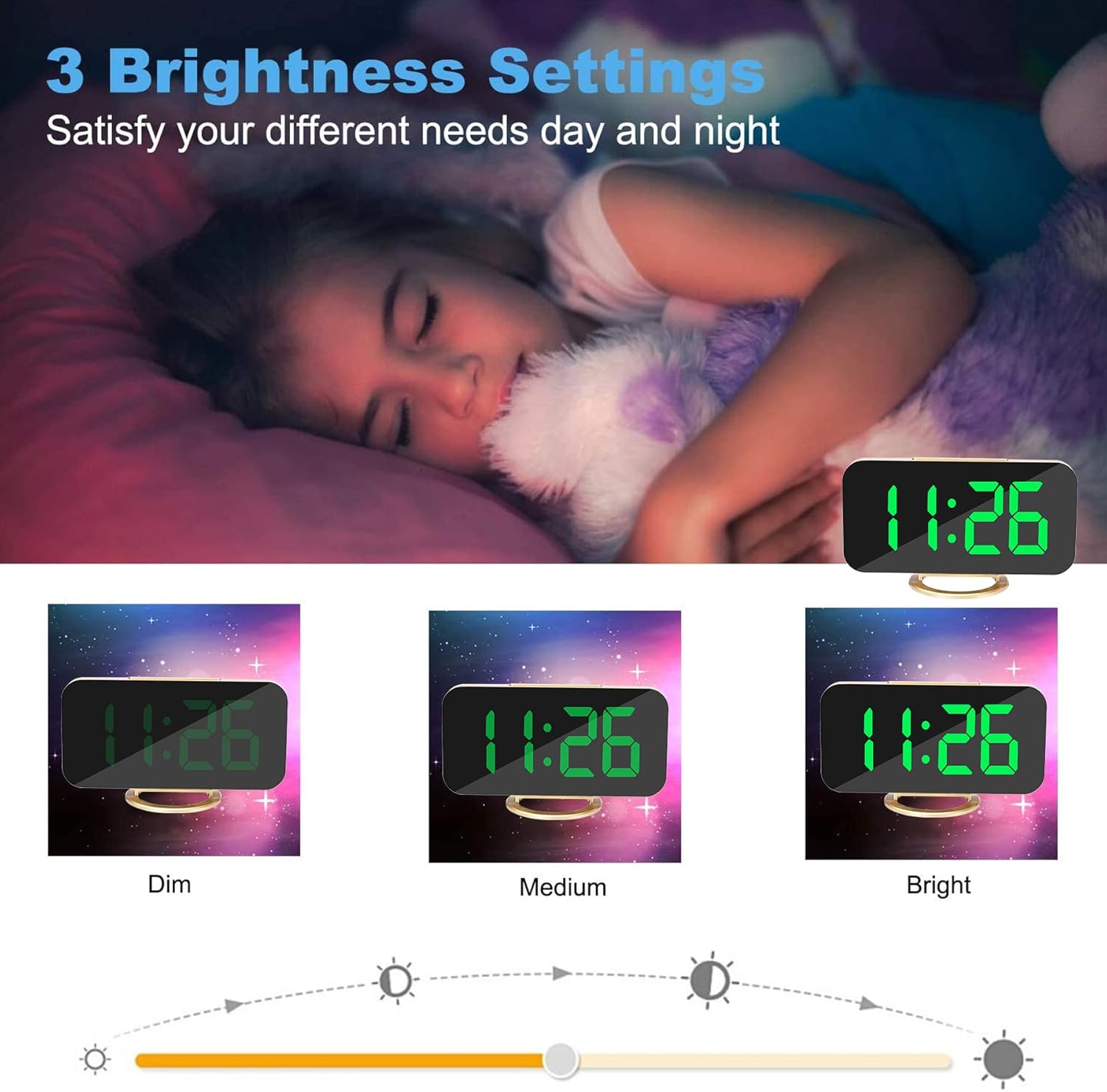

The clock offers three levels of brightness (bright, medium, very dark) and an auto-dimming mode.

• Manual Adjustment: Press the "+" button to cycle through the three brightness levels.
• Auto Dimming: Long press the "+" button to turn on or turn off the auto-dimming mode. In auto-dimming mode, the display brightness will automatically adjust based on ambient light conditions.

Easily adjust the display brightness to suit your preference, with options for dim, medium, and bright settings, or enable auto-dimming for convenience.

5. Dual USB Charging Ports

The clock is equipped with two USB-A charging ports (5V 1A output) on the side, allowing you to conveniently charge two devices simultaneously, such as smartphones or other small electronics.

This diagram highlights the key features including the mode, up, and down buttons, the snooze button, wall hook, detachable stand, and the dual USB charging ports.

Beyond its time-telling capabilities, the clock's 6.5-inch mirror surface can also be used for daily tasks like applying makeup.

Maintenance

• Cleaning: To clean the clock, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the mirror finish or electronic components.
• Storage: If storing the clock for an extended period, disconnect it from power and ensure the CR2016 backup battery is properly installed. Store in a cool, dry place.

Troubleshooting

Specifications

Warranty & Support

This SZELAM LED Digital Alarm Clock comes with a 1-Year Warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

For further assistance, troubleshooting, or warranty inquiries, please refer to the official user guide PDF or contact SZELAM customer support.

Official User Guide (PDF): Download PDF
