KROM K-WHEEL PRO Professional Racing Wheel User Manual

1. Introduction

This manual provides comprehensive instructions for the KROM K-WHEEL PRO professional racing wheel. It is designed to enhance your driving simulation experience across multiple platforms. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.

The KROM K-WHEEL PRO features 3 adjustable sensitivity levels, integrated paddle shifters, and a gear lever for precise control. A responsive pedal set is included for a complete simulation experience. It is compatible with PC, PS3, PS4, Xbox One, and Nintendo Switch. The ergonomic design and stable base ensure comfort and performance during extended use.

2. Package Contents

Verify that all items listed below are present in your package. If any components are missing or damaged, please contact customer support.

• KROM K-WHEEL PRO Racing Wheel
• Pedal Set (Accelerator, Brake, Clutch)
• Gear Shifter
• USB Connection Cable
• User Manual (this document)

Image 1: KROM K-WHEEL PRO complete set, including the racing wheel, pedal set, and gear shifter.

3. Setup Instructions

3.1 Attaching the Racing Wheel

1. Place the racing wheel on a stable, flat surface such as a desk or racing cockpit.
2. Secure the wheel using the integrated suction cups on the base. Press down firmly to ensure a strong grip.
3. Alternatively, use the included clamp system (if applicable, not explicitly mentioned but common for racing wheels) to attach the wheel to a desk edge.

Image 2: Front view of the KROM K-WHEEL PRO Racing Wheel, showing the main controls and ergonomic design.

3.2 Connecting the Pedal Set

1. Place the pedal set on the floor in front of your seating position.
2. Connect the pedal set cable to the designated port on the back of the racing wheel. Ensure the connection is secure.
3. The pedal set features a textured base for improved grip on various floor surfaces.

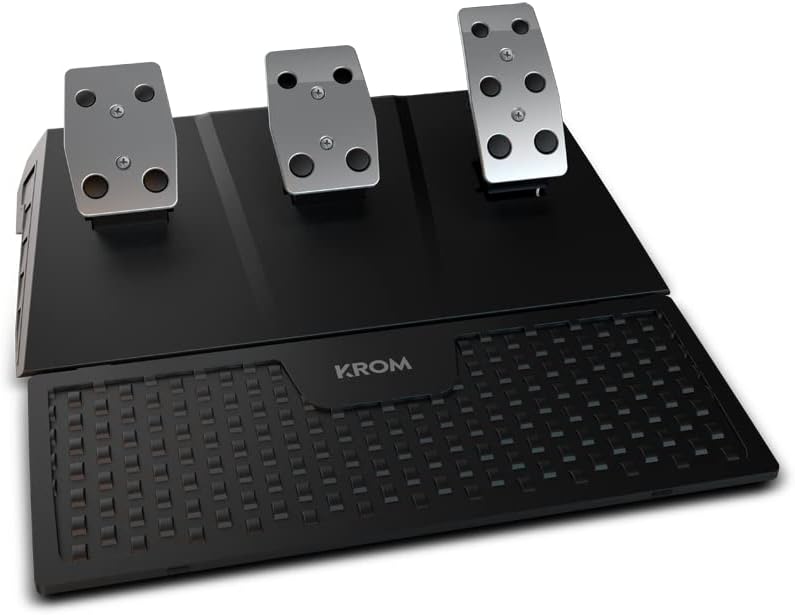

Image 3: The KROM K-WHEEL PRO pedal set, featuring accelerator, brake, and clutch pedals with a textured footrest.

3.3 Connecting the Gear Shifter

1. Attach the gear shifter to your preferred side of the racing wheel setup, typically using a clamp or suction cups.
2. Connect the gear shifter cable to the designated port on the racing wheel.

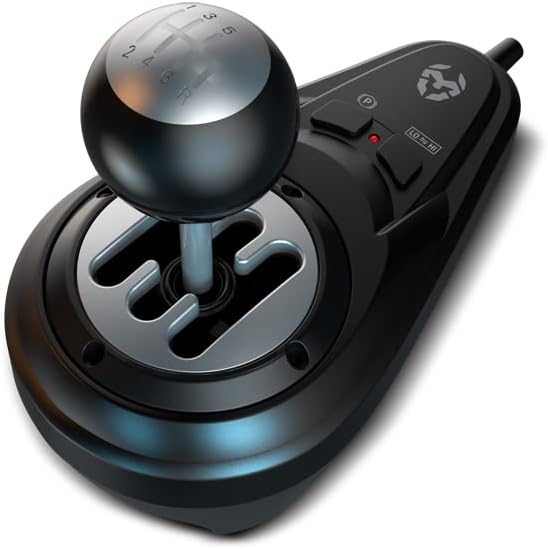

Image 4: The KROM K-WHEEL PRO gear shifter, showing the H-pattern shift gate and ergonomic knob.

3.4 Connecting to Your System (PC/Console)

1. Ensure your PC or console is powered off.
2. Connect the main USB cable from the racing wheel to an available USB port on your PC, PS3, PS4, Xbox One, or Nintendo Switch.
3. Power on your system. The device should be automatically recognized.
4. For PC, driver installation may be required. Refer to the KROM website for the latest drivers.

Image 5: A complete KROM K-WHEEL PRO setup on a desk, demonstrating the racing wheel, gear shifter, and pedal placement in a gaming environment.

4. Operating Instructions

4.1 Mode Selection

The K-WHEEL PRO supports multiple platforms. Ensure the correct mode is selected for your system. Refer to the device's indicator lights or the KROM website for specific mode switching instructions.

4.2 Sensitivity Adjustment

The racing wheel offers 3 adjustable sensitivity levels. This allows you to fine-tune the steering response to match your driving style and game requirements.

• Low Sensitivity: Provides a less responsive steering, ideal for precise maneuvers or specific vehicle types.
• Medium Sensitivity: A balanced setting suitable for most racing games and driving styles.
• High Sensitivity: Offers a highly responsive steering, beneficial for quick reactions in fast-paced racing.

To adjust sensitivity, press the designated sensitivity button on the wheel (refer to the button layout diagram in the quick start guide or KROM website). The indicator lights will show the current sensitivity level.

4.3 Button Mapping and Programming

The K-WHEEL PRO features programmable buttons, allowing for customization of controls.

• Refer to your game's control settings to map the wheel's buttons, pedals, and shifter functions.
• For advanced programming, consult the KROM website for any available software or detailed instructions.

4.4 Force Feedback and Vibration

The racing wheel includes a dual vibration motor for realistic force feedback, simulating road conditions, collisions, and other in-game effects. Ensure force feedback is enabled in your game settings for the full immersive experience.

5. Maintenance

5.1 Cleaning

• Disconnect the racing wheel from all power sources before cleaning.
• Use a soft, dry cloth to wipe down the surfaces of the wheel, pedals, and shifter.
• For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by a dry cloth.
• Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the product's finish.

5.2 Storage

• Store the KROM K-WHEEL PRO in a cool, dry place away from direct sunlight and extreme temperatures.
• If storing for an extended period, consider placing it back in its original packaging to protect it from dust and physical damage.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information, technical support, or to download the latest drivers and software, please visit the official KROM website. Keep your proof of purchase for warranty claims.

KROM Official Website: www.kromgaming.com

For further assistance, contact KROM customer service.
