OLEVS Automatic Mechanical Skeleton Moon Phase Watch (Model GX-S-6617-$P)

Introduction

Thank you for choosing the OLEVS Automatic Mechanical Skeleton Moon Phase Watch. This timepiece combines classic design with advanced mechanical engineering, offering a unique blend of style and functionality. This manual provides detailed instructions for setting up, operating, and maintaining your watch to ensure its longevity and optimal performance.

Image: The OLEVS Automatic Mechanical Skeleton Moon Phase Watch in its striking gold finish, showcasing its intricate dial and robust design.

Package Contents

• OLEVS Automatic Mechanical Skeleton Moon Phase Watch
• User Manual
• Strap Adjustment Tool

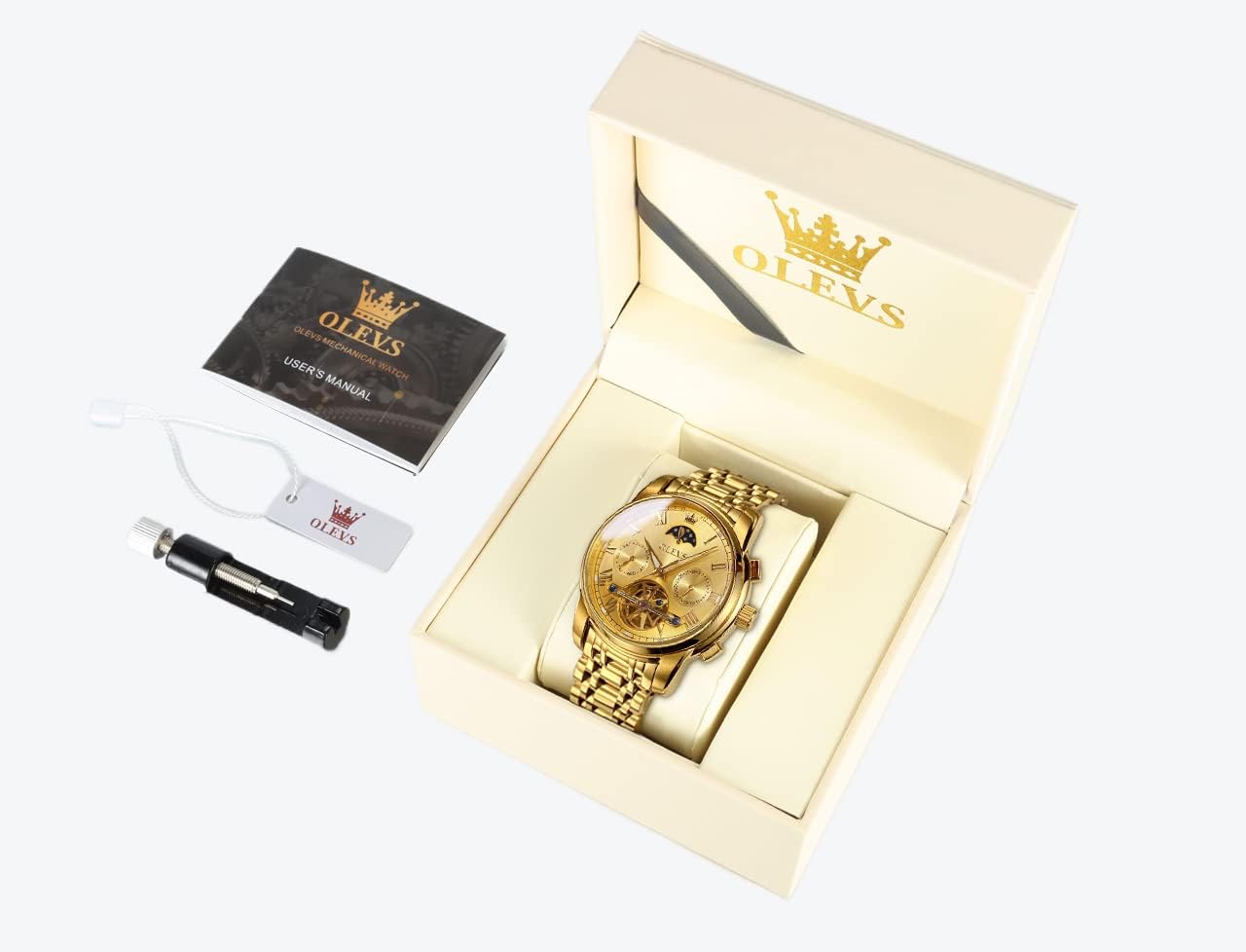

Image: The OLEVS watch presented in its elegant box, accompanied by the user manual and a tool for adjusting the watch strap.

Setup and Initial Adjustment

1. Initial Winding

Your OLEVS watch features an automatic self-winding mechanical movement. Before wearing for the first time or after a period of inactivity, manually wind the watch:

1. Ensure the crown is in position 1 (fully pushed in).
2. Rotate the crown clockwise approximately 30-40 times. This will provide sufficient power reserve to start the movement.
3. The watch will continue to wind automatically with wrist movement while worn.

2. Setting Time, Date, Day, and Moon Phase

Image: A detailed diagram illustrating the watch's various indicators (Week pointer, Calendar pointer, Moon phase display) and the corresponding adjustment buttons and crown positions.

• Setting Time:
  1. Pull the crown out to position 3 (farthest out).
  2. Rotate the crown to set the hour and minute hands. Ensure to set the correct AM/PM for accurate date change.
  3. Push the crown back to position 1.
• Setting Date (Calendar Pointer):
  1. Locate the "Adjust calendar button" (refer to diagram).
  2. Use a small, pointed tool (like the strap adjustment tool or a toothpick) to gently press this button until the correct date is displayed.
• Setting Day (Week Pointer):
  1. Locate the "Adjust week button" (refer to diagram).
  2. Gently press this button with a pointed tool until the correct day of the week is displayed.
• Setting Moon Phase:

  The moon phase display typically advances with the time. After setting the time, the moon phase will move accordingly. If further adjustment is needed, it is often linked to the time setting mechanism or a dedicated pusher (if present and not explicitly shown in the diagram, it's usually adjusted by rotating the crown in position 2 or a dedicated button).

3. Adjusting the Bracelet

The watch comes with a strap adjustment tool. To adjust the solid stainless steel seven-bead bracelet:

1. Identify the pins on the side of the bracelet links that need to be removed.
2. Place the bracelet in the adjustment tool, aligning the pin with the tool's pusher.
3. Gently push the pin out in the direction of the arrow (usually found on the inside of the link).
4. Remove the desired number of links.
5. Reassemble the bracelet by inserting the pins back in the opposite direction.

If you are unsure, it is recommended to seek professional assistance for bracelet adjustment.

Operating Your Watch

Automatic Mechanical Movement

Your OLEVS watch is powered by an imported automatic mechanical movement. This means it does not require batteries. The movement is powered by the natural motion of your wrist. When fully wound, it has a power reserve that allows it to run for a period even when not worn. If the watch stops, simply wind it manually as described in the "Initial Winding" section or wear it for several hours to reactivate the automatic winding mechanism.

Image: A close-up view of the OLEVS watch on a wrist, emphasizing the visible mechanical movement through the skeleton dial.

Luminous Display

The watch hands are equipped with an environmentally friendly luminous material. After exposure to sufficient light (natural or artificial), the hands will glow in low-light conditions, allowing for clear time readability in the dark.

Water Resistance (3ATM)

This OLEVS watch is water-resistant up to 30 meters (3ATM). This rating means it is suitable for daily use, such as accidental splashes, rain, or hand washing. It is not suitable for showering, bathing, swimming, diving, or any water sports. Avoid pressing any buttons or adjusting the crown while the watch is wet or submerged to prevent water ingress.

Video: A demonstration of the OLEVS watch's features, including its water resistance and luminous display, showcasing its functionality in various conditions.

Maintenance

• Cleaning: Wipe the watch case and bracelet regularly with a soft, dry cloth to remove dust and fingerprints. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying.
• Avoid Chemicals: Do not expose the watch to harsh chemicals, solvents, or detergents, as these can damage the case, crystal, or bracelet finish.
• Temperature Extremes: Avoid exposing the watch to extreme temperatures (hot or cold) or sudden temperature changes, which can affect the movement's accuracy and seals.
• Magnetic Fields: Keep the watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones, airport security scanners), as magnetism can affect the accuracy of mechanical movements.
• Storage: When not wearing the watch, store it in its original box or a watch winder to protect it from dust and scratches.
• Professional Servicing: For optimal performance and longevity, it is recommended to have your mechanical watch serviced by a qualified watchmaker every 3-5 years.

Troubleshooting

Specifications

• Brand: OLEVS
• Model Number: GX-S-6617-$P
• Movement: Automatic Mechanical
• Case Material: Stainless Steel
• Bracelet Material: 316L Stainless Steel
• Water Resistance: 3ATM (30 meters / 100 feet) - Suitable for splashes, rain, hand washing. Not for swimming or diving.
• Features: Skeleton Dial, Moon Phase, Week Pointer, Calendar Pointer, Luminous Hands, Tourbillon Design.
• Package Dimensions: 4.57 x 4.37 x 2.91 inches
• Item Weight: 14.07 ounces

Warranty and Support

OLEVS provides comprehensive post-sales care for your timepiece. This includes expert repairs, global support, and warranty coverage to ensure your watch remains in excellent condition. For specific warranty details, claims, or technical assistance, please refer to the warranty card included with your purchase or contact OLEVS customer service directly.

For further assistance, please visit the official OLEVS website or contact their authorized service centers.
