Introduction
Thank you for choosing the VIANIS Motion Sensor Outdoor Wall Lantern. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions thoroughly before installation and retain them for future reference.
Safety Information
- Always turn off the power at the circuit breaker before beginning installation or performing any maintenance.
- Consult a qualified electrician if you are not familiar with electrical wiring.
- Ensure all electrical connections are secure and comply with local codes and ordinances.
- This fixture is designed for hardwired 120V outdoor use.
- Use only dimmable LED bulbs or incandescent bulbs with the E26 socket to ensure proper functionality of the motion sensor and dusk-to-dawn features.
Package Contents
Verify that all components are present before installation:
- VIANIS Motion Sensor Outdoor Wall Lantern (Shade)
- Mounting Hardware
Note: Bulbs are not included and must be purchased separately.
Setup and Installation
The VIANIS Motion Sensor Outdoor Wall Lantern comes pre-assembled for quick installation. Follow these steps for proper mounting:
Tools Required (Not Included)
- Screwdriver
- Wire Strippers
- Electrical Tape
- Safety Glasses
Installation Steps
- Turn Off Power: Before starting, ensure the power supply to the installation area is turned off at the circuit breaker.
- Prepare Mounting Surface: Ensure the mounting surface is clean, dry, and structurally sound.
- Attach Mounting Plate: Secure the mounting plate (included in hardware) to the junction box using the provided screws.
- Make Electrical Connections: Connect the fixture's wires to your household wiring according to standard electrical codes (typically black to black, white to white, and ground to ground). Use wire nuts to secure connections.
- Mount Fixture: Carefully align the fixture with the mounting plate and secure it with the provided screws.
- Install Bulb: Insert a dimmable E26 base LED bulb (or incandescent bulb) into the socket. The open bottom design allows for easy bulb replacement without tools.
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.
Operating Instructions
Your VIANIS Motion Sensor Outdoor Wall Lantern features advanced motion-activated and dusk-to-dawn sensor technology with multiple operating modes.
Motion Sensor & Dusk-to-Dawn Functionality
The fixture automatically turns on at sunset and off at dawn. It integrates a PIR motion sensor with a super wide range of up to 40 feet and a 220° wide detection angle.
Operating Modes
The lantern offers two primary standby modes and a manual override mode, easily switchable with a single button.
- 1. DIM MODE (Default):
At sunset, the light automatically turns on at 30% brightness. When motion is detected, it illuminates to 100% brightness. After approximately 2 minutes without motion, it reverts to 30% brightness. The light turns off automatically at dawn. - 2. ECO+ MODE:
At sunset, the light remains off. When motion is detected, it illuminates to 100% brightness. After approximately 2 minutes without motion, it turns off completely. The light remains off automatically at dawn. - 3. Manual Override Mode:
To activate, quickly turn the wall switch OFF and then ON within 2 seconds. The light will stay on at 100% brightness for 8 hours, then automatically return to the last selected motion sensor mode (DIM or ECO+).
Switching Modes
The lantern features a convenient one-click mode switch button located on the fixture. Press this button to cycle between DIM MODE and ECO+ MODE. The light will remember your last setting.
Maintenance
Regular maintenance ensures optimal performance and longevity of your outdoor wall lantern.
Cleaning
- Ensure power is off before cleaning.
- Wipe the aluminum frame with a soft, damp cloth. Avoid abrasive cleaners that may damage the finish.
- Clean the tempered clear glass panels with a glass cleaner and a soft cloth to maintain clarity.
Bulb Replacement
The fixture's open bottom design allows for easy bulb replacement without tools.
- Turn off power at the circuit breaker.
- Unscrew the old E26 bulb.
- Screw in a new dimmable E26 LED bulb (or incandescent bulb) of appropriate wattage (max 100W).
- Restore power.
Troubleshooting
If you encounter issues with your VIANIS Motion Sensor Outdoor Wall Lantern, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | 1. Power is off. 2. Bulb is faulty or not installed correctly. 3. Sensor is obstructed or in ECO+ mode. | 1. Check circuit breaker and wall switch. 2. Replace bulb and ensure it's screwed in properly. 3. Clear any obstructions from the sensor. Switch to DIM mode if desired. |
| Light stays on constantly. | 1. Manual Override Mode is active. 2. Sensor is continuously detecting motion. 3. Faulty sensor. | 1. Wait for 8 hours for Manual Override to expire, or cycle power to reset. 2. Adjust sensor angle or sensitivity if possible, or remove continuous motion source. 3. Contact customer support. |
| Light flickers. | Non-dimmable LED bulb used. | Replace with a dimmable E26 LED bulb. |
| Motion sensor not detecting. | 1. Sensor obstructed. 2. Incorrect mode (e.g., Manual Override). 3. Sensor range/angle issue. | 1. Clear obstructions. 2. Ensure not in Manual Override. Switch to DIM or ECO+ mode. 3. Verify sensor is positioned correctly and within detection range. |

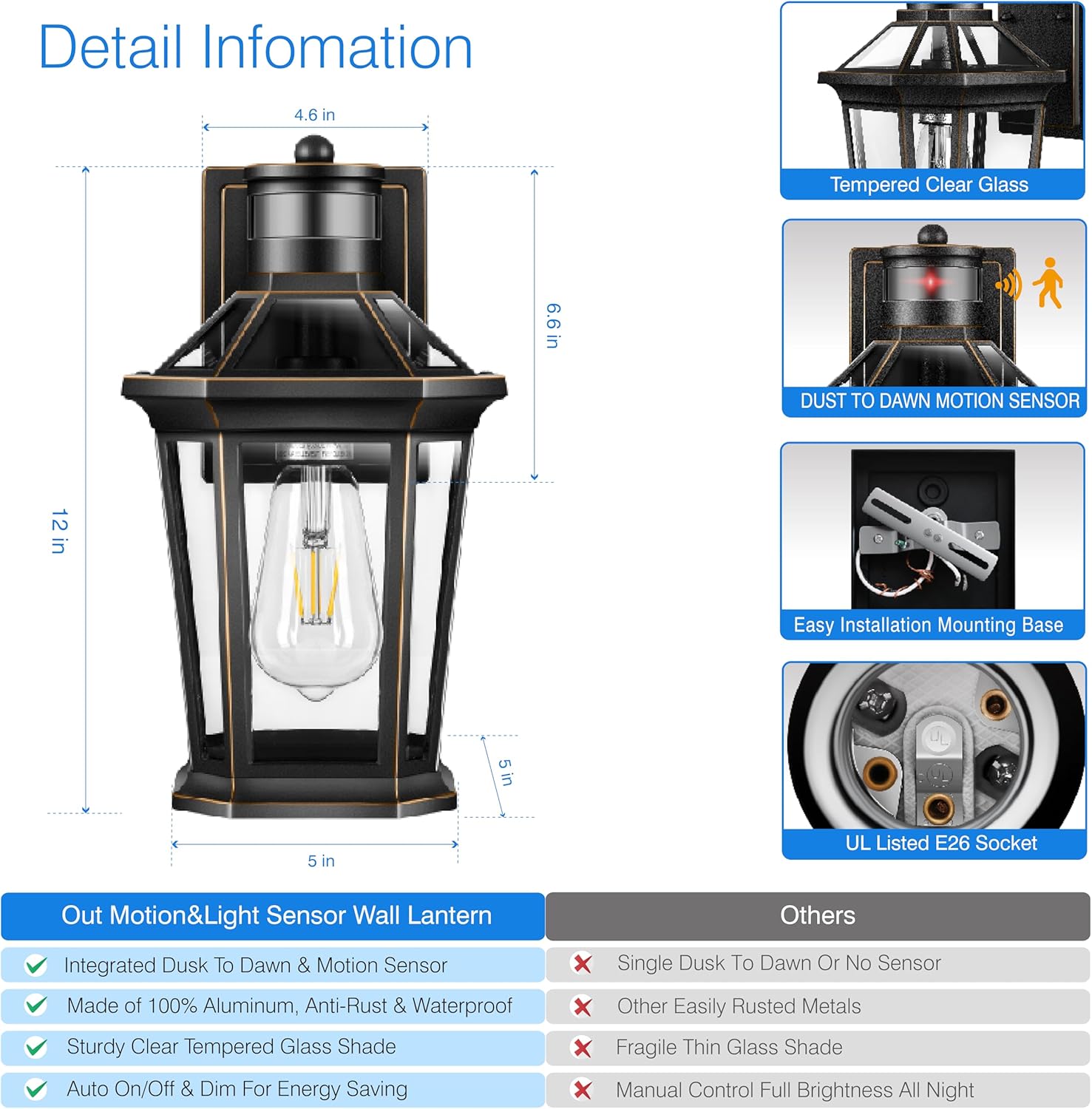

Specifications
| Feature | Specification |
|---|---|
| Brand | VIANIS |
| Model Number | V81091KG |
| Color | Black(Gold Trim) |
| Material | Aluminum, Glass |
| Style | Modern |
| Light Fixture Form | Sconce |
| Product Dimensions | 5"L x 5"W x 12"H |
| Indoor/Outdoor Usage | Outdoor |
| Power Source | Hardwired |
| Special Feature | Dusk to Dawn Motion Sensor, Anti-rust Aluminum Body, One-Click Mode Change, Tempered Clear Glass, Waterproof |
| Light Source Type | LED (Bulb not included) |
| Voltage | 120 Volts (AC) |
| Light Color Temperature | 3000 Kelvin (Warm White, dependent on bulb) |
| Maximum Compatible Wattage | 100 Watts |
| Bulb Base | E26 |
| Water Resistance Level | Waterproof |
| Item Weight | 3.66 Pounds |
Warranty and Support
Warranty Information
This VIANIS product comes with a Limited Warranty. For specific details regarding warranty coverage and duration, please refer to the product packaging or contact VIANIS customer support.
Customer Support
If you have any questions, require technical assistance, or need to report an issue, please contact VIANIS customer support through the retailer where the product was purchased or visit the official VIANIS website for contact information.
