Product Overview
This instruction manual provides detailed information for the installation, maintenance, and troubleshooting of YIHAM grill replacement parts. This kit includes heat shields, burner tubes, adjustable crossover tubes, and an igniter wire, designed to restore optimal performance to your compatible Charbroil gas grill.

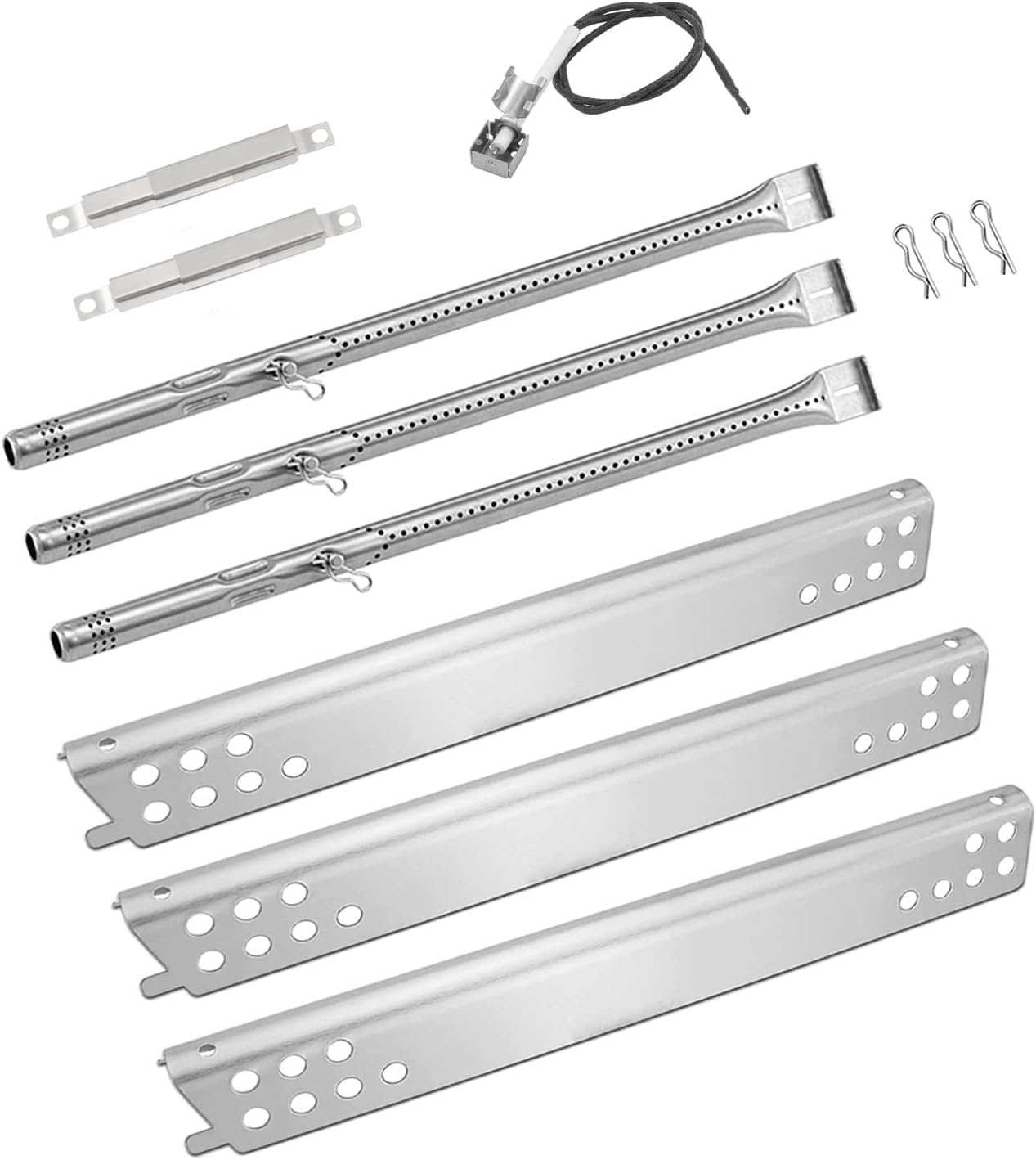

Image: Complete set of YIHAM grill replacement parts, including three heat shields, three burner tubes, two adjustable crossover tubes, and an igniter wire, laid out on a surface.
Package Contents
Verify that all components listed below are present and undamaged upon opening the package:
- 3 x Heat Plates (Heat Shields)
- 3 x Tube Burners
- 2 x Adjustable Crossover Tubes
- 6 x Cotter Pins
- 1 x Igniter Wire
Compatible Models
These replacement parts are designed for specific Charbroil gas grill models. Please confirm your grill's model number for compatibility:
- Charbroil Advantage 3 Burner Grill: 463343015, 466343015
- Charbroil Performance 3 Burner Grill: 463335115, 463435115, 463436815, 466335015, 463370015, 469335115, 463634515, 469435115, 466434315, 463436915, 463464315, 463437815, 463234815, 469234815
- Charbroil 2 Burner Grill: 463642015, 466642015, 463642116
- Charbroil 4 Burner Grill: 463240015, 463433016, 463344015, 466344015, 466433016, 463432215, 469432215, 466344015
- Charbroil 6 Burner Grill: Advantage 6 Burner 463240115, 469235815, Classic 6 Burner 463235815
Image: Examples of compatible Charbroil grill models, including Advantage 463343015, Performance 463436815, Performance 463335115, Performance 463435115, and Advantage 463642116.
Product Dimensions
Accurate measurements of the replacement parts are provided to assist with fitment verification:
Heat Plate (Heat Shield)
Dimensions: 15 1/8" (length) x 2" (width)
Image: Detailed diagram illustrating the length (15 1/8") and width (2") of a single heat plate.
Burner Tube
Dimensions: 14 3/8" (length) x 3/5" (diameter)
Image: Detailed diagram illustrating the length (14 3/8") and diameter (3/5") of a single burner tube, along with a cotter pin.
Adjustable Crossover Tube
Dimensions: Adjusts from 5" to 9.5" (length)
Image: Detailed diagram illustrating the adjustable length of the crossover tube, ranging from 5" to 9.5", with close-ups of its connection points.
Installation Guide
Before beginning installation, ensure your grill is completely cool and disconnected from its gas supply. It is recommended to wear protective gloves.
- Remove Grill Grates and Heat Tents: Carefully lift out the cooking grates and existing heat tents (flame tamers) from your grill.
- Remove Old Burner Tubes: Disconnect the old burner tubes from the gas valves and remove any retaining pins or screws. Carefully lift them out of the grill.
- Remove Old Crossover Tubes: Detach and remove the old crossover tubes that connect the burner tubes.
- Clean Grill Interior: Thoroughly clean the inside of the grill, removing any grease, rust, or debris from the firebox.
- Install New Burner Tubes: Insert the new burner tubes into their respective positions, ensuring they align correctly with the gas valve orifices at one end and the support brackets at the other. Secure them with the provided cotter pins or original hardware if applicable.
- Install New Crossover Tubes: Adjust the new crossover tubes to the appropriate length and install them between the burner tubes, ensuring a secure connection for flame transfer.
- Install New Heat Plates: Place the new heat plates directly over the installed burner tubes. Ensure they sit securely on their designated supports.
- Install Igniter Wire (if replacing): If replacing the igniter wire, connect it to the igniter module and route it to the appropriate burner for spark generation.
- Reinstall Grill Grates: Once all parts are securely in place, carefully reinstall the cooking grates.
Image: A split image showing the interior of a grill before (top, with rusted parts) and after (bottom, with new, shiny replacement parts installed) the installation of the heat shields and burner tubes.
Image: A detailed view of the interior of a Charbroil grill with the new replacement parts installed, focusing on the burner tubes and crossover tube connections.
Maintenance
Regular maintenance extends the lifespan of your grill parts and ensures optimal cooking performance.
- Cleaning Heat Plates: After each use, once the grill has cooled, scrape off any food debris or grease from the heat plates using a grill brush or scraper. For deeper cleaning, remove them and wash with warm, soapy water, then rinse and dry thoroughly.
- Cleaning Burner Tubes: Periodically inspect burner ports for blockages (e.g., from food debris or insects). Use a wire brush or a stiff wire to clear any obstructions. Ensure gas flow is even across all ports.
- Rust Prevention: While these parts are designed for durability, exposure to moisture can lead to rust. Ensure parts are dry after cleaning and consider covering your grill when not in use, especially in humid environments.
- Igniter Inspection: Check the igniter wire and electrode periodically for corrosion or damage. Ensure the igniter sparks consistently when activated.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Heating | Blocked burner ports, misaligned heat plates. | Clean burner ports. Ensure heat plates are correctly positioned over burners. |
| Burner Not Lighting | Clogged burner tube, faulty igniter, loose igniter wire, blocked crossover tube. | Clean burner tube ports. Check igniter for spark. Secure igniter wire connections. Clear crossover tube. |
| Low Flame | Partially blocked burner ports, low gas supply. | Clean burner ports. Check gas tank level and regulator. |
| Rust Formation | Exposure to moisture, lack of cleaning. | Ensure parts are dry after cleaning. Store grill under a cover. |
Specifications
| Component | Dimensions |
|---|---|
| Heat Plate (Heat Shield) | 15 1/8" x 2" |
| Burner Tube | 14 3/8" x 3/5" |
| Adjustable Crossover Tube | Adjusts from 5" to 9.5" |
Item Weight: 2.12 pounds
Manufacturer: YIHAM
Warranty and Support
For information regarding warranty coverage or technical support, please refer to the product packaging or contact the manufacturer, YIHAM, directly through their official channels. Keep your purchase receipt as proof of purchase.
