1. Important Safety Instructions
Please read all instructions carefully before using the appliance. Keep this manual for future reference.
- Electrical Safety: Ensure the washing machine is connected to a properly grounded electrical outlet. Do not use extension cords. Disconnect power before cleaning or servicing.
- Water Safety: Ensure water inlet and drain hoses are securely connected to prevent leaks. Do not operate the machine if there is a water leak.
- Child Safety: Keep children away from the washing machine during operation. Do not allow children to play on or in the appliance.
- General Use: Do not wash items that are soiled with flammable substances. Do not attempt to repair the appliance yourself; contact qualified service personnel.
For complete safety guidelines, refer to the detailed safety section in your physical instruction manual.
2. Product Overview
The ONIDA 7.5 kg Fully Automatic Top Load Washing Machine (Model T75CGN1) is designed for efficient and convenient laundry care. It features advanced technologies to ensure thorough cleaning and ease of use.
Front view of the ONIDA 7.5 kg Fully Automatic Top Load Washing Machine.
Key Features
- Capacity: 7.5 kg, suitable for large families.
- Energy Efficiency: 5 Star rating for economical operation.
- Crystal Drum Technology: Specially designed drum for effective cleaning without fabric damage.
- Fuzzy Logic: Automatically detects laundry load and optimizes wash settings.
- Magic Lint Filter: Efficiently collects lint and debris during the wash cycle.
- High Spin Speed: 700 RPM for faster drying.
- 10 Wash Programs: Variety of programs for different fabric types and soil levels.
- Rust-Proof Body: Durable construction for long-lasting performance.
The washing machine features a 5 Star Energy Efficient rating, indicating low power consumption.

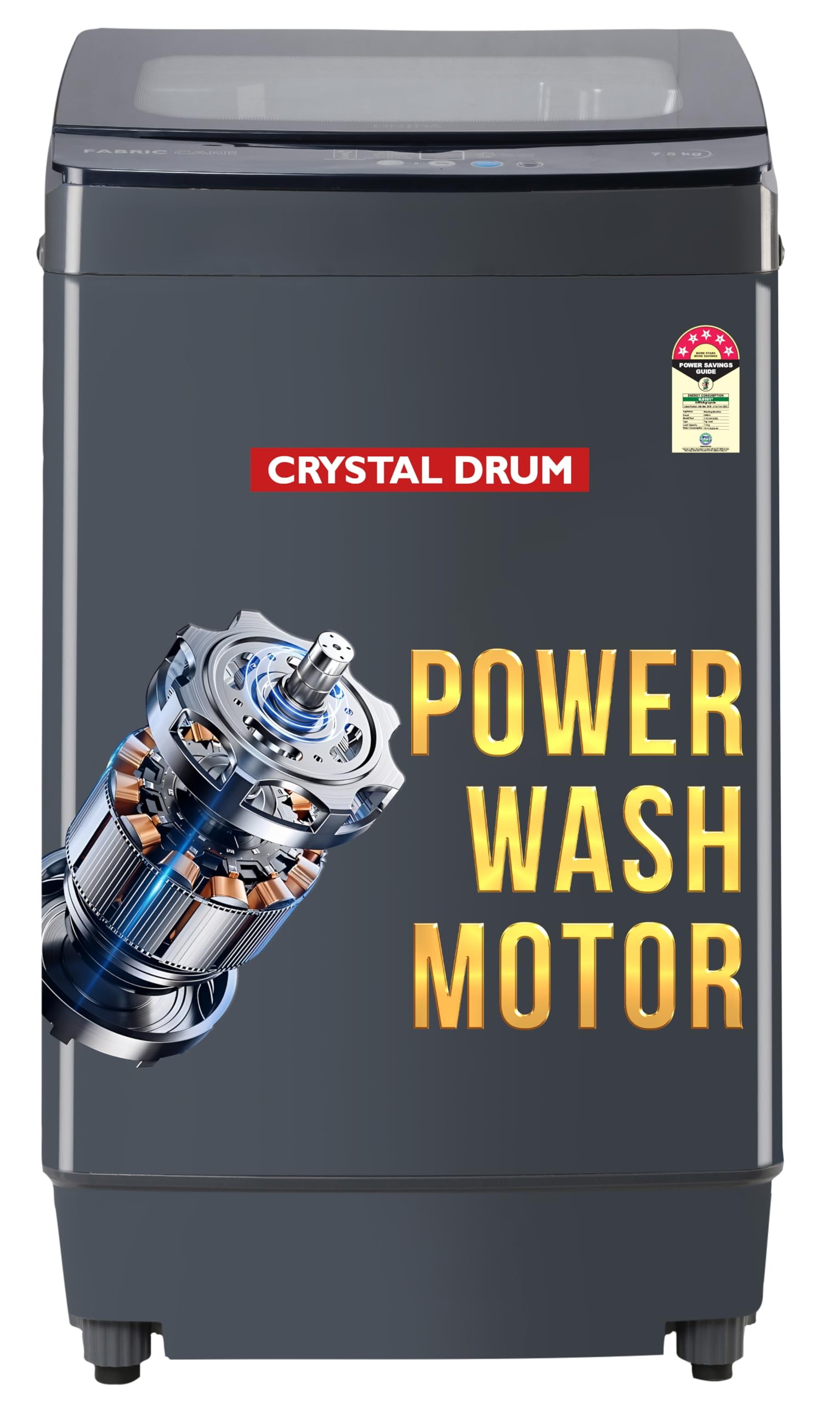

Illustration highlighting the powerful 700 RPM motor for effective washing.
Included Components
Upon unpacking, ensure all the following items are present:
- 1 Washing Machine Unit
- 1 Drain Hose
- 1 Inlet Hose
- 1 Spin Cap
- Instruction Manual
- Warranty Card
3. Installation and Setup
Unpacking
Carefully remove the washing machine from its packaging. Inspect for any damage during transit. Retain packaging materials for future transport if needed.
Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. Avoid direct sunlight or excessively moist environments.
Water Supply Connection
- Connect the inlet hose to the water tap.
- Connect the other end of the inlet hose to the water inlet valve at the back of the washing machine.
- Ensure all connections are tight to prevent leaks.
Drain Hose Connection
- Position the drain hose to ensure proper water drainage. It can be hooked over a sink or connected to a standpipe.
- Ensure the drain hose is not kinked or blocked.
Side view of the washing machine, illustrating the drain hose connection.
Power Connection
Plug the power cord into a dedicated, grounded electrical outlet. Do not overload the circuit.
4. Operating Instructions
This section guides you through the basic operation of your ONIDA washing machine.
Control Panel Overview
The washing machine features a user-friendly control panel with touch controls and a dial for program selection.
Top view of the washing machine, showing the control panel and drum.
Loading Laundry
- Open the lid and load clothes loosely into the drum. Do not overload the machine beyond its 7.5 kg capacity.
- Ensure clothes are evenly distributed to prevent imbalance during spinning.
Adding Detergent
Add the appropriate amount of detergent to the detergent dispenser according to the detergent manufacturer's instructions and the load size.
Selecting a Wash Program
Turn the dial or use the touch controls to select one of the 10 available wash programs. The Fuzzy Logic feature will automatically adjust settings based on the load.
- Quick Wash: For lightly soiled clothes or smaller loads.
- Water Recycle: For rinse cycles, conserving water.
- Saree: Specialized program for delicate saree fabrics.
- Eco Wash: Energy-efficient wash for gentle cleaning.
- Heavy Wash: For heavily soiled or durable fabrics.
- Wash: Standard program for daily laundry.
- Spin: For excess water removal after washing.
- Rinse & Spin: Combines rinsing and spinning.
- Tub Clean: For cleaning the washing machine drum.
- Air Dryer: For faster drying of clothes.
Visual representation of the 10 available wash programs.
The Air Dryer function provides powerful air rotation for efficient drying.
Starting a Wash Cycle
After selecting the desired program, press the 'Start/Pause' button to begin the wash cycle.
After the Wash Cycle
The machine will signal the end of the cycle. Carefully remove the washed clothes.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
Cleaning the Magic Lint Filter
The Magic Lint Filter should be cleaned regularly to maintain washing efficiency. Remove the filter, clean out collected lint under running water, and reinsert it securely.
The Magic Lint Filter effectively captures lint and debris during the wash cycle.
Cleaning the Crystal Drum
Periodically run the 'Tub Clean' program to clean the inner drum and remove any detergent residue or odors. This helps maintain the effectiveness of the Crystal Drum technology.
The Crystal Drum is designed for efficient cleaning while protecting fabrics.
Exterior Cleaning
Wipe the exterior of the machine with a soft, damp cloth. Avoid abrasive cleaners. The rust-proof body ensures durability and easy maintenance.
The washing machine features a rust-proof body for enhanced durability.
Winterizing (for cold climates)
If the machine is to be left in an unheated area during winter, drain all water from the hoses and pump to prevent freezing and damage.
6. Troubleshooting
Before contacting customer service, refer to the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, lid not closed, power outage. | Check power connection, ensure lid is fully closed, check household circuit breaker. |
| Water not draining | Drain hose kinked or blocked, pump filter clogged. | Straighten drain hose, clear any blockages, clean the pump filter (if accessible). |
| Excessive vibration/noise | Machine not level, load unbalanced, shipping bolts not removed. | Adjust leveling feet, redistribute laundry evenly, ensure all shipping bolts are removed. |
| Poor washing results | Too much/too little detergent, incorrect wash program, overloaded. | Use correct detergent amount, select appropriate program, reduce load size. |
If the problem persists after attempting these solutions, please contact customer support.
7. Technical Specifications
Detailed specifications for the ONIDA 7.5 kg Fully Automatic Top Load Washing Machine (Model T75CGN1).
Diagram showing the dimensions of the washing machine.
| Feature | Specification |
|---|---|
| Model Number | T75CGN1 |
| Brand | Onida |
| Capacity | 7.5 kg |
| Product Dimensions (D x W x H) | 54.7D x 56.3W x 92.4H Centimeters |
| Item Weight | 29020 Grams |
| Access Location | Top Load |
| Controls Type | Touch, Dial |
| Max Rotational Speed | 700 RPM |
| Voltage | 230 Volts |
| Drum Material | Glass |
| Color | Grey |
| Special Features | 10 Wash Programs, Crystal Drum, Dynamic Display, Fuzzy Logic, RPM 700 Motor Power |
8. Warranty and Customer Support
Warranty Information
Your ONIDA washing machine comes with the following warranty:
- Product Warranty: 2 Years Comprehensive Warranty
- Motor Warranty: 5 Years Warranty
Please retain your purchase receipt and warranty card for any warranty claims.
Customer Support
For service, support, or inquiries, please contact the manufacturer:
- Manufacturer: MIRC ELECTRONICS LIMITED
- Contact Number: 7490955555
You can also visit the official Onida Store on Amazon for more information and product details.
