1. Product Overview
The Radenso USB-C Direct Wire Kit with Mute Button is designed to provide a clean and integrated power solution for your Radenso DS1 or Theia radar detector. This kit allows for a stealth installation by routing power cables through vehicle interior panels, enhancing the aesthetic and functionality of your radar detector setup. The included mute button offers convenient control over your device.

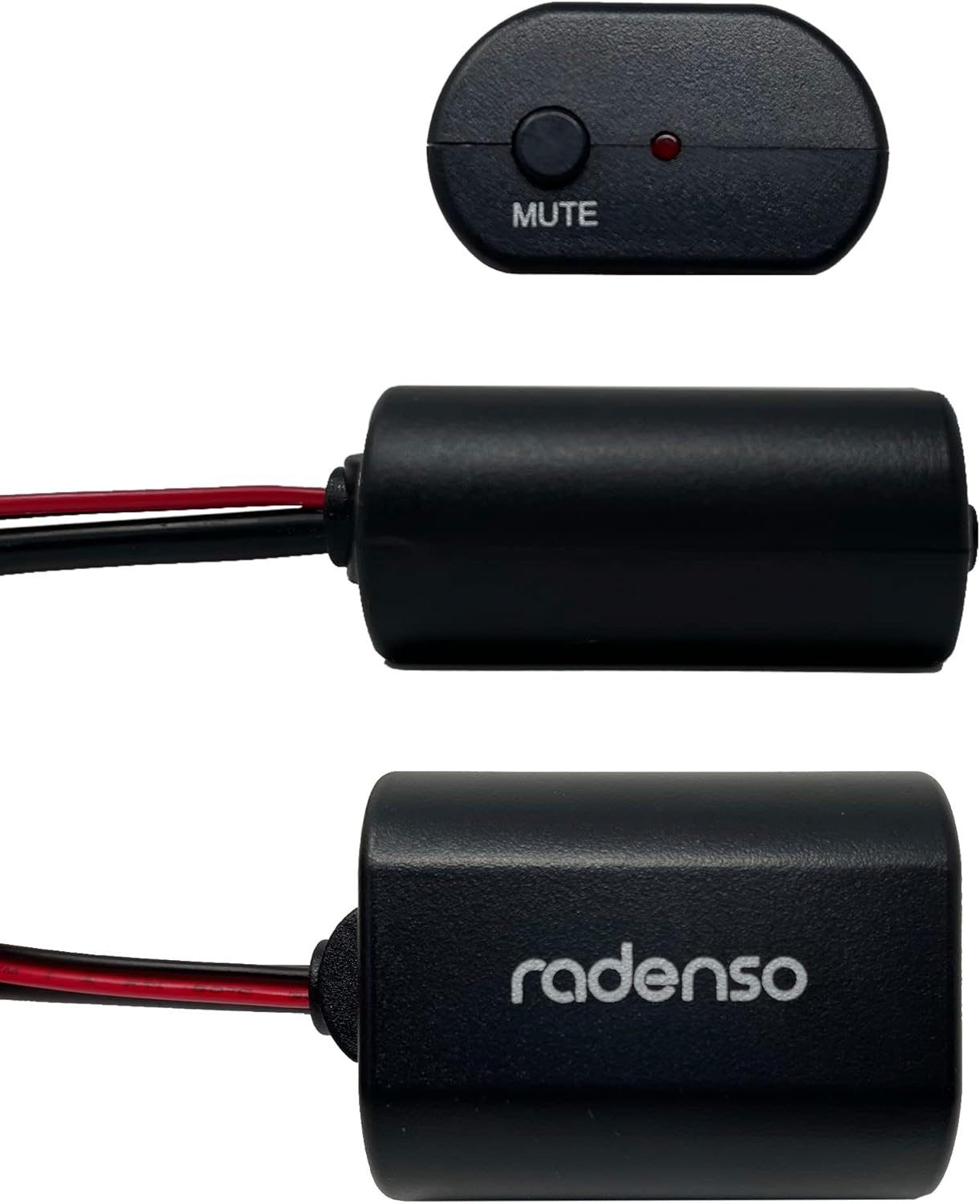

Image 1: Radenso USB-C Direct Wire Kit components.
2. Installation Guide
This section details the steps for installing your Radenso USB-C Direct Wire Kit. Proper installation ensures optimal performance and a discreet setup.
2.1. Kit Components
- USB-C cable with 90-degree connector (11 feet length from USB-C to mute button)
- Mute button with integrated power and ground wires (11 feet length from power/ground to mute button)
- Power and ground connectors for vehicle electrical system
2.2. Mounting the Radar Detector
The Radenso DS1 and Theia radar detectors typically use a custom magnetic suction cup mount for secure attachment to the windshield. Ensure the mounting location provides a clear view of the road and does not obstruct the driver's vision.
2.3. Wiring the Direct Wire Kit
- Connect to Radar Detector: Plug the 90-degree USB-C connector into the USB-C port on your Radenso DS1 or Theia radar detector. The 90-degree angle allows for flexible cable routing, either upwards or downwards, depending on your preference.
- Route Cables: Carefully route the USB-C cable and the mute button's power/ground wires through your vehicle's interior panels. This allows for a clean, hidden installation. Ensure cables do not interfere with airbags or other safety systems.
- Connect Power: Connect the power and ground wires from the mute button to an appropriate 12V power source in your vehicle. Consult your vehicle's manual or a professional for identifying suitable power and ground points (e.g., fuse box).
- Position Mute Button: Place the mute button in an easily accessible location, such as near the steering wheel or dashboard, for convenient operation.
Image 2: Example of the mute button installed in a vehicle.
2.4. Visual Installation Aid
For a visual guide on the Radenso DS1 and its components, which includes aspects relevant to the direct wire kit, please refer to the video below.
Video 1: Radenso DS1 Overview. This video provides a general overview of the Radenso DS1 radar detector, including its features and components, which can be helpful for understanding the direct wire kit's integration.
3. Operating Instructions
The mute button provides quick and easy control over your radar detector's alerts and settings.
3.1. Mute Button Functions
- Quick Silence: Press the mute button to quickly silence an active alert from the radar detector.
- Lockout Points: The mute button can be used to store lockout points for stationary false alerts (e.g., automatic door openers at stores). After passing a stationary false alert three times, the detector will automatically store it in its memory and will not alert to it in the future, resulting in a quieter driving experience.
- Remove Lockout Points: Specific button press sequences can be used to remove previously stored lockout points if needed. Refer to your radar detector's main manual for detailed instructions on these advanced functions.
3.2. Radar Detector Display and Customization
The Radenso DS1 features a high-resolution OLED screen. Users can customize various settings directly on the detector, including alert tones and display colors, to suit personal preferences. The detector supports multiple alert tones and offers a selection of eight display colors for different menu settings.
4. Compatibility
This USB-C Direct Wire Kit with Mute Button is only compatible with the following Radenso radar detectors:
- Radenso DS1
- Radenso Theia
5. Technical Specifications
| Feature | Specification |
|---|---|
| Item Weight | 5.6 ounces |
| Product Dimensions | 10 x 4.25 x 0.8 inches (packaging) |
| Item Model Number | CDW |
| UPC | 851160008524 |
| USB-C to Mute Button Cable Length | 11 feet |
| Power & Ground to Mute Button Cable Length | 11 feet |
| Mute Button Dimensions | Width: 1.35 inches, Height: 0.80 inches, Length: 1.73 inches |
| Power Source | External Power Supply (via vehicle's 12V system) |
6. Support and Warranty
For technical assistance, troubleshooting, or warranty inquiries regarding your Radenso USB-C Direct Wire Kit or compatible radar detector, please contact Radenso customer support directly. Refer to the official Radenso website for the most current contact information and warranty details.
It is recommended to register your product upon purchase to facilitate any future support needs.
