CIRCLE JOY B09Q83YT95
CIRCLE JOY Electric Wine Opener User Manual
Model: B09Q83YT95
Product Overview
The CIRCLE JOY Electric Wine Opener is designed for effortless and quick removal of wine corks. Its battery-operated, cordless design ensures convenience and portability. This manual provides detailed instructions for its proper use and maintenance.
Image: The CIRCLE JOY Electric Wine Opener shown alongside its retail packaging, highlighting its sleek design and included foil cutter.
Compared to traditional corkscrews, the CIRCLE JOY Electric Wine Opener offers a safer, faster, and more reliable way to open wine bottles, preventing cork damage and reducing effort.
Image: A visual comparison illustrating the difficulties with traditional corkscrews (dangerous, cork damaged, requires effort) versus the ease of use of the CIRCLE JOY Electric Wine Opener.
Setup and Components
Before first use, please ensure the device is properly set up. The wine opener requires 4 AA batteries (not included).
Image: An annotated diagram of the electric wine opener, pointing out key features such as the uncork button, cork release button, battery compartment, foil cutter, and spiral hook.
Battery Installation
- Locate the battery compartment cover on the top section of the opener.
- Open the cap and install 4 AA batteries according to the positive (+) and negative (-) signs indicated inside the compartment.
- Close the battery compartment cover securely.

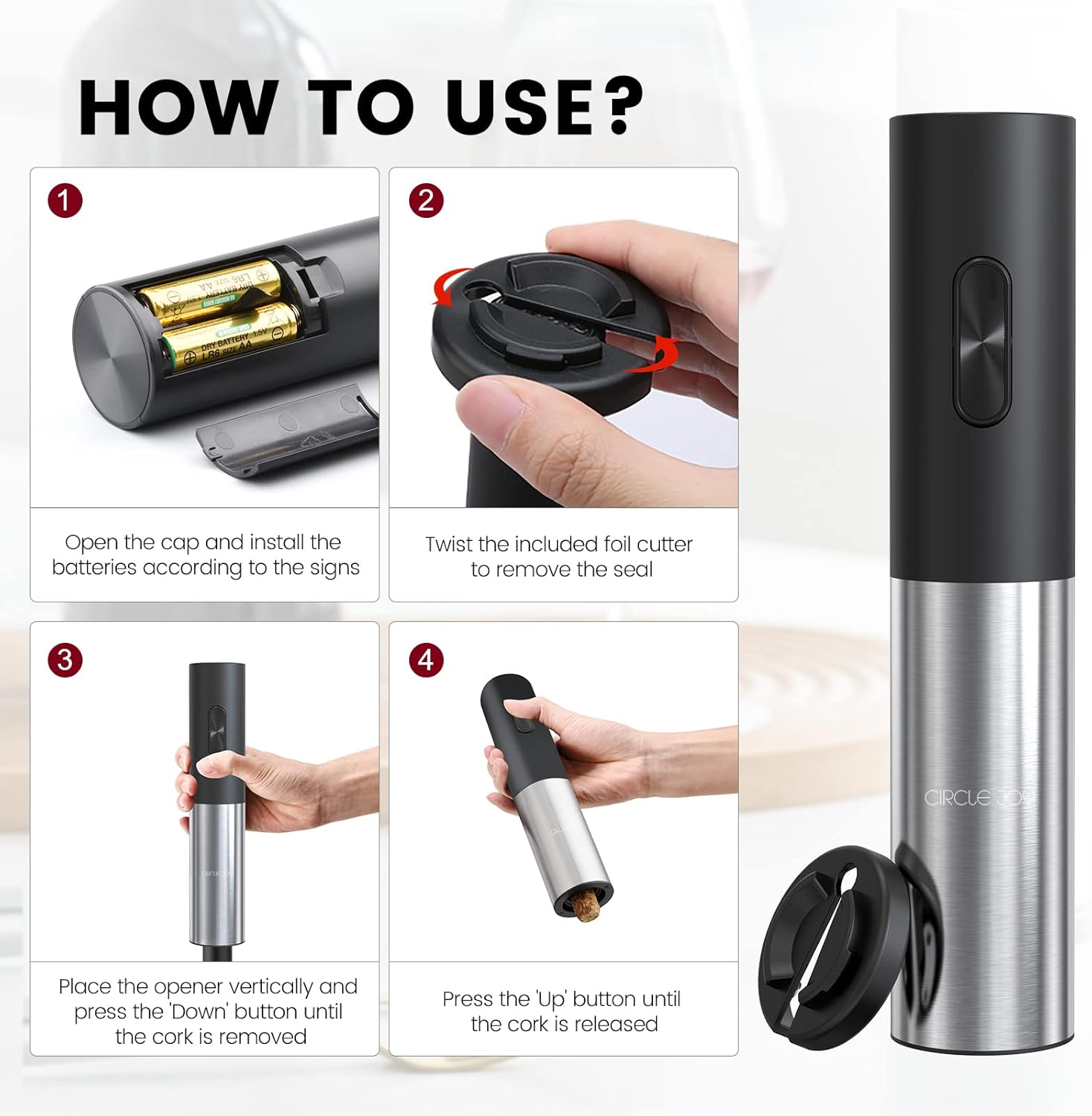

Image: A four-panel image demonstrating the steps: 1) opening battery compartment and inserting batteries, 2) using the foil cutter, 3) placing the opener on the bottle, and 4) releasing the cork.
Operating Instructions
Follow these steps to safely and effectively open a wine bottle:
- Remove the Foil Seal: Use the included foil cutter. Place the cutter on top of the wine bottle and twist it around the bottle neck a few times to cleanly remove the foil seal.
- Position the Opener: Place the electric wine opener vertically on top of the wine bottle, ensuring it is centered over the cork.
- Extract the Cork: Press and hold the 'Down' button (lower part of the button). The corkscrew will automatically rotate and penetrate the cork, then pull it out of the bottle. Release the button once the cork is fully extracted.
- Release the Cork: Once the cork is removed from the bottle, lift the opener away. To release the cork from the opener, press and hold the 'Up' button (upper part of the button). The corkscrew will rotate in reverse, ejecting the cork.
Image: A hand holding the CIRCLE JOY Electric Wine Opener positioned over a wine bottle, illustrating the ease of use for cork removal.
Image: The electric wine opener shown with a cork being released from its mechanism, demonstrating the final step of the operation.
Maintenance and Care
To ensure the longevity and optimal performance of your CIRCLE JOY Electric Wine Opener, follow these maintenance guidelines:
- Cleaning: Wipe the exterior of the opener with a soft, damp cloth. Do not immerse the device in water or any other liquid.
- Storage: Store the wine opener in a dry place, away from direct sunlight and extreme temperatures.
- Battery Replacement: Replace batteries when the opener's speed decreases or it fails to extract corks efficiently. Always use new, high-quality AA batteries.
- Foil Cutter: The foil cutter can be rinsed under water if needed, but ensure it is completely dry before storing.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Opener does not work. | Batteries are dead or incorrectly installed. | Check battery orientation and replace with new AA batteries. |
| Cork not fully extracted. | Low battery power; opener not centered on bottle. | Replace batteries. Ensure the opener is placed vertically and centered on the cork. |
| Cork stuck in opener. | Cork is too tight or opener was not held steady. | Press the 'Up' button to release. If still stuck, gently pull the cork while pressing the 'Up' button. |
Specifications
- Model: B09Q83YT95
- Brand: CIRCLE JOY
- Power Source: 4 x AA Batteries (not included)
- Material: Acrylonitrile Butadiene Styrene, Stainless Steel
- Dimensions: Approximately 9.61 x 2.13 x 2.09 inches (Package Dimensions)
- Item Weight: Approximately 11.4 ounces
- Finish Type: Stainless Steel
Customer Support
For further assistance or inquiries, please contact CIRCLE JOY customer support through the retailer's platform or the official brand website.
Please retain your purchase receipt for warranty purposes, if applicable.
