Alpine R-Series R2-W12D4 12-Inch Subwoofer Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Alpine R-Series R2-W12D4 12-inch subwoofer. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.

Figure 1: Front view of the Alpine R-Series R2-W12D4 subwoofer, showcasing the black cone with the red 'R' logo.

Setup and Installation

Proper setup is crucial for the performance of your subwoofer. This section outlines key considerations for installation.

Enclosure Recommendations

The Alpine R2-W12D4 subwoofer is designed for optimal performance in a sealed enclosure. A common recommendation for this model is a 1 cubic foot (approximately 28.3 liters) sealed enclosure. Consult a professional for custom enclosure designs to match your vehicle's acoustics.

Wiring Configuration

This subwoofer features dual 4-ohm voice coils. Ensure correct wiring to your amplifier to achieve the desired impedance (e.g., 2-ohm or 8-ohm parallel/series configuration). Refer to your amplifier's manual for compatible impedance loads.

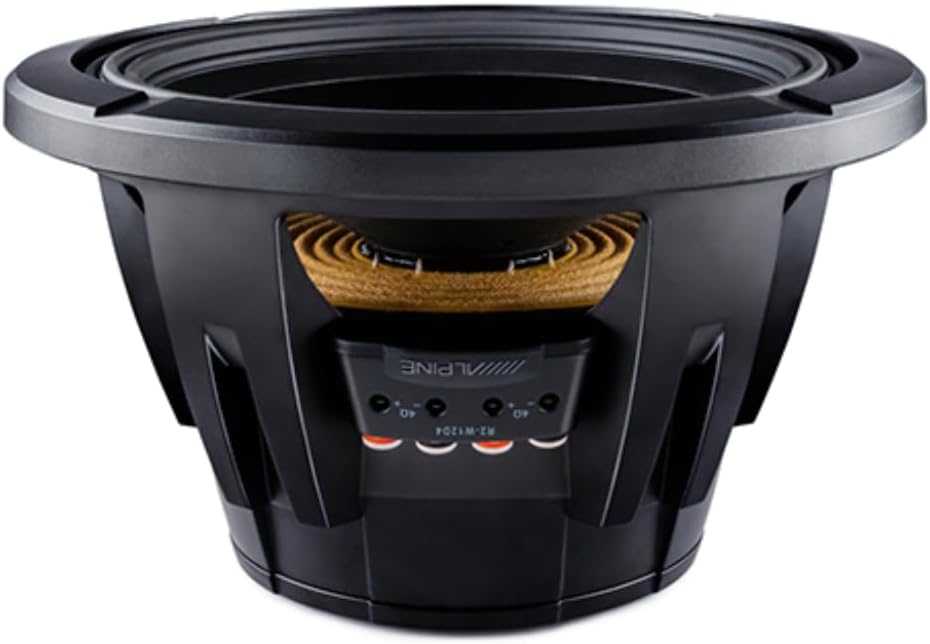

Figure 2: Rear view of the subwoofer, highlighting the dual 4-ohm voice coil terminals for wiring connections.

Mounting

The R2-W12D4 is designed for flush mounting. Ensure adequate clearance and a secure mounting surface within your vehicle. The subwoofer has a 12-inch diameter and specific mounting depth requirements.

Figure 3: Dimensional drawing indicating the subwoofer's height, width, and depth for installation planning.

Power Source: This subwoofer requires a wired connection to an external amplifier. Ensure the amplifier is properly grounded and fused according to its specifications.

Operating Instructions

Once installed, the subwoofer is ready for operation. Follow these guidelines for optimal audio experience.

• Power Handling: The subwoofer handles 750 watts RMS (375 watts per coil) and has a peak power rating of 2250 watts. Ensure your amplifier's output matches these specifications to prevent damage.
• Frequency Response: The R2-W12D4 operates within a frequency range of 24-200 Hz, designed to reproduce low-frequency audio.
• Audio Output: This component subwoofer is intended to enhance the bass response of your car audio system, providing a surround sound experience when integrated with full-range speakers.
• Material Construction: The subwoofer features a Kevlar reinforced pulp cone and a HAMR Santoprene rubber surround, contributing to its sound reproduction and durability.
• Control: While the subwoofer itself is passive, its output is controlled via your car audio system's head unit and amplifier settings. Adjust gain, crossover frequencies, and phase settings on your amplifier for desired sound.

Maintenance

To ensure the longevity and performance of your Alpine R2-W12D4 subwoofer, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe the cone and surround. Avoid using harsh chemicals or abrasive cleaners.
• Environmental Conditions: Protect the subwoofer from direct sunlight, extreme temperatures, and excessive moisture. While not waterproof, it is built for automotive environments.
• Inspection: Periodically check the wiring connections for tightness and ensure there are no signs of wear or damage to the speaker cone or surround.
• Power Management: Avoid overdriving the subwoofer with excessive power, which can lead to distortion and potential damage. Ensure your amplifier settings are appropriate for the subwoofer's RMS rating.

Troubleshooting

If you encounter issues with your subwoofer, refer to the following common troubleshooting steps:

• No Sound:
  • Check all wiring connections from the amplifier to the subwoofer terminals.
  • Verify the amplifier is powered on and receiving a signal from the head unit.
  • Ensure the amplifier's protection mode is not activated.
  • Confirm the head unit's subwoofer output is enabled and volume is up.
• Distorted Sound:
  • Reduce the amplifier gain or head unit volume to prevent clipping.
  • Check for proper crossover settings on your amplifier or head unit. Frequencies too high can cause distortion.
  • Inspect the subwoofer cone and surround for any physical damage.
  • Ensure the enclosure is sealed properly (if applicable) and free from air leaks.
• Weak Bass:
  • Verify the amplifier gain is set correctly.
  • Check the phase setting on your amplifier or head unit; incorrect phase can cancel out bass frequencies.
  • Ensure the subwoofer is wired correctly (e.g., not out of phase between voice coils or with other speakers).
  • Confirm the enclosure volume is appropriate for the subwoofer.

If issues persist after these steps, consult a qualified car audio technician.

Specifications

Warranty and Support

Your Alpine R-Series R2-W12D4 subwoofer is covered by a manufacturer's warranty.

• Warranty Period: This product includes a 1-Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims.
• Manufacturer: Alps Alpine North America, Inc.
• Support: For technical assistance, warranty service, or further inquiries, please contact Alpine customer support or visit the official Alpine website.
