1. Introduction
This manual provides essential instructions for the safe and proper use, setup, operation, and maintenance of your Piko H0 51415 Electric Locomotive BR 132 DB. Please read this manual thoroughly before operating the locomotive to ensure optimal performance and longevity. This model is a detailed replica designed for H0 scale model railway systems.

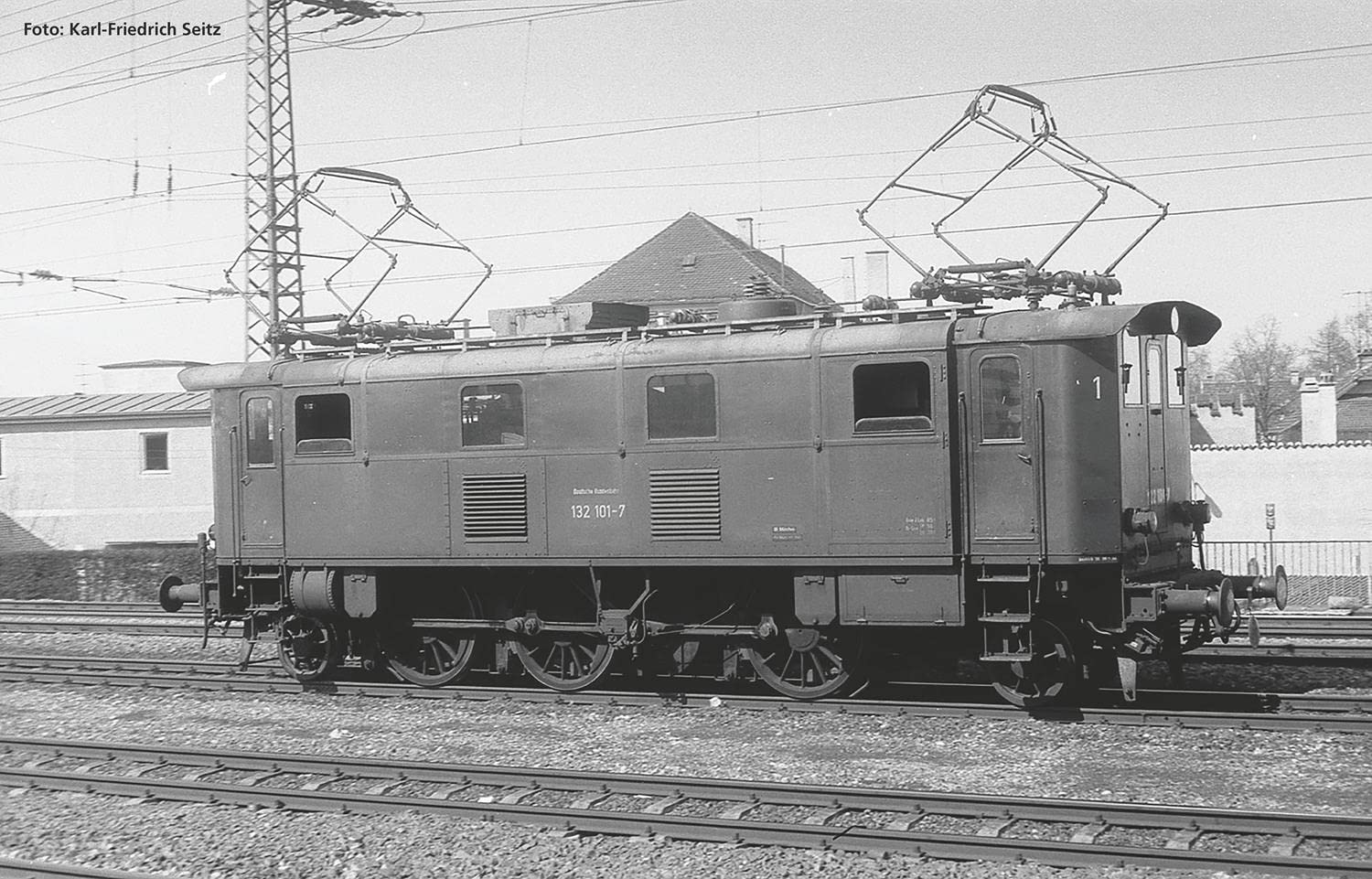

Figure 1: Piko H0 51415 Electric Locomotive BR 132 DB. This image shows the detailed exterior of the locomotive, highlighting its design and scale.
2. Setup
2.1 Unpacking
- Carefully remove the locomotive from its packaging. Retain the original packaging for future storage or transport.
- Inspect the locomotive for any visible damage. If damage is present, contact your retailer immediately.
- Remove any protective films or ties.
2.2 Track Placement
- Ensure your H0 scale track is clean and properly assembled on a stable surface.
- Gently place the locomotive onto the tracks, ensuring all wheels are correctly seated on the rails.
- Verify that the pantographs (if applicable and extended) are clear of any overhead obstructions.
2.3 Power Connection
- Connect your H0 scale power supply unit to the track as per its manufacturer's instructions.
- Ensure the power supply is switched off before connecting.
- Once connected, switch on the power supply. The locomotive's lights may illuminate, indicating power is reaching the unit.
3. Operating Instructions
3.1 Basic Controls
- Speed Control: Use the speed dial or lever on your power supply to gradually increase or decrease the locomotive's speed. Avoid sudden changes in speed.
- Direction Control: Use the direction switch on your power supply to change the locomotive's direction of travel (forward or reverse). It is recommended to bring the locomotive to a complete stop before changing direction.
- Lights: The locomotive's lights typically illuminate automatically when power is supplied and change direction with the locomotive.
3.2 Coupling
- To couple wagons, gently push the locomotive towards the wagon until the couplers engage.
- Ensure the couplers are fully engaged to prevent accidental uncoupling during operation.
- To uncouple, lift the locomotive or wagon slightly, or use a specialized uncoupling ramp if available.
4. Maintenance
4.1 Cleaning
- Regularly clean the locomotive's exterior with a soft, dry cloth.
- For stubborn dirt, a slightly damp cloth (water only) can be used, followed by immediate drying.
- Never use harsh chemicals, solvents, or abrasive cleaners.
- Clean the wheels and electrical contacts on the underside of the locomotive with a specialized track cleaning fluid and a cotton swab to ensure good electrical conductivity.
4.2 Lubrication
- Refer to the detailed diagram in the separate technical sheet (if provided with your model) for specific lubrication points.
- Apply a very small amount of specialized model railway lubricant to moving parts such as gears and axles, typically every 20-30 operating hours.
- Avoid over-lubrication, as this can attract dust and hinder performance.
4.3 Storage
- Store the locomotive in its original packaging or a protective case when not in use.
- Keep it in a dry, dust-free environment, away from direct sunlight and extreme temperatures.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Locomotive does not move. | No power to track; dirty track/wheels; locomotive not properly on track. | Check power supply connection; clean track and wheels; re-seat locomotive on track. |
| Lights are dim or flickering. | Poor electrical contact; low power supply voltage. | Clean wheels and track; check power supply output. |
| Locomotive runs erratically. | Dirty track/wheels; track unevenness; motor issues. | Clean track and wheels; ensure track is level; if problem persists, contact support. |
| Unusual noise during operation. | Lack of lubrication; foreign object in mechanism; damaged gears. | Lubricate moving parts; inspect for obstructions; if noise persists, contact support. |
If the problem persists after attempting these solutions, please contact Piko customer support or your retailer for further assistance.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Piko |
| Model Number | 51415 |
| Type | Electric Locomotive |
| Scale | H0 |
| Railway Company | DB (Deutsche Bahn) |
| Weight | 10 Kilograms |
| ASIN | B09Q3HPY7M |
| First Available | November 4, 2022 |
7. Warranty and Support
Piko products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Piko website. For technical support, spare parts, or service inquiries, please contact your authorized Piko dealer or the Piko customer service department. Keep your proof of purchase for warranty claims.
Piko Official Website: www.piko.de
