Important Information Before Use
This remote control is designed as a replacement for Genie and Overhead Door garage door openers manufactured since 1997. It is NOT compatible with remotes that use DIP switches. Please verify your existing opener's compatibility before proceeding.
Image: Compatibility guide for ASONPAO garage door opener remote, illustrating compatible models from 1997 to present and explicitly stating incompatibility with DIP switch openers.
Product Overview
The ASONPAO replacement garage door opener remote offers a reliable solution for controlling your garage door. It features advanced rolling code technology for enhanced security and auto-seek technology for easy pairing. The remote is built with an industrial-grade chip for stable performance in various temperatures and includes a high-capacity lithium battery for extended life.
- Advanced Security: Utilizes rolling code technology to prevent unauthorized access.
- Easy Pairing: Auto-seek technology simplifies the setup process.
- Durable Design: Constructed with ABS alloy material for drop resistance and longevity.
- Long Battery Life: Powered by a 240mAh lithium battery, offering up to 164 feet signal range.
- Convenient Mounting: Includes a sun visor clip and a portable keychain loop for flexible use.
Compatibility
This remote is compatible with all Genie and Overhead Door garage door openers manufactured since 1997. It replaces the following models:
- ACSCTG Type 1, ACSCTG Type 2, ACSCTG Type 3
- ACSGT Type 1, ACSGT Type 2, ACSGT Type 3
- ACSCTO Type 1, ACSCTO Type 2, ACSCTO Type 3
- GIC90-3, GICTD-1, GICT390-1, GIFT390-1, GIT390-4
- GIT-1, GIT-2, GIT-3, G2T-1, G2T-2, G2T-3, GL2T-BX, G1T-BX, GITR-3
- GIFTD-1, GICTD-1, GICTD-3, GITD-1, GITD-3, GIFT390-1, GIFTD-1, GIFTD-3
- TBSTG Type 1, TBSTG Type 2, TBSTG Type 3
- GMI3, GMIC-2, GIC90-1, GMIC90-3, GIC90-2, GMIC-3BL
Important: This remote is not compatible with garage door openers that use DIP switches for programming.
Setup and Pairing Instructions
Follow these steps to program your ASONPAO remote control to your Genie or Overhead Door garage door opener.
1. Putting Opener into Programming Mode
- For New Openers:
- Press and hold the Program button until the round LED turns blue, then release.
- The round LED will go out and the long LED will begin flashing purple.
- For Genie Openers and External Receivers Manufactured Between 1995 to 2011:
- Press and release the Learn Code button once. The red LED will begin to flash. Proceed to Step 2.
2. Programming a Remote to Your Opener
NOTE: Once in programming mode, you will have approximately 30 seconds to perform this step.
- While programming, keep the remote at least 5 feet away from the opener. This ensures proper communication between the remote and the opener.
- Slowly press and release the remote button until the opener's LED flashes and goes off, indicating successful programming.
- Press and release the same button a third time. The door will open or close. If the LEDs do not go off, press the remote button several more times to achieve confirmation.
Image: Detailed programming instructions for ASONPAO garage door opener remote, covering new openers, older Genie models, and clearing lost remotes.
3. Clearing Lost or Stolen Remotes / Erasing All Remotes
To erase all remote devices from your opener:
- For New Openers: Press and hold the Program button until the round LED turns blue, then release.
- Press and hold the Up (+) and Down (-) buttons at the same time until both LEDs flash blue and go off.
- For Genie Openers and External Receivers Manufactured Between 1995 to 2011: Press and hold the Learn Code button until the LED stops blinking.
Note: Clearing remote control memory from the power head will clear all pre-programmed remotes and keypads. Your opener will no longer recognize any signal from any remote device, including a missing remote device.
Video Tutorial: Programming ASONPAO Remote
Video: Step-by-step guide on programming the ASONPAO GIT-1/ACSCTG Type 1/ACSCTO Type 1 replacement remote for Genie garage door openers.
Operating Instructions
Once programmed, operating your ASONPAO remote is straightforward:
- Press the main button once to open or close your garage door.
- The remote has a maximum range of 164 feet (approximately 50 meters).
- The remote can be stopped mid-operation by pressing the button again.
Image: Illustration of the remote's effective range, showing a user operating the garage door from inside a vehicle.
Maintenance
The ASONPAO remote is designed for durability and long-lasting performance. It is powered by a high-capacity 240mAh CR2032 lithium battery. When the battery needs replacement, ensure you use a CR2032 type battery.
- Battery Replacement: The remote uses 2 CR2032 Lithium Metal batteries. Replace them when the signal indicator light becomes dim or unresponsive.
- Cleaning: Wipe the remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- Storage: Store the remote in a dry place, away from extreme temperatures and direct sunlight.
Image: Visual representation of the remote's sturdy construction, highlighting its ABS alloy material and drop resistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not working after programming. | Incorrect programming steps, remote too far from opener during programming, or battery low. | Repeat programming steps, ensuring the remote is within 5 feet of the opener. Check and replace batteries if necessary. |
| Garage door not responding. | Remote out of range, obstruction in the door's path, or opener's power issue. | Move closer to the garage door. Check for obstructions. Ensure the garage door opener has power. |
| Remote light is dim or not lighting up. | Low battery. | Replace the CR2032 batteries. |
| Lost or stolen remote. | Security concern. | Follow the "Clearing Lost or Stolen Remotes" instructions in the Setup section to erase all programmed remotes from your opener. Then reprogram your remaining remotes. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | GIT-1/ACSCTG Type 1/ACSCTO Type 1 |
| Working Range | Up to 164 feet (50 meters) |
| Working Voltage | DC3V |
| Frequency | 390MHz |
| Channel | 1 |
| Battery Model | CR2032 (2 included) |
| Shell Material | ABS |
| Product Weight | 1.92 ounces (0.088 LBS) |
| Color | Black |
| Code Type | Intellicode (Rolling Code Technology) |
| FCC Certified | Yes |

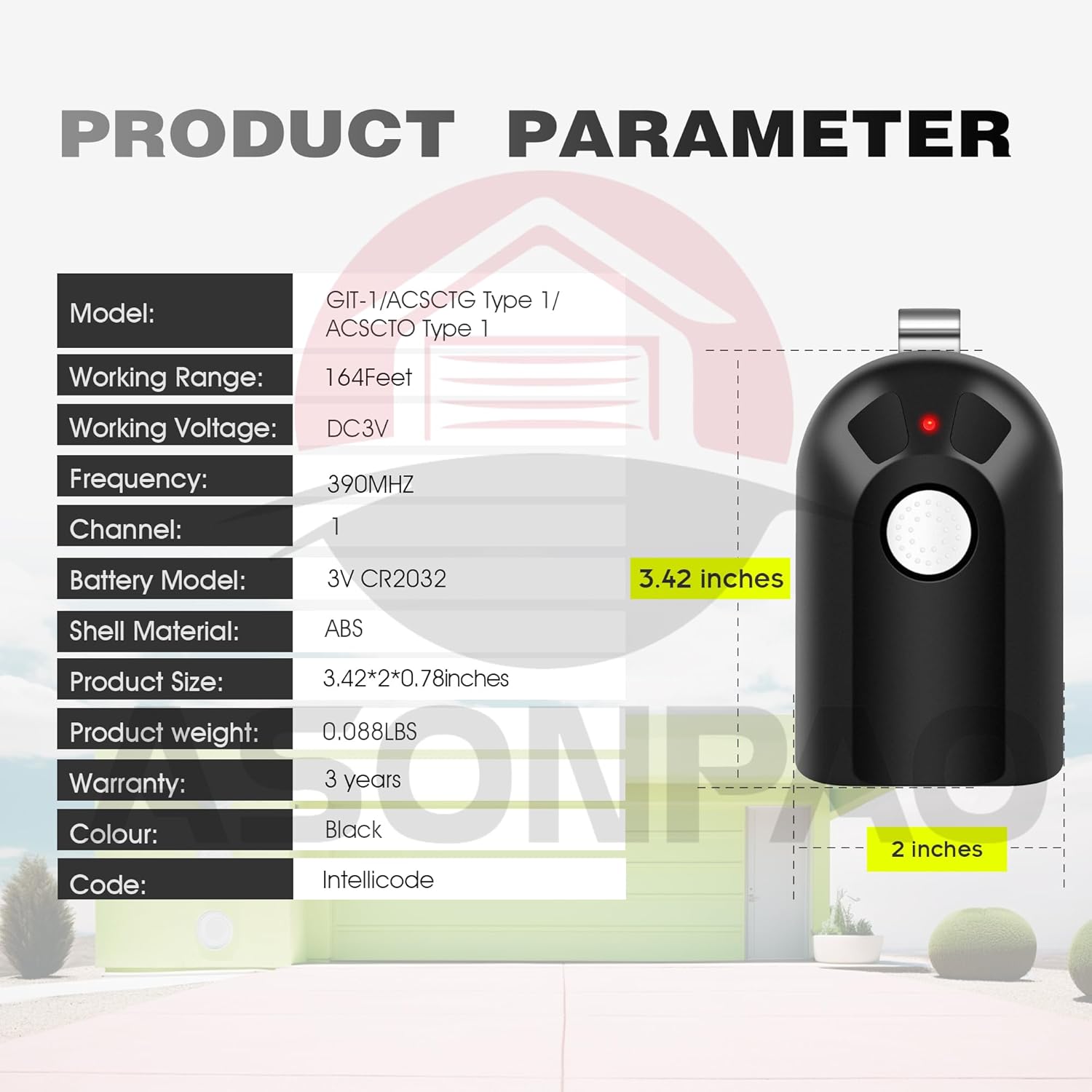

Image: Product parameter details for the ASONPAO garage door opener remote, including dimensions and technical specifications.
Warranty and Support
The ASONPAO garage door opener remote comes with a 3-year warranty, ensuring reliable performance and customer satisfaction. For any technical assistance or inquiries, please refer to the contact information provided with your product or visit the manufacturer's support channels.
- Warranty Period: 3 Years
- Support: Online technical support is available.
- Certifications: FCC Certified.
Image: Information on ASONPAO's 24-hour online technical support, 3-year warranty, and FCC certification.
