Lorell Slimline Storage Cabinet 69830BK User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Lorell Slimline Storage Cabinet, Model 69830BK. This industrial-grade steel cabinet is designed for concealed storage in various environments, including home, garage, business, and healthcare settings. Its fully welded construction ensures durability and security for your stored items.

Key features include:

• Industrial-grade steel construction for durability.
• Space-efficient design for organized storage.
• Three-point locking system with a core-removable lock for enhanced security.
• Nonporous, baked enamel painted surface for easy cleaning and disinfection.
• Four adjustable shelves, each with a 180 lb capacity.

2. Safety Information

WARNING: Keep out of reach of children. Use in a well-ventilated area.

• Ensure the cabinet is placed on a level, stable surface to prevent tipping.
• Do not overload shelves. Adhere to the maximum weight capacity of 180 lbs per shelf.
• Distribute weight evenly on shelves to maintain stability.
• Keep cabinet doors closed and locked when not in use, especially if storing hazardous materials or valuable items.
• Avoid climbing on or leaning heavily against the cabinet.

3. Setup

The Lorell Slimline Storage Cabinet arrives fully welded and requires no assembly. Follow these steps for initial setup:

3.1 Unpacking and Placement

1. Carefully remove all packaging materials. Inspect the cabinet for any shipping damage.
2. Choose a suitable location for the cabinet. Ensure the floor is level and can support the weight of the cabinet and its contents.
3. Position the cabinet in its desired location.

Figure 1: Front view of the Lorell Slimline Storage Cabinet.

Figure 2: Side view of the Lorell Slimline Storage Cabinet.

3.2 Shelf Adjustment

The cabinet includes four shelves that are adjustable in 1-inch increments.

1. Open the cabinet doors using the provided key.
2. Locate the shelf clips on the inside vertical supports.
3. To adjust a shelf, remove all items from the shelf.
4. Carefully lift the shelf and remove the four shelf clips supporting it.
5. Reinsert the shelf clips into the desired slots at the new height, ensuring all four clips are securely seated and level.
6. Place the shelf onto the clips, ensuring it rests evenly and securely.
7. Repeat for other shelves as needed.

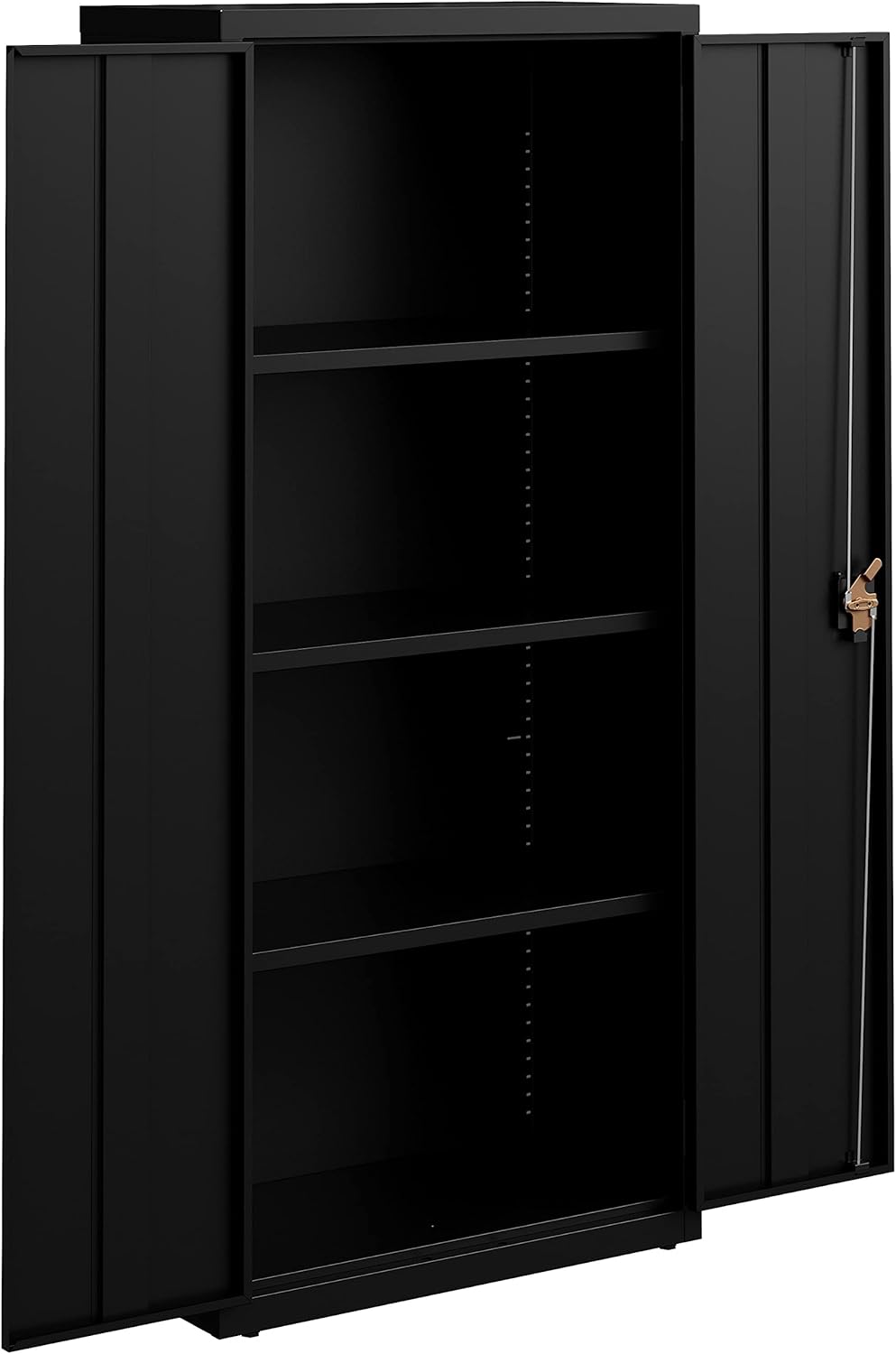

Figure 3: Interior view showing adjustable shelves and slots.

4. Operating the Cabinet

4.1 Locking Mechanism

The Lorell Slimline Storage Cabinet features a recessed handle with a core-removable lock and lock rods, providing a three-point locking system for enhanced security.

1. To lock: Close both cabinet doors firmly. Insert the key into the lock and turn it clockwise until the lock mechanism engages. Remove the key.
2. To unlock: Insert the key into the lock and turn it counter-clockwise. Pull the handle to open the doors.

Note: The core-removable lock allows for re-keying if multiple units need to be keyed alike. Consult a locksmith for this service.

4.2 Loading Shelves

Each shelf has a maximum weight capacity of 180 lbs. When loading the cabinet:

• Distribute weight evenly across each shelf.
• Place heavier items on lower shelves to improve cabinet stability.
• Avoid placing items that protrude beyond the front edge of the shelves, which could prevent doors from closing properly.

Figure 4: Example of items stored within the cabinet.

5. Maintenance

5.1 Cleaning

The cabinet's painted steel surface is nonporous and easy to clean.

• Wipe surfaces with a soft cloth dampened with mild soap and water.
• For disinfection, use appropriate non-abrasive cleaning agents suitable for painted metal surfaces.
• Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Dry all surfaces thoroughly after cleaning to prevent water spots or rust.

5.2 General Care

• Periodically check all moving parts, such as door hinges and the lock mechanism, for smooth operation.
• Ensure shelf clips are securely seated.
• Do not force the lock if it feels stiff; apply a small amount of graphite lubricant if necessary.

6. Troubleshooting

6.1 Cabinet Doors Do Not Close Properly

• Check for obstructions: Ensure no items on the shelves are blocking the doors from closing fully.
• Verify level placement: An uneven floor can cause the cabinet frame to twist slightly, affecting door alignment. Adjust the cabinet's position or use shims to level it.
• Inspect hinges: Check if hinges are damaged or bent. If so, contact customer support.

6.2 Lock Mechanism Is Stiff or Not Engaging

• Lubrication: Apply a small amount of graphite lubricant to the keyhole and key. Insert and remove the key several times to distribute the lubricant.
• Door alignment: Ensure doors are fully closed and aligned before attempting to lock. The three-point locking system requires proper door closure.
• Key condition: Check if the key is bent or damaged. Use only original or authorized duplicate keys.

6.3 Shelf Instability

• Check shelf clips: Ensure all four shelf clips are fully inserted into the vertical slots and are level with each other.
• Weight distribution: Redistribute items on the shelf to ensure weight is evenly spread and not exceeding the 180 lb capacity.

7. Specifications

8. Warranty and Support

For specific warranty details, please refer to the documentation provided at the time of purchase or contact Lorell customer service directly.

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Lorell customer support.

• Manufacturer: Lorell
• Website: Visit the Lorell Store on Amazon (for general brand information)
• For direct support, please refer to the contact information provided with your product packaging or on the official Lorell website.
