coolautocore ZF6HP26 Transmission Overhaul Kit with Clutches T18302A Instruction Manual

1. Introduction

This manual provides essential information for the installation and maintenance of the coolautocore ZF6HP26 Transmission Overhaul Kit with Clutches T18302A. It is designed to assist qualified technicians in the proper handling and installation of the components to ensure optimal performance and longevity of the transmission system. Please read all instructions carefully before proceeding with any work.

2. Product Overview

The coolautocore ZF6HP26 Transmission Overhaul Kit is a comprehensive master rebuild kit designed for the ZF6HP26, ZF6HP26A, and ZF6HP28 automatic transmissions. This kit includes a new gasket set, various rings, seals, O-rings, and other miscellaneous rubber parts necessary for a complete overhaul. Additionally, it contains a new set of friction clutches to restore proper transmission function.

The kit is engineered from high-quality materials to enhance reliability and durability of the transmission system.

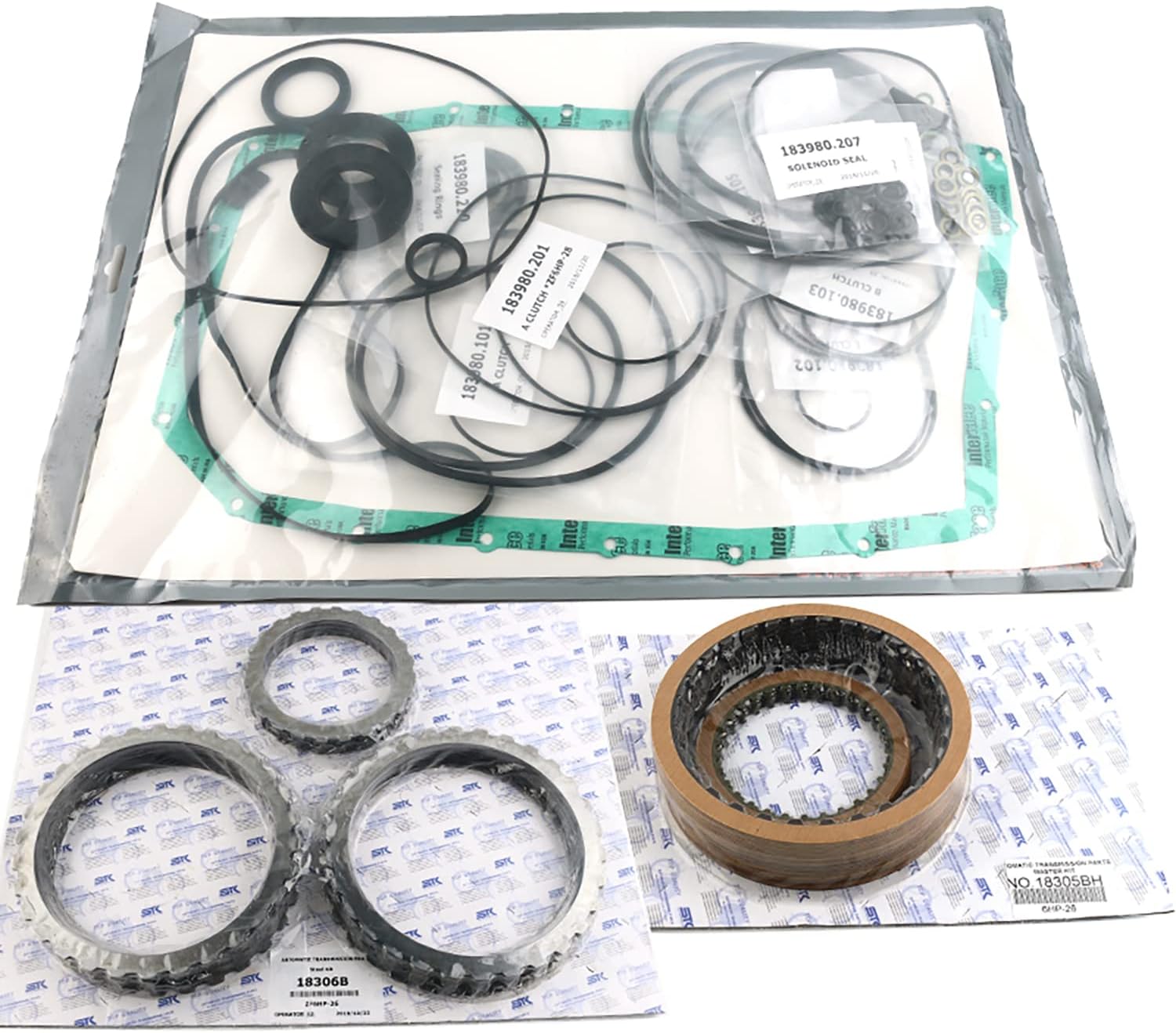

Figure 1: Overview of the coolautocore ZF6HP26 Transmission Overhaul Kit, showing all included gaskets, seals, rings, and clutches.

3. Compatibility

This overhaul kit is compatible with the following transmission models and vehicles:

• Transmission Models: ZF6HP26, ZF6HP26A, ZF6HP28 (OEM Part Number: 1068298051)
• Compatible Vehicles: BMW X5, BMW X6, BMW 550i, BMW 750i, Land Rover models utilizing the specified ZF transmissions.

Before purchase and installation, verify your vehicle's year, model, and OEM part number to ensure compatibility. The manufacturer part number for this kit is 6HP26 6HP26A 6HP28.

4. Contents of Kit

The coolautocore ZF6HP26 Transmission Overhaul Kit includes the following components:

• Complete Gasket Set
• Various Sealing Rings
• Oil Seals
• O-rings
• Miscellaneous Rubber Parts
• Set of Friction Clutches
• Steel Plates (as part of the master rebuild kit)

Figure 2: Detailed view of the gasket set, sealing rings, and O-rings.

Figure 3: New friction clutches, essential for restoring transmission performance.

Figure 4: Steel plates and rings included in the master rebuild kit.

5. Safety Information

Always prioritize safety when working on automotive components. Adhere to the following guidelines:

• Eye Protection: Always wear appropriate eye protection to prevent injury from debris or fluids.
• Proper Tools: Use the correct tools for each task. Ensure tools are in good condition.
• Vehicle Support: Securely support the vehicle on jack stands or a lift before working underneath. Never rely solely on a jack.
• Fluid Handling: Be prepared for fluid drainage. Dispose of old transmission fluid responsibly according to local regulations.
• Professional Assistance: If you are not experienced with transmission repair, it is highly recommended to seek assistance from a certified automotive technician.

6. Installation Guide

The installation of a transmission overhaul kit is a complex procedure that requires specialized knowledge and tools. This section provides general guidance; however, it is not a substitute for a detailed service manual or professional training.

6.1 Preparation

1. Ensure the vehicle is safely lifted and supported.
2. Drain the transmission fluid completely.
3. Remove the transmission from the vehicle according to the manufacturer's service manual.
4. Clean the exterior of the transmission thoroughly to prevent contamination during disassembly.

6.2 Disassembly and Component Replacement

1. Carefully disassemble the transmission, keeping all components organized. Refer to a detailed service manual for your specific transmission model.
2. Inspect all hard parts for wear or damage. Replace any worn components that are not part of this kit.
3. Replace all gaskets, seals, and O-rings with the new components from the coolautocore kit. Ensure proper seating and lubrication where specified.
4. Install the new friction clutches and steel plates. Pay close attention to the correct order and orientation of these components.
5. Lubricate all moving parts with clean transmission fluid during assembly.

6.3 Reassembly and Final Steps

1. Reassemble the transmission, ensuring all bolts are torqued to the manufacturer's specifications.
2. Reinstall the transmission into the vehicle.
3. Refill the transmission with the correct type and amount of new transmission fluid.
4. Perform a thorough functional check and test drive to ensure proper operation.

Recommendation: Searching for related installation videos on the internet can provide visual guidance for specific steps. Always cross-reference with a professional service manual.

7. Maintenance

After installing the overhaul kit, proper transmission maintenance is crucial for long-term performance:

• Fluid Checks: Regularly check transmission fluid levels and condition. Follow your vehicle manufacturer's recommended service intervals.
• Fluid Changes: Adhere to the recommended transmission fluid change schedule. Use only the specified type of transmission fluid.
• Filter Replacement: Replace the transmission filter during fluid changes or as recommended.
• Professional Inspection: Have your transmission inspected by a qualified technician periodically, especially if you notice any unusual symptoms.

8. Troubleshooting

If you encounter issues after installing the overhaul kit, consider the following general troubleshooting steps:

• Fluid Level: Verify the transmission fluid level is correct. Low or overfilled fluid can cause operational problems.
• Fluid Type: Ensure the correct type of transmission fluid was used. Incorrect fluid can lead to severe damage.
• Error Codes: Check for any diagnostic trouble codes (DTCs) using an OBD-II scanner. These codes can point to specific issues.
• Leaks: Inspect for any fluid leaks around the transmission. Leaks indicate improper sealing or damaged components.
• Professional Diagnosis: For persistent or complex issues, consult a professional automotive technician for diagnosis and repair. Transmission problems can be intricate and require expert attention.

9. Specifications

10. Warranty and Support

For specific warranty information regarding this coolautocore product, please refer to the documentation provided with your purchase or contact coolautocore customer support directly. If you have any questions or require technical assistance, please reach out to the manufacturer or your point of purchase.

Note: Products are stored in warehouses and may experience minor cosmetic imperfections from handling or transportation. This does not affect product use. If appearance is a concern, please contact customer service for assistance.
