1. Introduction
Thank you for choosing the BAIDE HOME 32.5-inch Round Propane Fire Pit Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor fire pit table. Please read all instructions carefully before use and retain this manual for future reference.
Image 1.1: The BAIDE HOME 32.5-inch Round Propane Fire Pit Table, showcasing its modern design and functionality in an outdoor environment.
2. Safety Information
WARNING: For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
- Always keep the propane tank at least 5 feet away from the fire pit table during operation.
- Ensure adequate ventilation. Do not operate in an enclosed space.
- Keep children and pets away from the fire pit table.
- Never leave the fire pit table unattended when in use.
- Do not use the fire pit table for cooking.
- Allow the unit to cool completely before covering or moving.
- Use only the provided glass rocks. Do not use wood, charcoal, or other combustible materials.
- Regularly inspect the hose for any signs of damage or leaks.
3. Package Contents
Verify that all components are present and undamaged before assembly.
- Fire Pit Table Unit
- Matching Metal Lid
- Glass Rocks (Blue)
- Protective Cover
- Pre-Attached 10ft Hose with Regulator
- AA Battery (for igniter)
Image 3.1: The fire pit table with its dimensions and the included protective cover.
4. Setup and Assembly
The BAIDE HOME fire pit table is designed for straightforward assembly, typically requiring only the attachment of a few screws.
- Unpack Components: Carefully remove all items from the packaging.
- Position the Fire Pit: Place the fire pit table on a flat, non-combustible surface in your desired outdoor location. Ensure there is ample clearance from combustible materials.
- Install Glass Rocks: Distribute the provided glass rocks evenly over the burner area.
- Connect Propane Tank: Connect the pre-attached 10ft hose to a standard 20 lb. propane tank (not included). Ensure the tank is placed at least 5 feet away from the fire pit table.
- Install Igniter Battery: Insert the AA battery into the igniter compartment located on the control panel.
Image 4.1: Key components and connection points of the fire pit table.
Setup Video
Video 4.1: A demonstration of the BAIDE HOME 33 Inch Low-profile Fire Table, showing its features and operation.
5. Operating Instructions
Your BAIDE HOME fire pit table features an electronic ignition system for easy startup.
- Open Gas Supply: Ensure the propane tank valve is fully open.
- Ignite: Locate the control panel on the side of the fire pit. Push and turn the control knob to the 'ON' position while simultaneously pressing the 'IGNITER' button. Hold for a few seconds until the flame ignites.
- Adjust Flame: Once ignited, release the igniter button. You can adjust the flame height by turning the control knob between 'LOW' and 'HIGH'.
- Turn Off: To turn off the fire pit, turn the control knob to the 'OFF' position. Close the valve on the propane tank when not in use.

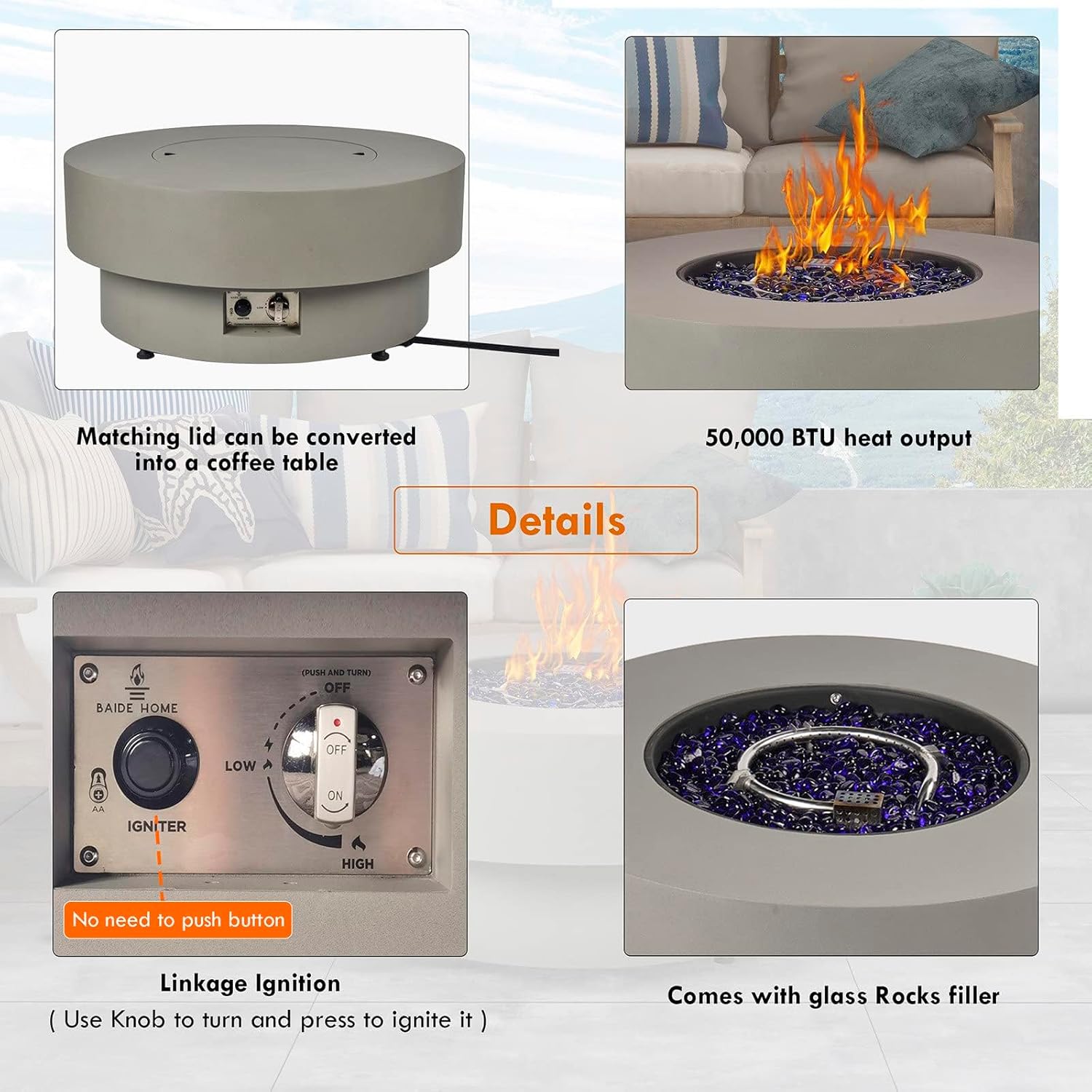

Image 5.1: The control panel for ignition and flame adjustment, and the blue glass rocks.
Operation Video
Video 5.1: A detailed look at the 32.5-inch Low-profile Round Propane Fire Table in operation, highlighting the flame and design.
6. Maintenance
Proper maintenance ensures the longevity and safe operation of your fire pit table.
- Cleaning: Clean the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Protective Cover: Use the provided protective cover when the fire pit table is not in use to shield it from weather elements.
- Burner Maintenance: Periodically check the burner ports for any obstructions.
- Electrophoretic Coating: The electrophoretic baking finish provides a uniform protective layer that resists rust and corrosion, ensuring long-lasting performance.
Image 6.1: The fire pit table with the lid installed, demonstrating its dual functionality.
7. Troubleshooting
If you encounter issues with your fire pit table, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas flow; Igniter battery low/dead; Obstructed burner ports | Check propane tank valve; Replace AA battery; Clear burner ports |
| Low flame | Low propane level; Regulator issue; Partially closed gas valve | Check propane tank level; Ensure regulator is properly connected; Fully open propane tank valve |
| Flame blows out easily | Windy conditions; Low gas pressure | Consider a wind guard (sold separately); Check propane level and connections |
8. Specifications
- Material: Stainless Steel (burner), Weather-resistant steel reinforced construction (table)
- Product Dimensions: 32.5"D x 32.5"W x 14.5"H
- Shape: Round
- Item Weight: 70.4 Pounds
- Fuel Type: Liquefied Petroleum Gas (Propane)
- Heat Output: 50,000 BTU
- Ignition: Electronic Ignition (requires 1 AA battery, included)
- Hose Length: 10 feet (pre-attached)
- Propane Tank Requirement: Standard 20 lb. propane tank (external, not included)
9. Warranty and Support
For technical support or warranty inquiries, please contact BAIDE HOME customer service. Refer to the contact information provided on the product packaging or the control panel for assistance.
Technical Support: service@baidehome.com
