Introduction
This instruction manual provides essential information for the proper use and care of your Gevril Hudson Yard Men's Swiss Automatic Watch, Model 48804.2. Please read this manual thoroughly to understand the features and functions of your timepiece and ensure its longevity.
Components Overview
Familiarize yourself with the main components of your Gevril Hudson Yard watch:
- Case: The main body of the watch, made of stainless steel.
- Crown: Used for winding the movement and setting the time and date.
- Bezel: The rotating ring around the crystal, used for timing. This model features a unidirectional rotating ceramic bezel.
- Crystal: The transparent cover over the dial, made of anti-reflective sapphire.
- Dial: The watch face displaying time, date, and luminous markers.
- Hands: Hour, minute, and second hands, with luminous coating for visibility in low light.
- Strap: Genuine Italian leather strap with a buckle closure.
- Exhibition Caseback: A transparent back cover allowing view of the automatic movement.
- Helium Release Valve: A feature for professional diving, allowing helium to escape during decompression.
Figure 1: Front view of the Gevril Hudson Yard watch. This image displays the black dial with luminous markers, the gold-tone stainless steel case, and the black genuine Italian leather strap. The unidirectional rotating bezel is also visible.

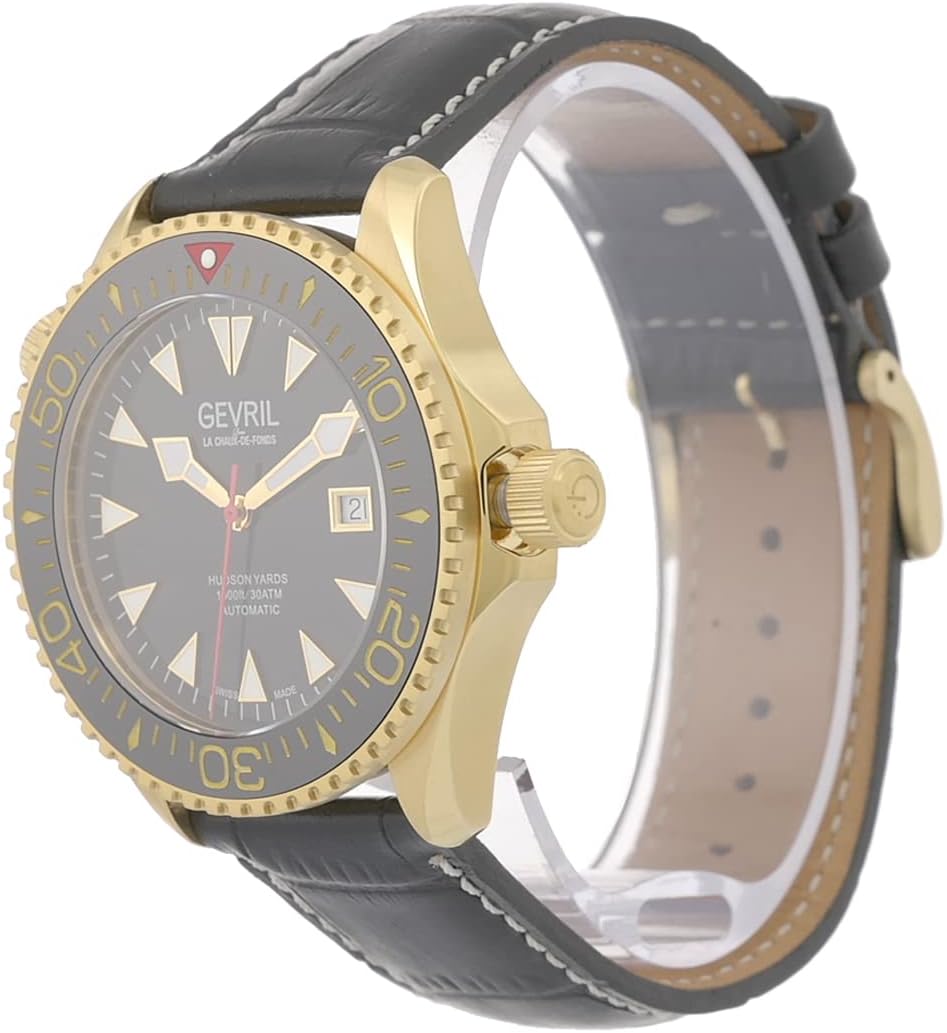

Figure 2: Side view of the Gevril Hudson Yard watch, highlighting the screw-down crown on the right side of the case. The texture of the leather strap is also visible.
Figure 3: Opposite side view of the Gevril Hudson Yard watch, showing the helium release valve located on the left side of the watch case.
Figure 4: Rear view of the Gevril Hudson Yard watch, showcasing the exhibition caseback which allows visibility of the Swiss automatic movement inside.
Setup
Winding the Watch
Your Gevril Hudson Yard watch is equipped with a Swiss automatic movement. This means it is powered by the motion of your wrist. When fully wound, the watch has a power reserve that allows it to run for a certain period without being worn.
- To manually wind the watch, first ensure the crown is in the fully pushed-in position (Position 0) and screwed down if applicable.
- Unscrew the crown by turning it counter-clockwise until it springs out to Position 0.
- Turn the crown clockwise approximately 30-40 times. This will provide sufficient power to start the watch.
- Once the watch starts running, normal daily wear will keep it wound.
Setting Time and Date
To set the time and date on your watch:
- Unscrew the crown by turning it counter-clockwise until it springs out to Position 0.
- Setting the Date: Gently pull the crown out to Position 1. Turn the crown clockwise or counter-clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement. If the current time falls within this period, first set the time outside this range, then set the date, and finally reset the time.
- Setting the Time: Pull the crown out further to Position 2. The second hand will stop. Turn the crown to set the hour and minute hands. To ensure accuracy, set the time a few minutes ahead and then turn the crown counter-clockwise to move the hands back to the correct time. This removes any play in the gear train.
- Once the time and date are set, push the crown back into Position 0 and screw it down tightly by turning it clockwise. This ensures water resistance.
Operating Your Watch
Unidirectional Rotating Bezel
The Gevril Hudson Yard features a unidirectional rotating bezel, primarily used for timing events, especially during diving. It rotates only counter-clockwise to prevent accidental increases in timed duration, which is a critical safety feature for divers.
- To use, align the zero marker (usually a triangle or dot) on the bezel with the minute hand at the start of the event you wish to time.
- As time passes, the minute hand will move, indicating the elapsed time against the bezel's markings.
Water Resistance and Helium Release Valve
Your watch is water resistant to 300 meters (1000 feet) or 30 ATM. This rating makes it suitable for professional marine activity and serious surface water sports, but not for saturation diving unless specifically stated. Always ensure the crown is fully screwed down before exposing the watch to water.
The helium release valve is designed for professional divers operating in saturation diving environments. During decompression, helium atoms can enter the watch case. The valve allows these trapped helium atoms to escape, preventing pressure buildup that could damage the watch crystal.
Video 1: A detailed 360-degree view of the Gevril Hudson Yard Men's Swiss Automatic Watch. This video showcases the watch from various angles, highlighting its design, the gold-tone case, black dial, and the genuine Italian leather strap. It provides a comprehensive visual overview of the product's exterior features.
Maintenance
Cleaning Your Watch
- For the watch case and sapphire crystal, use a soft, damp cloth to wipe away dirt and smudges. Avoid harsh chemicals.
- After exposure to saltwater, rinse the watch thoroughly with fresh water and dry it with a soft cloth. Ensure the crown is screwed down before rinsing.
Leather Strap Care
- Avoid prolonged exposure of the leather strap to water, direct sunlight, and extreme temperatures, as this can cause discoloration or damage.
- Clean the leather strap with a soft, dry cloth. For deeper cleaning, use a specialized leather cleaner and conditioner sparingly.
- Allow the strap to air dry naturally if it gets wet.
Regular Servicing
Like any precision instrument, your automatic watch requires periodic servicing to maintain optimal performance and accuracy. It is recommended to have your Gevril watch serviced by an authorized service center every 3-5 years.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch stops or runs intermittently | Insufficient power reserve (not worn enough or not manually wound). | Manually wind the watch by turning the crown clockwise 30-40 times. Wear the watch regularly for at least 8-10 hours a day. |
| Date does not change at midnight | The watch's internal time is set to AM/PM incorrectly, or the date change mechanism is engaged during the restricted period (9 PM - 3 AM). | Advance the time past 12 PM to determine if it's AM or PM. If the date changes, it's midnight. If not, it's noon. Adjust the time accordingly. Avoid setting the date between 9 PM and 3 AM. |
| Condensation under the crystal | Sudden temperature changes or compromised water resistance. | If condensation persists, it indicates moisture ingress. Seek immediate professional service to prevent damage to the movement. |
Specifications
- Model: Hudson Yard
- Model Number: 48804.2
- Movement: Swiss Automatic
- Case Material: Stainless Steel
- Case Diameter: 43mm
- Bezel: Unidirectional Rotating Ceramic Bezel
- Dial: Black, with Luminous Markers
- Crystal: Anti-reflective Sapphire Crystal
- Crown: Screw Down Crown
- Water Resistance: 300 Meters / 30 ATM
- Special Features: Screw down helium release valve, Exhibition Caseback
- Strap Material: Genuine Italian Leather
- Approximate Package Dimensions: 7.8 x 6.38 x 4.88 inches
- Approximate Item Weight: 2.8 Pounds
Figure 5: The Gevril Hudson Yard watch presented in its black and white branded box, indicating the packaging it comes in.
Warranty and Support
For information regarding the warranty coverage for your Gevril Hudson Yard watch, please refer to the warranty card included with your purchase or visit the official Gevril website. For technical support, service, or inquiries, please contact Gevril customer service or an authorized Gevril dealer.
