1. Introduction
Thank you for choosing the Yaheetech Bathroom Mirror Cabinet. This wall-mounted cabinet is designed to provide practical storage and a modern aesthetic to your bathroom or other living spaces. Featuring frameless mirror doors and an adjustable interior shelf, it offers both functionality and style. Please read this manual carefully before assembly and use to ensure safe and proper installation and operation.
2. Safety Instructions
- Always ensure the cabinet is securely mounted to a sturdy wall structure. Use appropriate wall anchors for your wall type (e.g., drywall, concrete, brick).
- Do not exceed the maximum weight capacity of 5 kg (11 lbs) for the cabinet and its shelves.
- Keep small parts and hardware out of reach of children during assembly to prevent choking hazards.
- Handle mirror doors with care to avoid breakage and injury.
- If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
- Assembly should be performed by at least two adults for safety and ease.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. Refer to the parts list provided in your physical instruction manual for exact quantities. Typical contents include:
- Cabinet panels (top, bottom, sides, back)
- Mirror doors
- Adjustable shelf
- Hinges and mounting hardware
- Wall mounting hardware (screws, anchors)
- Assembly tools (e.g., Allen key, if required)
4. Assembly and Setup
Follow these general steps for assembly. Detailed diagrams are typically found in the included paper manual.
- Prepare the Area: Clear a spacious, clean, and flat area for assembly. Lay down a blanket or cardboard to protect the cabinet parts from scratches.
- Assemble the Cabinet Frame: Connect the top, bottom, and side panels using the provided hardware (e.g., cam locks, dowels). Ensure all connections are tight and secure.
- Attach the Back Panel: Secure the back panel to the assembled frame. This often involves small nails or screws.
- Install Hinges: Attach the high-quality metal hinges to the cabinet frame and the mirror doors. Ensure they are aligned correctly for smooth operation.
- Mount to Wall:
- Determine the desired mounting height.
- Mark the drilling points on the wall using the cabinet's pre-drilled holes as a template.
- Drill pilot holes and insert appropriate wall anchors.
- Carefully lift the cabinet and align the mounting holes with the wall anchors. Secure the cabinet to the wall using the provided screws. Ensure it is level and firmly attached.
- Hang Mirror Doors: Attach the mirror doors to the installed hinges. Adjust the hinges as needed to ensure the doors are level and close properly.
- Insert Adjustable Shelf: Place the shelf supports at the desired height within the cabinet. Slide the adjustable shelf onto the supports. The cabinet offers three possible positions for the shelf.

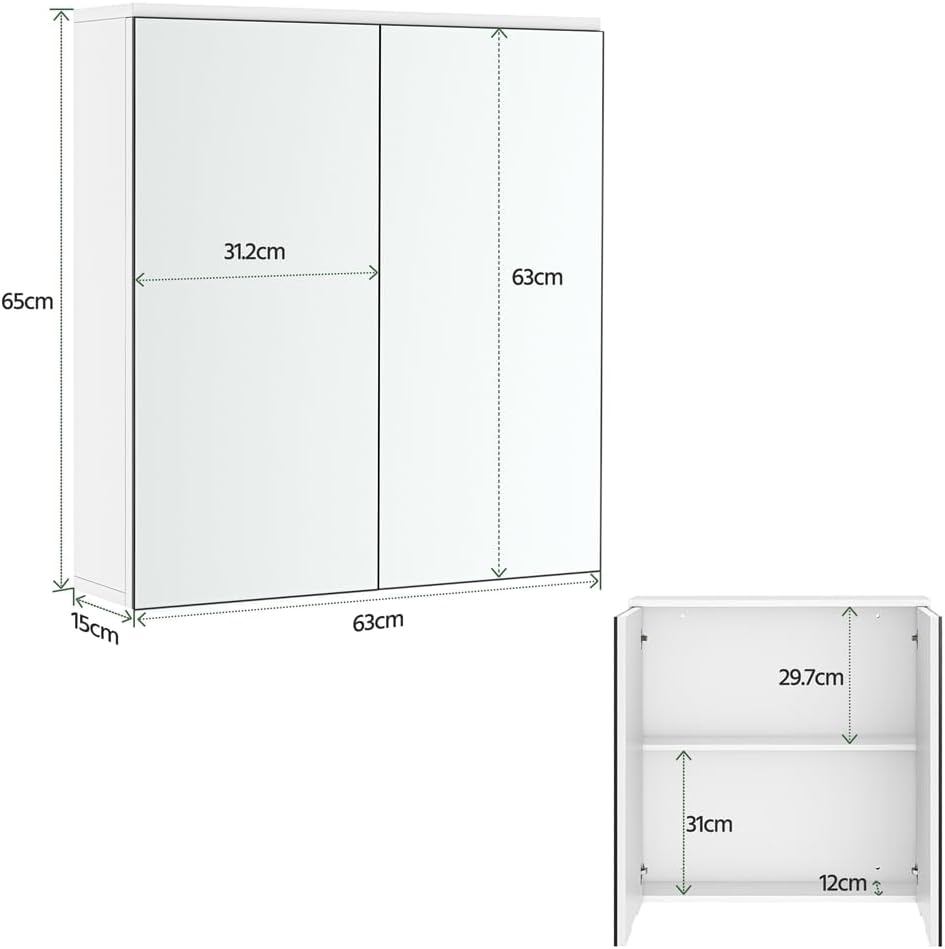

Figure 4.1: Cabinet Dimensions and Interior Layout.
Figure 4.2: Accessory for enhanced stability during wall mounting.
5. Operating Instructions
- Opening/Closing Doors: Gently pull the mirror doors to open and push to close. The high-quality hinges ensure smooth operation.
- Adjusting Shelf Height: To adjust the interior shelf, remove all items from the shelf. Lift the shelf slightly and pull it out. Reinsert the shelf supports into the desired set of holes (three positions available) and then place the shelf back onto the supports.
Figure 5.1: Cabinet interior with adjustable shelf.
Figure 5.2: Adjustable shelf positions.
6. Maintenance and Care
- Cleaning: The cabinet features a waterproof coating, making it easy to clean. Wipe surfaces with a soft, damp cloth. For mirrors, use a glass cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the finish or mirror.
- Regular Checks: Periodically check all screws and connections to ensure they remain tight, especially the wall mounting hardware.
- Avoid Overloading: Do not place excessively heavy items on the shelves or inside the cabinet to prevent damage or detachment from the wall.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet feels unstable after mounting. | Improper wall anchors or loose mounting screws. | Ensure appropriate wall anchors are used for your wall type. Tighten all mounting screws. If instability persists, consult a professional. |
| Doors do not close properly or are misaligned. | Hinges are not adjusted correctly or are loose. | Adjust the screws on the hinges to align the doors. Refer to the hinge adjustment section in your physical manual if available. Tighten hinge screws. |
| Shelf is difficult to insert or remove. | Shelf supports are not fully inserted or aligned. | Ensure shelf supports are fully and evenly inserted into the desired holes. |
8. Specifications
- Brand: Yaheetech
- Model Number: YA-00111601
- Color: White
- Product Dimensions (L x W x H): 63 x 15 x 65 cm (24.8 x 5.9 x 25.6 inches)
- Product Weight: Approximately 13.4 kg (29.5 lbs)
- Maximum Weight Capacity: 5 kg (11 lbs)
- Material: MDF (Medium-Density Fiberboard) with waterproof coating
- Special Features: Easy to install, easy to clean, adjustable shelf, durable construction, frameless mirror doors.
9. Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please contact Yaheetech customer service directly. Refer to the contact details provided on the product packaging or the official Yaheetech website.
You can also visit the Yaheetech Store on Amazon for more information and product offerings.
