Gebildet 12mm Blue LED Metal Indicator Light 110V-220VAC Instruction Manual

1. Product Overview

This manual provides detailed instructions for the installation, operation, and maintenance of the Gebildet 5-piece 12mm Blue LED Metal Indicator Light. These lights are designed for various applications requiring visual status cues, such as in power systems, telecommunications, machine tools, motors, and household appliances.

Key Features:

• Rated Voltage: AC 110V-220V, ensuring broad compatibility.
• Durable Construction: Shell made from brass plated nickel stainless steel for longevity.
• Waterproof: IP65 protection grade, suitable for use in various environments.
• Energy Efficient: Utilizes excellent LED chips for low power consumption (0.5W).
• Easy Installation: Designed for flush mounting with a 12mm hole diameter.

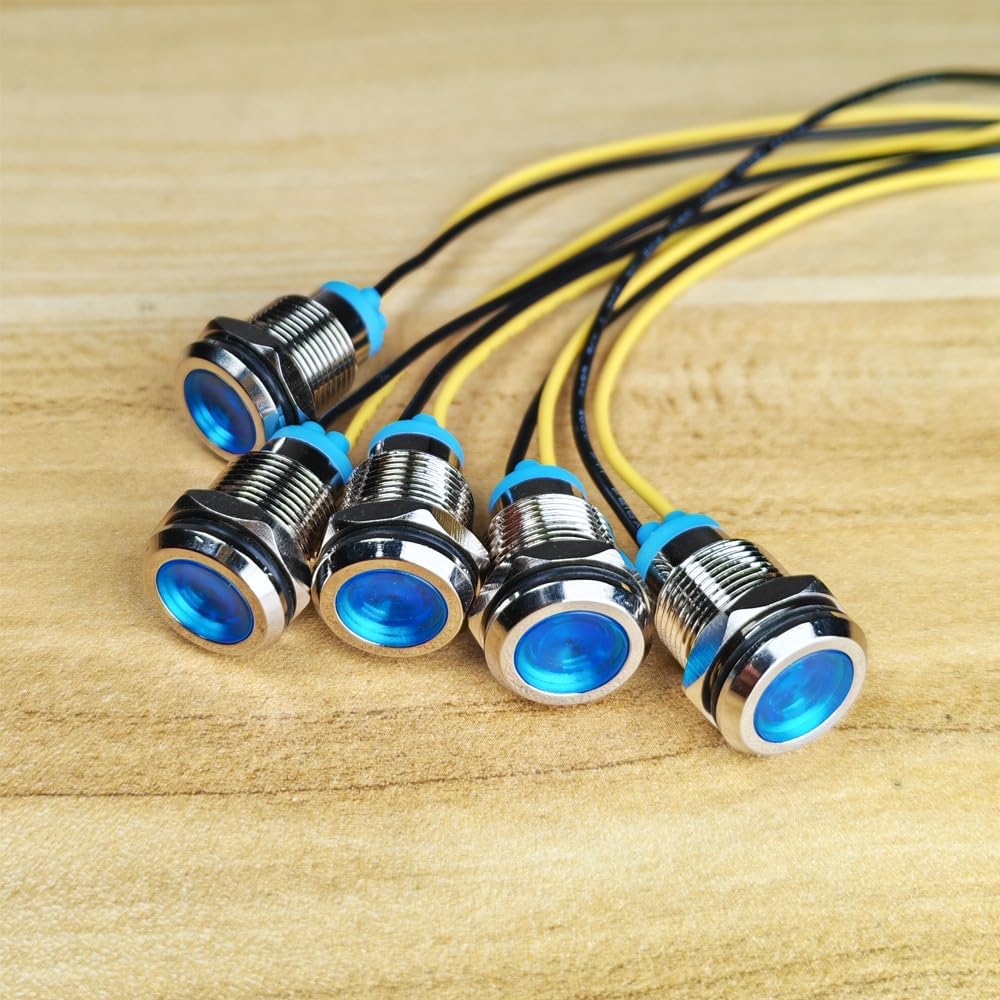

Image 1.1: A set of five Gebildet 12mm Blue LED Metal Indicator Lights, showcasing their compact design and pre-wired connections.

2. Technical Specifications

Refer to the table below for detailed technical specifications of the indicator lights:

Image 2.1: Detailed technical drawing showing dimensions and key specifications of the indicator light.

3. Safety Precautions

Please read and understand all safety information before installing or operating the indicator lights. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Electrical Hazard: Always disconnect power to the circuit before installing or servicing the indicator lights.
• Voltage Compatibility: Ensure the operating voltage of your application matches the 110V-220VAC rating of these lights. Connecting to an incorrect voltage can damage the product and pose a safety risk.
• Proper Wiring: Follow correct wiring polarity. For 110V-220VAC models, the yellow wire is typically positive, and the black wire is negative. Consult a qualified electrician if unsure.
• Environmental Conditions: While waterproof (IP65), avoid submerging the lights or exposing them to extreme conditions beyond their specified operating temperature range.
• Secure Installation: Ensure the lights are securely mounted to prevent loosening or accidental dislodgement.

4. Installation Guide

4.1 Mounting

1. Select a suitable location on your panel or enclosure for the indicator light.
2. Using a 12mm drill bit, carefully drill a mounting hole through the panel. Ensure the panel thickness is between 1mm and 8mm.
3. Insert the indicator light into the drilled hole from the front of the panel.
4. From the back of the panel, secure the light using the provided washer and nut. Tighten the nut to a torque of 5-15Nm to ensure a firm fit without over-tightening.

4.2 Wiring

The indicator lights come pre-wired with approximately 15cm long cables for easy connection.

1. Identify the power source for your application. Ensure the power is OFF before proceeding.
2. Connect the yellow wire of the indicator light to the positive (+) terminal of your 110V-220VAC power supply.
3. Connect the black wire of the indicator light to the negative (-) terminal of your 110V-220VAC power supply.
4. Ensure all connections are secure and properly insulated to prevent short circuits.
5. Once wiring is complete, restore power to the circuit and test the indicator light.

Image 4.1: A close-up view of the indicator lights, highlighting the yellow and black pre-wired connections for electrical hookup.

5. Operation

Once properly installed and wired, the Gebildet 12mm Blue LED Metal Indicator Light will illuminate when power is supplied to its terminals. It serves as a visual signal to indicate the status of the circuit or device it is connected to. The light will remain on as long as power is present and correctly connected.

Image 5.1: The indicator lights are designed with IP65 protection, making them splashproof and suitable for various environments.

6. Maintenance

These LED indicator lights are designed for low maintenance and long operational life. Follow these general guidelines:

• Cleaning: If necessary, gently wipe the surface of the indicator light with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the metal finish or LED lens.
• Inspection: Periodically check the mounting nut for tightness and the wiring connections for any signs of wear or corrosion.
• Environmental Protection: Ensure the lights are not exposed to conditions beyond their IP65 rating or specified temperature range to maintain their performance and lifespan.

7. Troubleshooting

If your Gebildet LED indicator light is not functioning as expected, consider the following troubleshooting steps:

• Light Not Illuminating:
  • Check Power Supply: Verify that power is being supplied to the circuit where the indicator light is installed.
  • Inspect Wiring: Ensure the yellow wire is connected to the positive terminal and the black wire to the negative terminal of the power source. Check for loose or incorrect connections.
  • Verify Voltage: Confirm that the voltage supplied to the light is within the 110V-220VAC range.
  • Check for Damage: Inspect the light for any visible physical damage.
• Intermittent Operation:
  • Loose Connections: Re-check all wiring connections for tightness.
  • Power Fluctuations: Ensure the power supply is stable and not experiencing intermittent interruptions.

If these steps do not resolve the issue, please contact customer support.

8. Warranty and Customer Support

Gebildet products are manufactured to high-quality standards. For specific warranty information, please refer to the product packaging or contact Gebildet customer support directly. If you encounter any issues or have questions regarding the installation or operation of your indicator lights, please reach out to the manufacturer's customer service team for assistance.
