1. Product Overview

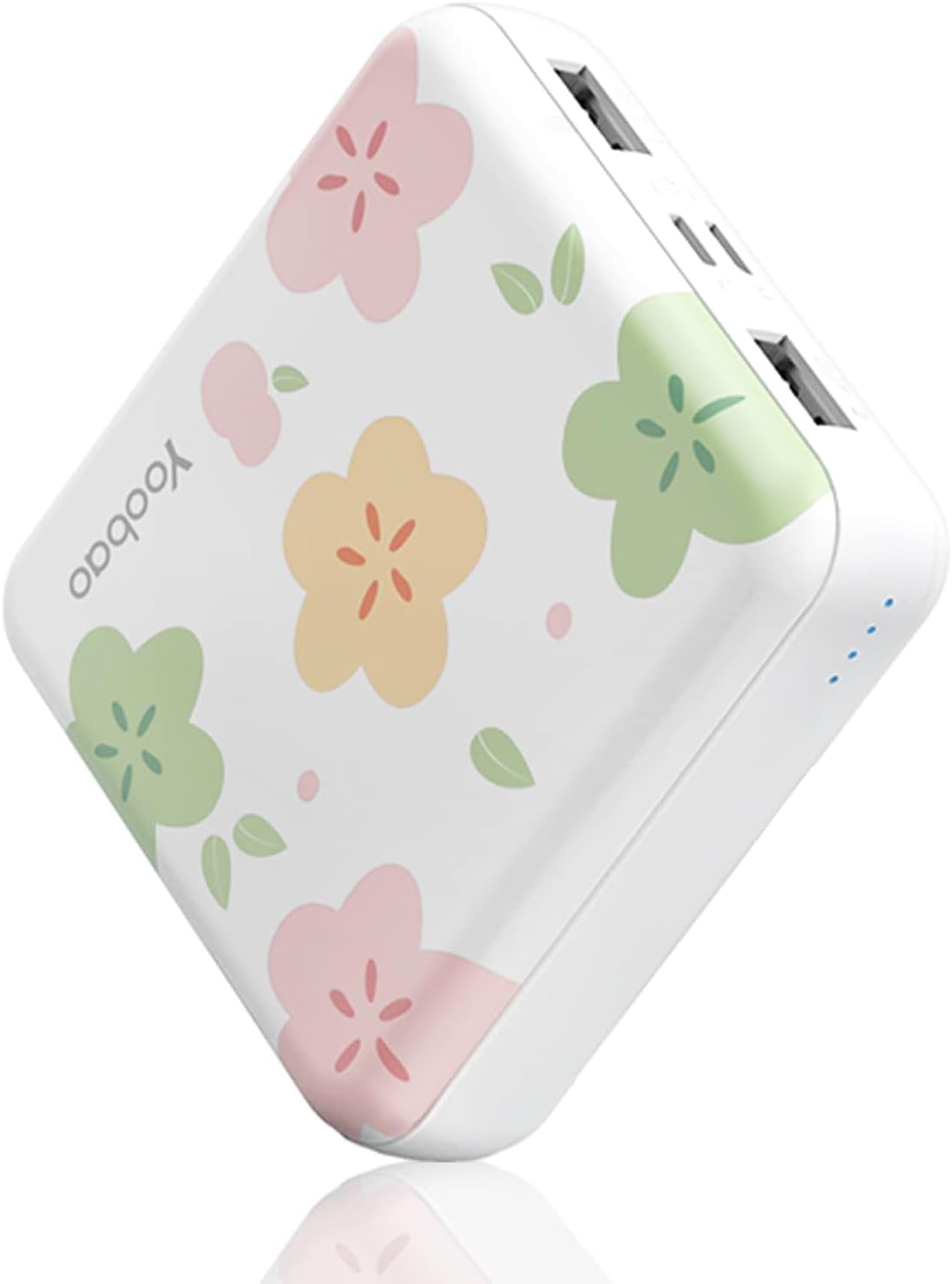

The Yoobao 10000mAh Portable Charger (Model 6024 Mini) is a compact and lightweight power bank designed to provide on-the-go charging for various electronic devices. It features a high-capacity battery, dual USB outputs, and convenient dual inputs for recharging.
Image: A collage demonstrating the compact size of the Yoobao portable charger (dimensions 78x75x23mm, 190g/6.7oz) and its approval for airline travel, shown next to a smartphone and on an airplane tray table.
2. What's in the Box
- 1 x Yoobao Cute Portable Charger
- 1 x USB-C Charging Cord
- 1 x User Manual
3. Setup and Initial Use
3.1 Initial Charging of the Power Bank
Before first use, it is recommended to fully charge your Yoobao Portable Charger. This ensures optimal battery performance and longevity.
- Connect the provided USB-C charging cord to the USB-C input port on the power bank.
- Connect the other end of the USB-C cable to a compatible USB wall adapter (5V/2A recommended for faster charging) or a computer USB port.
- The LED indicators on the power bank will illuminate to show the charging status. All four LEDs will be solid when fully charged.
The power bank can also be recharged using a Lightning 8-pin cable (not included) via the dedicated Lightning input port.
Image: A diagram illustrating the input ports (USB-C and Lightning) on the Yoobao portable charger and indicating that it can be fully recharged in less than 6 hours.
4. Operating Instructions
4.1 Charging Your Devices
The Yoobao Portable Charger features two USB-A output ports for charging your electronic devices.
- Connect your device's charging cable to one of the USB-A output ports on the power bank.
- Connect the other end of the cable to your device.
- The power bank will automatically detect your device and begin charging. The LED indicators will show the remaining battery level.
You can charge up to two devices simultaneously using both USB-A output ports. The total current output is 2.1A.
Image: A visual representation of the Yoobao portable charger simultaneously charging two smartphones, highlighting its dual USB output capability and automatic power detection.
4.2 Power Indicator
The power bank is equipped with LED indicators to display the remaining battery capacity:
- 4 LEDs: 75% - 100% charged
- 3 LEDs: 50% - 75% charged
- 2 LEDs: 25% - 50% charged
- 1 LED: 0% - 25% charged (recharge soon)
Image: An illustration showing the Yoobao portable charger's 10000mAh capacity, capable of charging an iPhone 12 approximately 3 times, an iPhone X 2.5 times, an iPhone 8 3.7 times, and a Samsung S9 2.3 times.
5. Maintenance
5.1 Cleaning
To clean the power bank, use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
5.2 Storage
Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the power bank to approximately 50% every three months to maintain battery health.
6. Troubleshooting
6.1 Power Bank Not Charging
- Ensure the charging cable is securely connected to both the power bank and the power source.
- Try a different charging cable or wall adapter.
- Verify the power source is active.
6.2 Device Not Charging from Power Bank
- Ensure your device's charging cable is securely connected to both the power bank's output port and your device.
- Check if the power bank has sufficient charge (refer to LED indicators).
- Try a different USB-A output port on the power bank.
- Try a different charging cable for your device.
- Confirm your device is compatible with 5V/2.1A charging.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 6024 Mini |
| Battery Capacity | 10000mAh |
| Product Dimensions | 3.07 x 2.95 x 0.91 inches |
| Item Weight | 6.7 ounces |
| Input (USB-C) | 5V/2.1A |
| Input (Lightning) | 5V/2.1A |
| Output (USB-A x 2) | 5V/2.1A (Total) |
| Battery Type | Lithium Metal |
| Special Features | Short Circuit Protection, Lightweight, Over Charging Protection |
Image: A cutaway diagram of the Yoobao portable charger highlighting its internal components and multiple safety protection features, including over-voltage, over-charge, short-circuit, over-current, and over-temperature protection.
8. Safety Information
Please read and follow these safety guidelines to prevent damage to the product or injury to yourself:
- Do not expose the power bank to extreme temperatures (hot or cold), direct sunlight, or high humidity.
- Do not disassemble, modify, or attempt to repair the device.
- Keep away from water and flammable liquids.
- Do not drop, puncture, or apply excessive force to the power bank.
- Keep out of reach of children.
- Dispose of the product responsibly according to local regulations.
The power bank includes built-in safety features such as short circuit protection, over-charging protection, and over-voltage protection to ensure safe operation.
9. Warranty and Customer Support
For any questions, concerns, or issues regarding your Yoobao Portable Charger, please refer to the contact information provided with your purchase or visit the official Yoobao website for customer support.
Please retain your purchase receipt for warranty purposes.
For more information, you can visit the Yoobao Store on Amazon.
