PURPLE LEAF 10' x 12' Outdoor Retractable Pergola Instruction Manual

1. Introduction and Safety Information

Thank you for choosing the PURPLE LEAF 10' x 12' Outdoor Retractable Pergola. This manual provides essential instructions for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your product. Please read this manual thoroughly before installation and use.

General Safety Warnings:

• Always follow all assembly instructions carefully.
• Ensure all components are securely fastened before use.
• Do not use the pergola in extreme weather conditions, such as strong winds or heavy snow, without proper securing.
• Regularly inspect the pergola for any loose parts, damage, or wear.
• Keep children and pets away from the assembly area during installation.
• This product is intended for outdoor use only.

2. Parts List and Product Overview

Before beginning assembly, ensure all parts are present and undamaged. Refer to the included hardware list in your packaging for a complete inventory. Key components of your PURPLE LEAF Retractable Pergola include:

• Heavy-Duty Aluminum Frame: Powder-coated for durability and rust resistance.
• Yarn-Dyed Fabric Canopy: UV resistant, fade resistant, and water resistant for long-lasting outdoor use.
• Pulley System: For smooth and easy retraction and extension of the canopy.
• Suction Cup Fastening Levers: To secure the canopy in desired positions.
• Sturdy Support Posts: Four 6.7 x 6.7 inch wide aluminum feet with pre-drilled holes for stable ground mounting.
• Crossbeams: Five crossbeams enhance the overall stability of the pergola structure.

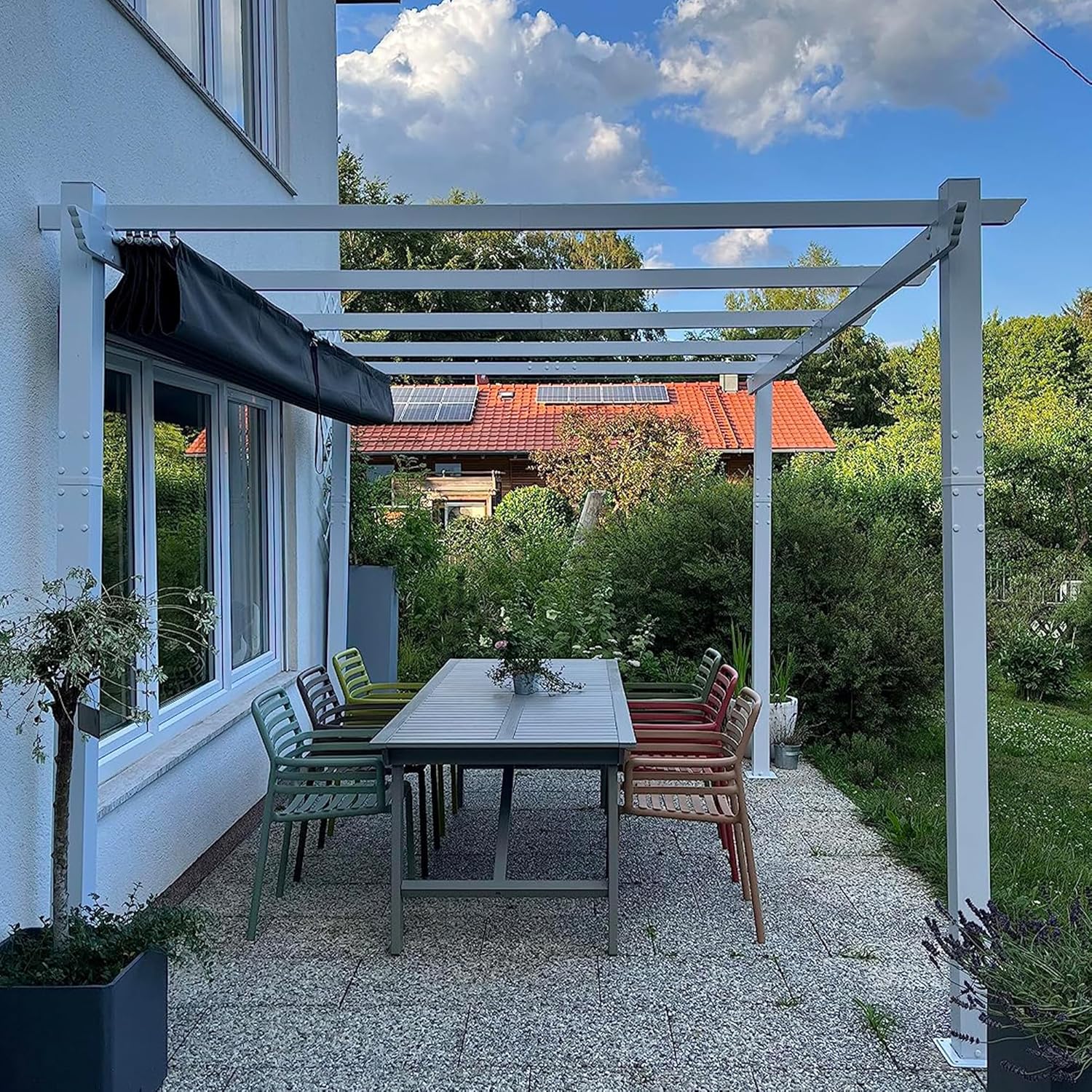

Image: Overview of the PURPLE LEAF 10' x 12' Outdoor Retractable Pergola with its white frame and gray canopy.

Image: Detailed product dimensions for the pergola structure.

3. Setup and Assembly

Assembly of the PURPLE LEAF Retractable Pergola requires careful attention to detail. It is recommended to have at least two people for assembly. Follow the step-by-step instructions provided in your product packaging. Below are general guidelines and a helpful video resource:

Key Assembly Steps:

1. Unpack and Organize: Lay out all components and hardware on a clean, flat surface. Verify against the parts list.
2. Assemble Frame Sections: Connect the main aluminum beams and posts using the provided hardware. Ensure all connections are secure.
3. Attach Crossbeams: Install the five crossbeams to the top frame, which provide structural integrity and support for the canopy.
4. Install Canopy Tracks and Rollers: Secure the tracks and rollers for the retractable canopy onto the frame.
5. Mount Canopy Fabric: Carefully attach the yarn-dyed fabric canopy to the rollers and tracks.
6. Secure to Ground: Use 1/4-inch expansion screws for mounting on wooden floors, concrete 3 inches deep or more, or concrete footings (recommended over 50 lbs. per footing) measuring 15x15x15 inches for optimal stability.

Image: Close-up view of the sturdy 3.54" x 3.54" pergola pole, highlighting its robust construction.

4. Operating the Retractable Canopy

The retractable canopy allows you to easily adjust the amount of shade for your outdoor space. Follow these steps to operate your canopy:

Canopy Operation:

1. To Extend: Gently pull the canopy forward using the attached strap and pulley system until it reaches the desired position.
2. To Retract: Push the canopy back along the tracks. Utilize the suction cup fastening levers to secure the canopy in its retracted position, protecting it from weather elements when not in use.
3. Adjusting Shade: The canopy can be partially extended or retracted to provide optimal shade throughout the day.

Image: Visual representation of the adjustable canopy in both open and closed positions, demonstrating flexible shading options.

5. Care and Maintenance

Proper care and maintenance will extend the life and appearance of your PURPLE LEAF Pergola.

Frame Maintenance:

• The heavy-duty aluminum frame is powder-coated for rust resistance. Clean the frame periodically with mild soap and water. Rinse thoroughly and dry.
• Inspect all bolts and connections regularly and tighten if necessary to maintain structural integrity.

Canopy Maintenance:

• The yarn-dyed fabric canopy is UV resistant and fade resistant. Clean with mild soap and water, using a soft brush or cloth. Avoid harsh chemicals.
• Ensure the canopy is dry before retracting for extended periods to prevent mildew.
• In anticipation of severe weather, retract the canopy fully to protect it from damage.

Image: Close-up of the yarn-dyed fabric, highlighting its UV and fade-resistant properties.

6. Troubleshooting

If you encounter any issues with your pergola, refer to the following common troubleshooting tips:

• Canopy not retracting/extending smoothly: Check the tracks for obstructions or debris. Ensure the pulley system is free from tangles.
• Pergola feels unstable: Verify that all frame connections are tight and that the base is securely anchored to the ground as per installation instructions.
• Water pooling on canopy: Ensure the canopy is properly tensioned when extended. The water-resistant fabric is designed to shed water, but excessive pooling may indicate improper setup or extreme rainfall.

For issues not resolved by these tips, please contact customer support.

7. Product Specifications

8. Warranty and Customer Support

Your PURPLE LEAF Pergola is designed for quality and durability. For any inquiries or assistance, please refer to the following information:

Warranty Information:

• Protection Plans: Optional 3-Year Protection Plan and Complete Protect (monthly subscription) are available for purchase. Please refer to your purchase details for specific terms and conditions.
• Return Policy: 30-day easy returns for refund/replacement.

Customer Support:

For product support, missing parts, or warranty claims, please contact PURPLE LEAF customer service. Contact details can typically be found on the product packaging or the official PURPLE LEAF website.
