Anman Foldable Driving Gaming Steering Wheel Stand User Manual

1. Product Overview

The Anman Foldable Driving Gaming Steering Wheel Stand is designed to provide a stable and adjustable platform for various racing simulation peripherals. Its robust construction and adaptable features enhance the gaming experience by allowing users to customize their setup for comfort and performance.

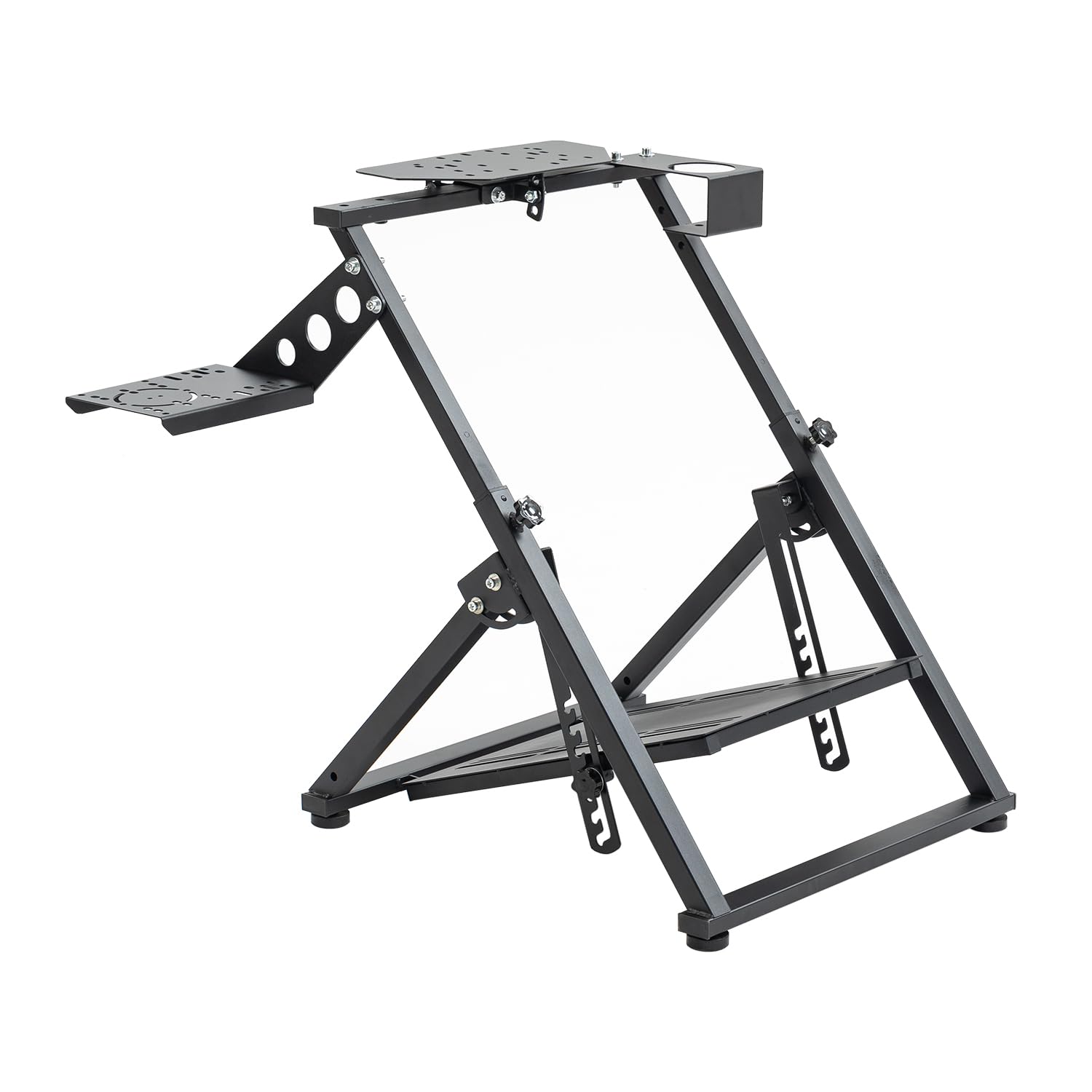

The Anman Foldable Driving Gaming Steering Wheel Stand in its assembled state, ready for use.

Key Features

• X-shape Structure: The dual triangle structure design enhances stability during use.
• Pre-Installation Design: The stand arrives 80% pre-assembled, facilitating quick setup.
• High Compatibility: Compatible with a wide range of racing wheels and pedals.
• Shift Lever Platform: Features a multi-hole design for installing both a shifter and a handbrake, accommodating various models.
• Easy Adjustment: The stand allows for adjustment of overall height, steering wheel angle, and pedal angle.
• User-Centric Design: The handbrake platform and cup holder can be interchanged between left and right sides.

2. Assembly and Setup

2.1 Unpacking

Carefully remove all components from the packaging. Verify that all parts listed in the product manual (not included in this HTML document) are present and undamaged. Keep packaging materials for future storage or transport.

2.2 Initial Assembly

The stand is designed for quick assembly, with approximately 80% of the structure pre-installed. Follow the included paper instructions for the final assembly steps. Ensure all bolts and fasteners are securely tightened before use to maintain stability.

2.3 Attaching Your Racing Peripherals

The stand features pre-drilled holes and mounting points for various steering wheels, pedals, shifters, and handbrakes. Align your peripheral's mounting holes with those on the stand and secure them using the provided hardware or the hardware that came with your peripheral.

The racing wheel stand configured with both a shifter and a handbrake, illustrating the multi-hole design for peripheral attachment.

3. Operating Instructions

3.1 Adjusting the Stand

The Anman Racing Wheel Stand offers multiple adjustment points to optimize your racing position:

• Steering Wheel Angle: Loosen the adjustment knobs near the steering wheel platform to tilt the wheel to your desired angle. Tighten securely.
• Stand Height: Adjust the main vertical supports to raise or lower the overall height of the stand. Ensure both sides are adjusted evenly.
• Pedal Angle: The pedal platform can be adjusted for tilt to suit your preference.
• Shifter/Handbrake Platform: This platform can be adjusted for position (left/right, front/rear) and angle. It can also be swapped to either side of the stand.

Close-up view highlighting the adjustable components of the stand, including steering wheel angle, stand height, stand angle, and pedal position.

Visual guide detailing the four primary adjustment types: vertical (up and down), horizontal (left and right), depth (front and rear), and tilt angle for optimal positioning.

3.2 Folding and Storage

The stand is designed to fold compactly for easy storage. Follow the folding mechanism by releasing the quick-release levers or knobs as indicated in the detailed manual. Once folded, the stand can be stored under furniture or in tight spaces.

A sequence of images demonstrating the three steps for folding the Anman Racing Wheel Stand for convenient storage.

4. Compatibility

The Anman Gaming Wheel Stand26 is compatible with a wide range of popular racing peripherals and gaming platforms. This includes:

• Logitech: G25, G27, G29, G920, G923
• Thrustmaster: T150, T150Pro, T-GT, T80, T300RS (GT), T300, T500RS, TX, Ferrari GTE, F430, 458
• PXN: V9
• Fanatec: Various models (specific models may require additional mounting solutions)
• Hardware Platforms: PC, PlayStation 4, Xbox One (and potentially newer generations depending on peripheral compatibility)

An overview of the Anman Racing Wheel Stand's compatibility with different hardware platforms (Xbox, PS, PC, Mac) and various steering wheel brands (Logitech, Fanatec, Thrustmaster, PXN).

5. Maintenance

To ensure the longevity and optimal performance of your Anman Racing Wheel Stand, follow these maintenance guidelines:

• Cleaning: Wipe down the stand regularly with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically check all bolts, screws, and adjustment knobs to ensure they are tight. Re-tighten any loose fasteners.
• Storage: When not in use, especially for extended periods, fold the stand and store it in a dry, cool place to prevent rust or damage.

6. Troubleshooting

If you encounter issues with your Anman Racing Wheel Stand, consider the following:

• Stand Instability: Ensure all assembly bolts and adjustment knobs are fully tightened. Verify the stand is placed on a flat, stable surface.
• Peripheral Not Fitting: While the stand offers broad compatibility, some specific peripheral models (e.g., certain Thrustmaster TMX models) may require minor modifications or additional mounting plates not included with the stand. Refer to your peripheral's manual for mounting options.
• Difficulty Adjusting: Loosen adjustment knobs sufficiently before attempting to change positions. Do not force components. If a part is stiff, check for obstructions or debris.

7. Specifications

Diagram illustrating the maximum dimensions of the stand when unfolded and its compact size when folded for storage.

8. Warranty and Support

This Anman product comes with a 3-month warranty from the date of purchase. Additionally, permanent online technical support is available for assistance with product setup, operation, or troubleshooting.

For warranty claims, technical support, or any inquiries, please refer to the contact information provided with your purchase documentation or visit the official Anman website.
