Jackson JS Series Spectra Bass JS3 Electric Bass Guitar User Manual

1. Introduction

The Jackson JS Series Spectra Bass JS3 is a 4-string electric bass guitar designed for versatile performance. It features a balanced poplar body, an ultra-stable 1-piece maple neck, and a 24-fret compound-radius laurel fingerboard. This instrument is equipped with two humbucking pickups, an active 3-band EQ, and a 2-way split toggle for extensive tonal shaping. A Hi-Mass hardtail bridge enhances sustain and tuning stability.

This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Jackson JS Series Spectra Bass JS3.

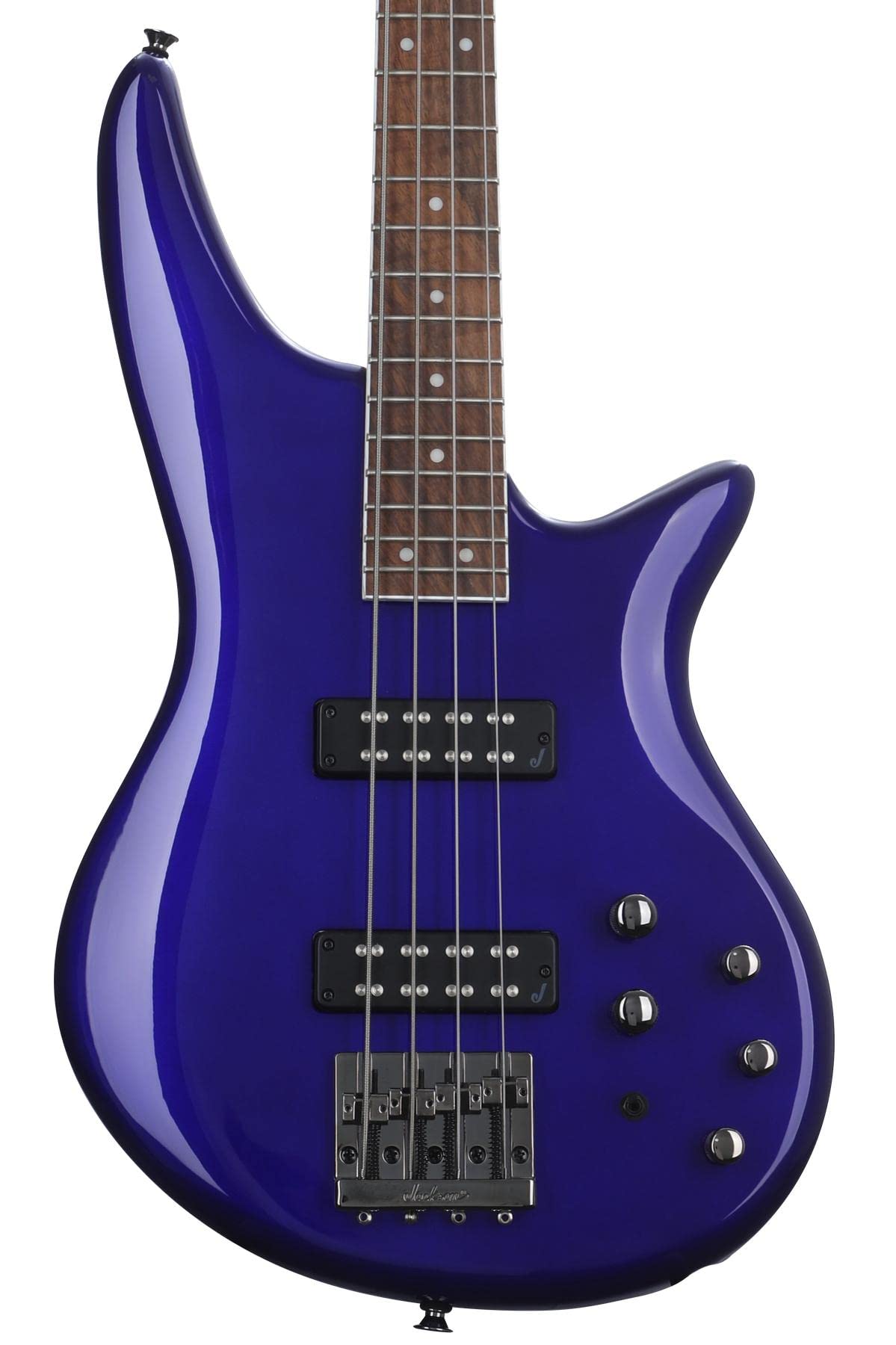

Figure 1: Jackson JS Series Spectra Bass JS3 in Indigo Blue. This image displays the full electric bass guitar, highlighting its body shape, headstock, neck, and bridge components.

2. Setup

2.1 Initial Inspection

Upon unboxing, carefully inspect the instrument for any signs of damage that may have occurred during shipping. Ensure all components are securely attached.

2.2 Connecting to an Amplifier

1. Ensure your amplifier is turned off and its volume is set to minimum.
2. Connect one end of a standard 6.35mm instrument cable to the output jack located on the edge of the bass body.
3. Connect the other end of the cable to the input jack of your amplifier.
4. Turn on your amplifier and gradually increase the volume to a desired level.

2.3 Tuning

Standard tuning for a 4-string bass is E-A-D-G (from thickest to thinnest string). Use an electronic tuner for accurate tuning. Pluck each string individually and adjust the corresponding tuning machine head until the tuner indicates the correct pitch.

2.4 String Installation

The Spectra Bass JS3 uses steel alloy strings. When replacing strings, ensure you use the correct gauge for optimal performance and to avoid damage to the neck. Thread the new string through the bridge, over the saddle, and wind it securely around the tuning post. Stretch the strings gently after installation to help them settle and hold tune.

3. Operating Controls

The Jackson JS Series Spectra Bass JS3 features active electronics for enhanced tonal control. Familiarize yourself with the following controls:

• Volume Knob: Controls the overall output level of the bass.
• Blend Knob: Mixes the output of the neck and bridge humbucking pickups. Turning it clockwise typically favors the bridge pickup, while counter-clockwise favors the neck pickup.
• 3-Band EQ Knobs: These three knobs (Bass, Mid, Treble) allow you to boost or cut specific frequency ranges, shaping the tone of your bass. Adjust them to achieve your desired sound.
• 2-Way Split Toggle Switch: This switch allows you to change the wiring configuration of the humbucking pickups, often switching between series and parallel modes, or coil-splitting, to offer different tonal characteristics. Experiment with this switch to find various sounds.

Experiment with different settings to discover the wide range of tones available from your instrument.

4. Maintenance

4.1 Cleaning

Regular cleaning helps preserve the finish and playability of your bass.

• Body: Wipe the powder-coated body with a soft, dry, lint-free cloth after each use to remove sweat and fingerprints. For deeper cleaning, use a guitar-specific polish designed for matte or satin finishes.
• Neck and Fingerboard: Wipe the maple neck and laurel fingerboard with a clean, dry cloth. Periodically, the laurel fingerboard may benefit from a small amount of lemon oil or a dedicated fretboard conditioner to prevent drying. Avoid excessive moisture.
• Strings: Wipe down the strings after each use to remove oils and dirt, which can extend their life and maintain tone.

4.2 String Replacement

Strings should be replaced regularly, depending on playing frequency and personal preference. Worn strings can lose their brightness and intonation. Replace one string at a time to maintain neck tension.

4.3 Storage

Store your bass in a climate-controlled environment, away from extreme temperature changes and humidity fluctuations. A gig bag or hard case provides protection from physical damage and environmental factors.

5. Troubleshooting

If you encounter issues with your bass, consider the following common troubleshooting steps:

• No Sound:
  • Check all cable connections between the bass, amplifier, and any effects pedals.
  • Ensure the amplifier is on and its volume is not at zero.
  • Verify the volume knob on the bass is turned up.
  • Since the bass has active electronics, check the battery. A dead battery will result in no sound or very weak sound. Replace with a fresh 9V battery if necessary.
• Buzzing or Unwanted Noise:
  • Check for loose cables or faulty connections.
  • Ensure proper grounding of your amplifier and power outlets.
  • Adjust string height (action) if strings are buzzing against frets. This may require professional setup.
  • Check for loose hardware on the bass.
• Poor Tone or Weak Output:
  • Check the battery for active electronics.
  • Adjust the 3-band EQ settings on the bass and amplifier.
  • Ensure the blend knob is set to a desired position.
  • Old or dirty strings can significantly impact tone. Consider replacing them.

If these steps do not resolve the issue, consult a qualified guitar technician.

6. Specifications

7. Warranty Information

This Jackson JS Series Spectra Bass JS3 is covered by a 2-year warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

8. Support

For further assistance, technical support, or warranty inquiries, please contact Jackson customer service through their official website or authorized service centers. Refer to the Jackson website for the most up-to-date contact information and support resources.
