Rdideal CS-BST200PW Lithium-Ion Power Tool Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Rdideal CS-BST200PW Lithium-Ion battery pack. This battery is designed for self-installation and is compatible with the Kraftwerk 32002 LED-Akku-Handlampe. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

2. Safety Information

ATTENTION! New battery packs must be fully charged before initial use. To reduce the risk of fire or burns, read all instructions in the operating guide before using the battery.

• Do not crush, puncture, or short external contacts.
• Do not dispose of the battery in fire.
• Do not store the battery above 60°C (140°F).
• Do not disassemble, open, or service the battery pack.
• Keep the battery away from children.
• Use only the specified charger for this battery pack.
• If the battery shows signs of damage, swelling, or leakage, discontinue use immediately and dispose of it properly.

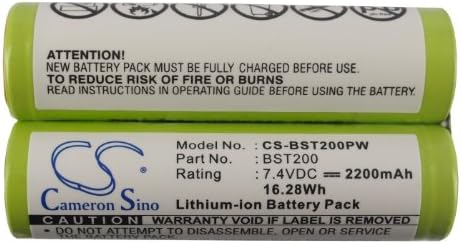

Image: Close-up view of the battery label, clearly showing safety warnings and product specifications such as model number, part number, voltage, and capacity. The label includes symbols indicating 'do not dispose in fire', 'do not puncture', and 'do not expose to high temperatures'.

3. Setup and Installation

This battery pack is designed for self-installation into compatible devices, specifically the Kraftwerk 32002 LED-Akku-Handlampe.

1. Preparation: Ensure the device (Kraftwerk 32002 LED-Akku-Handlampe) is turned off and disconnected from any power source before beginning installation.
2. Access Battery Compartment: Locate and open the battery compartment of your Kraftwerk 32002 LED-Akku-Handlampe. Refer to your device's original manual for specific instructions on accessing the battery compartment.
3. Remove Old Battery (if applicable): Carefully remove the old battery, noting its orientation and connection points.
4. Install New Battery: Insert the Rdideal CS-BST200PW battery pack into the compartment, ensuring correct polarity. The battery terminals must align with the device's connectors. Incorrect installation can damage the battery and the device.
5. Secure Compartment: Close and secure the battery compartment.

Image: The Rdideal CS-BST200PW Lithium-Ion battery pack, showing its cylindrical cells and overall form factor, which is designed for self-installation into compatible devices.

Image: A view of the battery terminals on the Rdideal CS-BST200PW battery pack, highlighting the contact points for proper connection within the device.

4. Operating Instructions

4.1 Initial Charge

Before first use, fully charge the new battery pack. This ensures optimal performance and longevity.

4.2 Charging

• Use only the charger specified for the Kraftwerk 32002 LED-Akku-Handlampe.
• Connect the device with the installed battery to its charger.
• Monitor the charging indicator on your device. Disconnect the charger once the battery is fully charged.
• Avoid overcharging, as this can reduce battery life.

4.3 Usage

Once installed and charged, the battery powers your Kraftwerk 32002 LED-Akku-Handlampe. Operate the device according to its specific instructions. For best battery life, avoid completely draining the battery frequently.

5. Maintenance

• Cleaning: Keep battery contacts clean and free from dirt or corrosion. Use a dry, clean cloth to wipe the battery if necessary.
• Storage: If storing the battery for an extended period, store it in a cool, dry place at approximately 50% charge. Avoid extreme temperatures.
• Disposal: Dispose of used batteries responsibly according to local regulations. Do not dispose of batteries with household waste. Many retailers offer battery recycling programs.

6. Troubleshooting

• Battery not charging:
  • Ensure the charger is properly connected and functioning.
  • Check battery contacts for dirt or corrosion.
  • Verify the battery is correctly installed in the device.
• Short operating time:
  • The battery may not be fully charged.
  • Battery capacity may have degraded over time due to age or extensive use.
  • Operating in extreme temperatures can reduce battery performance.
• Device not powering on:
  • Ensure the battery is fully charged and correctly installed.
  • Check if the device itself has any issues (refer to the device's manual).

7. Specifications

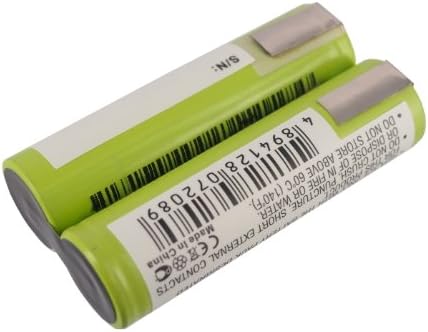

Image: Rear view of the battery pack, displaying a barcode (4894128072089) and an area designated for a serial number (S/N).

8. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
