JUQITECH Backlit Keyboard Case User Manual

1. Introduction

Thank you for choosing the JUQITECH Backlit Keyboard Case. This product is designed to enhance your Samsung Galaxy Tab A8 10.5 (2022) experience by providing a protective case and a versatile detachable Bluetooth wireless keyboard. This manual provides essential information for setup, operation, and maintenance to ensure optimal performance.

2. Compatibility

This keyboard case is specifically designed for the Samsung Galaxy Tab A8 10.5 inch (2022 Release). It is compatible with the following model numbers:

• SM-X200
• SM-X205
• SM-X207

To verify your tablet's model number, navigate to 'Settings' > 'About tablet' > 'Model' on your device. This case is not compatible with any other tablet models. The Samsung Tablet and S Pen are not included with this product.

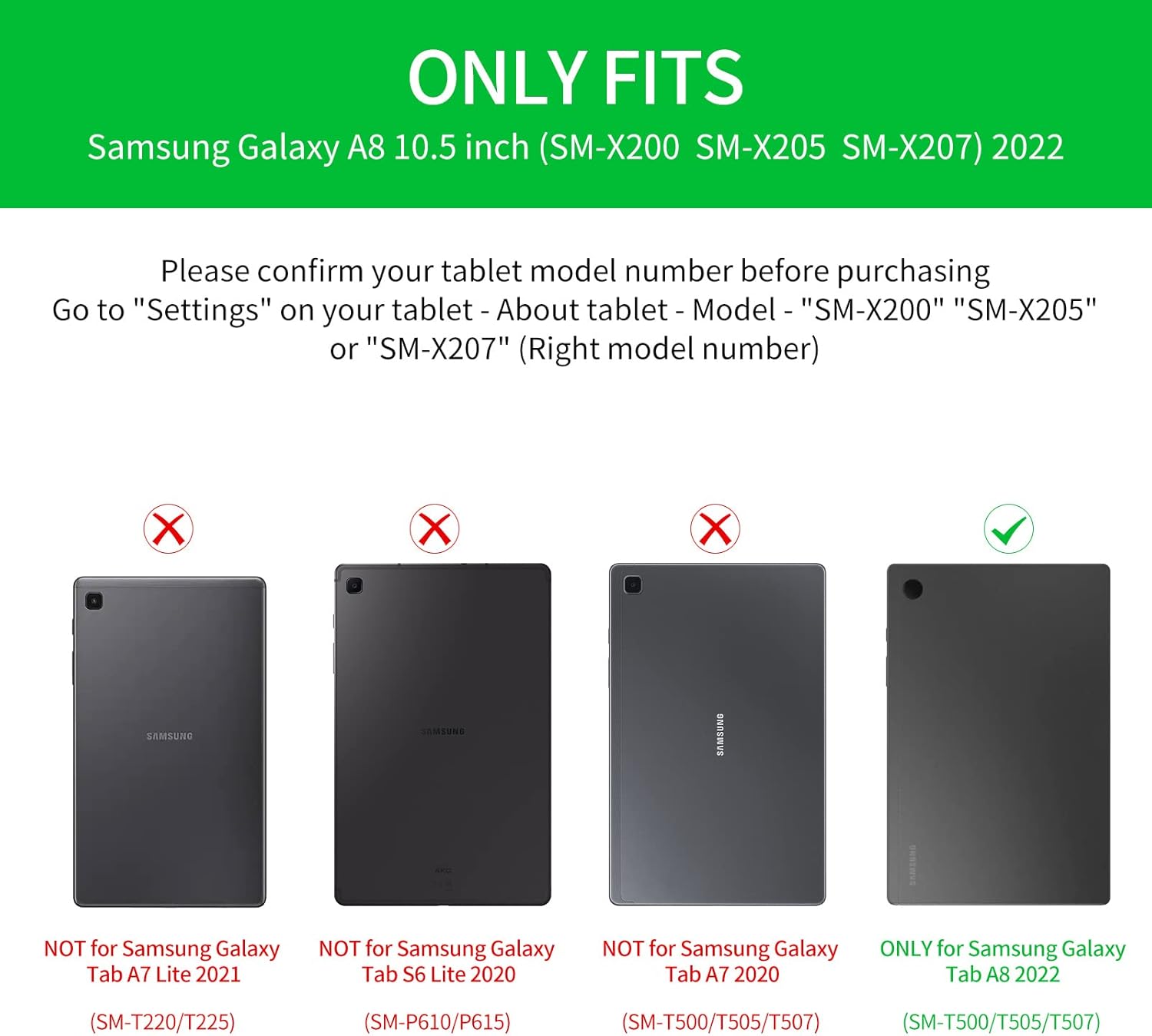

Image: Compatibility chart indicating supported Samsung Galaxy Tab A8 10.5 (2022) models and incompatible models.

3. Package Contents

Please check the package for the following items:

• 1 x Smart Case for Galaxy Tab A8 10.5"
• 1 x Wireless Backlit Keyboard
• 2 x USB Charging Cables
• 1 x User Manual

4. Setup Instructions

4.1 Initial Charging

Before first use, fully charge the wireless keyboard for 2-3 hours using one of the provided USB cables. The keyboard has a built-in Lithium-ion battery.

4.2 Bluetooth Pairing

1. Ensure the keyboard is charged.
2. Turn on the keyboard using the power switch (usually located on the side or top edge).
3. On your Samsung Galaxy Tab A8, go to 'Settings' > 'Connected devices' > 'Bluetooth'.
4. Enable Bluetooth and search for available devices.
5. Select the keyboard (it may appear as 'Bluetooth Keyboard' or a similar name) from the list to pair.
6. Follow any on-screen prompts to complete the pairing process.

4.3 System Switching

The keyboard is compatible with iOS, Android, and Windows operating systems. To optimize keyboard functions for your tablet, switch to the appropriate system:

• For iOS: Press Fn + Q
• For Android: Press Fn + W
• For Windows: Press Fn + E

Image: Keyboard layout illustrating the function keys for switching between different operating systems.

5. Operating Instructions

5.1 Keyboard Backlight Control

The keyboard features 7-color backlighting for typing in low-light conditions.

• Press the bulb key to cycle through stable backlight mode, breathing backlight mode, or turn off the backlight.
• In stable backlight mode, press the RGB key to change between the 7 available colors: blue, green, red, light blue, purple, yellow, and white.

Image: Close-up of the keyboard demonstrating the backlit keys and color options.

5.2 Detachable Design and Viewing Angles

The keyboard is magnetically attached to the case, allowing for easy detachment. This feature enables flexible viewing positions for your tablet.

• To adjust the viewing angle, detach the keyboard and reposition your tablet within the case.
• The case's design supports multiple viewing angles, ideal for watching videos, reading, working, or playing games.

Image: The keyboard case configured to hold the tablet at an optimal viewing angle, simulating a laptop setup.

5.3 Multimedia Shortcuts

The keyboard includes convenient multimedia shortcut keys for quick access to various functions. Refer to the keyboard layout for specific key assignments such as volume control, playback, and screen lock.

Image: Detailed view of the keyboard's multimedia shortcut keys.

6. Maintenance

To ensure the longevity and performance of your JUQITECH keyboard case, follow these maintenance guidelines:

• Cleaning: Wipe the case and keyboard with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Protection: The case is designed with oil resistance, dustproof properties, impact resistance, anti-fingerprint coating, and scratch-proof material. However, avoid exposing it to extreme temperatures or direct sunlight for extended periods.
• Keyboard Care: The keyboard features a high-quality waterproof conductive film, offering some protection against minor spills. In case of liquid contact, immediately power off the keyboard and allow it to dry completely before reuse.
• Storage: When not in use, store the keyboard case in a clean, dry environment.

Image: Visual representation of the case's protective features and material quality.

7. Troubleshooting

If you encounter issues with your keyboard case, please refer to the following common solutions:

• Keyboard Not Connecting:
  • Ensure the keyboard is fully charged.
  • Verify Bluetooth is enabled on your tablet and the keyboard is powered on.
  • Try unpairing and re-pairing the keyboard in your tablet's Bluetooth settings.
  • Restart both your tablet and the keyboard.
• Backlight Not Working:
  • Ensure the keyboard is charged.
  • Press the bulb key to cycle through backlight modes.
• Keys Not Responding:
  • Check if the keyboard is properly connected via Bluetooth.
  • Ensure the correct operating system mode (Fn+Q/W/E) is selected for your tablet.
  • If specific keys are unresponsive, try cleaning around the keys.
• Tablet Sleep/Wake Function Issues:
  • For optimal sleep/wake functionality, it is recommended to remove the keyboard and use the case separately.
• Unexpected Keyboard Behavior:
  • If the keyboard exhibits unusual behavior (e.g., taking screenshots, resetting pages), ensure your tablet's software is up to date.
  • Try resetting the keyboard by turning it off and on. If the issue persists, contact customer support.

8. Specifications

9. Warranty and Support

JUQITECH offers a 24-hour after-sales service guarantee for your purchase. If you encounter any problems or have questions regarding your product, please do not hesitate to contact us. Our support team is available to assist you.

For assistance, please refer to the contact information provided with your product packaging or visit the official JUQITECH website.
