Beko B300 B3T42240S 8 kg Heat Pump Tumble Dryer Instruction Manual

1. Introduction

Thank you for choosing the Beko B300 B3T42240S Heat Pump Tumble Dryer. This appliance is designed to provide efficient and gentle drying for your laundry with an 8 kg capacity. This manual provides essential information for the safe and effective use, installation, and maintenance of your new tumble dryer. Please read these instructions thoroughly before operating the appliance and keep them for future reference.

Figure 1: Front view of the Beko B300 B3T42240S Heat Pump Tumble Dryer.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is for domestic use only.

• Ensure the dryer is properly earthed.
• Do not install the dryer in areas where the temperature may fall below 5°C.
• Keep packaging materials out of reach of children.
• Do not allow children to play with the appliance.
• Never force the door open.
• Do not dry unwashed items in the tumble dryer.
• Items soiled with cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

3. Setup and Installation

Proper installation is crucial for the performance and longevity of your tumble dryer. Refer to the detailed installation guide provided with your appliance for specific instructions.

3.1 Unpacking and Placement

Remove all packaging materials. Place the dryer on a stable, level surface to prevent vibrations and noise. Ensure adequate ventilation around the appliance.

3.2 Dimensions and Weight

• Dimensions (Depth x Width x Height): 60.5 cm x 59.8 cm x 84.6 cm
• Weight: 44 kg

Figure 2: Side view of the tumble dryer with approximate dimensions.

3.3 Electrical Connection

Connect the dryer to a grounded power outlet. Do not use extension cords or adapters.

3.4 Condensate Drainage

The dryer collects water in a condensate tank. This tank must be emptied after each cycle. Alternatively, you can connect a drain hose for direct drainage, eliminating the need for manual emptying.

4. Operating Instructions

This section guides you through the basic operation of your Beko tumble dryer.

4.1 Control Panel Overview

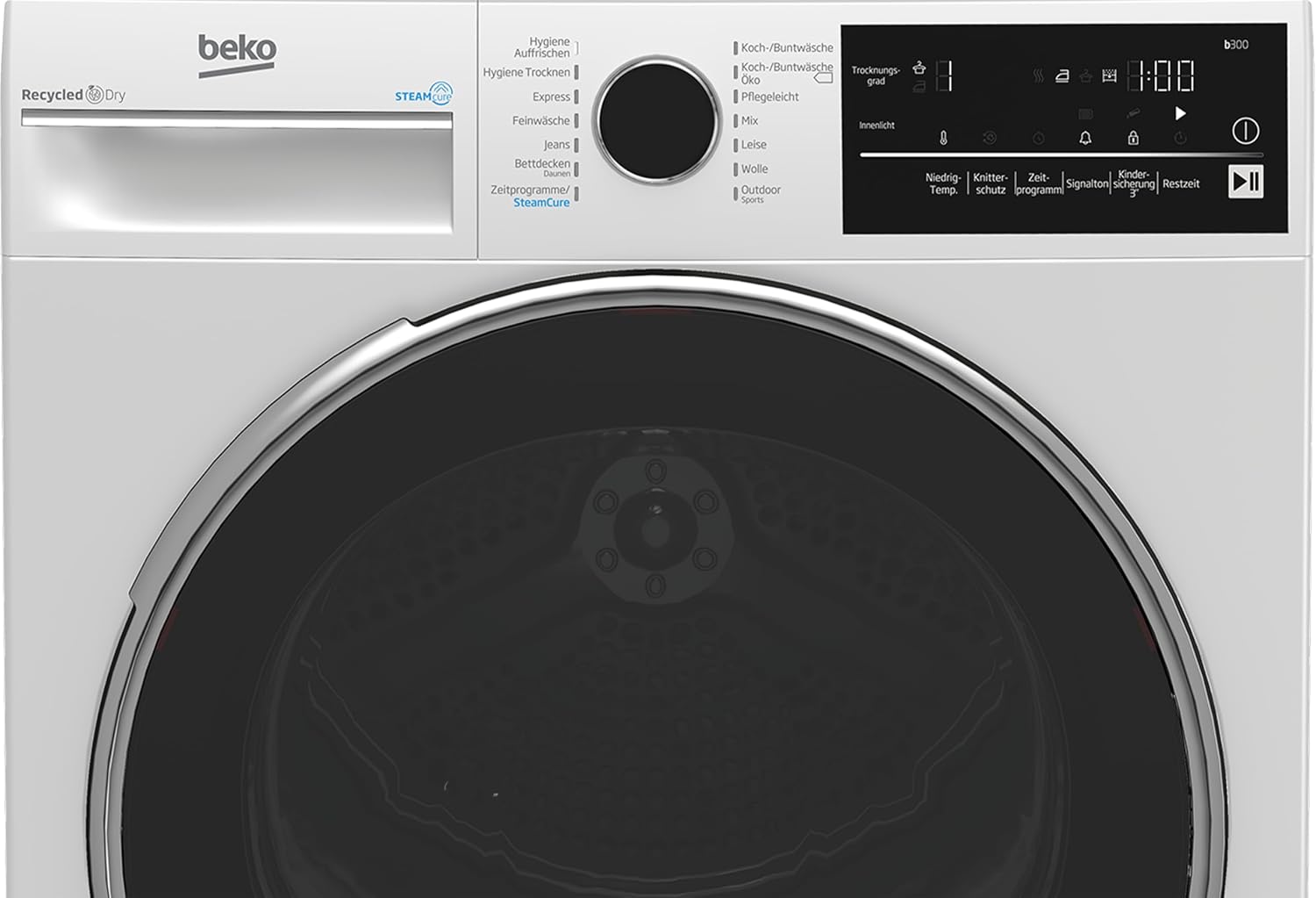

Figure 3: Control panel with program selection dial and digital display.

4.2 Loading Laundry

Open the dryer door and load laundry loosely into the drum. Do not overload the dryer; the maximum capacity is 8 kg. Ensure items are suitable for tumble drying according to their care labels.

4.3 Program Selection

Turn the program selection dial to choose the desired drying program. The digital display will show the estimated drying time and other relevant information.

4.4 Starting and Pausing a Cycle

Press the Start/Pause button to begin the drying cycle. Press it again to pause the cycle if needed. The display shows the remaining time and alerts for tank emptying or filter cleaning.

4.5 Delayed Start

You can delay the start of a drying cycle by up to 24 hours using the delayed start function on the control panel.

5. Drying Programs

The Beko B3T42240S offers 14 programs for optimal fabric care. Select the program that best suits your laundry type.

• Cotton/Colored Laundry: For durable cotton and colored items.
• Eco: Energy-efficient program for cottons.
• Easy Care: For synthetic and mixed fabrics.
• Hygiene Drying: Special program to eliminate viruses and bacteria.
• Hygiene Refresh: Refreshes items and helps eliminate odors.
• Wool: Gentle drying for woolens.
• Time Programs/SteamCure: Allows setting a specific drying time or utilizing the SteamCure function.
• Duvet/Down: For large items like duvets and pillows.
• Express: Quick drying program for small loads.
• Jeans: Optimized for drying denim fabrics.
• Silent: Operates at a reduced noise level.
• Outdoor/Sports: For waterproof and breathable sports clothing.
• Delicate Wash: Extra gentle drying for delicate items.
• Mix: For mixed loads of cotton and synthetics.

5.1 SteamCure Function

The SteamCure function uses steam to reduce wrinkles and refresh clothes, making ironing easier or even unnecessary for some items.

Figure 4: SteamCure function in action, reducing wrinkles with steam.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your dryer.

6.1 Cleaning the Lint Filter

The lint filter must be cleaned after every drying cycle to maintain drying efficiency and prevent fire hazards. The combined filtering mechanism simplifies cleaning.

Figure 5: Lint filter, easily accessible for cleaning.

6.2 Emptying the Water Tank

Empty the condensate water tank after each cycle. The display will remind you when it is full.

6.3 Cleaning the Condenser

The condenser requires cleaning approximately twice a year. Refer to the full instruction manual for detailed steps on how to access and clean the condenser unit.

6.4 General Cleaning

Wipe the exterior of the dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7. Troubleshooting

If you encounter issues with your dryer, consult this section before contacting service.

• Dryer does not start: Ensure the power cord is plugged in, the door is fully closed, and a program is selected. Check if the child lock is activated.
• Laundry is not drying properly: Check if the lint filter is clean and the water tank is empty. Ensure the load size is not too large for the selected program. Verify that the correct drying level is selected.
• Unusual noise: Ensure the dryer is on a level surface. Check for foreign objects in the drum.
• Error codes on display: Refer to the comprehensive user manual for specific error code meanings and solutions.

8. Specifications

Figure 6: Energy label for the Beko B3T42240S. For more details, visit the EPREL database.

9. Warranty and Support

Beko offers a 10-year spare parts warranty upon product registration. For detailed warranty terms and conditions, please refer to the warranty card included with your appliance or visit the official Beko website.

For technical assistance, spare parts, or service requests, please contact Beko customer support. Have your model number (B3T42240S) and serial number ready when contacting support.
