1. Important Safety Instructions
Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.
- Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and hearing protection when operating the chainsaw.
- Keep hands and body parts away from the chain when the tool is running.
- Ensure the battery is removed before performing any assembly, adjustments, cleaning, or maintenance.
- Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
- Maintain a firm grip with both hands on the chainsaw during operation.
- Avoid accidental starting. Ensure the switch is in the off-position before inserting the battery pack, picking up or carrying the tool.
- Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
- Do not overreach. Keep proper footing and balance at all times.
2. Package Contents
Verify that all items are present and in good condition upon opening the package. If any items are missing or damaged, contact customer support.
- 1 x Portable Mini Electric Chainsaw (Main Unit)
- 1 x Rechargeable 24V Lithium Battery
- 1 x Battery Charger
- 1 x Tool Kit (for assembly)
- 1 x Instruction Manual
3. Specifications
| Feature | Specification |
|---|---|
| Motor Power | 1200W |
| Power Type | Rechargeable Lithium Battery Technology |
| Battery Voltage | 24V |
| Guide Plate Length | 8 inches |
| Net Weight | Approximately 4.5 kg (9.9 lbs) |
| Total Length | 50 cm (19.7 inches) |
| Color | Red |
Dimensions of the chainsaw:

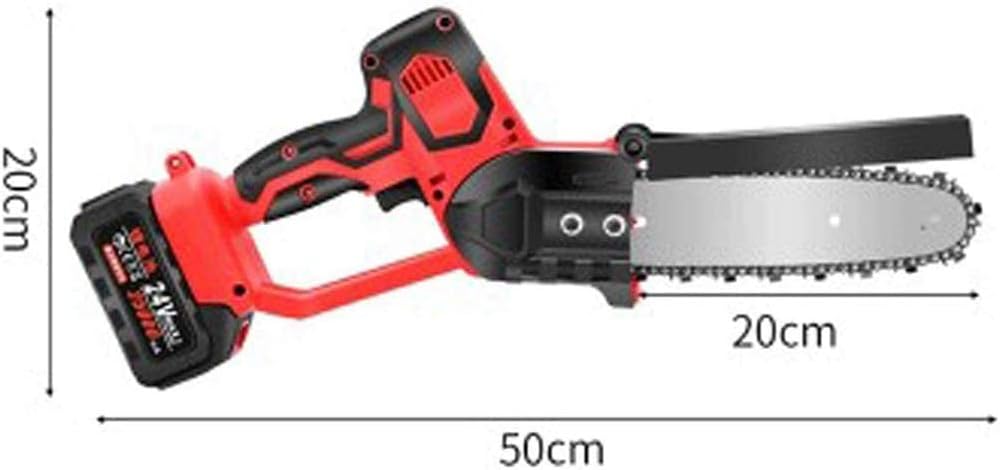

Image: Chainsaw dimensions, illustrating the 50cm total length and 20cm height.
4. Setup
4.1 Battery Charging
Before first use, fully charge the battery. Connect the charger to a power outlet and then connect the battery to the charger. The indicator light on the charger will show the charging status. Once fully charged, disconnect the battery from the charger.
Image: The 24V battery pack, designed for fast charging.
4.2 Guide Plate and Chain Installation
The chainsaw requires assembly of the guide plate and chain. Refer to the detailed instructions provided in the included tool kit for proper installation. Ensure the chain is correctly tensioned and moves freely around the guide plate. Incorrect assembly can lead to injury or damage to the tool.
Image: Components of the chainsaw, illustrating the guide plate and chain assembly.
4.3 Battery Installation
Once the guide plate and chain are securely installed, insert the fully charged battery pack into the battery slot on the chainsaw handle until it clicks into place. Ensure it is firmly seated.
5. Operating Instructions
5.1 Starting the Chainsaw
- Ensure the work area is clear of obstructions and bystanders.
- Hold the chainsaw firmly with one hand on the main handle and the other on the auxiliary handle (if applicable).
- Press the safety lock button (if present) and then squeeze the trigger switch to start the chainsaw. Release the safety lock button once the chainsaw is running.
5.2 Cutting Techniques
This mini chainsaw is designed for pruning and deforestation of fruit trees and general wood cutting. The wooden teeth design helps the chainsaw grip branches for more efficient cutting.
- Always start cutting with the chain at full speed.
- Apply light pressure; let the chainsaw do the work. Forcing it can cause kickback or damage.
- Be aware of the direction the branch will fall and ensure a clear escape path.
- Avoid cutting into the ground or other hard objects, as this will dull the chain quickly.
Image: The chainsaw being held, highlighting its lightweight design for easy operation.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your chainsaw. Always remove the battery before performing any maintenance.
6.1 Chain Lubrication
The chain requires regular lubrication to reduce friction and wear. Apply appropriate chain oil to the guide bar groove and chain links before and during extended use.
Image: Detail of the high hardness quenched chain, showing its sharp and wear-resistant design.
6.2 Cleaning
- After each use, clean wood chips, dust, and debris from the guide bar, chain, and motor housing.
- Use a soft brush or compressed air. Do not use water or solvents that could damage electrical components.
6.3 Chain Sharpening
A dull chain reduces cutting efficiency and increases strain on the motor. Sharpen the chain regularly or replace it when necessary. Refer to a qualified service technician if you are unsure how to sharpen the chain.
6.4 Storage
Store the chainsaw in a dry, secure location out of reach of children. Remove the battery pack before storing for extended periods.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw does not start | Battery not charged or improperly installed; Safety lock not engaged/disengaged; Faulty switch. | Ensure battery is fully charged and correctly inserted. Press safety lock and trigger simultaneously. If problem persists, contact support. |
| Chain not cutting efficiently | Dull chain; Incorrect chain tension; Insufficient lubrication. | Sharpen or replace chain. Adjust chain tension. Apply chain oil. |
| Chainsaw stops during operation | Overload; Low battery; Loose battery connection. | Reduce cutting pressure. Recharge battery. Re-seat battery firmly. |
8. Warranty and Support
This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, duration, and to obtain service, please refer to the warranty card included with your purchase or contact the retailer where the product was purchased. Keep your proof of purchase for warranty claims.
For technical support or inquiries, please contact DSDD customer service through the contact information provided on the product packaging or the official DSDD website.
