EDISHINE 57.5" Dimmable Corner Floor Lamp Instruction Manual

Introduction

Thank you for choosing the EDISHINE 57.5" Dimmable Corner Floor Lamp. This manual provides essential information for the safe and efficient operation of your new lamp. Please read these instructions carefully before use and retain them for future reference.

The EDISHINE 57.5 inch Dimmable Corner Floor Lamp, designed for ambient lighting.

Package Contents

Ensure all components are present before assembly:

• 1 x EDISHINE 57.5" Corner Floor Lamp (Integrated Lamp Post)
• 1 x Heavy Metal Base
• 1 x RF-433 Remote Control
• 1 x Power Adapter with Foot Switch
• 1 x Instruction Manual

Setup and Assembly

The EDISHINE Corner Floor Lamp features an integrated lamp post design for quick and easy assembly. No complex wiring or tools are required.

1. Carefully unbox all components and place them on a clean, flat surface.
2. Align the threaded end of the lamp post with the opening in the heavy metal base.
3. Gently screw the lamp post onto the base clockwise until it is securely tightened. Ensure the lamp is stable and upright.
4. Connect the power adapter to the lamp's power input.
5. Plug the power adapter into a standard electrical outlet.

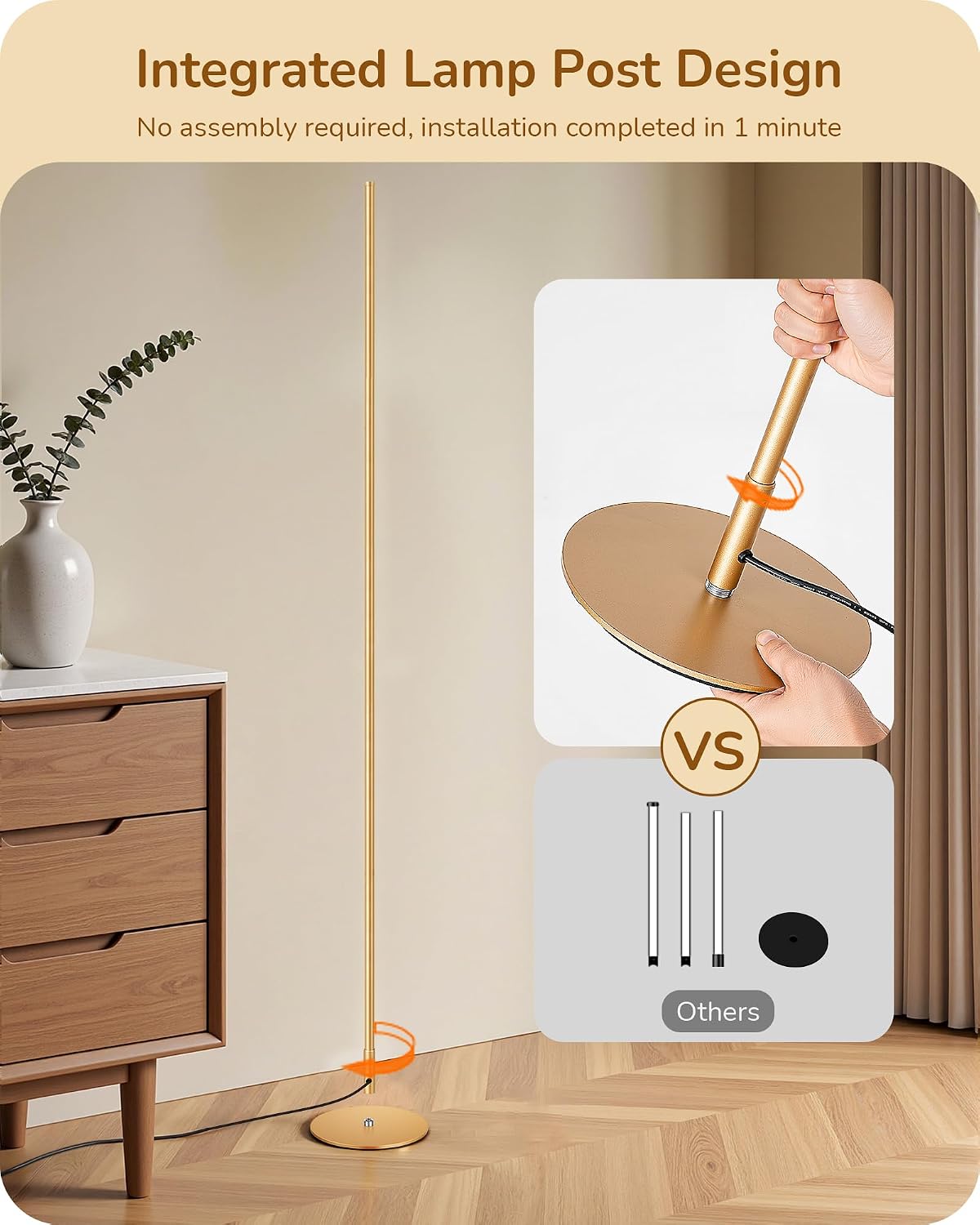

Assembly involves simply screwing the lamp post into the base.

Operating Instructions

Your EDISHINE Corner Floor Lamp can be operated using the included RF-433 remote control or the integrated foot switch.

Remote Control Functions

The RF-433 remote control allows for comprehensive adjustment of the lamp's settings from up to 49 feet away. Ensure the remote has a working battery (typically CR2025, not always included or pre-installed).

Remote control layout with various function buttons.

• ON/OFF: Press to turn the lamp on or off.
• Brightness + / -: Adjusts brightness from 10% to 100%.
• CCT + / -: Changes color temperature through 7 settings, from 2700K (warm white) to 6000K (cool white).
• 3 CCT: Cycles through three preset color temperatures.
• Night Light Mode: Activates a low brightness setting (30% of normal brightness).

The lamp features a memory function that remembers your last brightness and color temperature setting when turned off and on again.

Foot Switch Functions

The foot switch provides basic control for convenience:

• Press once to turn the lamp ON.
• Press again to cycle through 3 preset color temperatures.
• Press and hold to dim the light.
• Press again to turn the lamp OFF.

The lamp can be controlled via remote or foot switch.

Brightness and Color Temperature Adjustment

The lamp offers 7 distinct color temperatures ranging from 2700K (warm, yellowish light) to 6000K (cool, bluish-white light). Brightness is adjustable from 10% to 100% to suit various activities and moods.

Visual representation of the lamp's adjustable color temperatures and dimming capabilities.

Troubleshooting

If you encounter issues with your EDISHINE Corner Floor Lamp, refer to the following common solutions:

• Lamp does not turn on:
  • Ensure the power adapter is securely plugged into both the lamp and a working electrical outlet.
  • Check if the foot switch is pressed or the remote control's ON button is activated.
• Remote control not responding:
  • Replace the remote control battery (CR2025).
  • Ensure there are no obstructions between the remote and the lamp.
  • Re-pair the remote control with the lamp.
• Remote Control Pairing / Multiple Lamp Synchronization:
  1. Unplug all lamps you wish to pair.
  2. Press and hold the "ON" button on the remote control.
  3. While holding the "ON" button, plug all lamps back into their power outlets simultaneously.
  4. In a few seconds, the lamps should flash, indicating successful pairing. If only one lamp pairs, repeat steps 1-4.

  If lamps are paired but not synchronized (e.g., different colors):

  1. Turn the lights on.
  2. Set the color temperature (using the CCT buttons) to blue on at least one light.
  3. Raise the brightness to its highest level.
  4. Raise the color temperature to its highest level.
  5. Switch to another color temperature.
  6. Repeat steps 3 and 4.
  7. Switch to the last color temperature.
  8. Repeat steps 3 and 4. The lights should now be fully synchronized with one remote control.
• Flickering light:
  • Ensure the power connection is stable.
  • Try adjusting the brightness or color temperature. If flickering persists, contact customer support.

Product Specifications

Key dimensions of the EDISHINE Corner Floor Lamp.

Care and Maintenance

To ensure the longevity and optimal performance of your EDISHINE Corner Floor Lamp, follow these care guidelines:

• Cleaning: Disconnect the lamp from power before cleaning. Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• LED Lifespan: The integrated LED light source has a lifespan of over 30,000 hours under normal use and does not require bulb replacement.
• Safety: The lamp is designed not to overheat during extended use, protecting against burns. The heavy metal base provides stability to prevent tipping.
• Placement: Use the lamp indoors only. Avoid placing it in excessively humid environments or near heat sources.

The heavy base ensures stability for safe use.

Warranty and Support

Warranty Information

This EDISHINE Corner Floor Lamp comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

Customer Support

For warranty claims, technical assistance, or any questions regarding your product, please contact EDISHINE customer support through the retailer's platform or the official EDISHINE website. Please have your model number (HLFL02E1) and proof of purchase ready when contacting support.
