Product Overview
The DieseRC DC 12V 24V 4CH Wireless Remote Control Switch is a versatile radio frequency (RF) relay receiver system designed for controlling various electrical appliances. It offers stable and reliable performance with high reception sensitivity, allowing control within a 50-meter range in open areas. The system utilizes EV1527 learning code technology for enhanced security. This product is ideal for applications such as garage doors, lights, motors, and awnings.
Image: The DieseRC 4-channel wireless remote control switch receiver board and two accompanying RF transmitters.
Key Features
- 433Mhz Radio Frequency: Ensures stable and reliable wireless control with high reception sensitivity.
- Extended Range: Operates effectively within 50 meters in open areas, capable of passing through walls, floors, and doors.
- EV1527 Learning Code: Enhances security for the remote control system.
- Multiple Operating Modes: Supports Momentary, Toggle, and Latched modes, programmable to suit various application needs.
- 4 Independent Relays: Each of the four relays can be controlled independently, offering flexibility for different devices.
- High Load Capacity: Equipped with 10A relays, suitable for high-power electrical appliances.
- Wide Voltage Compatibility: Supports DC 6V to 30V, making it compatible with both DC12V and DC24V systems.
- Durable Components: High-quality relays designed for over 100,000 operations.
Product Components and Wiring
The system consists of a receiver board with four relays and two RF transmitters. Understanding the components and proper wiring is crucial for safe and effective operation.

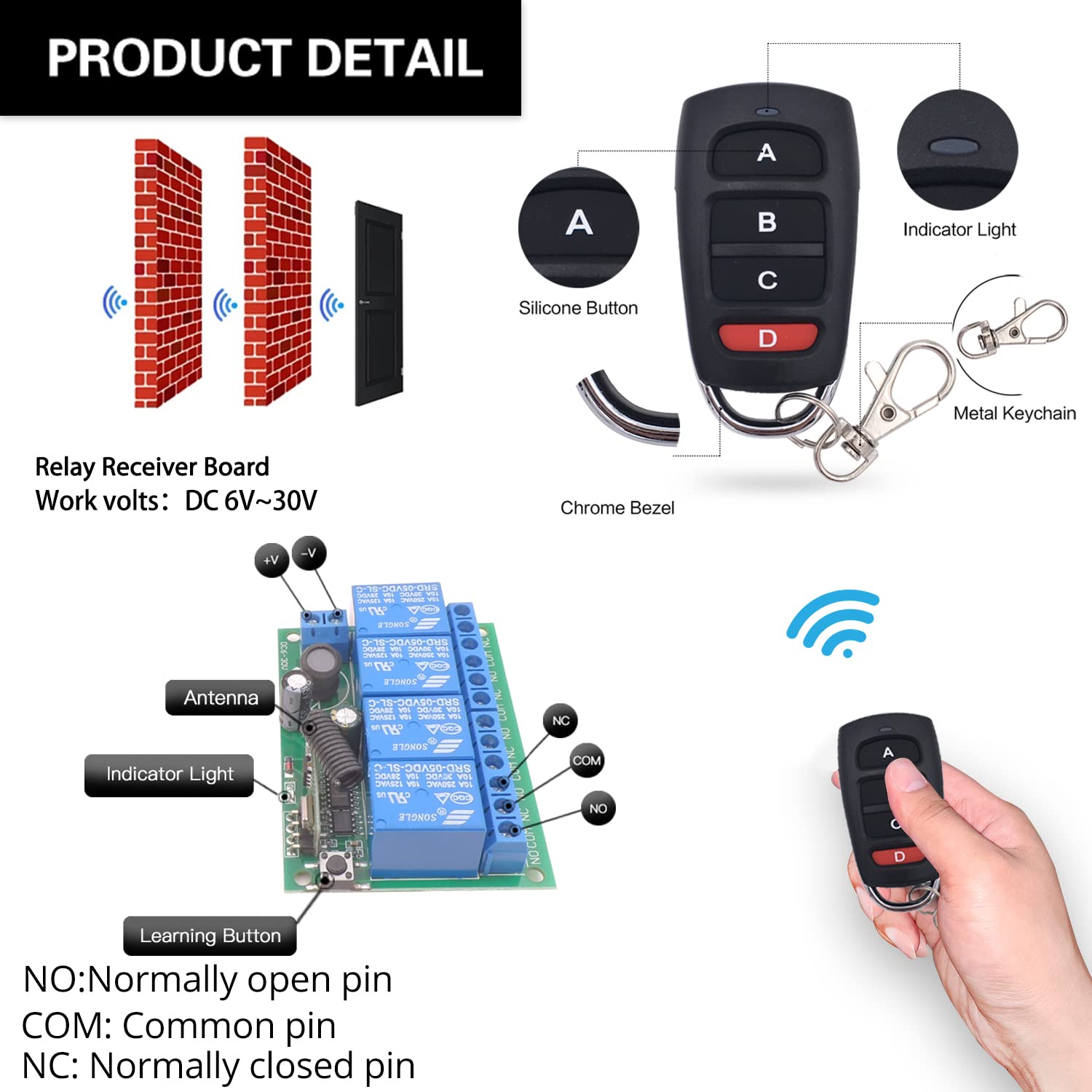

Image: Detailed view of the remote control's silicone buttons, indicator light, and metal keychain, along with the receiver board's antenna, indicator light, learning button, and terminal pins (NO: Normally Open, COM: Common, NC: Normally Closed).
Wiring Diagrams
The receiver features three terminals for each relay: Normally Open (NO), Common (COM), and Normally Closed (NC). This allows for flexible wiring depending on the application. Below are common wiring configurations:
Image: Illustrations of four different wiring modes for the relay receiver, demonstrating connections for controlling a lamp (AC 1V-250V), a curtain motor (DC 12V, 30V), and a garage motor (AC 110V, 220V, 250V).
Ensure all connections are secure and match the voltage requirements of your devices. Always disconnect power before performing any wiring.
Operating Modes and Programming
The DieseRC remote control switch supports three primary operating modes: Momentary, Toggle, and Latched. These modes determine how the relay behaves when a button on the remote is pressed.
Programming Instructions
- Momentary Mode (Press 1 time): Press the learning button on the receiver board once. The indicator light will illuminate. Then, press any button on the remote control. The indicator light will flash, confirming successful programming. In this mode, the relay remains active only while the remote button is held down.
- Toggle Mode (Press 2 times): Press the learning button on the receiver board twice. The indicator light will illuminate. Then, press any button on the remote control. The indicator light will flash, confirming successful programming. In this mode, pressing the remote button once turns the relay ON, and pressing it again turns it OFF.
- Latched Mode (Press 3 times): Press the learning button on the receiver board three times. The indicator light will illuminate. Then, press button 'A' on the remote control to turn Relay 1 ON. Press button 'B' to turn Relay 2 ON (and turn Relay 1 OFF). In this mode, one relay turns ON while another turns OFF, ensuring only one is active at a time.
Image: Step-by-step visual guide for programming the receiver into Momentary, Toggle, and Latched modes using the learning button and remote control.
Image: Demonstrations of how each operating mode functions: Momentary (press and hold), Toggle (press once for ON, press again for OFF), and Latched (press 'A' for Relay 1 ON, press 'B' for Relay 2 ON and Relay 1 OFF).
Resetting the Receiver
To clear all programmed remote controls and reset the receiver to its default state, press the learning button on the receiver board 8 times. The indicator light will flash, confirming that all previous pairings have been cleared.
Image: Visual instruction for resetting the receiver by pressing the learning button eight times.
Official Product Videos
Video: An overview of the relay remote control switch, demonstrating its general functionality and applications.
Video: A detailed guide on how to program the remote control switch, covering the different operating modes.
Wide Application
This wireless remote control switch is highly versatile and can be integrated into various settings to remotely operate a wide range of devices. Its robust signal transmission allows for control even through obstacles.
- Home Automation: Control lights, electric curtains, fans, and other household appliances.
- Garage Doors: Ideal for remote operation of garage door openers.
- Industrial Use: Suitable for factories, laboratories, and other industrial environments for controlling machinery or ventilation systems.
- Security Systems: Can be used for signal transmission in various security applications.
Image: Examples of common applications for the wireless RF relay module, such as controlling garage doors, lamps, electric curtains, ventilation systems, and electric fans.
Image: The system offers a 50-meter remote control distance, meeting home convenience needs for controlling outdoor lights and other devices.
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 2.95 x 2.17 x 1.18 inches; 5.93 ounces |
| Item Model Number | 2404 |
| Batteries | 1 CR2032 batteries required (included) |
| Manufacturer | DieseRC |
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Closed |
| Current Rating | 10 Amps |
| Mounting Type | Surface Mount |
Maintenance
To ensure the longevity and optimal performance of your DieseRC Wireless Remote Control Switch, follow these general maintenance guidelines:
- Keep Clean: Regularly wipe the receiver and remote control with a dry, soft cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
- Protect from Elements: Ensure the receiver is installed in a dry environment, away from direct moisture, extreme temperatures, and corrosive substances.
- Battery Replacement: Replace the CR2032 battery in the remote control when its range decreases or the indicator light dims.
- Inspect Wiring: Periodically check all wiring connections to the receiver for any signs of wear, corrosion, or looseness. Ensure connections remain secure.
- Avoid Overloading: Do not exceed the maximum current rating of 10 Amps per relay to prevent damage to the unit.
Troubleshooting
If you encounter issues with your DieseRC Wireless Remote Control Switch, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not responding / No control |
|
|
| Relay not activating/deactivating correctly |
|
|
| Accidental activation or erratic behavior |
|
|
Warranty and Support
DieseRC is committed to providing high-quality products and excellent customer service. Our products undergo rigorous quality assurance to ensure reliability and longevity.
- Quality Assurance: Our relays are designed for over 100,000 operations, ensuring long-lasting and stable use.
- After-Sales Service: We strive to provide perfect after-sales service and are dedicated to resolving any customer issues.
For further assistance, technical support, or warranty inquiries, please contact DieseRC customer service. You may also refer to the official User Manual (PDF) available for download from the product page for more detailed information.
