BRIKSMAX LED Lighting Kit for LEGO 10281 Bonsai Tree: Instruction Manual

1. Introduction

This manual provides comprehensive instructions for installing and operating your BRIKSMAX LED Lighting Kit, specifically designed to enhance the LEGO 10281 Bonsai Tree model. This lighting kit is intended to bring your LEGO creation to life with vibrant illumination. Please note that the LEGO building set is not included with this lighting kit.

2. Package Contents

Before beginning installation, please verify that all components listed below are present in your package. If any items are missing or damaged, please contact customer support.

LED Light Set (various dot lights, adhesive light strips)
Expansion Boards (e.g., 12-port expansion board)
Connecting Cables (various lengths, e.g., 5cm, 15cm)
Battery Holder (requires AA batteries, not included)
USB Power Cable
Adhesive Squares
Block Parts (random color)
Instruction Manual

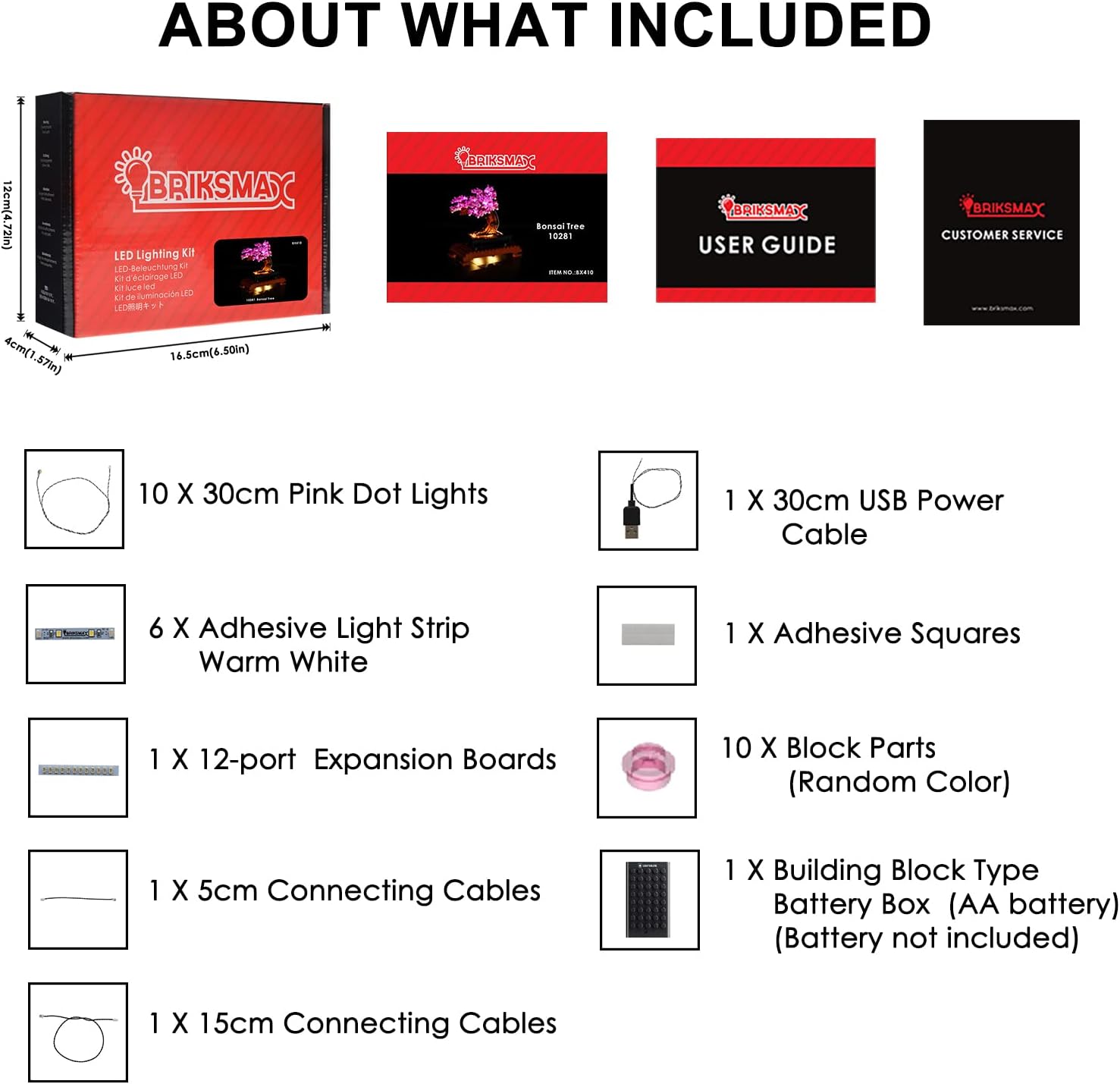

Contents of the BRIKSMAX LED Lighting Kit for LEGO 10281 Bonsai Tree

Image: Overview of the BRIKSMAX LED Lighting Kit package contents, including lights, cables, and power accessories.

3. Setup and Installation

Careful installation is crucial for optimal performance and to avoid damage to the lighting kit or your LEGO model. Refer to the included step-by-step instruction manual for detailed diagrams and placement guidance. It is often easier to integrate the lighting kit during the initial construction of the LEGO model or by carefully disassembling relevant sections.

3.1 General Installation Tips

Handle Wires Carefully: Avoid pinching or sharply bending wires, as this can cause damage.
Test Components: It is recommended to test lights and connections periodically during installation to ensure functionality.
Conceal Wires: Route wires discreetly between LEGO bricks and plates to maintain the aesthetic integrity of your model.
Secure Connections: Ensure all connectors are firmly seated into the expansion boards.

3.2 Visual Installation Guide

The following video demonstrates key aspects of the installation process for the BRIKSMAX LED Lighting Kit for the LEGO 10281 Bonsai Tree.

Video: Installation guide for the BRIKSMAX LED Lighting Kit on the LEGO 10281 Bonsai Tree, focusing on part 3 of the process.

3.3 Completed Model Examples

Observe the illuminated LEGO 10281 Bonsai Tree with the BRIKSMAX LED Lighting Kit installed, showcasing the final effect.

LEGO 10281 Bonsai Tree illuminated with pink and warm white BRIKSMAX LED lights, front view.

Image: Front view of the LEGO Bonsai Tree with the lighting kit activated, highlighting the pink blossoms and warm white base lights.

LEGO 10281 Bonsai Tree illuminated with pink and warm white BRIKSMAX LED lights, side view.

Image: Side view of the illuminated LEGO Bonsai Tree, showing the light distribution across the branches and base.

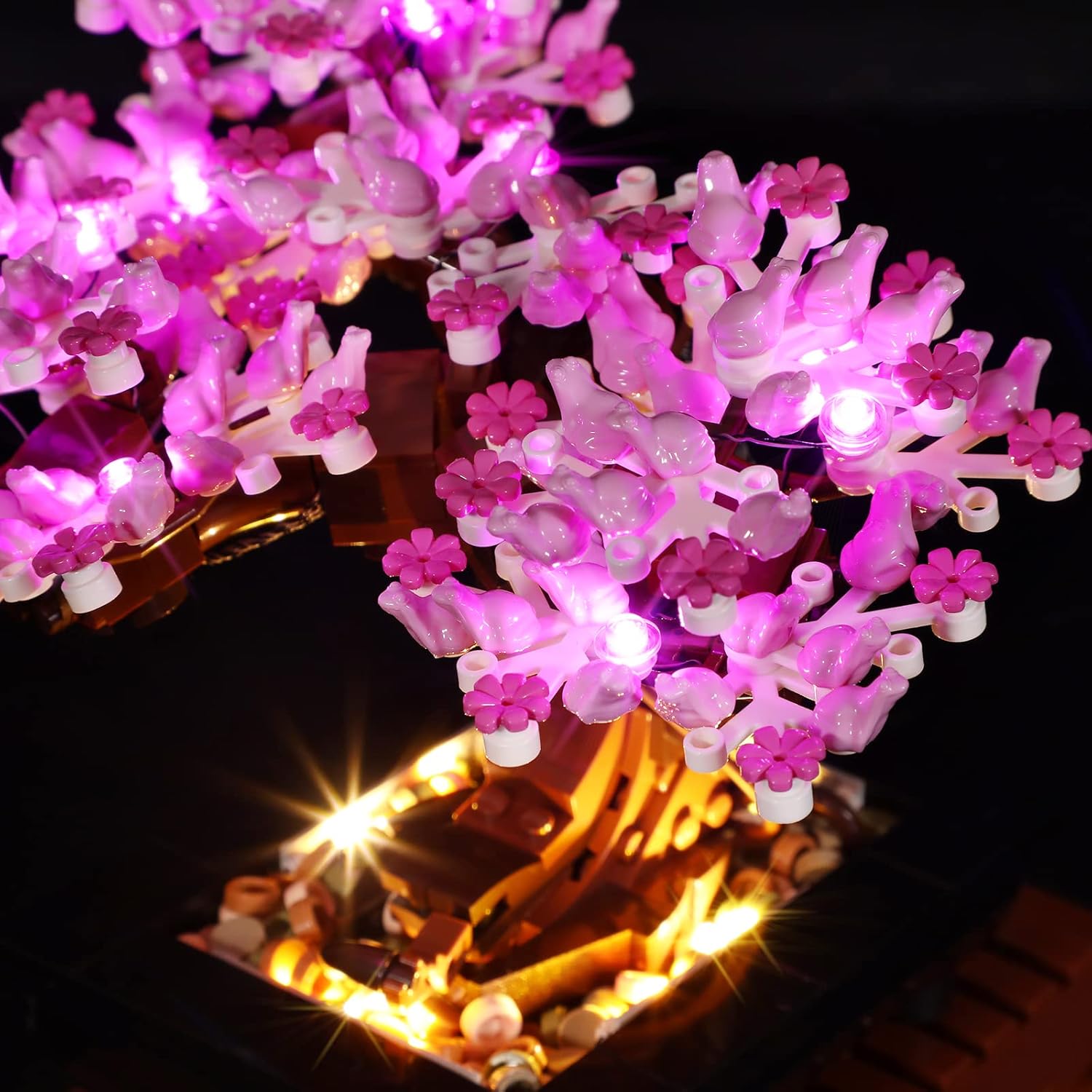

Close-up of the illuminated pink blossoms on the LEGO 10281 Bonsai Tree with BRIKSMAX LED lights.

Image: Detailed view of the pink LED lights integrated into the LEGO Bonsai Tree's blossoms.

4. Operating Instructions

Once the BRIKSMAX LED Lighting Kit is fully installed, you can power it using either the included battery holder or a USB power source.

4.1 Powering the Lights

Battery Power: Insert the required AA batteries (not included) into the battery holder. Connect the battery holder to the main expansion board.
USB Power: Connect the provided USB power cable to the main expansion board and plug the other end into a compatible USB power adapter (e.g., phone charger, power bank, computer USB port).

4.2 Turning On/Off

The lights will activate automatically once a stable power source is connected. Disconnect the power source to turn off the lights.

4.3 Product Overview Video

Watch this video for a general overview of the BRIKSMAX LED Lighting Kit for the Bonsai Tree.

Video: An overview of the BRIKSMAX LED Lighting Kit for the LEGO 10281 Bonsai Tree, demonstrating its illuminated appearance.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your lighting kit.

Cleaning: Use a soft, dry cloth to gently wipe dust from the lights and wires. Avoid using liquid cleaners directly on electrical components.
Battery Replacement: If using battery power, replace all AA batteries simultaneously when lights dim or cease to function. Ensure correct polarity.
Storage: If storing the LEGO model with the lighting kit for an extended period, disconnect the power source (remove batteries or unplug USB) to prevent battery leakage or unnecessary power drain.

6. Troubleshooting

If you encounter issues with your BRIKSMAX LED Lighting Kit, refer to the following common troubleshooting steps:

Problem	Possible Cause	Solution
Lights do not turn on.	No power, loose connection, faulty component.	Check battery installation (polarity, charge) or USB connection. Ensure all wires are securely connected to expansion boards. Inspect wires for visible damage.
Some lights are not working.	Loose connection, damaged wire/LED.	Verify connections for the specific non-working lights. Gently check wires for kinks or breaks. If a single LED is faulty, it may need replacement (contact support).
Lights are dim.	Low battery power.	Replace batteries with fresh ones or switch to USB power.
Wires are visible or difficult to hide.	Improper routing during installation.	Carefully re-route wires through gaps in LEGO bricks or under plates. Refer to the detailed instruction manual for suggested routing paths.

If these steps do not resolve the issue, please contact BRIKSMAX customer support for further assistance.

7. Specifications

Key technical details for the BRIKSMAX LED Lighting Kit (Model BX410):

Model Number: BX410
Compatible LEGO Set: 10281 Bonsai Tree
Light Source Type: LED (Dot Lights, Adhesive Light Strips)
Light Color: Pink and Warm White
Power Source: Battery Powered (AA batteries, not included) or USB Powered
Voltage: 1.5 Volts (for battery operation)
Maximum Compatible Light Source Wattage: 5 Watts
Material: Plastic
Item Weight: Approximately 207 Grams (7.3 ounces)
Recommended Age: 8 years and up

8. Warranty and Support

BRIKSMAX is committed to providing high-quality products and customer satisfaction. If you encounter any issues or have questions regarding your lighting kit, please do not hesitate to contact our customer support team.

For assistance, please refer to the contact information provided in your product packaging or visit the official BRIKSMAX website.
