1. Introduction
The GTMEDIA V7 Pro is a versatile satellite receiver designed to provide access to DVB-S/S2/S2X and DVB-T/T2 digital television broadcasts. This device supports advanced features such as VCM/ACM/Multi-Stream, HEVC 10bit decoding, and includes a CA card slot for conditional access. It also offers USB WiFi connectivity for network features and online content. This manual provides essential information for setting up, operating, and maintaining your GTMEDIA V7 Pro receiver.
2. Safety Information
- Ensure the device is placed on a stable, flat surface with adequate ventilation.
- Avoid exposing the receiver to moisture, extreme temperatures, or direct sunlight.
- Do not block ventilation openings on the device.
- Disconnect power before cleaning or performing any maintenance.
- Only use the provided power adapter to prevent damage.
- Do not attempt to open or repair the device yourself. Refer to qualified service personnel.
3. Package Contents
Verify that all items listed below are included in your package:
- GTMEDIA V7 Pro Satellite Receiver
- Power Adapter
- IR Remote Control
- HDMI Cable
- User Manual (this document)
- Warranty Card
- USB WiFi Dongle
Image 3.1: All items included in the GTMEDIA V7 Pro package, showing the receiver, remote control, power adapter, HDMI cable, USB WiFi dongle, user manual, and warranty card.
4. Product Overview
The GTMEDIA V7 Pro features a compact design with essential ports for connectivity. Understanding the layout of the device will assist in proper setup and operation.
4.1 Front and Side Panels
- Display: Shows channel numbers, time, and status indicators.
- Power LED: Indicates the power status of the device.
- CA Card Slot: Located on the side, for inserting conditional access cards.
4.2 Rear Panel Connections
Image 4.1: Detailed view of the GTMEDIA V7 Pro's rear panel, illustrating the various input and output ports including LNB IN, ANT IN, HD OUT, AV OUT, RF TO TV, USB ports, DC 12V Power input, and the Power ON/OFF switch.
- LNB IN: Connects to your satellite dish LNB for DVB-S/S2/S2X signals (950MHz to 2150MHz).
- ANT IN: Connects to a terrestrial antenna for DVB-T/T2 signals.
- HD OUT: HDMI output for connecting to a high-definition television (up to 1080p).
- AV OUT: Analog video and audio output for older televisions.
- RF TO TV: RF output for connecting to a TV's antenna input.
- USB Ports: Two USB ports for connecting USB storage devices (for PVR, media playback, firmware upgrade) or the included USB WiFi dongle.
- DC 12V Power: Connects to the provided 12V power adapter.
- Power ON/OFF: Main power switch for the device.
5. Setup
Follow these steps to set up your GTMEDIA V7 Pro receiver:
- Connect to TV: Connect the receiver to your television using an HDMI cable (for best quality) or AV cables. Ensure the TV input is set to the corresponding HDMI or AV port.
- Connect Antenna/LNB:
- For satellite reception, connect your satellite dish LNB cable to the LNB IN port.
- For terrestrial reception, connect your terrestrial antenna cable to the ANT IN port.
- Connect USB WiFi Dongle: Insert the provided USB WiFi dongle into one of the USB ports on the rear panel.
- Connect Power: Plug the power adapter into the DC 12V Power input on the receiver, then plug the adapter into a wall outlet.
- Power On: Flip the Power ON/OFF switch to the ON position. The front display will show "boot" then "Load" as the system starts.
- Initial Setup Wizard: Upon first power-on, the receiver may guide you through an initial setup wizard. Follow the on-screen prompts to select your preferred language and configure basic settings.
- Network Configuration: Navigate to the Network menu. Select Network Config, then WiFi. Scan for available networks, select your network, and enter the password to connect.
- Channel Search:
- Go to the Installation menu.
- Select Satellite List for satellite channels or Terrestrial for terrestrial channels.
- Choose your desired satellite (e.g., Hot Bird 13B/13C) or ensure the correct terrestrial region is selected.
- Perform an Auto Search or Blind Scan to find available channels. This process may take several minutes.
Video 5.1: This video demonstrates the physical overview, port connections, initial power-on sequence, and basic menu navigation for the GTMEDIA V7 Pro Satellite Receiver, including satellite list selection, channel search, and network configuration.
6. Operating Instructions
6.1 Basic Navigation
Use the included remote control to navigate the receiver's menus and functions. The arrow keys are used for selection, OK for confirmation, and EXIT/MENU for returning to previous screens or the main menu.
6.2 Channel Management
After performing a channel search, you can organize your channels. The receiver supports various channel sorting options and allows you to create favorite lists.
6.3 Media Playback (USB)
Insert a USB storage device containing media files (music, pictures, movies) into a USB port. Navigate to the Media menu to browse and play your content.
6.4 Program Recording (PVR)
With a connected USB storage device, you can record live TV programs. Access the PVR functions through the remote control or the Media menu. You can also set timers for scheduled recordings.
6.5 Online Features
Once connected to the internet via WiFi, the receiver provides access to online applications such as YouTube and Youporn. Navigate to the Network menu, then Online Movie App to access these features.
6.6 Conditional Access (CA Card)
The GTMEDIA V7 Pro includes a CA card slot. Insert your smart card into the slot to decrypt encrypted channels. Ensure the card is inserted correctly according to the card's orientation. The receiver supports various card types including Albertis/Tivusat/BBC Satback/Irdeto Card.
Image 6.1: A hand inserting a smart card into the CA card slot of the GTMEDIA V7 Pro receiver, demonstrating the conditional access feature for viewing encrypted programs.
6.7 Multi-Room Functionality
The Multi-Room feature allows you to share program resources across multiple satellite receivers within the same local area network, eliminating the need for multiple subscription cards for different devices.

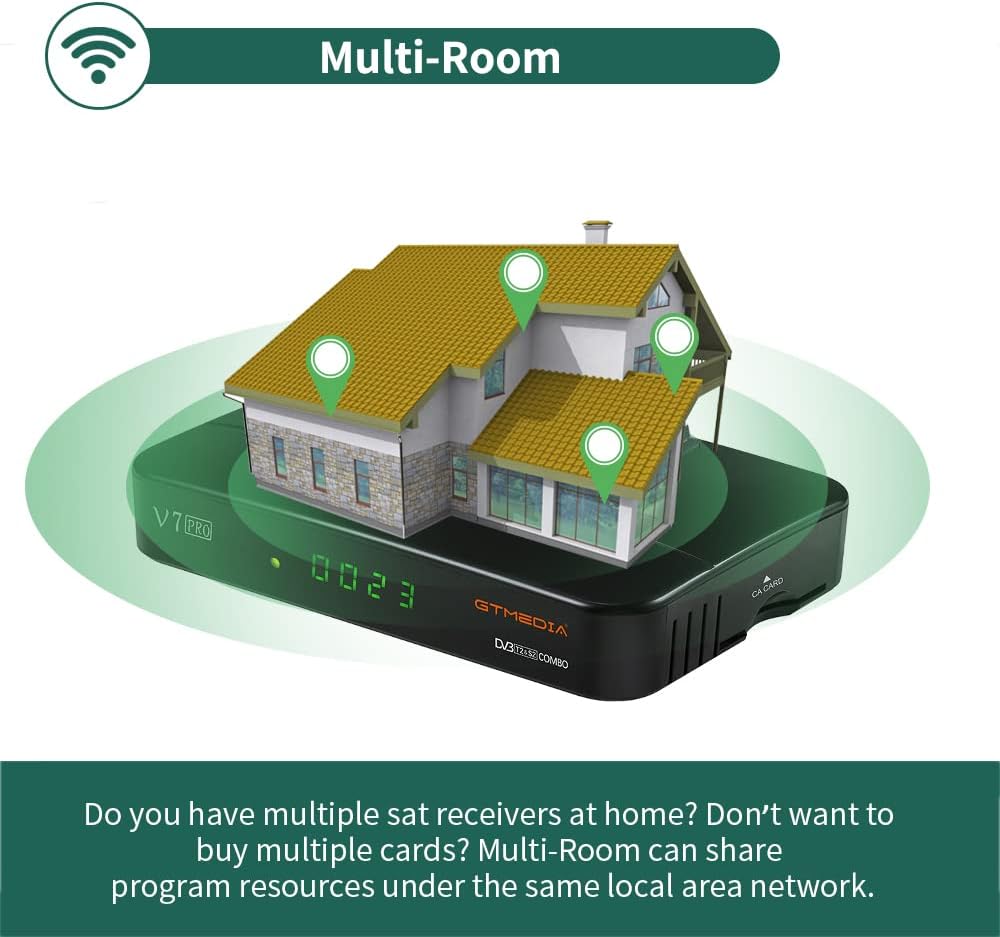

Image 6.2: An illustration depicting the GTMEDIA V7 Pro receiver connected to a house, symbolizing its Multi-Room capability to share content across multiple devices on a local network.
7. Maintenance
7.1 Cleaning
To clean the receiver, disconnect it from the power supply. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
7.2 Firmware Updates
The GTMEDIA R&D center continuously optimizes and improves the receiver's firmware. New firmware versions are released on the official forum for users to download and update. To update, download the firmware to a USB drive, insert it into the receiver, and navigate to Tools > USB Upgrade in the menu.
8. Troubleshooting
If you encounter issues with your GTMEDIA V7 Pro, refer to the following common problems and solutions:
- No Signal:
- Check all cable connections (LNB IN, ANT IN) to ensure they are secure.
- Verify that your satellite dish or terrestrial antenna is properly aligned.
- Ensure the correct satellite is selected in the Installation menu.
- No Picture/Sound:
- Confirm the HDMI or AV cable is securely connected to both the receiver and the TV.
- Check that your TV's input source is set to the correct HDMI or AV port.
- Ensure the TV volume is not muted or set too low.
- Remote Control Not Working:
- Check and replace the batteries in the remote control.
- Ensure there are no obstructions between the remote control and the receiver's IR sensor.
- Network Connection Issues:
- Verify the USB WiFi dongle is properly inserted.
- Check your WiFi network name and password in the Network Config menu.
- Restart your WiFi router.
9. Specifications
The GTMEDIA V7 Pro is equipped with the following technical specifications and features:
Image 9.1: A table detailing the product parameters of the GTMEDIA V7 Pro, including dimensions, unit weight, power supply, operating and storage temperatures, humidity, and included accessories.
| Feature | Description |
|---|---|
| Tuner Support | DVB-S/S2/S2X + DVB-T/T2 |
| Video Decoding | VCM/ACM/Multi-Stream/T2MI, Multi-PLP, HEVC main 10 profile (10bit), AVS+ |
| Conditional Access | CA Card Slot, supports BISS auto roll, Full PowerVu, DRE & Biss key, Albertis/Tivusat/BBC Satback/Irdeto Card |
| DiSEqC Support | Unicable, DiSEqC1.0/1.1/1.2/USALS Motor |
| Connectivity | USB (2 ports), USB WiFi dongle support, USB 3/4G dongle support |
| Online Services | YouTube, Youporn, CCCAM, NEWCAM, MGCAM |
| Multi-Room | Supported for sharing program resources on a local network |
| Languages | English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai, etc. |
| Dimensions (L*W*H) | 7.09 x 4.92 x 1.18 inches (180 x 125 x 30mm) |
| Unit Weight | 8.8 ounces (0.25 Kilograms) |
| Power Supply | AC 100-250V, 50Hz/60Hz |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -10°C to +60°C |
| Humidity | 20% to 90% (Non-condensed) |
Image 9.2: An internal view of the GTMEDIA V7 Pro's hardware, highlighting the 64MB SPI Flash and 1G bit RAM components, indicating reliable performance.
Image 9.3: An illustration demonstrating the GTMEDIA V7 Pro's H.265 (HEVC) decoding capability, which occupies approximately 50% less bandwidth compared to H.264, leading to more efficient video streaming.
10. Warranty & Support
For detailed warranty information, please refer to the Warranty Card included in your product package.
For technical support, firmware updates, and community assistance, visit the official GTMEDIA R&D center forum. You can post your questions on the forum and expect a response within 24 hours.
Online Resources:
- GTMEDIA Official Website: www.gtmedia.cc
- GTMEDIA Support Forum: (Refer to product packaging or official website for specific forum link)
