HCDZ Replacement Remote Control User Manual

Product Overview and Features

This HCDZ replacement remote control is designed to operate various Soundstream Double DIN in-Dash DVD/CD/AM/FM Car Stereo Receiver models. It provides essential functions for controlling your car stereo system.

• Infrared (IR) Technology: Operates using standard infrared signals.
• No Programming Required: Ready to use immediately after battery insertion.
• Easy to Use: Simple button layout for intuitive control.
• Compatible Models: Designed for Soundstream models including VR-1032XB, VRN-65HXB, VRN-65HXBV2, VRN-7HB, VRN-DD7HB, VR-75XB, VR-63XB, VRCPAA-7DR.

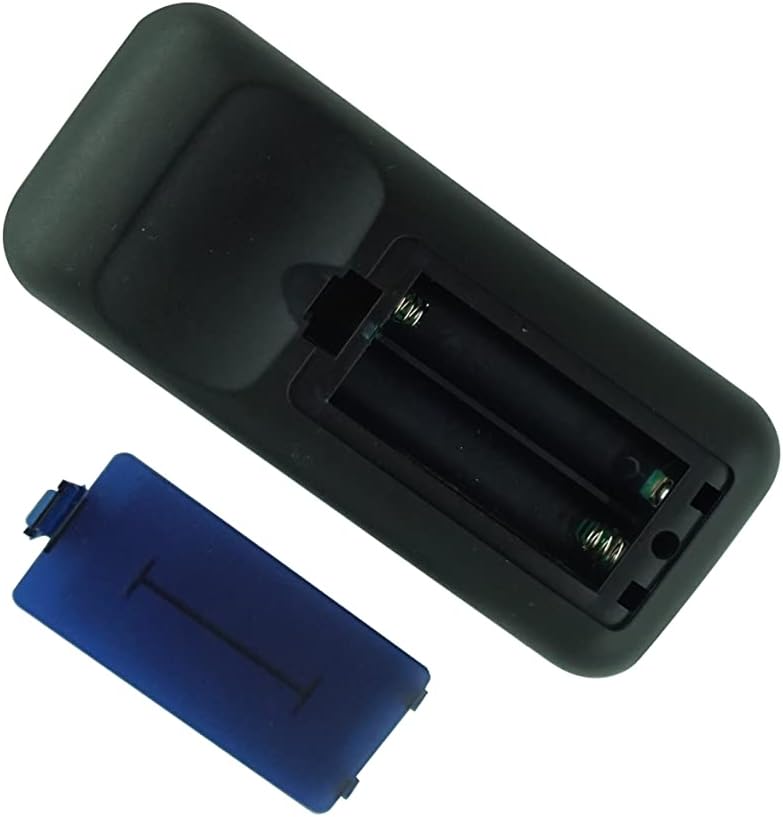

Setup: Battery Installation

The remote control requires two AAA alkaline batteries (not included) for operation. Follow these steps to install the batteries:

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery compartment cover downwards or outwards to open it.
3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Replace the battery compartment cover by sliding it back into place until it clicks securely.

Important: Ensure batteries are inserted with correct polarity. Do not mix old and new batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.

Operating Instructions

Once batteries are correctly installed, the remote control is ready for immediate use with your compatible Soundstream car stereo receiver. No additional programming is required.

• Aiming the Remote: Point the remote control directly towards the infrared sensor on your Soundstream car stereo receiver. Ensure there are no obstructions between the remote and the receiver.
• Operating Range: The remote has a maximum effective range of approximately 8 meters (26 feet). Performance may vary depending on battery strength and environmental conditions.
• Button Functions: Each button on the remote corresponds to a specific function on your Soundstream stereo. Refer to your Soundstream stereo's user manual for detailed information on each function. Common functions include power on/off, volume control, track/station navigation, and menu access.

Maintenance

Proper care will ensure the longevity and reliable operation of your remote control.

• Cleaning: Wipe the remote control with a soft, dry cloth. Do not use abrasive cleaners, solvents, or alcohol, as these can damage the surface.
• Storage: Store the remote in a cool, dry place. Avoid exposing it to direct sunlight, extreme heat, or high humidity.
• Battery Care: If the remote will not be used for an extended period (e.g., one month or more), remove the batteries to prevent potential damage from battery leakage and corrosion.

Troubleshooting

If the remote control is not functioning as expected, try the following troubleshooting steps:

• No Response:
  • Check if the batteries are inserted correctly with the correct polarity (+/-).
  • Replace the batteries with fresh AAA alkaline batteries.
  • Ensure there is a clear line of sight between the remote's IR emitter and the stereo's IR receiver.
  • Verify that the remote sensor on the stereo is not blocked or exposed to strong light sources (like direct sunlight), which can interfere with the signal.
• Limited Range:
  • Ensure batteries are fresh. Weak batteries can reduce the effective range.
  • Reduce the distance between the remote and the stereo.

If these steps do not resolve the issue, contact the product vendor for further assistance.

Specifications

Warranty and Support

This HCDZ replacement remote control comes with a 90-day warranty from the date of purchase.

For warranty claims, technical support, or any questions regarding the operation of this remote control, please contact the vendor or retailer from whom you purchased the product. Please have your purchase details readily available when contacting support.

For more information about HCDZ products, you may visit the HCDZ Store on Amazon.
