Introduction
Welcome to the RedThunder K10 Gaming Keyboard and Mouse Combo user manual. This guide provides detailed instructions for setting up, operating, and maintaining your new gaming peripherals. The RedThunder K10 features an AZERTY layout keyboard with customizable RGB backlighting, anti-ghosting technology, and an ergonomic gaming mouse with up to 7200 DPI, designed to enhance your gaming and computing experience.
Package Contents
Please verify that all items are present in your package:
- RedThunder K10 Gaming Keyboard
- RedThunder Gaming Mouse
- Detachable Wrist Rest
- User Manual (this document)
Setup Instructions
Follow these steps to connect your RedThunder K10 combo to your computer:
- Connect the Keyboard: Plug the USB connector of the keyboard into an available USB port on your computer.
- Connect the Mouse: Plug the USB connector of the mouse into another available USB port on your computer.
- Install Wrist Rest: Align the detachable wrist rest with the bottom edge of the keyboard and attach it securely.
- Driver Installation: The keyboard and mouse are plug-and-play devices. Your operating system (Windows, Mac OS, Linux) should automatically detect and install the necessary drivers. No additional software installation is typically required.
Image: RedThunder K10 Keyboard and Mouse showing product dimensions and compatibility with Windows, Mac OS, and Linux operating systems.
Operating Instructions
Keyboard Functions
The RedThunder K10 keyboard features a full AZERTY layout with 104 keys, including multimedia shortcuts and customizable RGB backlighting.
- Anti-Ghosting: The keyboard supports 19 non-conflicting keys, ensuring accurate input during intense gaming sessions.
- Multimedia Hotkeys: Use FN + F1 to F12 for quick access to media controls, volume adjustments, and other functions.
- Interchangeable Keys: The Z/Q/S/D keys can be interchanged for personalized gaming setups.
RGB Backlighting Control
The keyboard offers various RGB lighting modes and customization options:
- Switch Gradient Light Mode: Press FN + Insert to cycle through different gradient lighting effects.
- Switch Monochromatic Light Mode: Press FN + < to change between various single-color lighting modes.
- Change Custom Lighting Mode: Press FN + > to switch between personalized lighting modes.
- Change Streamer Mode: Press FN + Delete to activate or change the streamer lighting effect.
- Switch Breathing Light Mode: Press FN + End to toggle the breathing light effect.
- Adjust Light Speed: Press FN + +/- to increase or decrease the speed of dynamic lighting effects.
- Adjust Light Brightness: Press FN + Page Up / Page Down to adjust the brightness level of the backlighting.
Video: Demonstration of the RedThunder K10 keyboard's RGB lighting modes and how to adjust them using FN key combinations. It also shows the detachable wrist rest.

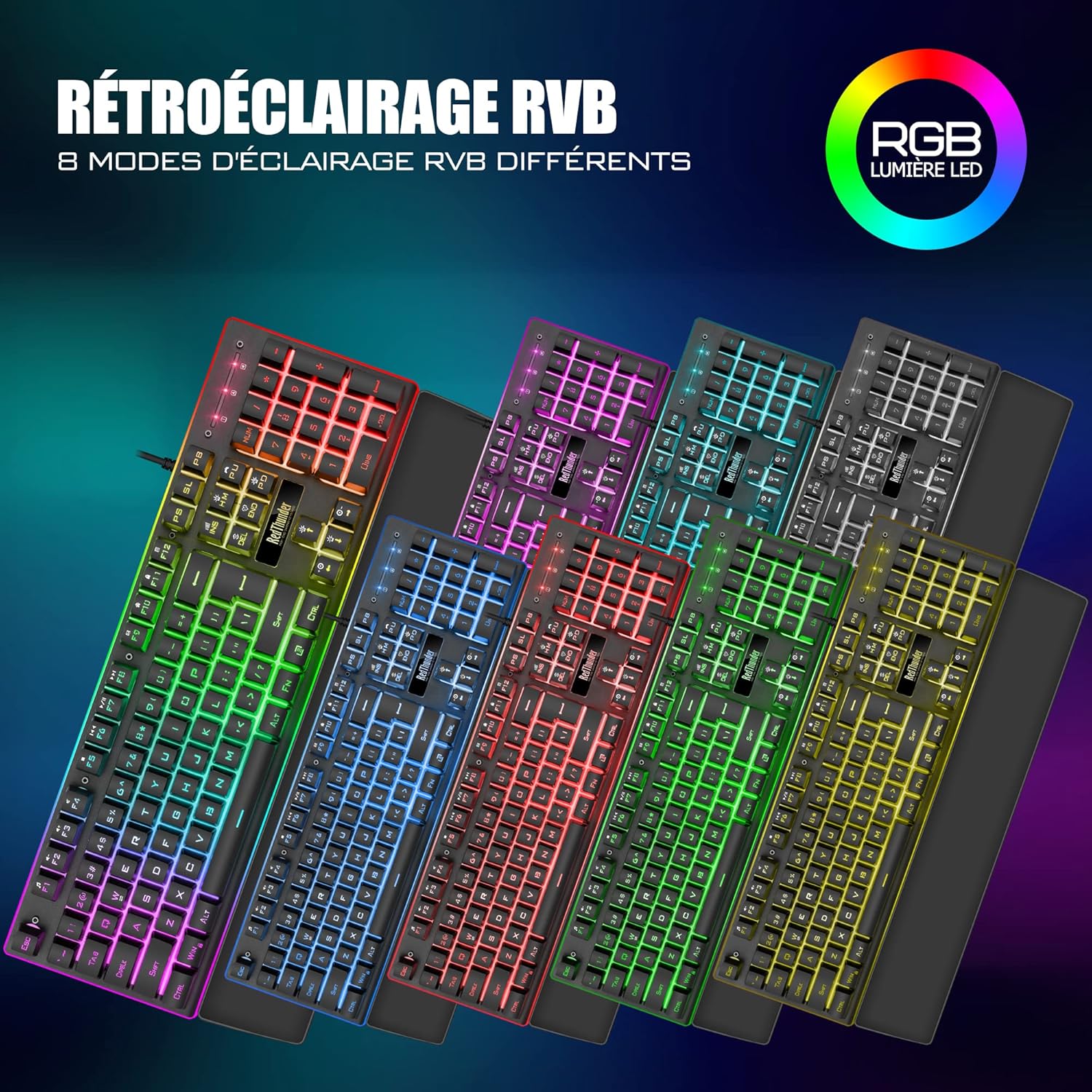

Image: The RedThunder K10 keyboard displaying 8 different RGB lighting modes, highlighting the customizable backlighting zones.
Mouse Functions
The ergonomic gaming mouse provides precise control and customizable features.
- DPI Settings: The mouse offers up to 7200 DPI for high precision and responsiveness. DPI can typically be adjusted via a dedicated button on the mouse.
- Ergonomic Design: Designed to fit comfortably in your palm, reducing hand fatigue during extended use.
- RGB Lighting: The mouse features dynamic RGB lighting effects.
- 7 Buttons: Includes standard left/right click, scroll wheel, DPI adjustment, and side buttons for forward/backward navigation or custom assignments.

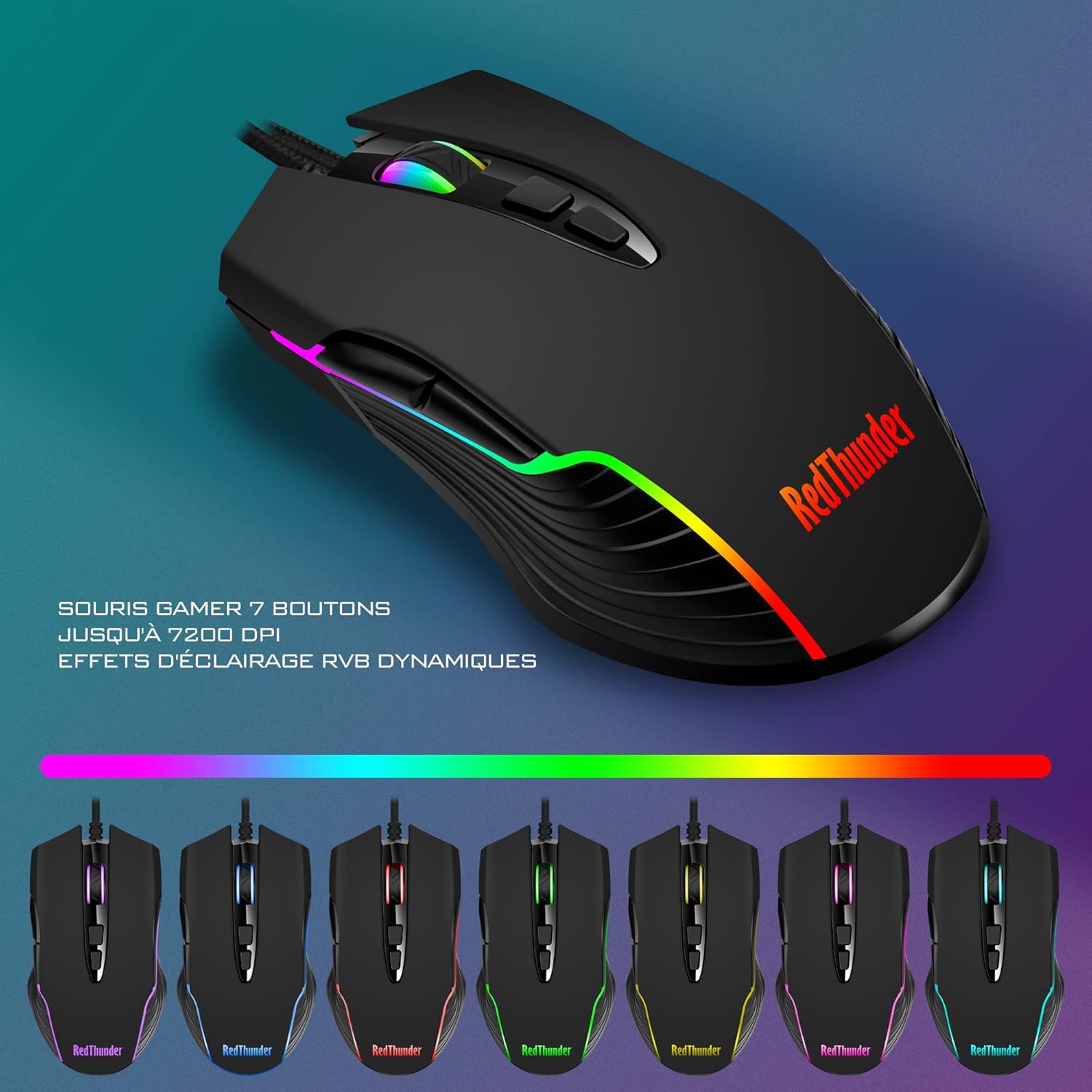

Image: The RedThunder gaming mouse, illustrating its 7-button layout, up to 7200 DPI capability, and dynamic RGB lighting effects.
Image: Close-up view of the ergonomic design of the RedThunder K10 keyboard and mouse, demonstrating comfortable hand and wrist positioning for prolonged use.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your RedThunder K10 combo.
- Cleaning: Use a soft, dry cloth to wipe down the keyboard and mouse. For deeper cleaning, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the devices.
- Dust Removal: Use compressed air to remove dust and debris from between the keyboard keys and mouse sensors.
- Avoid Liquids: Do not expose the devices to excessive moisture or liquids.
- Storage: Store the keyboard and mouse in a cool, dry place when not in use.
Image: The detachable wrist rest, made from a soft, leather-like material, designed to provide comfort and reduce wrist strain. Anti-slip pads are visible on the underside.
Troubleshooting
If you encounter any issues with your RedThunder K10 combo, please refer to the following common solutions:
- Device Not Recognized:
- Ensure the USB cables are securely plugged into your computer's USB ports.
- Try plugging the devices into different USB ports.
- Restart your computer.
- Check your computer's Device Manager (Windows) or System Information (Mac) to see if the devices are listed.
- Keyboard/Mouse Not Responding:
- Verify the USB connection.
- Test the devices on another computer to rule out a computer-specific issue.
- RGB Lighting Not Working/Incorrect:
- Ensure the keyboard is properly connected.
- Cycle through the lighting modes using the FN key combinations as described in the "Operating Instructions" section.
- Adjust brightness using FN + Page Up / Page Down.
- Mouse Cursor Jumps or is Inaccurate:
- Clean the mouse sensor with a soft cloth.
- Ensure you are using the mouse on a suitable surface (e.g., a mouse pad).
- Adjust the DPI settings using the mouse's DPI button.
Specifications
Detailed technical specifications for the RedThunder K10 Gaming Keyboard and Mouse Combo:
| Feature | Specification |
|---|---|
| Brand | RedThunder |
| Model | K10 |
| Connectivity Technology | USB (Wired) |
| Compatible Devices | Computer (Windows, Mac OS, Linux) |
| Keyboard Layout | AZERTY (French) |
| Keyboard Type | Gaming, Mechanical feel |
| Keyboard Backlighting | RGB, Customizable |
| Anti-Ghosting | 19 non-conflicting keys |
| Number of Keyboard Keys | 104 |
| Keyboard Material | Metal |
| Mouse DPI | Up to 7200 DPI |
| Mouse Buttons | 7 Buttons |
| Mouse Orientation | Right-handed |
| Color | Black |
| Item Weight | 1.19 Kilograms (Keyboard and Mouse combined) |
| Power Source | Corded Electric (USB) |
Warranty and Support
RedThunder products are designed for durability and performance. For any warranty claims, technical support, or further assistance, please contact RedThunder customer service through the retailer where you purchased the product or visit the official RedThunder website. Keep your proof of purchase for warranty validation.
Return Policy: This product typically comes with a 30-day return/replacement policy from the date of purchase. Please refer to your retailer's specific return policy for details.
