Koblenz WD-9 L212 Wet Dry Vacuum Cleaner Instruction Manual

Introduction

Thank you for choosing the Koblenz WD-9 L212 Wet Dry Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before initial use and retain it for future reference.

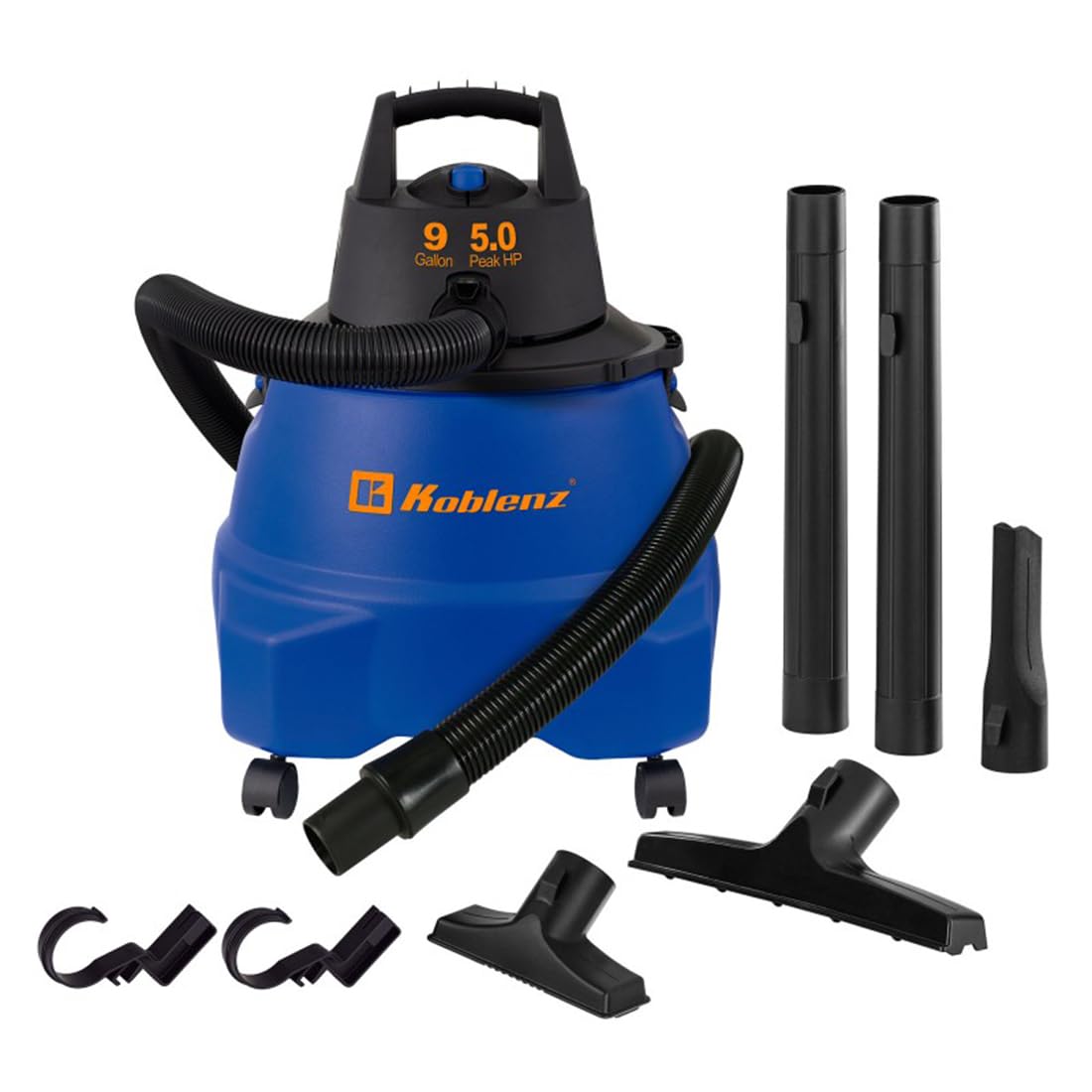

Image: The Koblenz WD-9 L212 Wet Dry Vacuum Cleaner, a 9-gallon unit with a 5.0 Peak HP motor, shown in its assembled state.

Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This includes:

• Read all instructions before using the appliance.
• Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.

Product Components and Accessories

The Koblenz WD-9 L212 includes several components and accessories designed for various cleaning tasks. Familiarize yourself with each part before assembly and operation.

Image: An exploded diagram showing the main components of the vacuum: powerful motor, intake port, reliable safety protection, cartridge filter, tip-over resistant base design, and swivel casters.

Included Accessories:

• CLICK-N-LOCK EVA Hose: For secure and flexible connection.
• Extension Wands (x2): To extend reach for various cleaning applications.
• Floor Tool: For general floor cleaning.
• Pick-up Tool: Specialized tool for specific debris collection.
• Crevice Tool: For narrow spaces and corners.
• Utility Nozzle: Versatile nozzle for different surfaces.
• Cartridge Filter: Essential for dry vacuuming.
• Hose Holders (x2): For organized storage.

The HOOK-N-STORE system is integrated into the tank lid to keep all accessories organized and readily accessible.

Setup and Assembly

Follow these steps to assemble your Koblenz WD-9 L212 Wet Dry Vacuum Cleaner:

1. Attach Swivel Casters: Invert the tank and firmly insert each of the four swivel casters into the designated slots on the base. Ensure they click securely into place.
2. Install Cartridge Filter: For dry vacuuming, place the cartridge filter over the filter cage on the motor head. Secure it with the filter retainer. For wet vacuuming, remove the cartridge filter.
3. Attach Motor Head: Place the motor head onto the tank, aligning the latches. Secure the motor head by pressing down on the latches until they lock into place.
4. Connect Hose: Insert the CLICK-N-LOCK EVA hose into the intake port on the tank. Twist until it locks securely.

Image: A hand demonstrating the connection of the CLICK-N-LOCK hose to the vacuum's intake port, ensuring a secure fit.

5. Attach Accessories: Connect the desired extension wands and cleaning tool (floor tool, crevice tool, utility nozzle, or pick-up tool) to the end of the hose.

Operating Instructions

Your Koblenz WD-9 L212 offers versatile cleaning capabilities for both wet and dry applications, as well as a blower function.

Dry Vacuuming:

• Ensure the cartridge filter is properly installed.
• Connect the hose and appropriate dry cleaning accessory.
• Plug the power cord into a 120V AC outlet.
• Press the power button to turn on the vacuum.
• Move the cleaning tool over the dry debris. The 5.0 Peak HP motor provides strong suction for effective cleaning on various surfaces including carpet, hardwood, and concrete.
• When finished, press the power button to turn off and unplug the unit.

Image: The Koblenz WD-9 L212 vacuum cleaner in action, demonstrating its 3-in-1 wet-dry vacuum and blower capabilities on a carpeted surface.

Wet Vacuuming:

• Important: Remove the cartridge filter before wet vacuuming. Failure to do so will damage the filter and reduce suction.
• Connect the hose and an appropriate wet cleaning accessory (e.g., floor tool for spills).
• Plug the power cord into a 120V AC outlet.
• Press the power button to turn on the vacuum.
• Carefully vacuum liquid spills. The 9-gallon tank capacity allows for extended wet pickup sessions.
• The vacuum is equipped with a float mechanism that will shut off suction when the tank is full. When this occurs, turn off the vacuum, unplug it, and empty the tank.
• When finished, press the power button to turn off and unplug the unit.

Blower Function:

• Ensure the tank is empty and clean.
• Disconnect the hose from the intake port.
• Locate the blower port on the motor head (typically opposite the intake port).
• Insert the hose securely into the blower port.
• Plug the power cord into a 120V AC outlet.
• Press the power button to activate the blower. This function is useful for clearing debris from paths, inflating items, or drying surfaces.
• When finished, press the power button to turn off and unplug the unit.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your Koblenz WD-9 L212 vacuum cleaner.

Emptying the Tank:

• Always unplug the vacuum before emptying.
• Release the latches on the sides of the tank and lift off the motor head.
• Carefully pour out the collected dry debris or liquid waste.
• Clean the inside of the tank with water and mild detergent if necessary, then rinse thoroughly and allow to air dry before reassembly.

Filter Care:

• Cartridge Filter: For dry use, regularly check the cartridge filter for dust and debris buildup. Tap it gently to dislodge dust or rinse it with water. Ensure the filter is completely dry before reinstalling for dry vacuuming. Replace the filter if it is damaged or excessively clogged.
• Note: The cartridge filter must be removed for wet vacuuming.

Hose and Accessory Cleaning:

• Inspect the hose and accessories for blockages or damage after each use.
• Clear any obstructions to maintain optimal airflow.
• Wash accessories with water and mild soap, then rinse and air dry.

Troubleshooting

If you encounter issues with your Koblenz WD-9 L212, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact Koblenz customer support for further assistance.

Specifications

Warranty Information

The Koblenz WD-9 L212 Wet Dry Vacuum Cleaner comes with a 5-year warranty from Koblenz. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact Koblenz customer support.

Customer Support

For technical assistance, replacement parts, or warranty inquiries, please contact Koblenz customer support. Visit the official Koblenz website for contact details and additional resources.
