1. Product Overview
The PRO+AQUA Elite 5-Stage Whole House Water Softener and Filter Bundle System is engineered to provide comprehensive water treatment for well water. This system effectively reduces heavy metals, iron, sulfur, sediment, and chlorine, ensuring clean, soft, and odor-free water throughout your home. Designed for durability and ease of use, it features commercial-grade components and automatic regeneration for minimal maintenance.
Figure 1: PRO+AQUA Elite 5-Stage Whole House Water Softener and Filter Bundle System.
2. Safety Information
WARNING: Professional installation is highly recommended for this system. Improper installation can lead to water damage, system malfunction, or personal injury. Always turn off the main water supply before beginning any installation or maintenance procedures. Depressurize the system before opening any housings or making connections. Follow all local plumbing codes and regulations.
- Read all instructions carefully before installation and operation.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Ensure all connections are secure and leak-free before restoring water pressure.
- Keep children and pets away from the installation area.
3. What's in the Box
Your PRO+AQUA Elite 5-Stage Whole House Water Softener and Filter Bundle System includes the following components:
- PRO-100-E 3-Stage ELITE Filtration System
- PRO-WELL-1E System for Well Water
- PRO-S-80E 80,000-grain Water Softener

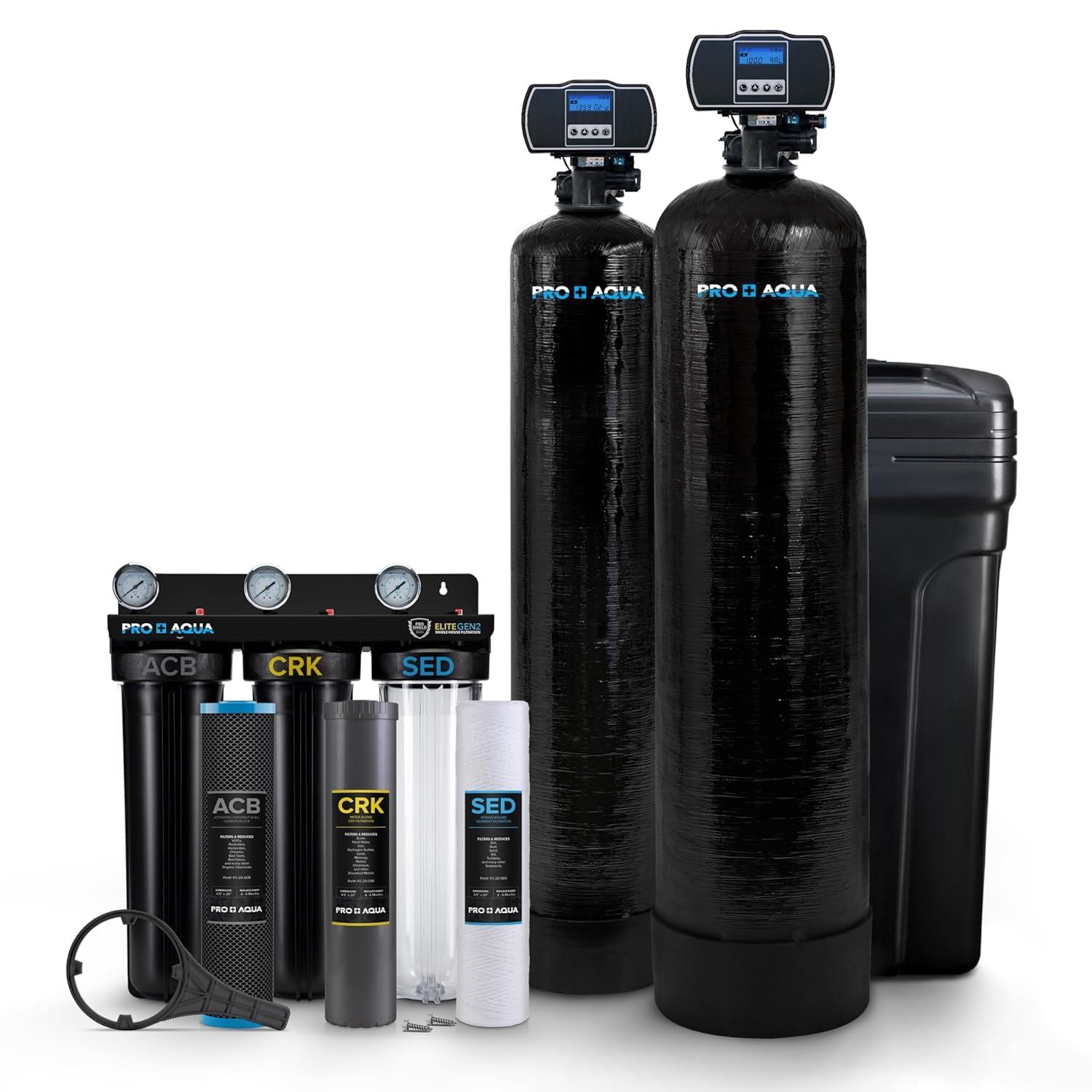

Figure 2: Overview of the PRO+AQUA Elite Whole House Water Softener and Filter Bundle System components.
Figure 3: The PRO-100-E 3-Stage ELITE Filtration System, a key component of the bundle.
Figure 4: The PRO-WELL-1E System, specifically designed for well water treatment.
Figure 5: The PRO-S-80E 80,000-grain Water Softener, included in the bundle.
4. Setup and Installation
Proper installation is crucial for the optimal performance of your PRO+AQUA water treatment system. Refer to the detailed installation videos below for step-by-step guidance. It is recommended to have a qualified plumber perform the installation.
4.1 PRO-WELL-1E System Installation Guide
Video 1: This video provides a comprehensive installation guide for the PRO-WELL-1E Well Water Filtration System, detailing each step from unboxing to final connections.
4.2 PRO-100-E 3-Stage Filtration System Installation Guide
Video 2: This video demonstrates the installation process for the PRO+AQUA 3-Stage Whole House Well Water Filtration System, covering mounting, plumbing connections, and filter housing assembly.
General Installation Steps:
- Site Selection: Choose a suitable location for the system, typically near the main water line entry point, ensuring adequate space for maintenance and filter changes.
- Turn Off Water Supply: Locate and turn off the main water supply to your home. Open a faucet to relieve pressure in the lines.
- Mounting: Securely mount the filter system bracket to a sturdy wall using appropriate hardware. Ensure it is level.
- Plumbing Connections: Connect the incoming and outgoing water lines to the system's ports. Use Teflon tape on threaded connections to prevent leaks.
- Filter Installation: Ensure filters are correctly centered within their housings. Hand-tighten housings; do not overtighten.
- Drain Line Connection: Connect the drain line from the softener to a suitable drain location, such as a laundry tub or floor drain.
- Power Connection: Connect the power cord to the control valve and plug it into a grounded electrical outlet.
- System Bypass: Ensure the bypass valve is in the BYPASS position before slowly turning the main water line back on.
- Leak Check: Carefully check all connections for leaks. Address any leaks immediately.
- System Flush: Remove the aerator from the nearest faucet and run water for 5 minutes to flush the system until the water runs clear. Carbon particles may appear initially.
Figure 6: An example of the PRO+AQUA Well Water Filtration Bundle installed in a garage setting.
5. Operating Instructions
Your PRO+AQUA system features a programmable control head for automated operation, including regeneration cycles. Follow the instructions below to set up the system clock and regeneration timer.
5.1 PRO-WELL-1E Programming Video
Video 3: This video guides you through the programming of the PRO-WELL-1E control head, including setting the system clock and regeneration schedule.
General Operation:
- Initial Startup: After installation, ensure the bypass valve is in the SERVICE position.
- Set Time and Regeneration: Use the control head interface to set the current time and program the regeneration cycle according to your water usage and hardness levels.
- Monitor System: The pressure gauges on the PRO-100-E system allow you to monitor water pressure levels for each stage, indicating when filter replacement may be needed.
6. Maintenance
Regular maintenance ensures the longevity and efficiency of your PRO+AQUA water treatment system. The system is designed for easy, low maintenance.
6.1 Filter Replacement (PRO-100-E)
- Monitor the pressure gauges on the PRO-100-E system. A significant drop in pressure across a filter stage indicates it may be time for replacement.
- Turn off the main water supply and bypass the filter system.
- Depressurize the system by opening a nearby faucet.
- Unscrew the filter housings using the provided wrench.
- Remove and dispose of old filter cartridges.
- Clean the filter housings and O-rings. Lubricate O-rings with food-grade silicone grease.
- Insert new filter cartridges, ensuring they are properly seated.
- Hand-tighten the housings. Do not overtighten.
- Slowly restore water pressure and check for leaks.
- Flush the system by running water from a faucet until clear.
6.2 Salt Refill (PRO-S-80E)
- Periodically check the salt level in the brine tank.
- Refill with high-quality water softener salt as needed to maintain optimal softening performance.
Figure 7: Stainless steel pressure gauges on the PRO-100-E system help monitor filter performance and indicate when replacement is due.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your PRO+AQUA water treatment system.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Water Pressure | Clogged filter cartridges | Replace filter cartridges (refer to Maintenance section). |
| Water Not Soft | Low salt level in brine tank; incorrect softener settings; resin bed issues. | Check and refill salt. Verify programming (refer to Operating Instructions). Contact support if issues persist. |
| Leaks at Connections | Loose fittings; damaged O-rings; improper Teflon tape application. | Tighten connections. Inspect and replace O-rings if damaged. Reapply Teflon tape as needed. |
| Odor/Taste Issues Persist | Filter media exhausted; specific contaminant not fully addressed. | Replace carbon filters. Consider additional specialized filtration if necessary. |
If you encounter problems not listed here or require further assistance, please contact PRO+AQUA customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | PRO+AQUA |
| Model Name | Elite |
| Model Number | BNDL-WEL |
| Special Feature | Programmable Control Head |
| Product Dimensions (L x W x H) | 13"L x 12.99"W x 57"H |
| Material | Polypropylene |
| Softener Capacity | 80,000 Grain |
| Installation Type | Whole House |
| Maximum Flow Rate | 10 Gallons Per Minute (GPM) |
| Upper Temperature Rating | 140 Degrees Fahrenheit |
| Supported Water TDS Level Maximum | 1500 PPM |
| Item Weight | 325 Pounds |
Figure 8: Detailed product dimensions for the PRO+AQUA Elite Whole House Filtration Bundle components.
9. Warranty Information
PRO+AQUA stands behind the quality of its products. This system comes with a 1-year and 5-year warranty. Please refer to your product registration or contact customer support for specific warranty terms and conditions.
10. Customer Support
For any questions, technical assistance, or support regarding your PRO+AQUA Elite 5-Stage Whole House Water Softener and Filter Bundle System, please contact our customer support team. We offer free lifetime tech support to ensure your satisfaction.
You can typically find contact information on the PRO+AQUA official website or through your purchase platform.
