DL-pro Door Switch for Gorenje 500355 Dryer and Washing Machine

Introduction

This manual provides essential information for the installation, operation, and maintenance of your DL-pro Door Switch, model 500355. This replacement part is designed for various Gorenje, Bellers, Panasonic, Pelgrim, Sibir, and Upo dryer and washing machine models. Please read these instructions carefully before proceeding to ensure safe and correct usage.

Safety Instructions

• Always disconnect the appliance from the power supply before attempting any installation, maintenance, or repair.
• Installation should only be performed by a qualified technician or a person with sufficient technical knowledge and experience in appliance repair.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
• Ensure all connections are secure and correctly made before restoring power to the appliance.
• Keep children and pets away from the work area.
• Do not modify the door switch or use it for purposes other than its intended function.

Product Overview

The DL-pro Door Switch (model 500355) is a crucial component for ensuring the safe operation of your dryer or washing machine. It acts as a safety mechanism, preventing the appliance from starting or operating if the door is not securely closed and locked.

Key Features:

• Door lock relay with latch for tumble dryers and washing machines.
• Suitable replacement for Gorenje 500355.
• Durable plastic construction.

Product Dimensions:

• Length: 137 mm
• Width: 36 mm
• Height: 27 mm

Image: Front view of the DL-pro Door Switch 500355.

Image: Angled view of the DL-pro Door Switch 500355.

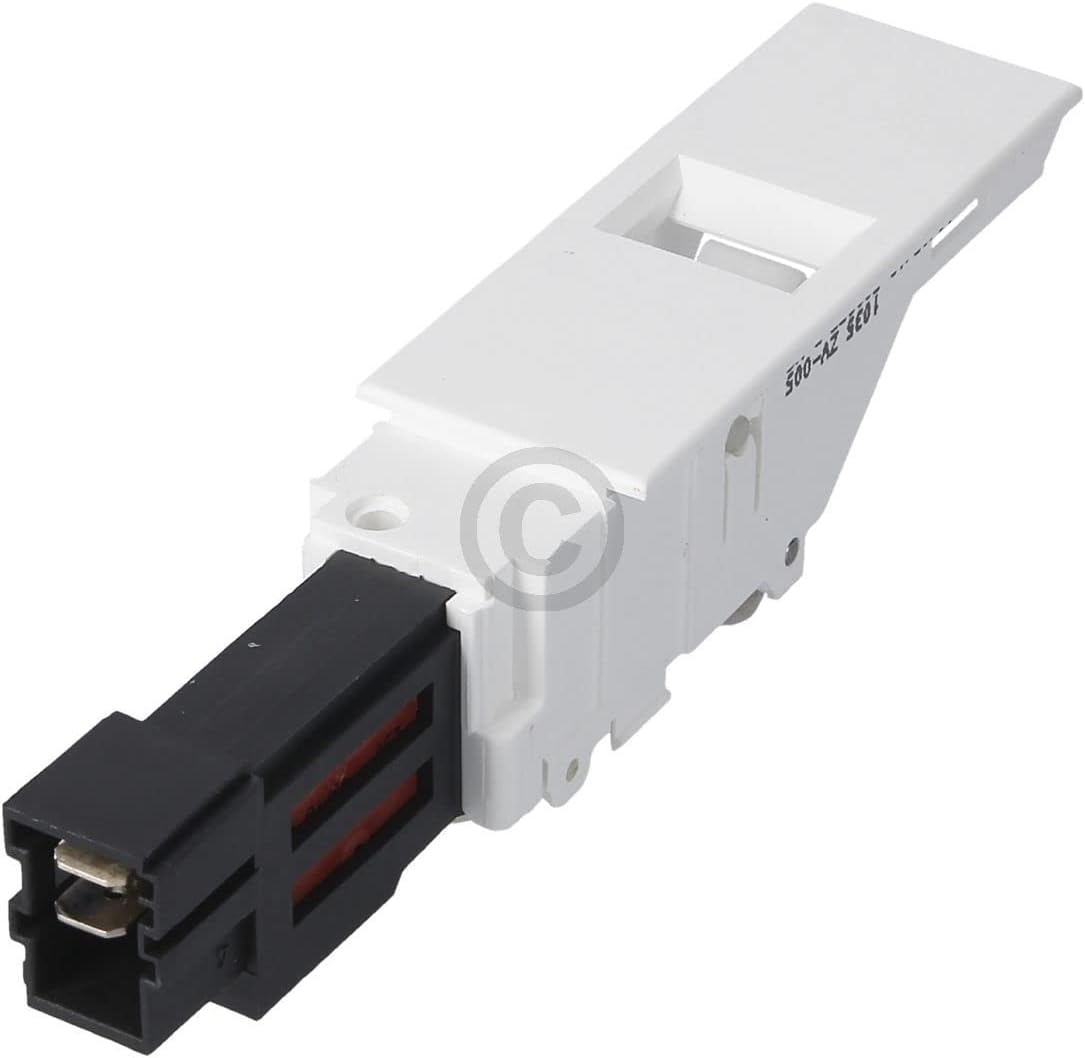

Image: Back view of the DL-pro Door Switch 500355, showing the electrical connector.

Compatibility

This door switch is compatible with various models from the following brands: Gorenje, Bellers, Panasonic, Pelgrim, Sibir, and Upo. For a comprehensive list of compatible appliance models, please refer to the detailed compatibility charts provided in the images below. It is crucial to verify your appliance's model number against these lists to ensure proper fit and function.

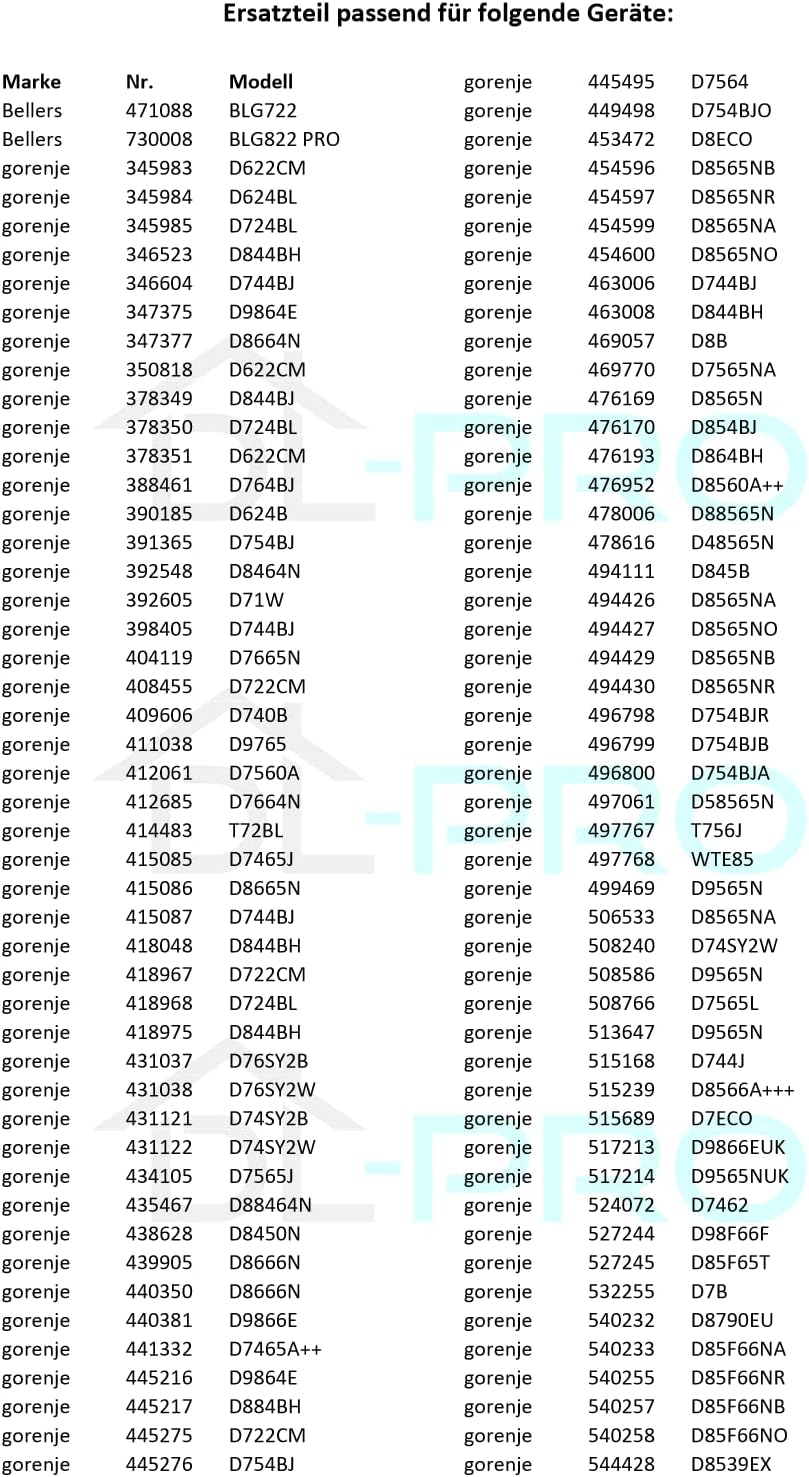

Image: Part 1 of the detailed compatibility list for the DL-pro Door Switch 500355, showing various Gorenje models.

Image: Part 2 of the detailed compatibility list for the DL-pro Door Switch 500355, including models from Gorenje, Hisense, Panasonic, Pelgrim, Sibir, and Upo.

Installation

The installation of this door switch requires technical expertise. If you are not confident in performing the installation yourself, it is highly recommended to seek assistance from a qualified appliance repair technician.

General Installation Steps (for reference only):

1. Disconnect Power: Ensure the appliance is completely disconnected from the main power supply.
2. Access the Component: Carefully open the appliance casing or access panel to locate the existing door switch.
3. Remove Old Switch: Disconnect any wiring and mounting screws holding the old door switch in place. Note the orientation and wiring connections for correct reassembly.
4. Install New Switch: Position the new DL-pro Door Switch 500355 in the same manner as the old one. Secure it with screws and reconnect the wiring according to the original configuration.
5. Reassemble: Close all access panels and secure the appliance casing.
6. Test Functionality: Restore power to the appliance and perform a test cycle to ensure the door switch functions correctly and the appliance operates safely.

Operating Instructions

The DL-pro Door Switch 500355 operates automatically as part of your appliance's safety system. Its primary function is to detect whether the appliance door is securely closed and locked before allowing the wash or dry cycle to begin. There are no user-adjustable settings for this component.

• Ensure the appliance door is firmly closed until you hear a click, indicating the door switch has engaged.
• If the door is not properly closed, the appliance will typically display an error code or refuse to start.
• Do not force the door open during operation, as this can damage the door switch and other components.

Maintenance

The DL-pro Door Switch 500355 is designed for durability and typically requires minimal maintenance. However, regular inspection of your appliance can help identify potential issues early.

• Periodically inspect the door and the area around the door switch for any signs of wear, damage, or debris accumulation.
• Keep the door seal clean to ensure a proper seal and prevent undue stress on the door locking mechanism.
• If you notice any unusual sounds or difficulty in closing/opening the door, consult a qualified technician.

Troubleshooting

If your appliance is experiencing issues related to the door locking mechanism, consider the following general troubleshooting steps:

• Appliance Not Starting: Ensure the door is fully closed and latched. If the appliance still does not start, the door switch may be faulty or incorrectly installed.
• Door Not Locking: Check for any obstructions preventing the door from closing completely. If no obstructions are present, the door switch or its latching mechanism might be damaged.
• Error Codes: Refer to your appliance's main user manual for specific error codes related to the door lock or door switch.

For persistent issues or if you suspect a faulty door switch, it is recommended to contact a qualified appliance repair technician for diagnosis and repair.

Specifications

Warranty and Support

For information regarding warranty coverage, returns, or technical support for your DL-pro Door Switch 500355, please refer to the purchase documentation or contact the seller directly. DL-pro is committed to providing high-quality replacement parts to extend the life of your household appliances.
