1. Introduction
This manual provides essential information for the safe and efficient operation of your Monzana MZH2501 2500W Wall-Mounted Infrared Heater. Please read all instructions carefully before use and retain for future reference. This infrared heater is designed to provide targeted heat quickly and efficiently, suitable for various outdoor covered areas.
2. Safety Instructions
Always observe the following safety precautions to prevent injury or damage to the product.
- Do not cover the heater. To prevent overheating, the appliance must not be covered during operation.
- Always follow the instructions provided in this manual.
- General Hazard Warning: Be aware of potential electrical and heat-related hazards.
- Choking Hazard: Keep small parts and packaging materials away from children.
- Ensure the heater is installed securely according to the mounting instructions.
- Do not operate the heater if the power cord or plug is damaged.
- Keep flammable materials at a safe distance from the heater.
3. Package Contents
Verify that all items are present in the package:
- Monzana MZH2501 Infrared Heater
- Remote Control
- Mounting Material (for wall or ceiling installation)
- Weatherproof Protective Cover
4. Setup and Installation
The Monzana MZH2501 infrared heater is designed for easy installation on walls or ceilings in covered outdoor areas.
- Choose Location: Select a suitable location on a wall or ceiling in a covered outdoor area such as a terrace, balcony, or garden. Ensure the surface can support the heater's weight and that there is adequate clearance from flammable materials.
- Mounting: Use the provided mounting material to securely attach the heater to the chosen surface. Follow the specific instructions included with the mounting hardware for correct installation.

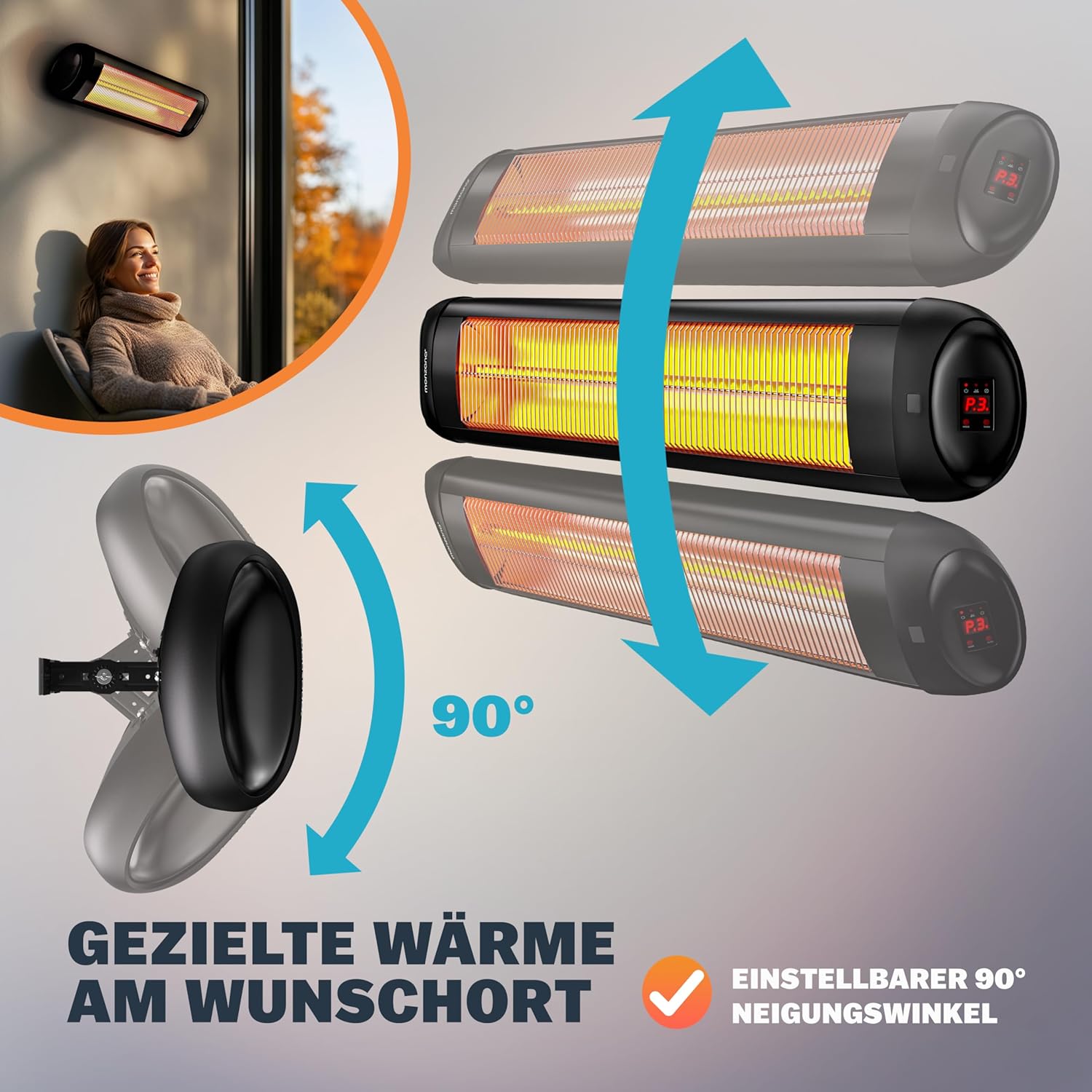

- Adjust Angle: The heater features a 90° adjustable inclination, allowing you to direct the heat precisely where needed. Adjust the angle after mounting for optimal heating coverage.
- Power Connection: Connect the heater to a suitable power outlet. Ensure the outlet meets the electrical requirements of the heater.
5. Operating Instructions

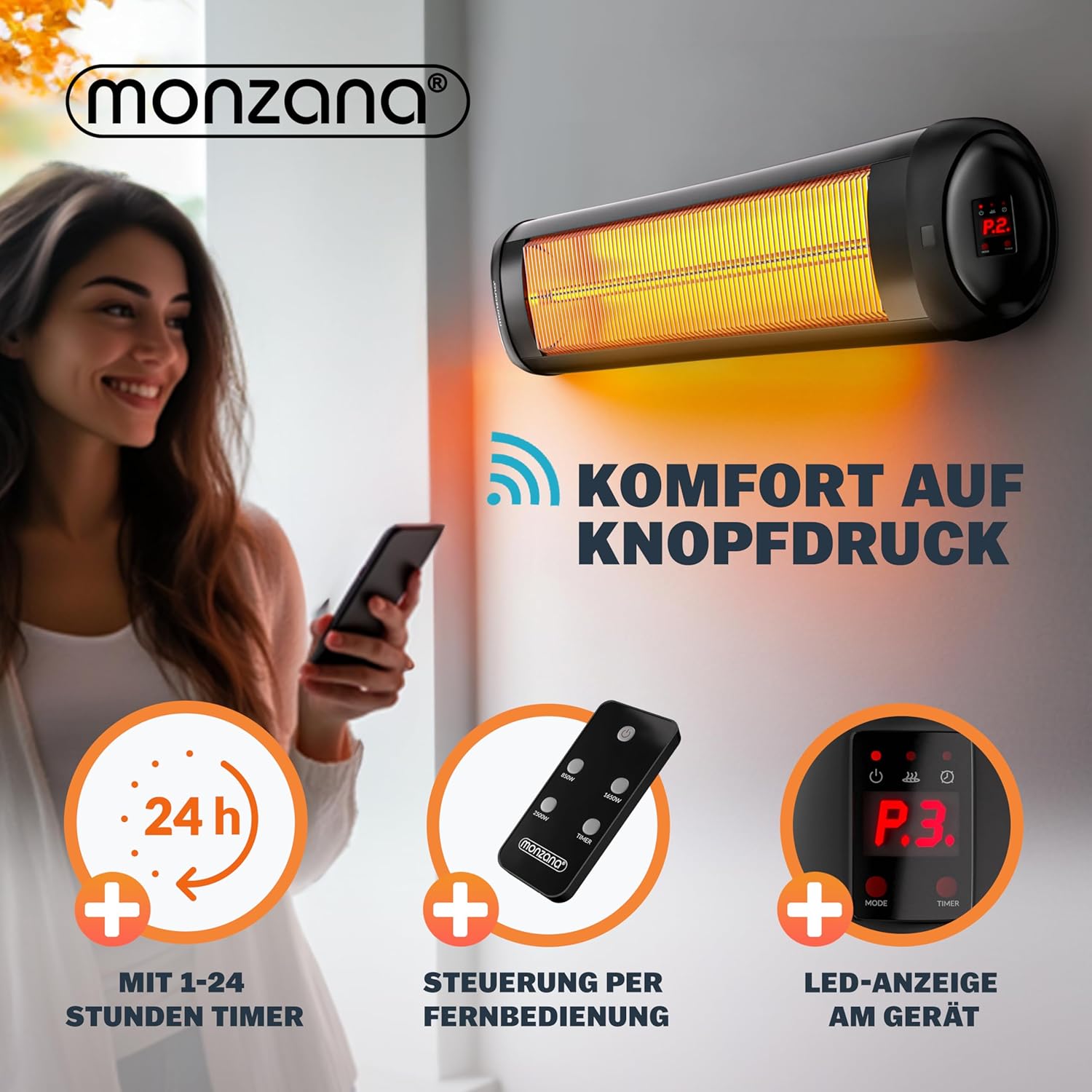

Operate your Monzana MZH2501 heater using the included remote control and integrated LED display.
- Power On/Off: Use the power button on the remote control or the unit to turn the heater on or off.
- Select Heat Level: The heater offers 3 adjustable temperature levels: 850W, 1650W, and 2500W. Use the remote control to cycle through these power settings to achieve your desired warmth. The LED display on the unit will show the current setting.
- Set Timer: Activate the 24-hour timer function via the remote control. You can set the heater to automatically turn on or off after a specified duration (1-24 hours).
- Infrared Heating: The infrared technology provides rapid and efficient heat without the need for long preheating times. It emits targeted heat directly to objects and people, similar to natural sunlight, and does not circulate dust, making it suitable for allergy sufferers.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your heater.
- Cleaning: Before cleaning, ensure the heater is turned off and unplugged, and has completely cooled down. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: When not in use for extended periods, store the heater in a dry, protected area. Use the provided weatherproof protective cover to shield it from dust and moisture.
- Inspection: Periodically check the power cord and plug for any signs of damage. Ensure all mounting hardware remains secure.
7. Troubleshooting
If you encounter issues with your Monzana MZH2501 heater, refer to the following common troubleshooting steps:
- Heater does not turn on:
- Check if the power cord is securely plugged into a working outlet.
- Ensure the main power switch on the unit is in the 'On' position.
- Verify that the remote control batteries are not depleted.
- No heat output:
- Confirm that a heat level (850W, 1650W, or 2500W) is selected.
- Check if the timer function is active and has not turned the unit off.
- Remote control not working:
- Replace the batteries in the remote control.
- Ensure there are no obstructions between the remote control and the heater's receiver.
If problems persist after attempting these steps, please contact Monzana customer support.
8. Specifications
| Model | MZH2501 |
| Power Output | 2500W (3 levels: 850W, 1650W, 2500W) |
| Dimensions (L x W x H) | 87 x 19 x 9 cm |
| Weight | 3.8 kg |
| Material | Aluminum |
| Color | Black |
| Control | Remote Control |
| Timer | 24-hour function |
| Protection Class | IP34 (splash-proof) |
| Installation Type | Wall-mounted / Ceiling-mounted |
| Adjustable Angle | 90° |
| Usage Environment | Outdoor (covered areas) |
9. Warranty and Support
Monzana products are manufactured to high-quality standards. In the unlikely event of a defect or malfunction, please refer to your purchase documentation for warranty details. For technical support, spare parts, or service inquiries, please contact Monzana customer service through the retailer where the product was purchased or visit the official Monzana website for contact information.
