1. Introduction
This manual provides essential information for the safe and efficient use of your Bosch Serie 4 Wall Mounted Inclined Design Cooker Hood, model DWKA98G60I. Please read these instructions carefully before installation, operation, or maintenance to ensure proper functioning and to prevent damage or injury. Keep this manual for future reference.

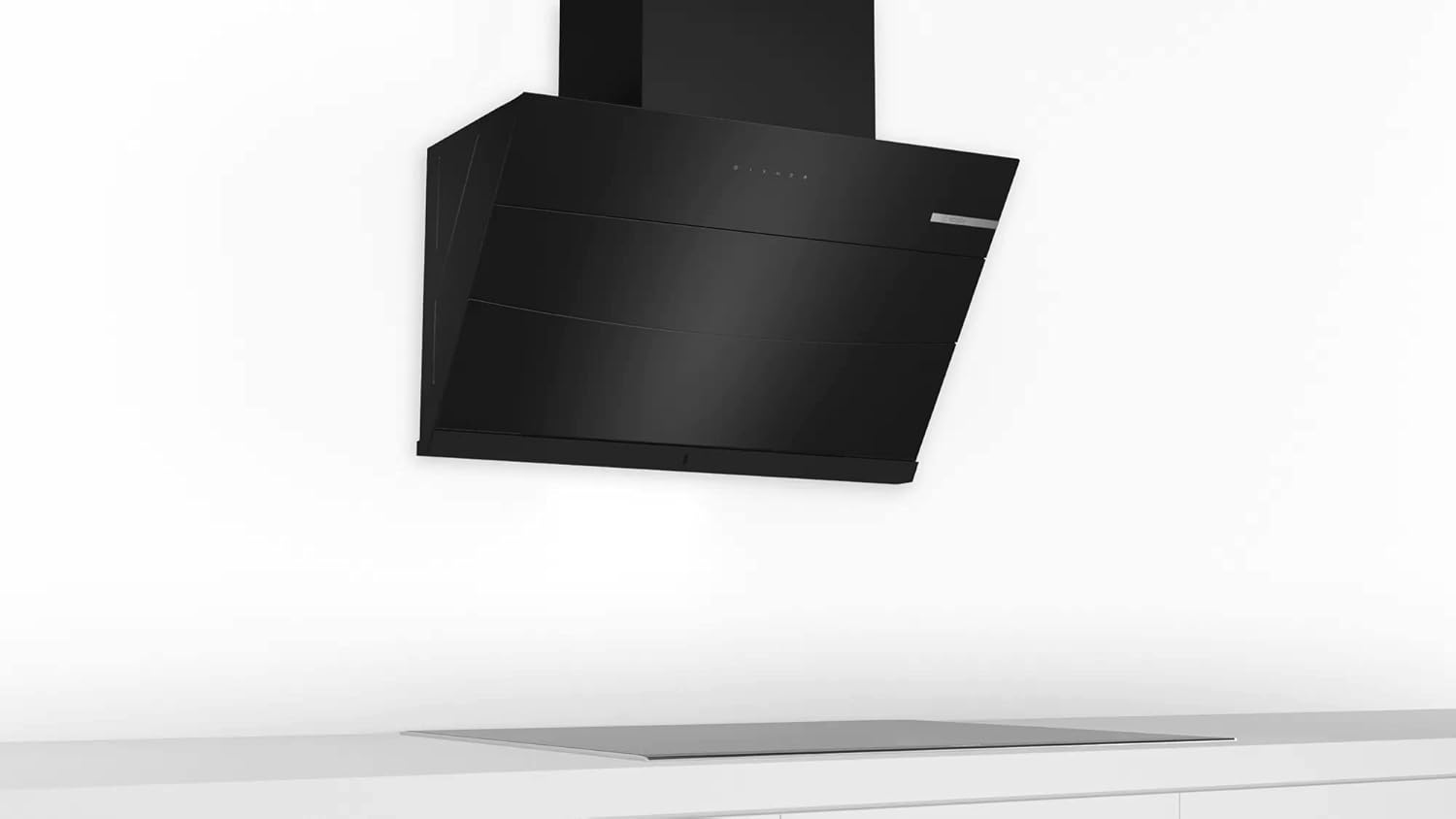

Image 1.1: Front view of the Bosch Serie 4 DWKA98G60I cooker hood, showcasing its inclined design and black finish, mounted above a cooktop.
2. Safety Information
Always adhere to the following safety guidelines to prevent accidents and ensure the longevity of your appliance:
- Ensure the appliance is installed by a qualified technician.
- Ducting is compulsory for this model. Ensure proper ventilation and exhaust air discharge.
- Do not flambé under the cooker hood.
- Clean the grease filters regularly to prevent fire hazards.
- Keep children away from the appliance during operation.
- Disconnect the power supply before any cleaning or maintenance.
3. Setup and Installation
The Bosch DWKA98G60I cooker hood is designed for wall-mounted installation. Proper measurements and ducting are crucial for optimal performance.
3.1 Product Dimensions
Image 3.1: Detailed diagram showing the overall dimensions of the cooker hood in millimeters, including height, width, and depth, and the ducting diameter (Ø 184).
3.2 Mounting Requirements
Ensure the mounting surface is strong enough to support the appliance's weight (approximately 25 kg). Maintain the specified minimum distance from the cooktop.

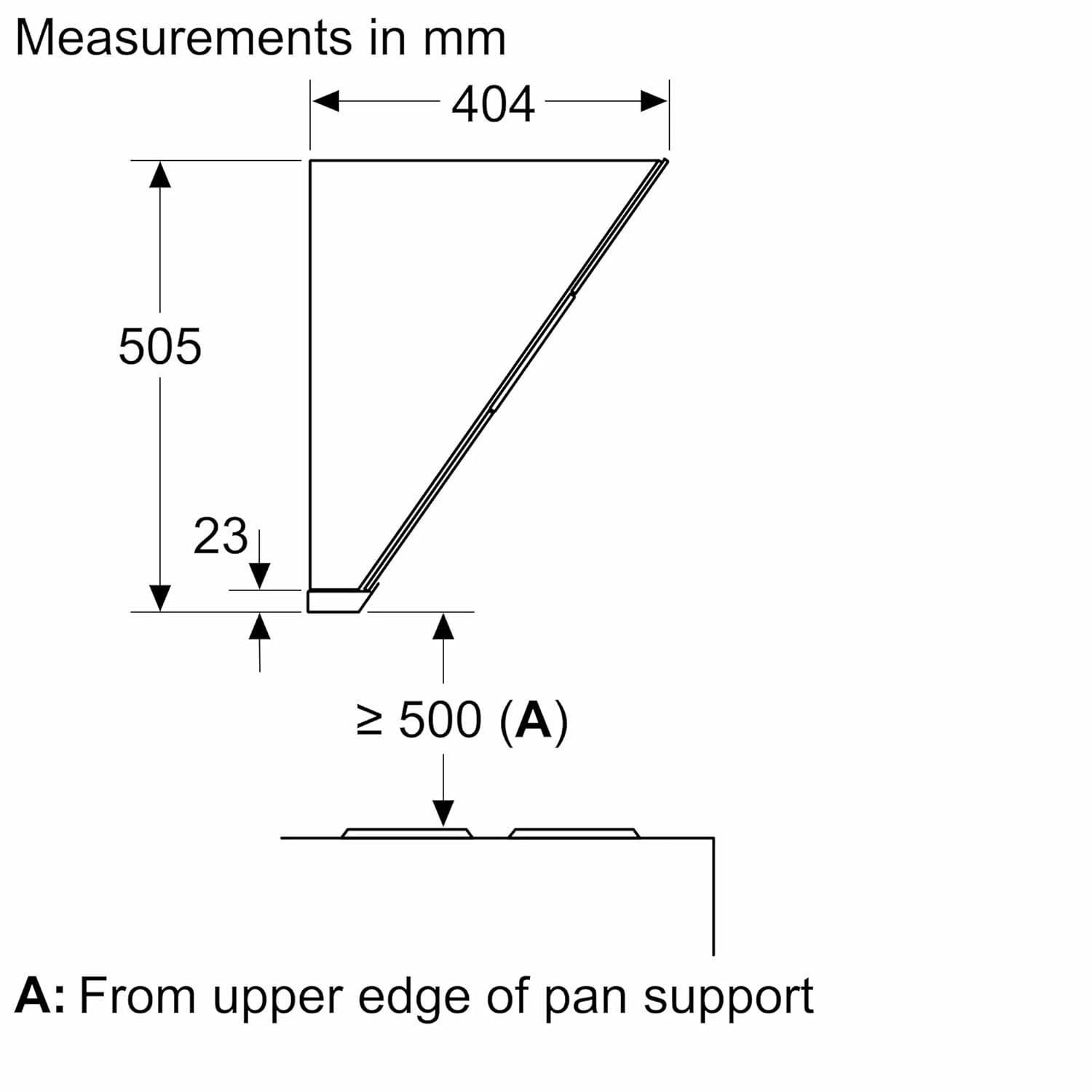

Image 3.2: Diagram illustrating the mounting bracket dimensions and recommended installation height. The distance from the upper edge of the pan support (A) must be at least 500 mm.
3.3 Exhaust Air Outlet and Electrical Connection
The exhaust air outlet (A) has a diameter of 180 mm. Ensure the electrical socket (B) is positioned correctly for easy access and connection.

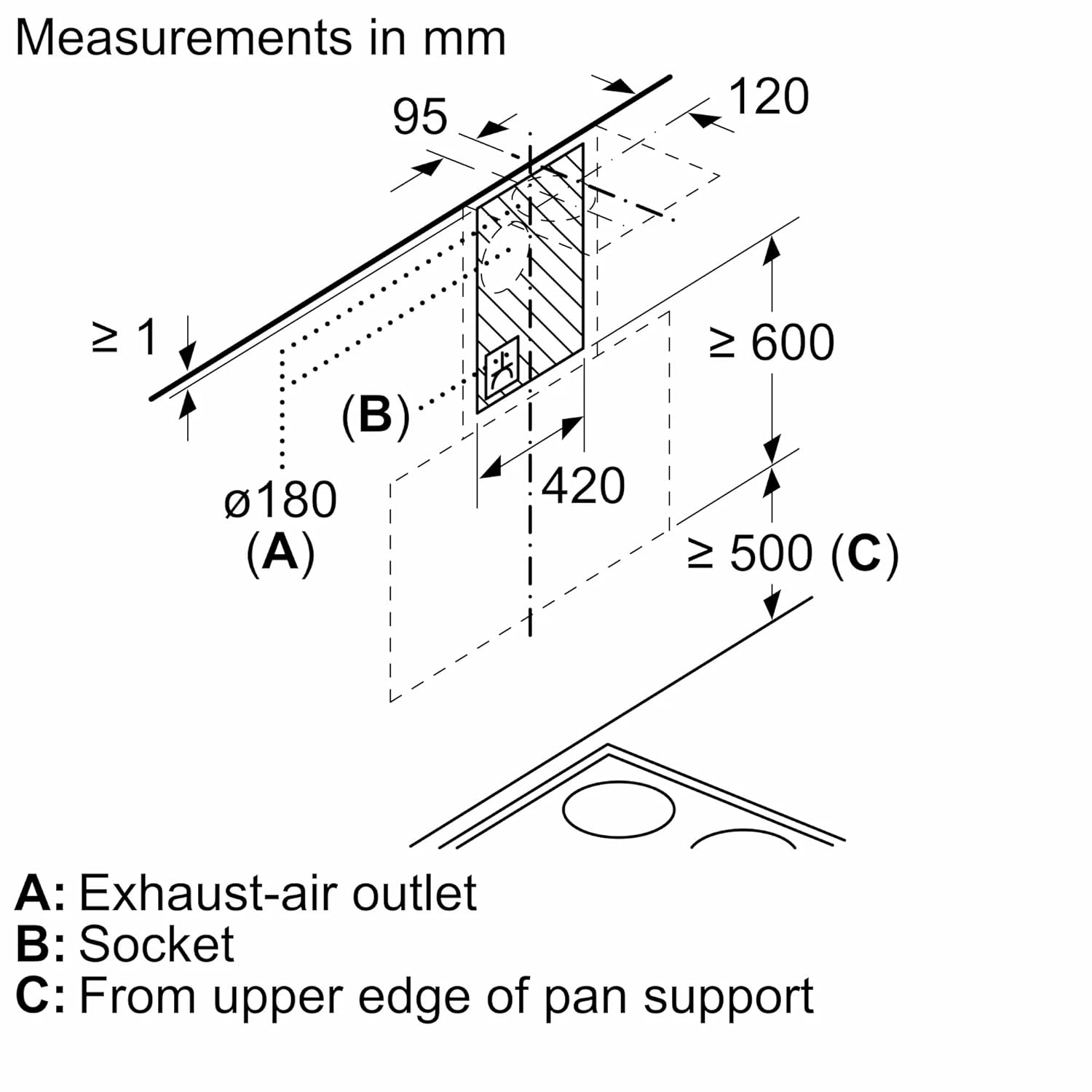

Image 3.3: Diagram showing the placement of the exhaust-air outlet (A) and electrical socket (B) relative to the cooker hood and cooktop. The minimum distance from the upper edge of the pan support (C) is 500 mm.
3.4 Side View Measurements
Image 3.4: Side view diagram detailing the depth and height measurements of the cooker hood, including the minimum distance from the upper edge of the pan support (A).
4. Operating Instructions
The Bosch DWKA98G60I features intuitive touch controls for fan speed and lighting.
4.1 Control Panel Overview
Image 4.1: Close-up of the touch control panel on the cooker hood, showing icons for power, fan speeds (1, 2, 3), intensive speed, and lighting.
4.2 Fan Speed Settings
The cooker hood offers 3 normal speed settings and an intensive speed setting for powerful extraction.
- Power Button (ⓘ): Press to turn the hood on or off.
- Speed 1, 2, 3: Select the desired fan speed for normal cooking.
- Intensive Speed (3↔): Activates maximum extraction power for strong odors and steam. This setting typically reverts to a lower speed after a set time.
4.3 Lighting Control
The integrated LED lighting illuminates your cooking area.
- Light Button (☀): Press to turn the LED lights on or off.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your cooker hood.
5.1 Cleaning the Grease Filters
The mesh filters capture grease and should be cleaned regularly. This model features an 'Auto Clean' function, but manual cleaning of filters is still required periodically.
Image 5.1: Close-up view of the mesh grease filter, designed to trap cooking fats and particles.
- Switch off the appliance and disconnect it from the power supply.
- Carefully remove the mesh filters. Refer to the installation diagrams for filter access.
- Clean the filters in warm soapy water or in a dishwasher.
- Ensure filters are completely dry before re-installing.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals.
6. Troubleshooting
If you encounter issues with your cooker hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood not turning on | No power supply | Check power connection and circuit breaker. |
| Low extraction power | Clogged grease filters or blocked ducting | Clean grease filters. Check ducting for obstructions. |
| Excessive noise | Loose components or improper installation | Ensure all parts are securely fastened. Contact a technician if noise persists. |
| Lights not working | Faulty LED or electrical connection | Check light connection. Contact service for LED replacement. |
If the problem persists after attempting these solutions, please contact Bosch customer support.
7. Specifications
Key technical specifications for the Bosch Serie 4 DWKA98G60I Cooker Hood:
| Feature | Specification |
|---|---|
| Model | DWKA98G60I |
| Mounting Type | Wall Mount |
| Controls Type | Touch |
| Number of Speeds | 3 (Normal) + 1 (Intensive) |
| Noise Level | 44 Decibels |
| Item Weight | 25 Kilograms |
| Light Source Type | LED |
| Filter Type | Mesh |
| Ventilation Type | Ducted/Vented |
| Product Dimensions (LxWxH) | 41.5 x 90 x 50.5 Centimeters |
| Material | Glass |
| Finish Type | Black |
8. Warranty and Support
For installation, demonstration, and any support queries regarding your Bosch cooker hood, please use the contact information below:
- Customer Service Hotline: 1800-266-1880
- WhatsApp Support: 987-366-1880
Please refer to your purchase documentation for specific warranty terms and conditions applicable to your region.
