LOCKED AIR Honeycomb Packing Paper Roll Dispenser Manual

1. Introduction and Overview

The LOCKED AIR Honeycomb Packing Paper Roll Dispenser is a robust, manual machine designed to streamline your packaging process. It facilitates the use of honeycomb kraft paper, an environmentally friendly alternative to traditional plastic packaging materials. This dispenser is engineered for ease of use, allowing for quick and efficient wrapping of various items, providing excellent cushioning and protection.

Key features include its durable metal construction, compatibility with 15-inch (380mm) wide honeycomb paper rolls with a 2-inch core, and a design that significantly improves packing efficiency. The dispenser itself is compact, saving valuable workspace.

Image: The Honeycomb Packing Paper Roll Dispenser in action, showing a roll of brown honeycomb paper being pulled through the machine, expanding into its protective honeycomb structure.

2. Setup

Before using your Honeycomb Packing Paper Roll Dispenser, ensure it is properly assembled and placed on a stable, flat surface.

2.1 Assembly Instructions

1. Unpack Components: Carefully remove all parts from the packaging. You should have the main dispenser frame, a metal rod, and assembly hardware (screws, Allen wrench).
2. Attach Side Supports: Secure the two side support frames to the main base using the provided screws and Allen wrench. Ensure all connections are tight for stability.
3. Insert Paper Roll Rod: Slide the metal rod through the designated holes in the side supports. This rod will hold the honeycomb paper roll.
4. Load Paper Roll: Place your honeycomb paper roll onto the metal rod, ensuring the paper unwinds from the top and feeds through the tension bar. The dispenser is designed for honeycomb paper rolls with a 2-inch core diameter and a width of 15 inches (380mm).
5. Adjust Tension: Use the tension knob on the side of the dispenser to adjust the tightness of the paper roll. This allows for smooth dispensing and proper expansion of the honeycomb structure.

Image: Detailed view of the dispenser's tension adjustment knob and the mechanism for loading/unloading paper rolls.

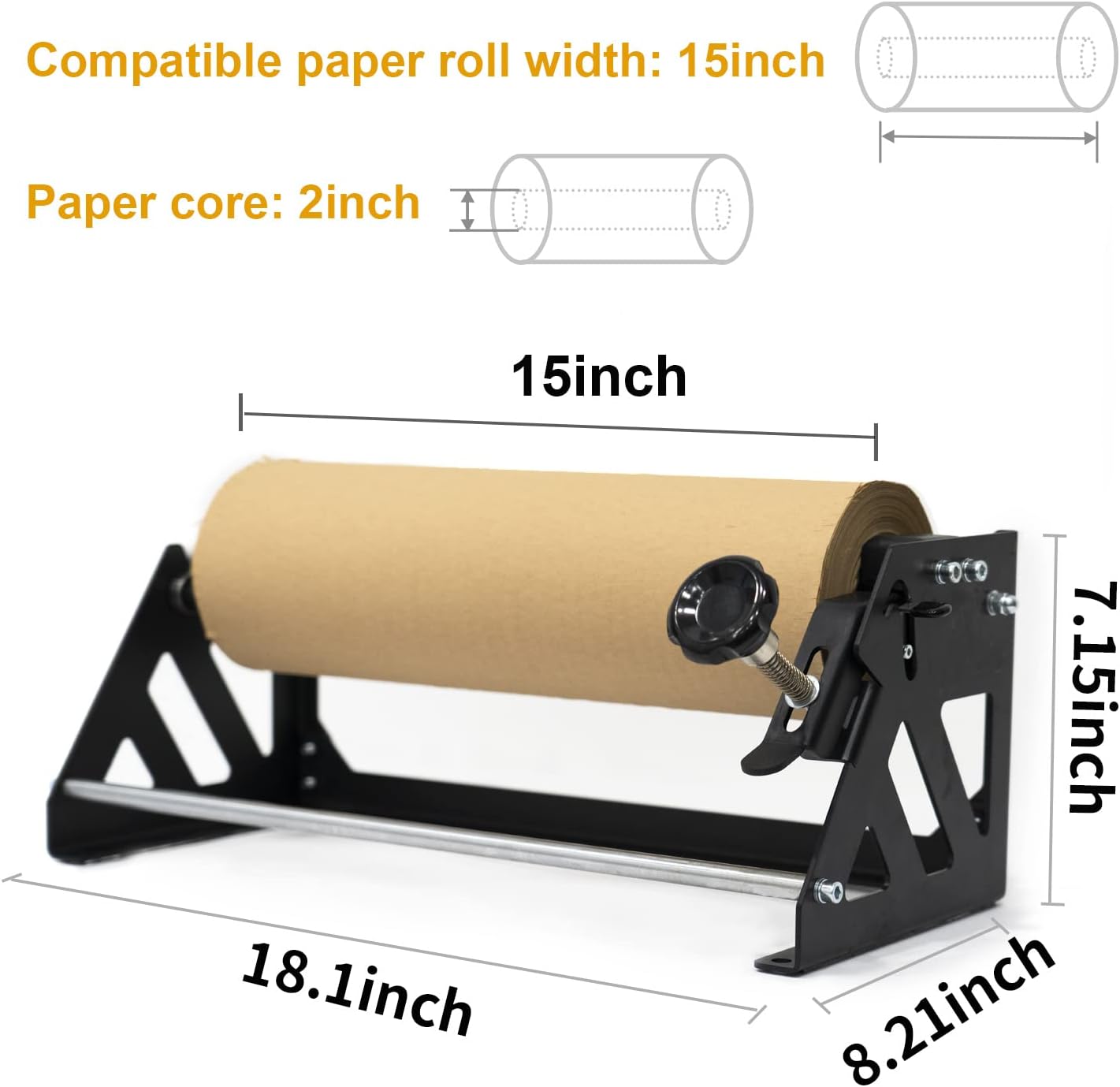

Image: A diagram illustrating the precise dimensions of the dispenser and the compatible paper roll width and core size.

2.2 Setup Video Guide

3. Operating Instructions

Operating the Honeycomb Packing Paper Roll Dispenser is straightforward, designed for efficiency and ease of use.

3.1 Dispensing and Wrapping

1. Pull and Stretch: Gently pull the end of the honeycomb paper from the dispenser. As you pull, the paper will expand into its 3D honeycomb structure.
2. Wrap Item: Place the item you wish to pack onto the stretched honeycomb paper. Wrap the paper securely around the item, ensuring all sides are covered. The interlocking honeycomb cells will provide cushioning.
3. Tear Off: Once the item is sufficiently wrapped, simply tear the paper against the cutting bar of the dispenser. No scissors or tape are needed, as the paper's structure allows it to cling to itself.
4. Place in Box: Carefully place the wrapped item into your shipping box. You can also use additional stretched honeycomb paper as void filler to prevent movement during transit.

Image: A visual guide demonstrating the four main steps of using the dispenser: loading the paper, stretching it, wrapping an item, and tearing the paper.

Image: The dispenser set up with a roll of honeycomb paper, alongside various items ready for wrapping, such as a glass jar and a mug.

3.2 Usage Examples Video

4. Maintenance

To ensure the longevity and optimal performance of your Honeycomb Packing Paper Roll Dispenser, follow these simple maintenance guidelines:

• Regular Cleaning: Periodically wipe down the dispenser with a dry or slightly damp cloth to remove any dust or paper residue. Avoid using harsh chemicals that could damage the metal finish.
• Check for Wear: Inspect the tension mechanism and the cutting bar regularly for any signs of wear or damage. Ensure the metal rod rotates freely.
• Lubrication (if needed): If the paper roll rod or tension mechanism feels stiff, a small amount of silicone-based lubricant can be applied to moving parts, avoiding contact with the paper path.
• Proper Storage: When not in use for extended periods, store the dispenser in a clean, dry environment to prevent rust or corrosion.

5. Troubleshooting

If you encounter any issues with your Honeycomb Packing Paper Roll Dispenser, refer to the following common troubleshooting tips:

5.1 Paper Not Dispensing Smoothly

• Check Tension: The tension knob might be too tight. Loosen it slightly to allow the paper to pull through more easily.
• Paper Roll Alignment: Ensure the paper roll is properly seated on the metal rod and is not skewed, which could cause friction.
• Obstructions: Check for any debris or small pieces of paper that might be obstructing the paper path or the tension mechanism.

5.2 Honeycomb Structure Not Expanding Properly

• Insufficient Stretch: Ensure you are pulling the paper with enough force to fully expand the honeycomb cells. The dispenser's design aids in this, but manual stretching is still required.
• Paper Type: Verify that you are using genuine honeycomb packing paper designed for this type of dispenser.

5.3 Paper Roll Does Not Fit

• Core Size: This dispenser is specifically designed for honeycomb paper rolls with a 2-inch core diameter. Rolls with smaller core sizes will not fit correctly.
• Paper Width: The dispenser accommodates paper rolls with a maximum width of 15 inches (380mm). Ensure your paper roll meets this specification.

6. Specifications

7. Warranty and Support

LOCKED AIR is committed to providing high-quality products and customer satisfaction. For any inquiries regarding your Honeycomb Packing Paper Roll Dispenser, including operational assistance, troubleshooting, or warranty information, please contact our customer support team.

Please refer to your purchase documentation for specific warranty terms and conditions. For direct support, visit the official LOCKED AIR store or contact the seller through your purchase platform.

Online Support: LOCKED AIR Amazon Store
