PURPLE LEAF Counter Height Bar Stools (2PC-24.8'H) Instruction Manual

1. Introduction

Thank you for choosing the PURPLE LEAF Counter Height Bar Stools. This manual provides essential information for the safe assembly, operation, and maintenance of your new bar stools. Please read it thoroughly before use and retain it for future reference.

These stylish and durable bar stools are designed for both indoor and outdoor use, featuring a hand-woven rattan wicker backrest, comfortable cushions, and a robust aluminum frame. They are ideal for patios, decks, gardens, kitchen islands, and home bars.

2. Safety Information

• Weight Limit: Do not exceed the maximum weight recommendation of 330 pounds per chair.
• Stable Surface: Always use the bar stools on a stable, level surface to prevent tipping and ensure safety.
• Heat Sources: Keep the bar stools away from direct heat sources and open flames to prevent damage or fire hazards.
• Weather Conditions: While designed for outdoor use, it is recommended not to leave the bar stools outdoors in extreme weather conditions (e.g., heavy storms, prolonged freezing temperatures) to prolong their lifespan.
• Sharp Edges: Be mindful of any sharp edges or corners during assembly and use to avoid injury.
• Children: Keep small parts away from children during installation.

3. Package Contents

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

Each set includes:

• 2 x Bar Stool Backrests (Part A)
• 2 x Bar Stool Bases (Part B)
• 2 x Front Crossbars (Part C)
• 8 x M6 x 20 Screws (Part D)
• 2 x Allen Keys (Part E)
• 6 x M6 x 55 Screws (Part F)
• 2 x Cushions (Part G)

Image: Checklist of included parts for assembly, showing the backrest, base, crossbar, screws, Allen key, and cushion.

4. Setup and Assembly

Assembly is required for these bar stools. Please follow the steps below carefully. Do not fully tighten screws until all parts are aligned.

1. Attach Front Crossbar: Connect the front crossbar (Part C) to the bar stool base (Part B) using two M6 x 20 screws (Part D). Ensure the front and back are correctly oriented.
2. Attach Backrest: Align the backrest (Part A) with the assembled base. Secure it using four M6 x 20 screws (Part D) for the seat and three M6 x 55 screws (Part F) for the back support.
3. Tighten All Screws: Once all parts are loosely assembled and aligned, fully tighten all screws using the provided Allen key (Part E).
4. Place Cushion: Position the cushion (Part G) onto the seat.

Image: Illustration showing the first step of assembly, connecting the front crossbar to the stool base.

Image: Illustration showing the second step of assembly, attaching the backrest to the stool base.

Product Overview Video

5. Operating Instructions

These counter height bar stools are designed for comfortable seating at counters ranging from 34 to 38 inches in height. The 24.8-inch seat height is optimized for this range.

• Placement: Suitable for various settings including outdoor patios, decks, porches, gardens, backyards, kitchen islands, and home bars.
• Comfort: The hand-woven geometric backrest and comfortable cushions provide support for extended seating. The low armrest design allows for closer seating to a counter or table.
• Footrest: Utilize the integrated footrest for added comfort and stability.

Image: Two PURPLE LEAF Counter Height Bar Stools positioned at a kitchen island, showcasing their design and suitability for indoor use.

Image: PURPLE LEAF Counter Height Bar Stools arranged around an outdoor bar area, highlighting their weather-resistant features and outdoor application.

6. Maintenance

• Frame Cleaning: Wipe the aluminum frame with a dry cloth to remove dust and debris. For stubborn dirt, use a mild soap solution and a soft cloth, then rinse and dry thoroughly.
• Cushion Care: The cushion covers are detachable for easy cleaning. They are made of wear-resistant and tough fabric. Hand wash or machine wash on a gentle cycle with cold water. Air dry only; do not tumble dry.
• Rattan Wicker: The Textilene wicker is weather and UV resistant. Clean with a soft brush or cloth and mild soap solution, then rinse thoroughly.
• Seasonal Storage: For prolonged product life, especially in harsh winter conditions, consider storing cushions indoors or covering the stools when not in use.

Image: A close-up view of the bar stool's cushion, emphasizing its texture and comfort, which is also easy to clean.

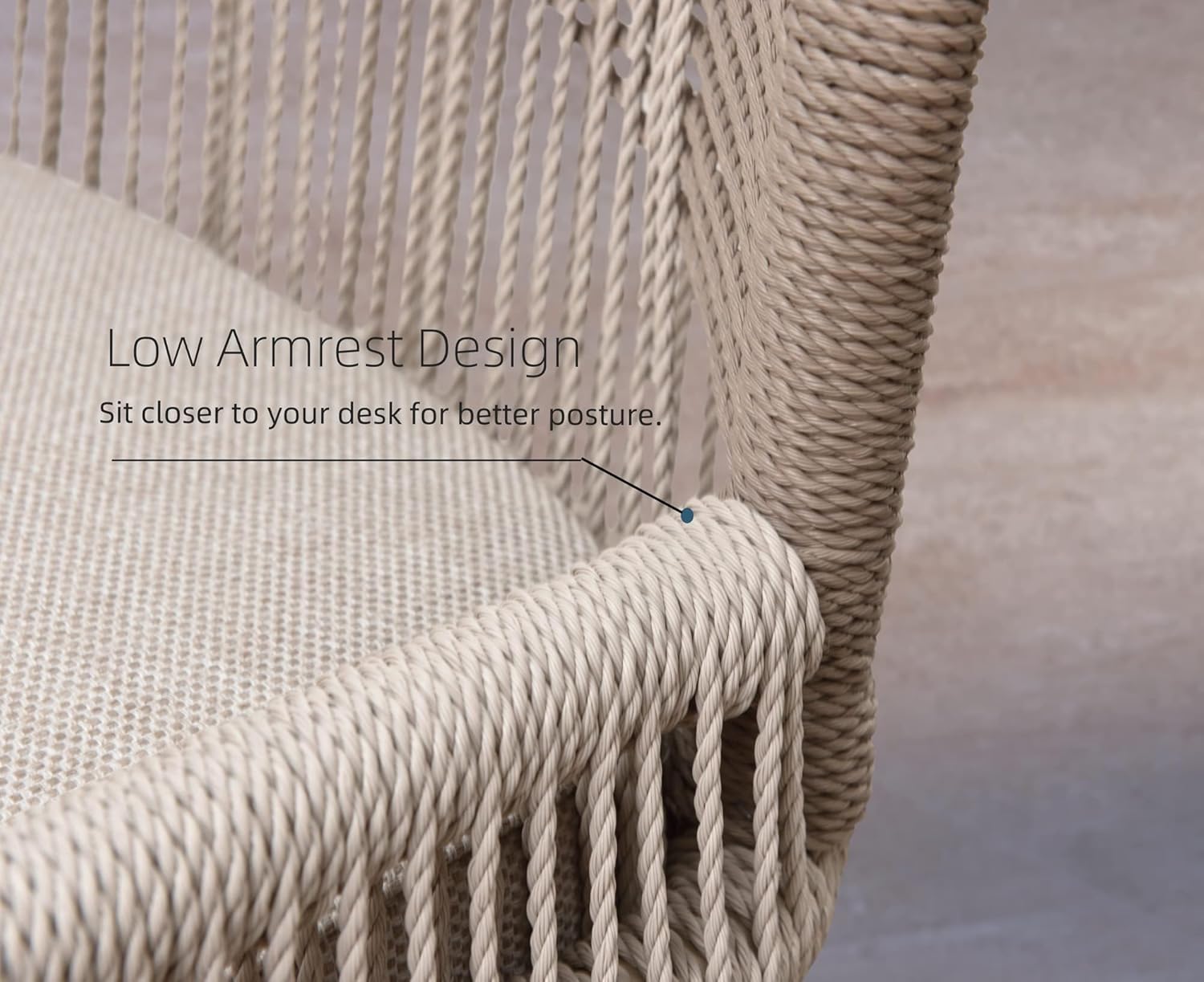

Image: A detailed shot of the double Textilene rope weave, highlighting its anti-tear, breathable, skin-friendly, and quick-drying properties.

7. Troubleshooting

• Wobbly Stool: If the stool feels wobbly after assembly, ensure all screws are fully tightened. Loosen slightly, adjust the stool on a flat surface, and then re-tighten all screws evenly.
• Cushion Slippage: If cushions tend to slip, consider adding non-slip pads (not included) to the underside of the cushions.
• Fading/Wear: While UV resistant, prolonged exposure to direct sunlight can cause gradual fading. Rotate stools periodically or use covers when not in use to minimize this.

8. Specifications

Image: Diagram illustrating the detailed dimensions of the bar stool, including height, width, and depth, and recommended counter height.

9. Warranty

PURPLE LEAF products are manufactured with high-quality materials and craftsmanship. This product comes with the following warranty:

• Frames: Warranted to be free from defects in material and workmanship for 1 year from item purchase date.
• Bolts & Nuts: Warranted to be free from defects in material and workmanship for 1 year from item purchase date.
• Cushions and Ropes: Warranted to be free from defects in material and workmanship for 1 year from item purchase date.

This warranty does not cover product damage due to negligence, abuse, improper use, or natural disasters. Damage to cushions (including but not limited to oils, spills, fluids) is not covered. This warranty is for the original purchaser only and is non-transferable. Please retain your order number for warranty claims. For more details or to apply for warranty service, please contact customer support.

10. Customer Support

For any questions, concerns, or assistance with your PURPLE LEAF Counter Height Bar Stools, please contact our customer support team. You can find contact information on the official PURPLE LEAF website or through your purchase platform.
