1. Product Overview
The Delta Instant Hot Water Dispenser Faucet (Model 1930LF-H-BL) is designed to provide near-boiling water on demand, enhancing convenience in your kitchen. This contemporary matte black faucet is ideal for various tasks, from preparing hot beverages to assisting with cooking and cleaning.

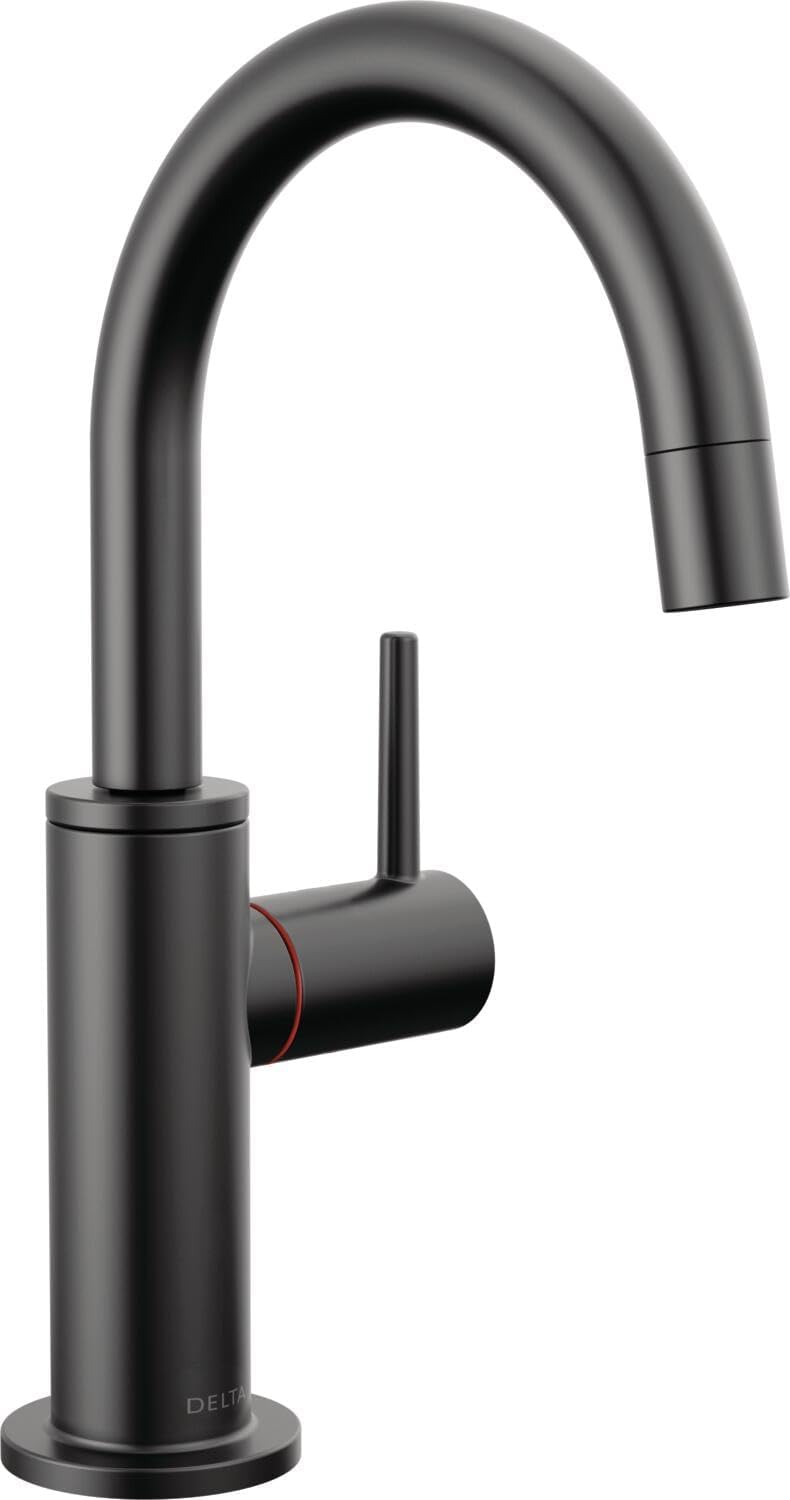

Figure 1: Delta Faucet Instant Hot Water Dispenser Faucet, Matte Black (Model 1930LF-H-BL)
Key Features:
- Instant Hot Water: Delivers near-boiling water for immediate use.
- Insulated Design: Body and spout are insulated to reduce heat transfer.
- Easy Installation: Designed for single-hole configurations.
- Flexible Operation: High arc design with 360-degree swivel for convenience.
- Durable Construction: Made with brass material for longevity.
- ADA Compliant: Meets standards set by the Americans with Disabilities Act.
- Lead-Free Compliant: Adheres to lead-free legislation and safety standards.
Note: The hot water tank and filter are sold separately and are not included with this faucet.
2. Setup and Installation
This Delta Instant Hot Water Dispenser Faucet is designed for straightforward installation into a standard single-hole countertop opening. Ensure you have purchased a compatible hot water tank and filter system, as these are required for operation and are not included with the faucet.
Installation Steps (General Guidance):
- Prepare the Countertop: Ensure a clean, single-hole opening is available for the faucet.
- Mount the Faucet: Secure the faucet to the countertop using the provided mounting hardware.
- Connect Water Lines: Connect the hot and cold water supply lines to the faucet.
- Install Hot Water Tank (Sold Separately): Follow the manufacturer's instructions for installing your hot water tank under the sink.
- Connect Faucet to Tank: Connect the hot water line from the faucet to the hot water tank.
- Check for Leaks: Turn on the water supply and carefully check all connections for any leaks.
Figure 2: Example under-sink setup for a hot water dispenser, illustrating connections to the hot water tank (tank and filter not included with faucet).
For detailed, step-by-step installation instructions, please refer to the comprehensive guide included with your hot water tank and the specific installation manual provided with this Delta faucet.
3. Operating Instructions
The Delta Instant Hot Water Dispenser Faucet provides convenient access to near-boiling water for various household needs.
Dispensing Hot Water:
- To dispense hot water, simply pull the lever handle forward.
- The faucet is designed to provide instant hot water, perfect for:
- Making coffee, tea, and other warm beverages.
- Loosening lids on stubborn jars.
- Assisting with cleaning tasks.
- Aiding in cooking preparations.
- Push the lever handle back to stop the water flow.
Figure 3: Faucet dispensing hot water for beverages.
Flexible Spout Operation:
The high arc design of the faucet allows for a full 360-degree swivel, providing enhanced convenience and flexibility for various sink tasks.
Figure 4: The faucet's 360-degree swivel capability.
4. Maintenance
Regular cleaning and maintenance will help preserve the finish and functionality of your Delta Instant Hot Water Dispenser Faucet.
Cleaning Instructions:
- Clean the faucet regularly with a soft, damp cloth.
- Avoid using abrasive cleaners, harsh chemicals, or polishes, as these can damage the matte black finish.
- For stubborn spots, a mild soap and water solution can be used, followed by rinsing thoroughly and drying with a soft cloth.
General Care:
- Periodically check connections under the sink for any signs of leaks or corrosion.
- Refer to your hot water tank's manual for its specific maintenance requirements, such as filter replacement or descaling.
For more detailed care and cleaning instructions, please visit the official Delta Faucet website or consult the full product manual.
5. Troubleshooting
If you encounter issues with your Delta Instant Hot Water Dispenser Faucet, consider the following common troubleshooting tips. For complex problems, it is recommended to contact a qualified plumber or Delta Faucet customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water or insufficient hot water. | Hot water tank not powered, tank malfunction, or low water level in tank. | Check power supply to the hot water tank. Refer to your hot water tank's manual for troubleshooting its operation. Ensure the tank is filled. |
| Water flow is weak or inconsistent. | Clogged aerator, kinked water line, or issues with the hot water tank's pressure. | Unscrew and clean the aerator at the end of the spout. Check water lines for kinks. Consult your hot water tank manual. |
| Faucet is leaking or dripping. | Loose connections, worn O-rings, or internal cartridge issue. | Ensure all connections are tight. If dripping persists, contact Delta Faucet customer support for assistance or replacement parts. |
If these steps do not resolve the issue, please contact Delta Faucet Customer Support for further assistance.
6. Specifications
Below are the key specifications for the Delta Faucet Instant Hot Water Dispenser Faucet (Model 1930LF-H-BL):
| Attribute | Detail |
|---|---|
| Brand | DELTA |
| Model Name | Contemporary |
| Item Model Number | 1930LF-H-BL |
| Color | Matte Black |
| Finish Type | Matte Black |
| Material | Brass |
| Mounting Type | Deck Mount |
| Hole Count | 1 |
| Number of Handles | 1 |
| Handle Type | Lever |
| Spout Design | Arched or Gooseneck |
| Item Weight | 4.1 Pounds |
| Product Dimensions | 6.31 x 3.81 x 9.44 inches |
| Maximum Flow Rate | 1.5 Gallons Per Minute |
| UPC | 034449992855 |
7. Warranty and Support
Lifetime Limited Warranty:
Delta Faucet stands behind the quality of its products. This Instant Hot Water Dispenser Faucet is backed by Delta Faucet's Lifetime Limited Warranty against manufacturer's defects. This provides confidence in the durability and performance of your product.
Figure 5: Lifetime Limited Warranty symbol.
Compliance:
- Lead-Free Compliant: All Delta faucets, including this model, comply with "lead-free" legislation, meeting or exceeding applicable product performance and U.S. safety industry standards.
- ADA Compliant: This faucet meets the standards set by the Americans with Disabilities Act, ensuring accessibility.
Customer Support:
For any questions, technical assistance, or warranty claims, Delta Faucet's highly trained customer care team is ready to help.
Figure 6: Delta Faucet Customer Service is available to assist you.
Contact Delta Faucet Customer Service:
1-800-345-3358
(Monday - Friday, 8:00 AM - 6:00 PM EST)
You can also visit the official Delta Faucet website for more information and online support resources.
